Product introduction
OD-01 Miniature Diaphragm Pump Series
Compact short- and long-motor configurations for low-flow air, vacuum and liquid applications.
Product galleryModel specifications2 technical files
Product gallery
View the series and its available configurations
Products are presented on a consistent white background for clear comparison of pump heads, motors, ports and mounting structures.
Technical specifications
Product parameters by model group
Each model group lists its available flow, pressure or vacuum, supply, motor, dimensions and interface parameters.
Model noteSelect the model group that matches the intended configuration; values can differ by motor, pump head and control option within the series.
| Model group | Category | Parameter | Value |
|---|---|---|---|
| OD-01A-S / OD-01A-L / OD-01V-S / OD-01V-L | Performance | Custom flow range | 0.3–1 L/min |
| OD-01A-S / OD-01A-L / OD-01V-S / OD-01V-L | Performance | Custom pressure range | 0.5–1 bar |
| OD-01A-S / OD-01A-L / OD-01V-S / OD-01V-L | Performance | Custom vacuum range | -30–-60 kPa |
| OD-01A-S / OD-01A-L / OD-01V-S / OD-01V-L | Electrical | Power | 1–2 W |
| OD-01A-S / OD-01A-L / OD-01V-S / OD-01V-L | Electrical | Voltage | 3 V / 6 V / 12 V |
| OD-01A-S / OD-01A-L / OD-01V-S / OD-01V-L | Electrical | Motor | Brushed motor |
| OD-01A-S / OD-01A-L / OD-01V-S / OD-01V-L | Performance | Service life | 300–500 h |
| OD-01A-S / OD-01A-L / OD-01V-S / OD-01V-L | Performance | Noise | 45–60 dB |

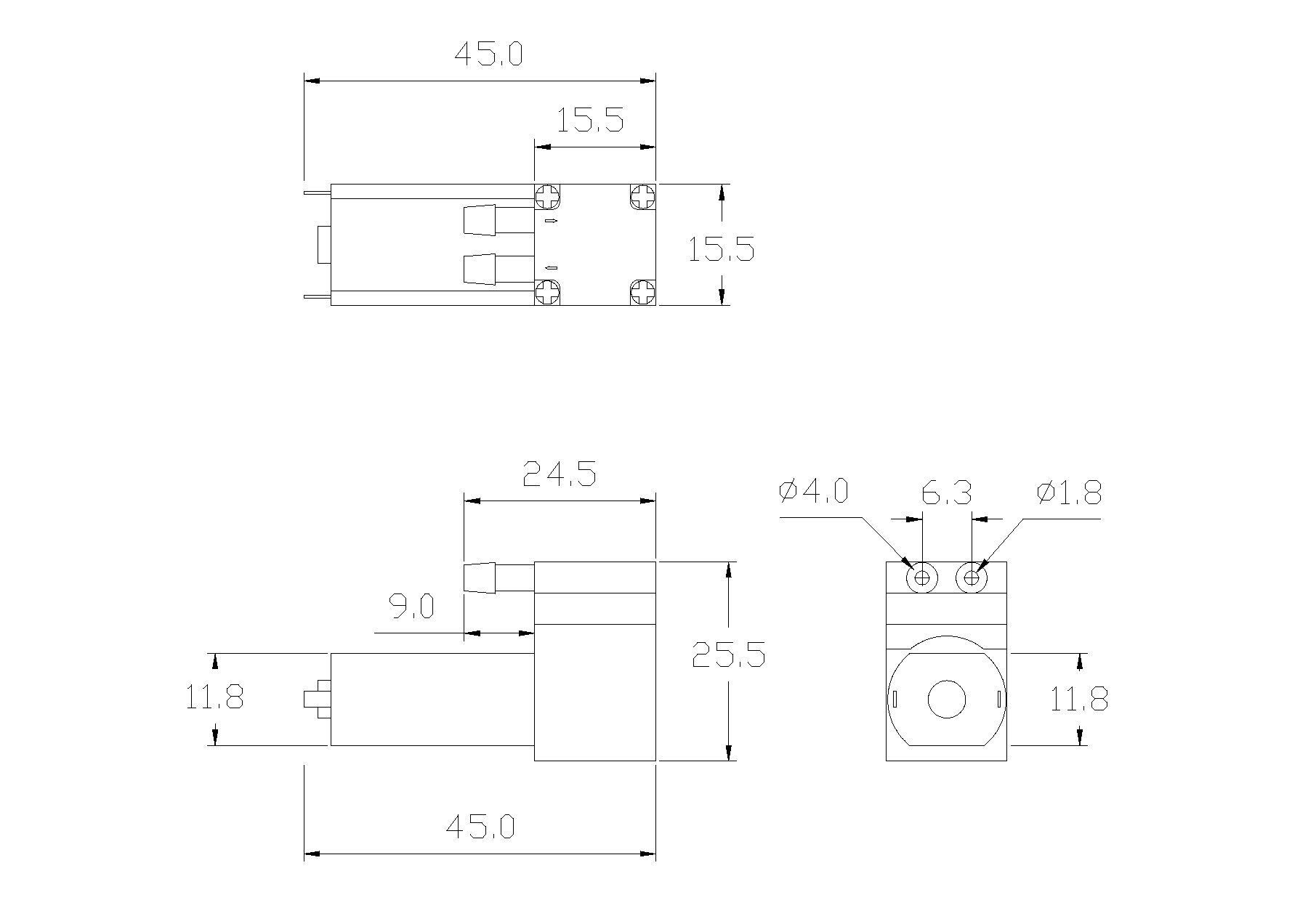

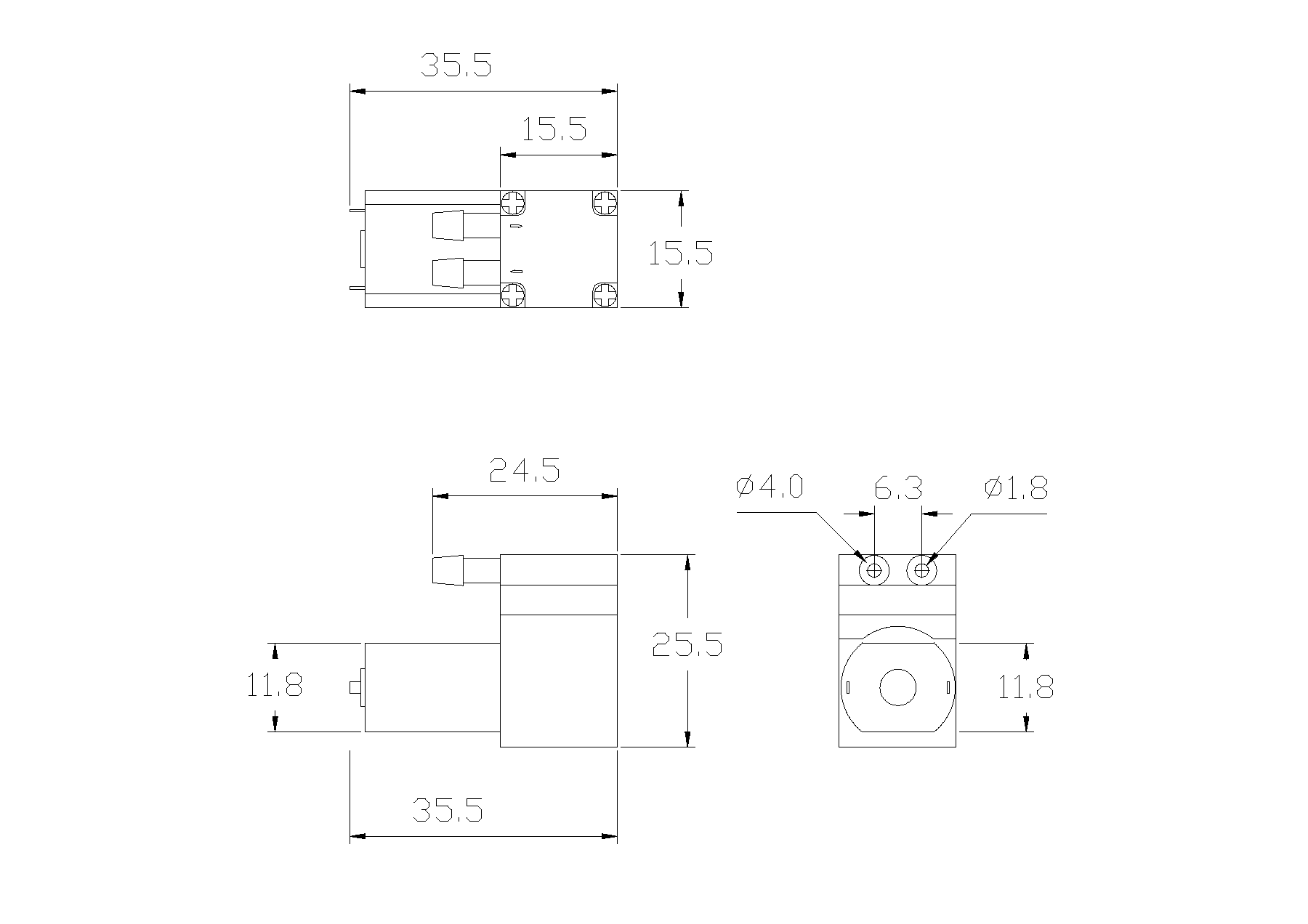

| OD-01A-S / OD-01A-L / OD-01V-S / OD-01V-L | Mechanical | Overall dimensions | 15.5 × 25.5 × 45 mm / 15.5 × 25.5 × 35.5 mm |
| OD-01A-S / OD-01A-L / OD-01V-S / OD-01V-L | Mechanical | Weight | 24 g / 18 g |
| OD-01A-S / OD-01A-L / OD-01V-S / OD-01V-L | Performance | Pressure configuration | 0.3 L/min @ 0.5 bar / 0.5 L/min @ 0.9 bar / 1 L/min @ 1 bar |
| OD-01A-S / OD-01A-L / OD-01V-S / OD-01V-L | Performance | Vacuum configuration | 0.3 L/min @ -30 kPa / 0.5 L/min @ -50 kPa / 0.8 L/min @ -60 kPa |
Technical files
Product PDF and CAD downloads
Files are organized by series and matched model. Check the file title against the current product configuration before use.
Submit the working point—not just a series name.
Share the medium, flow, pressure or vacuum, supply, duty cycle and installation constraints so the requirement can be mapped to a specific model and file set.
