Product introduction
OD-07 Pump Series
Diaphragm-liquid and piston air-pump configurations with brushed and brushless motor options.
Product galleryModel specifications4 technical files
Product gallery
View the series and its available configurations
Products are presented on a consistent white background for clear comparison of pump heads, motors, ports and mounting structures.
Technical specifications
Product parameters by model group
Each model group lists its available flow, pressure or vacuum, supply, motor, dimensions and interface parameters.
Model noteSelect the model group that matches the intended configuration; values can differ by motor, pump head and control option within the series.
| Model group | Category | Parameter | Value |
|---|---|---|---|
| OD-07W / OD-07WB | Performance | Water flow | 1 L/min |
| OD-07W / OD-07WB | Performance | Maximum pressure | 10 bar |
| OD-07W / OD-07WB | Electrical | Voltage | 12 V / 24 V |
| OD-07W / OD-07WB | Electrical | Motor | OD-07W brushed motor / OD-07WB brushless motor |
| OD-07W / OD-07WB | Performance | Service life | OD-07W 1000 h / OD-07WB 3000 h |
| OD-07W / OD-07WB | Performance | Noise | 50 dB |
| OD-07W / OD-07WB | Mechanical | Overall dimensions | 76 × 118.5 × 62.4 mm / 76 × 127.8 × 65.4 mm |
| OD-07W / OD-07WB | Mechanical | Weight | 490 g / 408 g |
| OD-07W / OD-07WB | Materials | Diaphragm material | EPDM / FKM |
| OD-07W / OD-07WB | Electrical | Power | 12 W |
| OD-07A / OD-07AB / OD-07V / OD-07VB | Performance | Custom flow range | 15–40 L/min |
| OD-07A / OD-07AB / OD-07V / OD-07VB | Performance | Custom pressure range | 4.5–6.5 bar |
| OD-07A / OD-07AB / OD-07V / OD-07VB | Performance | Custom vacuum range | -80–-85 kPa |
| OD-07A / OD-07AB / OD-07V / OD-07VB | Electrical | Power | 24–50 W |
| OD-07A / OD-07AB / OD-07V / OD-07VB | Electrical | Voltage | 12 V / 24 V |
| OD-07A / OD-07AB / OD-07V / OD-07VB | Electrical | Motor | Brushless motor / brushed motor |
| OD-07A / OD-07AB / OD-07V / OD-07VB | Performance | Service life | Brushless 3000 h / brushed 1000 h |
| OD-07A / OD-07AB / OD-07V / OD-07VB | Performance | Noise | 60–70 dB |

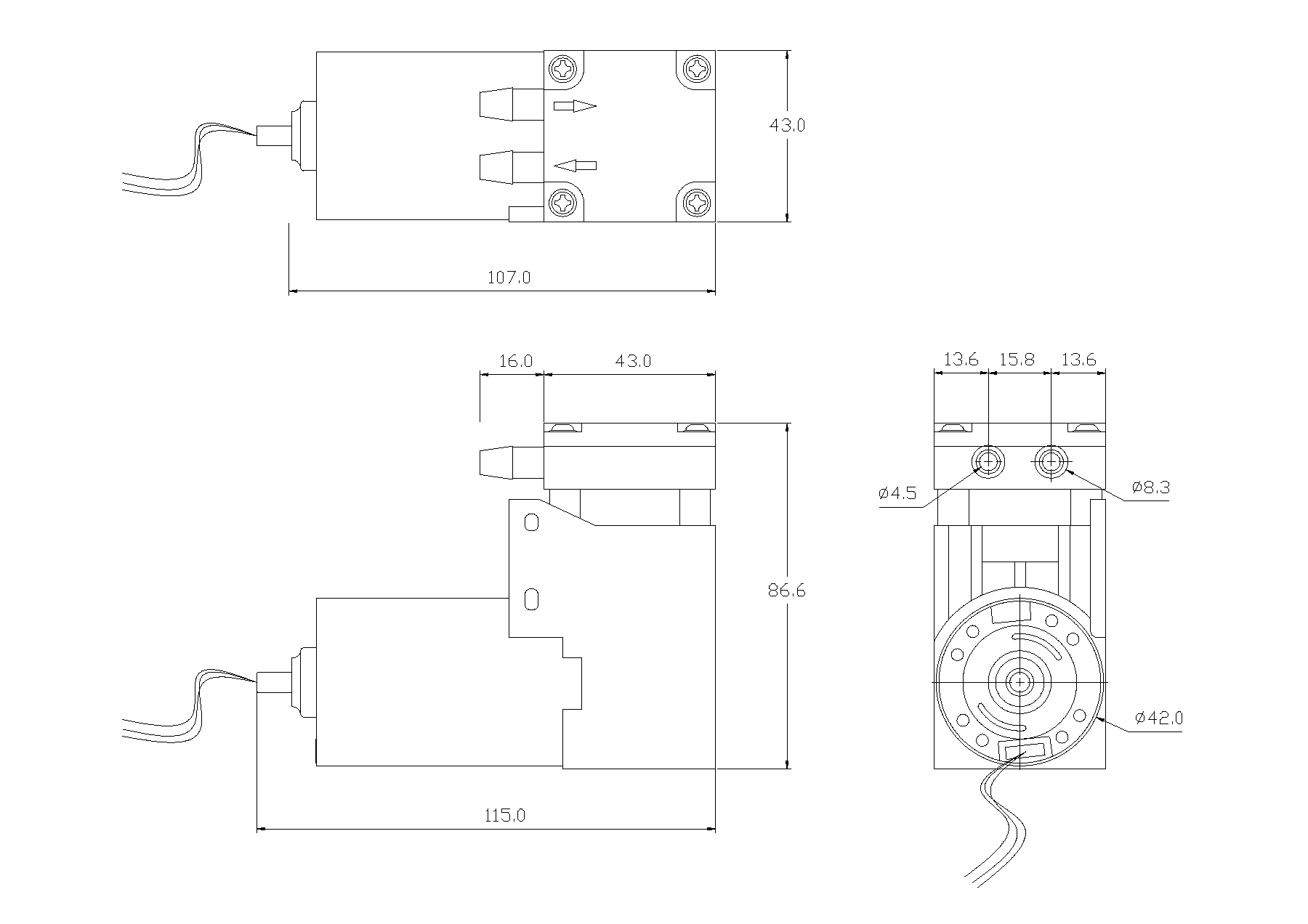

| OD-07A / OD-07AB / OD-07V / OD-07VB | Mechanical | Overall dimensions | 43 × 87 × 107 mm / 43 × 87 × 108 mm |
| OD-07A / OD-07AB / OD-07V / OD-07VB | Mechanical | Weight | 540 g / 580 g |
| OD-07A / OD-07AB / OD-07V / OD-07VB | Electrical | Control options | Optional PWM |
| OD-07A / OD-07AB / OD-07V / OD-07VB | Performance | Pressure configuration | 15 L/min @ 4.5 bar / 20 L/min @ 5 bar / 35 L/min @ 6 bar |
| OD-07A / OD-07AB / OD-07V / OD-07VB | Performance | Vacuum configuration | 15 L/min @ -80 kPa / 20 L/min @ -85 kPa / 35 L/min @ -85 kPa |
| OD-07A-M / OD-07AB-M / OD-07V-M / OD-07VB-M | Performance | Custom flow range | 15–40 L/min |
| OD-07A-M / OD-07AB-M / OD-07V-M / OD-07VB-M | Performance | Custom pressure range | 4.5–6.5 bar |
| OD-07A-M / OD-07AB-M / OD-07V-M / OD-07VB-M | Performance | Custom vacuum range | -80–-85 kPa |
| OD-07A-M / OD-07AB-M / OD-07V-M / OD-07VB-M | Electrical | Power | 24–50 W |
| OD-07A-M / OD-07AB-M / OD-07V-M / OD-07VB-M | Electrical | Voltage | 12 V / 24 V |
| OD-07A-M / OD-07AB-M / OD-07V-M / OD-07VB-M | Electrical | Motor | Brushless motor / brushed motor |
| OD-07A-M / OD-07AB-M / OD-07V-M / OD-07VB-M | Performance | Service life | Brushless 3000 h / brushed 1000 h |
| OD-07A-M / OD-07AB-M / OD-07V-M / OD-07VB-M | Performance | Noise | 60–70 dB |

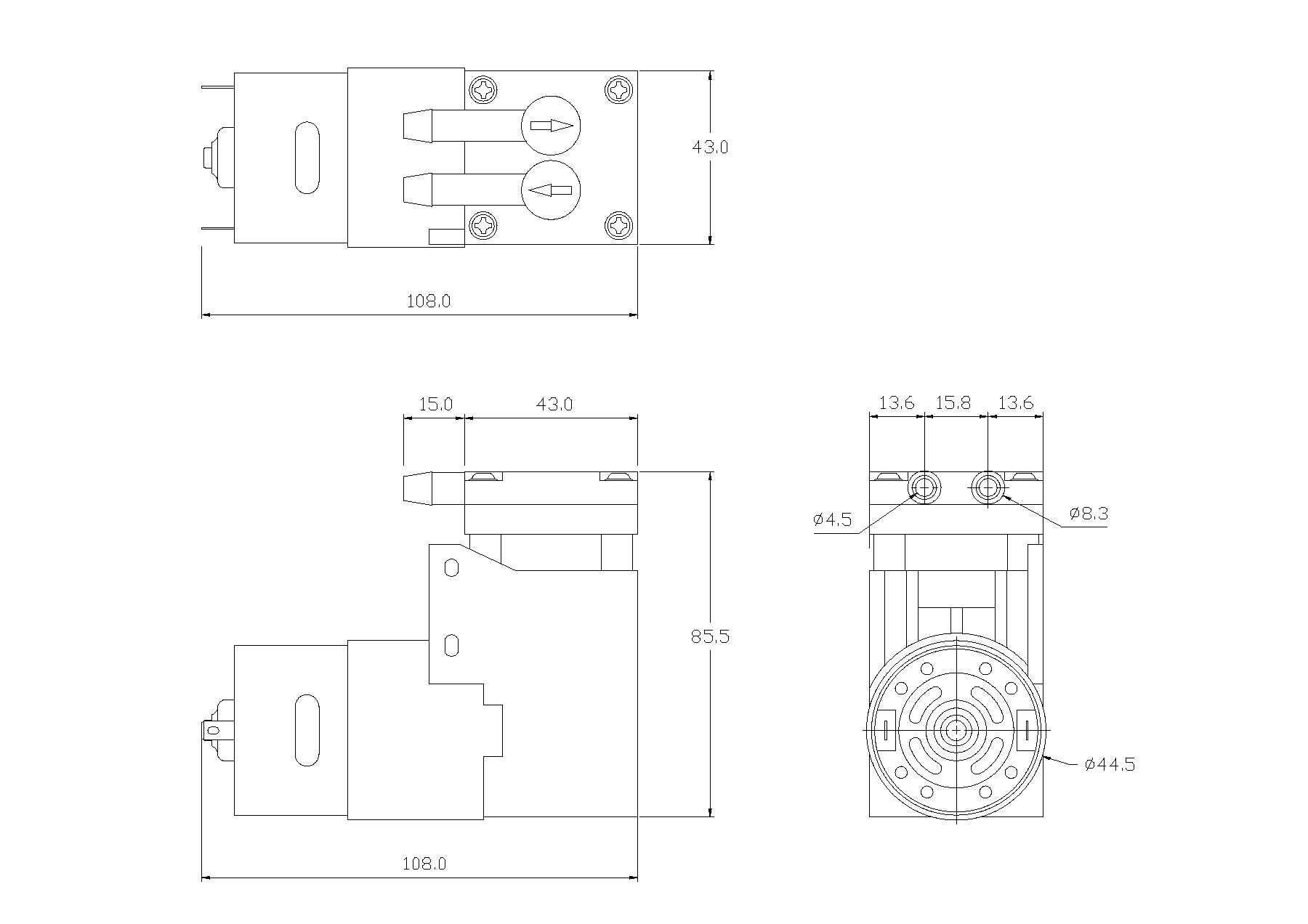

| OD-07A-M / OD-07AB-M / OD-07V-M / OD-07VB-M | Mechanical | Overall dimensions | 43 × 85.5 × 107 mm / 43 × 85.5 × 108 mm |
| OD-07A-M / OD-07AB-M / OD-07V-M / OD-07VB-M | Mechanical | Weight | 560 g / 600 g |
| OD-07A-M / OD-07AB-M / OD-07V-M / OD-07VB-M | Electrical | Control options | Optional PWM |
| OD-07A-M / OD-07AB-M / OD-07V-M / OD-07VB-M | Performance | Pressure configuration | 17 L/min @ 4.5 bar / 25 L/min @ 5 bar / 40 L/min @ 6.5 bar |
| OD-07A-M / OD-07AB-M / OD-07V-M / OD-07VB-M | Performance | Vacuum configuration | 17 L/min @ -80 kPa / 25 L/min @ -85 kPa / 38 L/min @ -85 kPa |
Submit the working point—not just a series name.
Share the medium, flow, pressure or vacuum, supply, duty cycle and installation constraints so the requirement can be mapped to a specific model and file set.
