OD-05T0610AC
220V 50HZ Sampling Pump AC Gas Diaphragm Pump For CEMS OD-05T0610AC
Discover the OD-05T0610AC 220V AC diaphragm pump for CEMS. High flow 7.5 L/min, -85 kPa vacuum, low vibration, oil-free, OEM-ready for gas analysis.
Diaphragm air / vacuum pumpOD-05T0610AC33 technical parameters2 technical drawings
Product functions
Key functions
OD-05T0610AC supports the following roles in equipment fluid systems. Use the technical parameters below together with the actual working point for selection.
Function 1Air transfer
Function 2Vacuum generation
Function 3Equipment-level integration
Product data
Technical specifications
The following specifications apply to OD-05T0610AC. Also consider the medium, working point, power supply, duty cycle and installation conditions when selecting the product.
Voltage200-220AC
Max Flow7.5L/min
Max Vacuum-85 kPa
Max Pressure2.5 Bar
Motor220VAC/50Hz Shaded pole motor
Max Power50W
Weight1.26kg
ParameterValue
ModelOD-05T0610AC
Voltage Range200-220 V AC
Max Flow Rate7.5 L/min (float flowmeter) / 6.2 L/min (electronic flowmeter)
Max Negative Pressure≥ -85 kPa
Max Positive Pressure2.5 bar
Motor Type220 VAC / 50 Hz Shaded Pole Motor
Max Power50 W
IP RatingIP00
Service Life> 8,000 hours
Storage Temperature-40 ℃ ~ 60 ℃
Operating Temperature0 ℃ ~ 45 ℃
Dimensions (L × W × H)130 × 62 × 90 mm
Weight1.26 kg
ComponentMaterial / Feature
Pump HeadPPS engineering thermoplastic, highly resistant and durable
Diaphragm / ValveEPDM standard, with FKM or PTFE options for chemical compatibility
Pump BodyAluminum alloy with electrophoresis treatment for corrosion resistance and durability
MotorImported ball bearing motor ensures long lifetime and smooth operation
SealingProfessional seal design guarantees low leakage and stable pressure/vacuum performance
Customization AspectAvailable Options / Notes
Diaphragm MaterialsEPDM standard, with FKM or PTFE options for chemical resistance
Electrical Cable / ConnectorCustom cable length and connector type for OEM integration
Label / BrandingCustom product labeling for OEM projects
Pump ConfigurationOD-05T0610AC (220VAC/50Hz, large flow, low vibration, compact size)
Integration SupportEngineering support for CEMS and industrial analyzer systems
Technical drawings

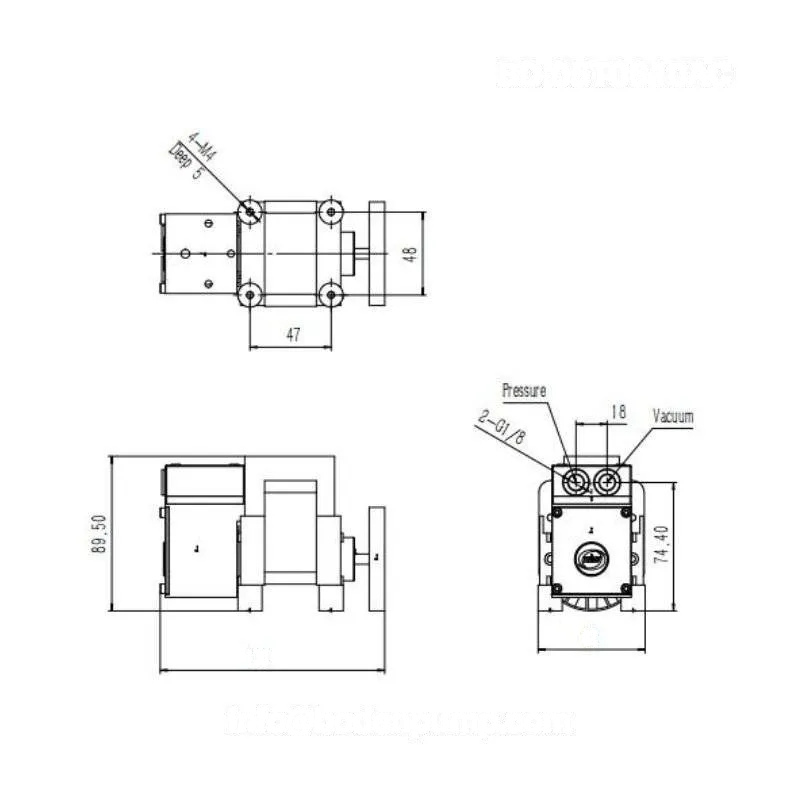

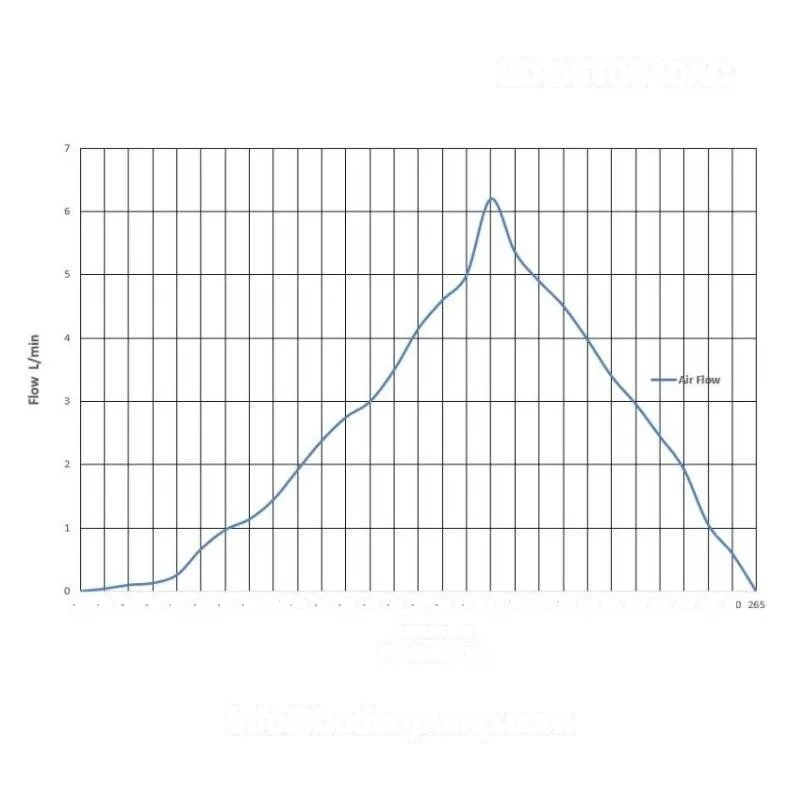

OD-05T0610AC dimensions and performance graphics
Images classified as dimensional drawings, specification graphics or performance curves are grouped here.
Application and configuration
OD-05T0610AC application fit
Use these notes to translate brochure data into selection questions: application, working point, noise, lifetime, voltage options and nearby model alternatives.
Working-point review
Confirm the loaded flow at the required pressure or vacuum, then review tubing loss, inlet filtration, valve restriction and the safety margin between nominal and maximum conditions.
Noise, lifetime and voltage
Review voltage, motor type, expected life, noise target, duty cycle and mounting isolation before requesting samples or a model-specific drawing.
- Voltage
- 200-220AC
- Max Flow
- 7.5L/min
- Max Vacuum
- -85 kPa
- Max Pressure
- 2.5 Bar
Model comparison
OD-05T0610AC and nearby alternatives
When flow, pressure or vacuum, voltage, size or lifetime requirements change, compare nearby models before requesting a custom configuration.
| Model | Category | Key specifications | Next action |
|---|---|---|---|
| OD-05T0610AC | Diaphragm air / vacuum pump | Voltage 200-220AC; Max Flow 7.5L/min; Max Vacuum -85 kPa | Current model |
| OD-04AB / OD-04VB | Diaphragm air / vacuum pump | Voltage 6/9/12/24V DC; Air flow 7-20lpm; Liquid flow 1.5 L/min | View model |
| OD-05T1043AC | Diaphragm air / vacuum pump | Voltage 220V; Max Flow 43L/min; Max Vacuum -89 kPa | View model |
| OD-05T0610ACM | Diaphragm air / vacuum pump | Voltage 200-220V; Max Flow 6L/min; Max Vacuum -70 kPa | View model |
Technical resources
Downloads
View product documents and engineering drawings for the OD-05T0610AC series. For 3D files matched to OD-05T0610AC, include the current model in the RFQ.
OD-05T0610AC AC Gas Diaphragm Pump
Locally synchronized file, 157 KB.
Download PDFProduct documents and 2D drawings
View PDF product documents and engineering drawings for the OD-05T0610AC series.
View PDF resourcesCAD and configuration files
Submit the model, working point and mounting requirements for files matched to the project configuration.
Request CAD filesContinue browsing
Related pump models
Diaphragm air / vacuum pump
Oil-Free Diaphragm Vacuum Pump AC 220V 43L Small High Vacuum Pumps -89KPA OD-05T1043AC JSG
View product
Diaphragm air / vacuum pump

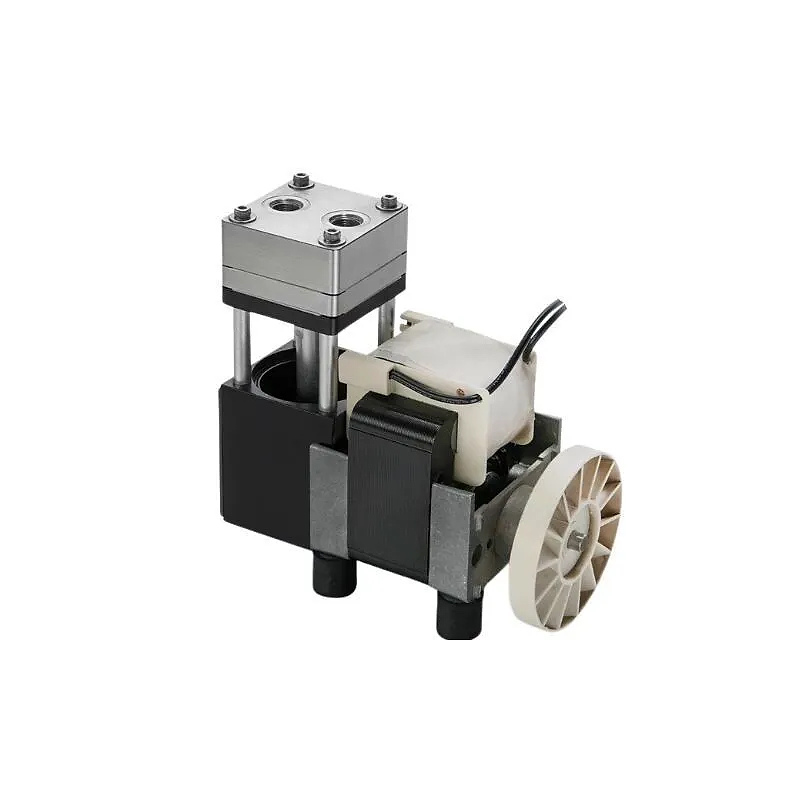

220V Sample Pump 316 SS 200 ℃ Medium 6L Gas Diaphragm Pump OD-05T0610ACM
