OD-05T1043AC
Oil-Free Diaphragm Vacuum Pump AC 220V 43L Small High Vacuum Pumps -89KPA OD-05T1043AC JSG
Compact 220V oil-free diaphragm vacuum pump with 43L/min flow and -89kPa vacuum. Ideal for gas sampling, lab systems, and OEM integration.
Diaphragm air / vacuum pumpOD-05T1043AC31 technical parameters2 technical drawings
Product functions
Key functions
OD-05T1043AC supports the following roles in equipment fluid systems. Use the technical parameters below together with the actual working point for selection.
Function 1Air transfer
Function 2Vacuum generation
Function 3Equipment-level integration
Product data
Technical specifications
The following specifications apply to OD-05T1043AC. Also consider the medium, working point, power supply, duty cycle and installation conditions when selecting the product.
Voltage220V
Max Flow43L/min
Max Vacuum-89 kPa
Motorlong-life AC motor
Max Power100W
Weight3.43kg
ModelOD-05T1043AC
TypeMicro Vacuum Pump
StructureDiaphragm Vacuum Pump
Voltage Range220 V AC / 50 Hz
Free Gas Flow43 L/min (1.52 cfm)
Max Gas Vacuum-89 kPa (-26.3 in.Hg / -890 mbar / -668 mmHg)
Motor TypeAC Motor
Max Power100 W
Protection ClassIP20
Pump Head MaterialPPS
Pump Body MaterialAluminum Alloy
Diaphragm / ValveEPDM
Dimensions196 × 110.4 × 129.3 mm (7.72 × 4.35 × 5.09 in)
Weight3.43 kg
Operating Temperature-10°C to 45°C
Storage Temperature-40°C to 60°C
ComponentMaterial / Feature
Pump HeadPPS - high mechanical strength with strong corrosion resistance
DiaphragmEPDM
ValveEPDM
Pump BodyAluminum alloy - lightweight with efficient heat dissipation
Customization ItemAvailable Options
MaterialsEPDM standard configuration, optional FKM or PTFE for enhanced chemical resistance
WiringCustom cable lengths and connector types
BrandingLogo labeling or customized part number marking
Technical drawings

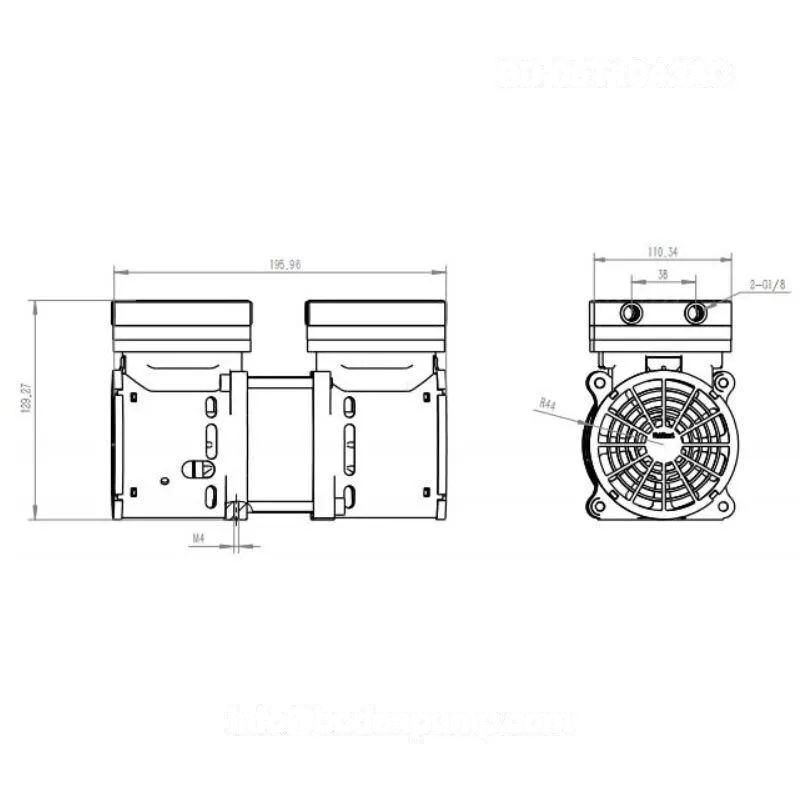

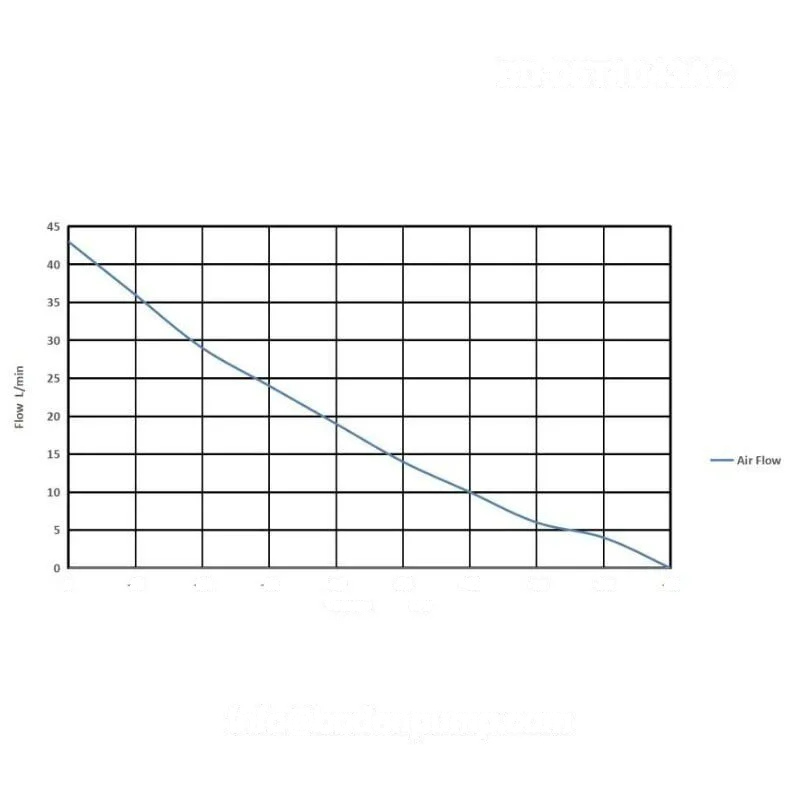

OD-05T1043AC dimensions and performance graphics
Images classified as dimensional drawings, specification graphics or performance curves are grouped here.
Application and configuration
OD-05T1043AC application fit
Use these notes to translate brochure data into selection questions: application, working point, noise, lifetime, voltage options and nearby model alternatives.
Working-point review
Confirm the loaded flow at the required pressure or vacuum, then review tubing loss, inlet filtration, valve restriction and the safety margin between nominal and maximum conditions.
Noise, lifetime and voltage
Review voltage, motor type, expected life, noise target, duty cycle and mounting isolation before requesting samples or a model-specific drawing.
- Voltage
- 220V
- Max Flow
- 43L/min
- Max Vacuum
- -89 kPa
- Motor
- long-life AC motor
Model comparison
OD-05T1043AC and nearby alternatives
When flow, pressure or vacuum, voltage, size or lifetime requirements change, compare nearby models before requesting a custom configuration.
| Model | Category | Key specifications | Next action |
|---|---|---|---|
| OD-05T1043AC | Diaphragm air / vacuum pump | Voltage 220V; Max Flow 43L/min; Max Vacuum -89 kPa | Current model |
| OD-04AB / OD-04VB | Diaphragm air / vacuum pump | Voltage 6/9/12/24V DC; Air flow 7-20lpm; Liquid flow 1.5 L/min | View model |
| OD-05T0610AC | Diaphragm air / vacuum pump | Voltage 200-220AC; Max Flow 7.5L/min; Max Vacuum -85 kPa | View model |
| OD-05T0610ACM | Diaphragm air / vacuum pump | Voltage 200-220V; Max Flow 6L/min; Max Vacuum -70 kPa | View model |
