Application scenarios
Typical uses include compact air delivery, vacuum duty, sampling and equipment-level pneumatic functions where a piston architecture is preferred.
OD-079A-M
OD-079A-M/OD-079V-M Oilless OEM Small Piston Air Vacuum Pumps And Compressors
OD-079 series is a new series. The flow rate is higher than the OD-07 series and the cost is lower than the OD-08 series. The medium is gas, with one inlet and one outlet, which can inflate and suction. Features include a high flow rate of 50LPM, compact size, low power, no oil, and low vibration.
Piston air / vacuum pumpOD-079A-M6 technical parameters1 technical drawings
Product functions
Key functions
OD-079A-M / OD-079V-M supports the following roles in equipment fluid systems. Use the technical parameters below together with the actual working point for selection.
Function 1Air delivery
Function 2Vacuum duty
Function 3Equipment integration
White-background imagery

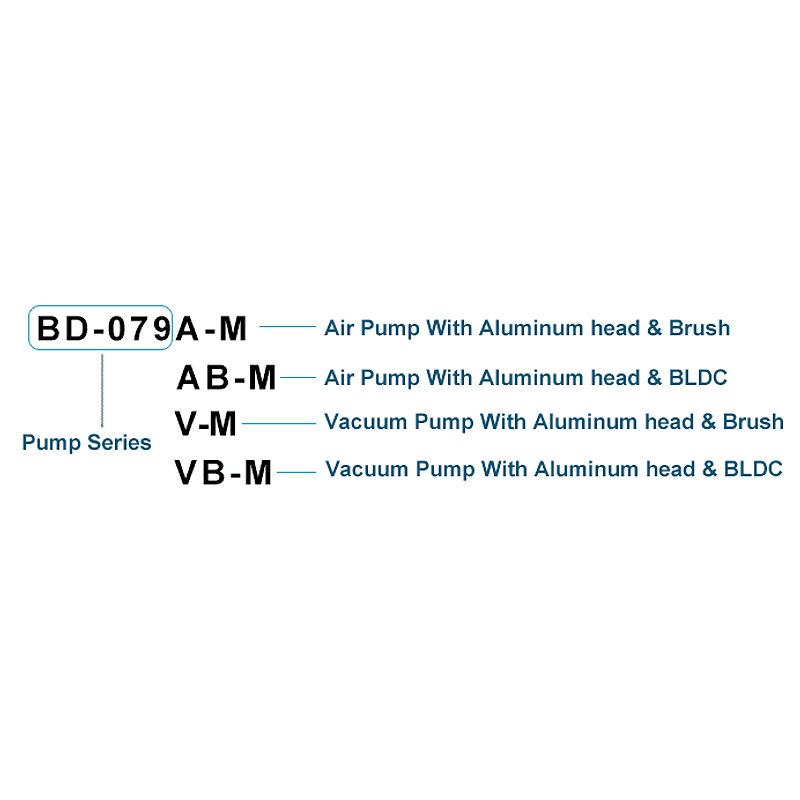

OD-079A-M / OD-079V-M product images
These images are served from the synchronized local product library as white-background product views.
Product data
Technical specifications
The following specifications apply to OD-079A-M / OD-079V-M. Also consider the medium, working point, power supply, duty cycle and installation conditions when selecting the product.
Voltage24V
Air flow30-50L/min
Pressure7bar
Vacuum-80~-85kpa
Motorbrush/brushless
ValveHigh temperature resistant

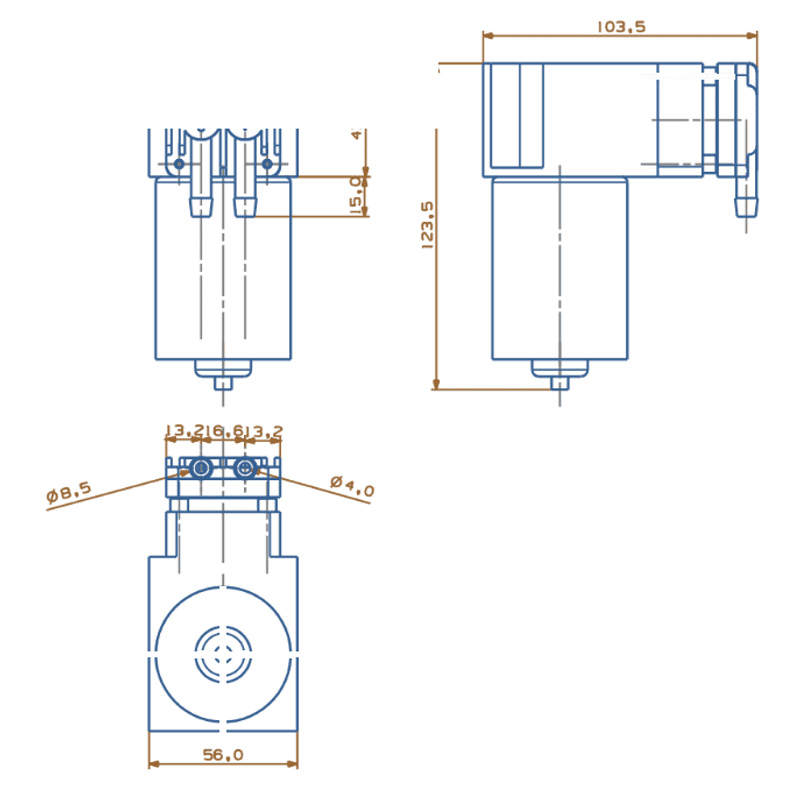

Technical drawings
OD-079A-M / OD-079V-M dimensions and performance graphics
Images classified as dimensional drawings, specification graphics or performance curves are grouped here.
Application and configuration
OD-079A-M / OD-079V-M application fit
Use these notes to translate brochure data into selection questions: application, working point, noise, lifetime, voltage options and nearby model alternatives.
Working-point review
Compare the required pressure or vacuum against the stated flow, then allow margin for fittings, filters and changes in duty cycle.
Noise, lifetime and voltage
Review voltage, motor choice, noise target, lifetime target and mounting conditions before locking the sample configuration.
- Voltage
- 24V
- Air flow
- 30-50L/min
- Pressure
- 7bar
- Vacuum
- -80~-85kpa
Model comparison
OD-079A-M / OD-079V-M and nearby alternatives
When flow, pressure or vacuum, voltage, size or lifetime requirements change, compare nearby models before requesting a custom configuration.
| Model | Category | Key specifications | Next action |
|---|---|---|---|
| OD-079A-M / OD-079V-M | Piston air / vacuum pump | Voltage 24V; Air flow 30-50L/min; Pressure 7bar | Current model |
| OD-07A / OD-07V | Piston air / vacuum pump | Voltage DC 12V/24V; Air flow 15L/minup to 40L/min; Pressure 4.5 bar up to 6.5 bar | View model |
| OD-07A-M / OD-07V-M | Piston air / vacuum pump | Voltage DC 12V/24V; Air flow 15L/minup to 40L/min; Pressure 4.5 bar up to 6.5 bar | View model |
| OD-07AB / OD-07VB | Piston air / vacuum pump | Voltage DC 12V/24V; Air flow 15L/minup to 40L/min; Pressure 4.5 bar up to 6.5 bar | View model |
Technical resources
Downloads
View product documents and engineering drawings for the OD-079A-M series. For 3D files matched to OD-079A-M / OD-079V-M, include the current model in the RFQ.
Product documents and 2D drawings
View PDF product documents and engineering drawings for the OD-079A-M series.
View PDF resourcesCAD and configuration files
Submit the model, working point and mounting requirements for files matched to the project configuration.
Request CAD filesContinue browsing
Related pump models
Piston air / vacuum pump
OD-07A-M/OD-07V-M oilless Small Piston Air Vacuum Pump Pneumatic Air Suction Pumps
View product
Request a quote for OD-079A-M / OD-079V-M
Provide the medium, flow, pressure or vacuum, voltage, duty cycle and mounting requirements so we can match the product configuration and supporting documents.
