OD-07A
OD-07A/OD-07V Miniature Piston Pumps for Air and Vacuum Pumps
A small piston air vacuum pumps through the cylinder in the fixed crank drive piston to achieve volume changes, that is, the air in the pump cavity compression
Piston air / vacuum pumpOD-07A6 technical parameters1 technical drawings
Product functions
Key functions
OD-07A / OD-07V supports the following roles in equipment fluid systems. Use the technical parameters below together with the actual working point for selection.
Function 1Air delivery
Function 2Vacuum duty
Function 3Equipment integration
White-background imagery

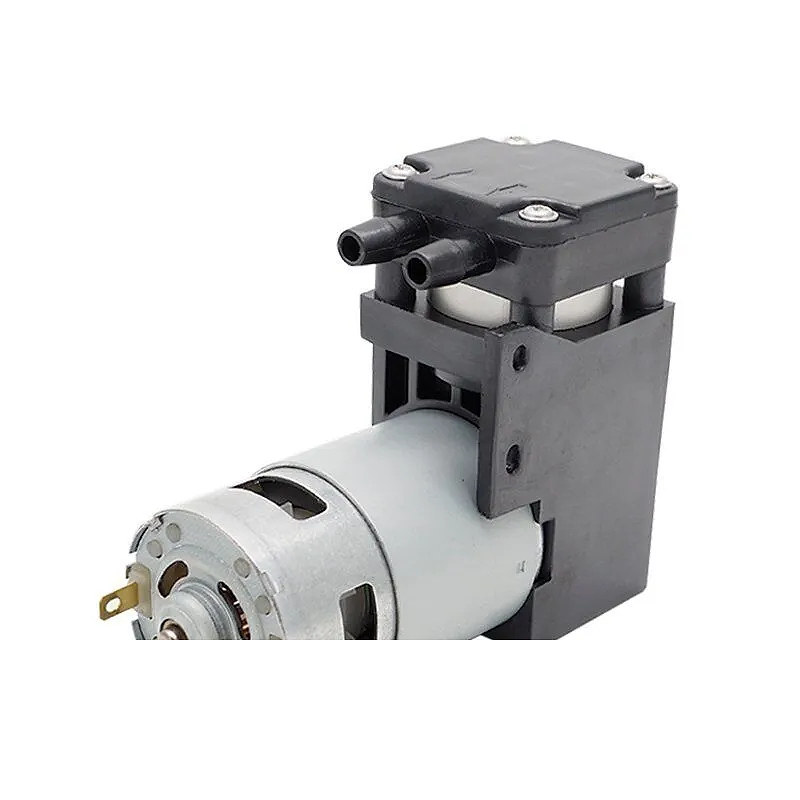

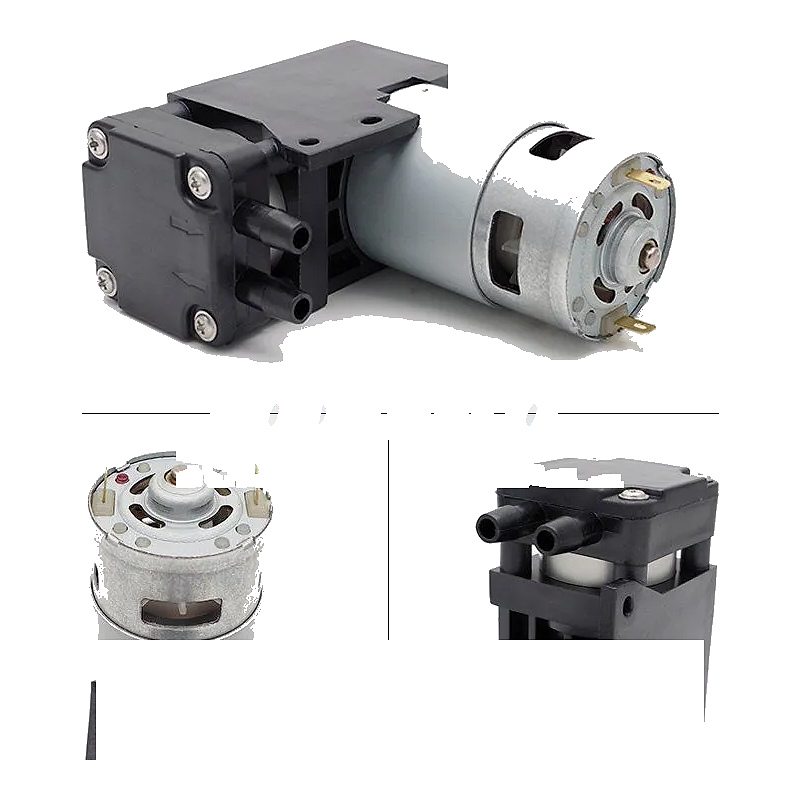

OD-07A / OD-07V product images
These images are served from the synchronized local product library as white-background product views.
Product data
Technical specifications
The following specifications apply to OD-07A / OD-07V. Also consider the medium, working point, power supply, duty cycle and installation conditions when selecting the product.
VoltageDC 12V/24V
Air flow15L/minup to 40L/min
Pressure4.5 bar up to 6.5 bar
Vacuum-80 kpa up to -85kpa
Motorbrush/brushless
DiaphragmEPDM/FKM
Technical drawings
OD-07A / OD-07V dimensions and performance graphics
Images classified as dimensional drawings, specification graphics or performance curves are grouped here.
Application and configuration
OD-07A / OD-07V application fit
Use these notes to translate brochure data into selection questions: application, working point, noise, lifetime, voltage options and nearby model alternatives.
Working-point review
Compare the required pressure or vacuum against the stated flow, then allow margin for fittings, filters and changes in duty cycle.
Noise, lifetime and voltage
Review voltage, motor choice, noise target, lifetime target and mounting conditions before locking the sample configuration.
- Voltage
- DC 12V/24V
- Air flow
- 15L/minup to 40L/min
- Pressure
- 4.5 bar up to 6.5 bar
- Vacuum
- -80 kpa up to -85kpa
Model comparison
OD-07A / OD-07V and nearby alternatives
When flow, pressure or vacuum, voltage, size or lifetime requirements change, compare nearby models before requesting a custom configuration.
| Model | Category | Key specifications | Next action |
|---|---|---|---|
| OD-07A / OD-07V | Piston air / vacuum pump | Voltage DC 12V/24V; Air flow 15L/minup to 40L/min; Pressure 4.5 bar up to 6.5 bar | Current model |
| OD-079A-M / OD-079V-M | Piston air / vacuum pump | Voltage 24V; Air flow 30-50L/min; Pressure 7bar | View model |
| OD-07A-M / OD-07V-M | Piston air / vacuum pump | Voltage DC 12V/24V; Air flow 15L/minup to 40L/min; Pressure 4.5 bar up to 6.5 bar | View model |
| OD-07AB / OD-07VB | Piston air / vacuum pump | Voltage DC 12V/24V; Air flow 15L/minup to 40L/min; Pressure 4.5 bar up to 6.5 bar | View model |
