OD-05T0914L
24V Diaphragm Pump 14LPM Small Quiet Vacuum Pump Corrosion-Resistant OD-05T0914L
JSG OD-05T0914L 24V diaphragm pump delivers 14L/min flow, -80kPa vacuum, and 1.9 bar pressure. Quiet, oil-free, and corrosion-resistant for OEM gas sampling and monitoring.
Diaphragm air / vacuum pumpOD-05T0914L32 technical parameters4 technical drawings
Product functions
Key functions
OD-05T0914L supports the following roles in equipment fluid systems. Use the technical parameters below together with the actual working point for selection.
Function 1Air transfer
Function 2Vacuum generation
Function 3Equipment-level integration
Product data
Technical specifications
The following specifications apply to OD-05T0914L. Also consider the medium, working point, power supply, duty cycle and installation conditions when selecting the product.
Voltage24V
Max Flow14L/min
Max Vacuum-80 kPa
Max Pressure1.9 Bar
MotorBrush motor
Max Power20W
Weight780g
ParameterValue
ModelOD-05T0914L
Voltage24 V DC
Maximum Flow Rate14 L/min (float meter)
Maximum Vacuum-80 kPa
Maximum Pressure1.9 bar
Motor TypeBrush DC Motor
Maximum Power20 W
Storage Temperature-40 ℃ ~ 60 ℃
Operating Temperature0 ℃ ~ 45 ℃
Medium Temperature-10 ℃ ~ 45 ℃
Dimensions (L × W × H)123 × 64 × 105 mm
Weight780 g
Service Life> 4,000 hours continuous duty
ComponentMaterial / Description | Notes
Pump HeadPPS (engineering thermoplastic) | Excellent chemical resistance
Diaphragm & ValvesEPDM (standard) | Optional PTFE or FKM for customization
Pump BodyAluminium Alloy | Lightweight, durable, corrosion-resistant
Service life>4,000 hours | Continuous operation
Customization AspectAvailable Options / Notes
Diaphragm MaterialsEPDM standard, PTFE optional, FKM optional
Electrical ConnectorCustom cable length and connector for OEM integration
Label / BrandingOEM product labeling supported
Pump ConfigurationSingle-head: OD-05T0914L standard
Integration SupportEngineering guidance for gas sampling and CEMS devices
Technical drawings

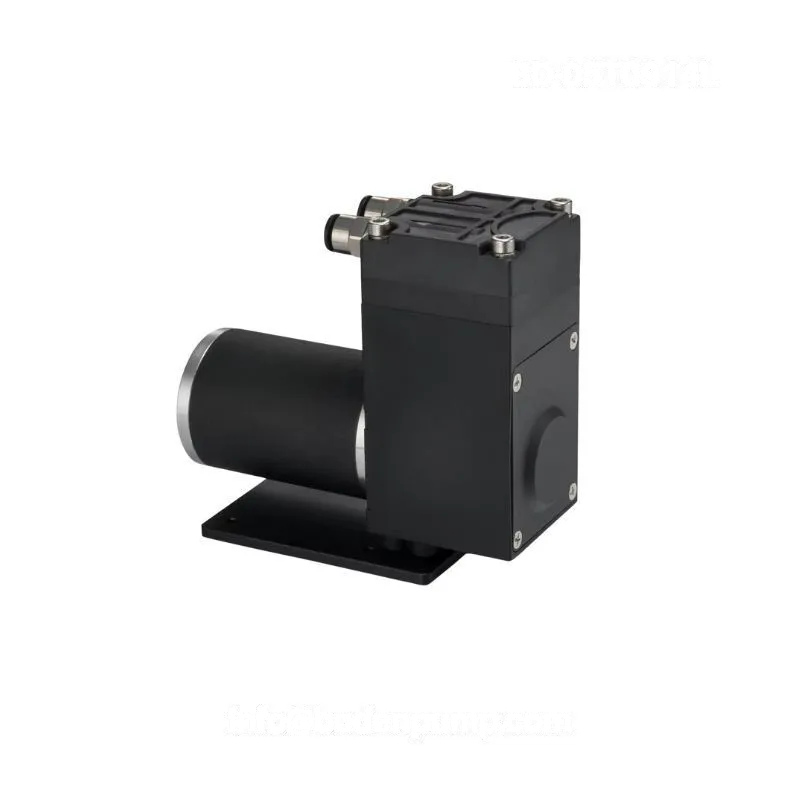

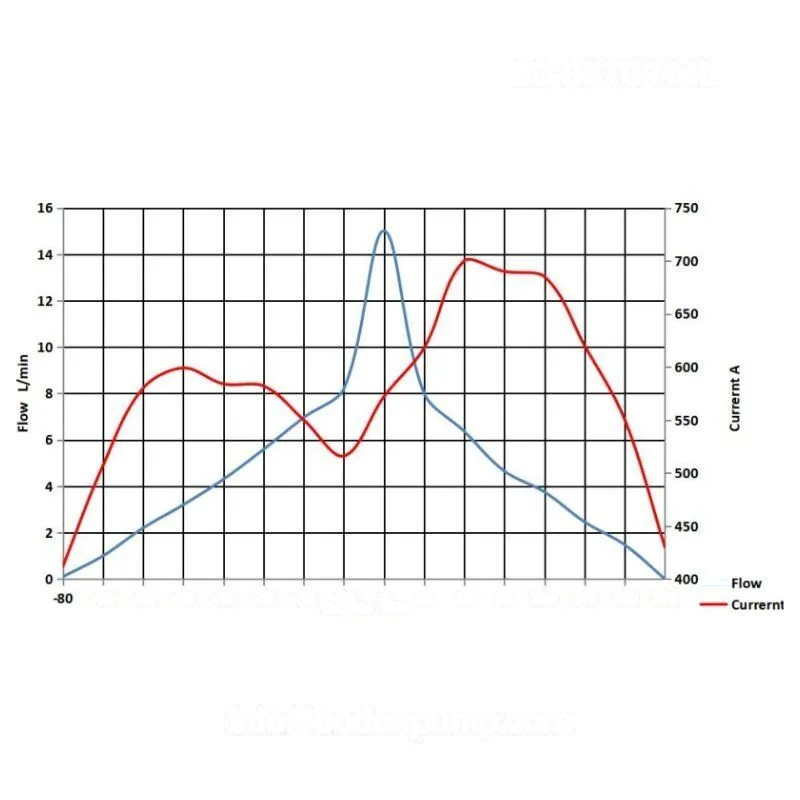

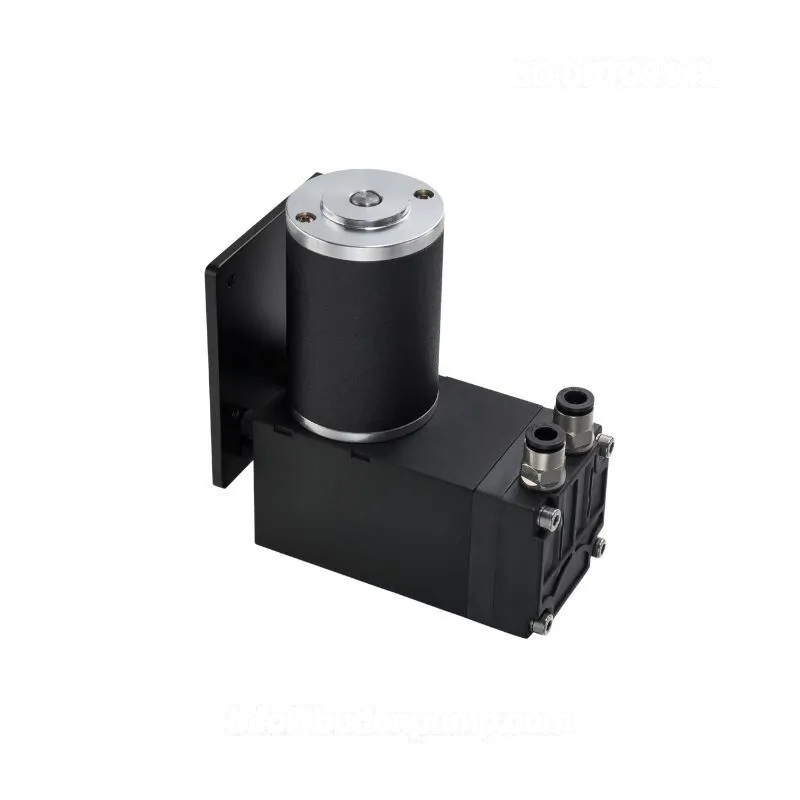

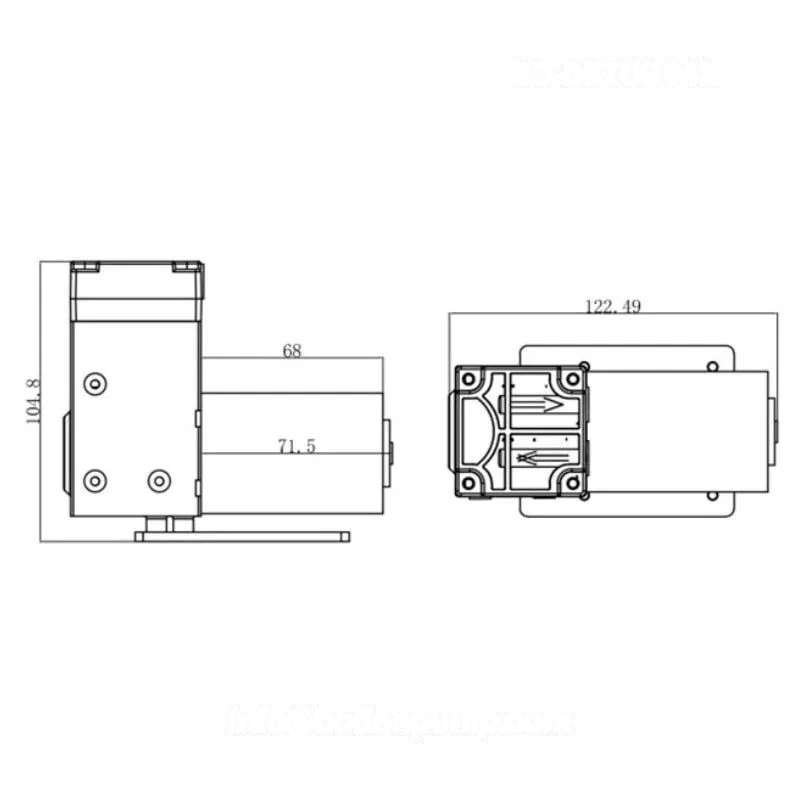

OD-05T0914L dimensions and performance graphics
Images classified as dimensional drawings, specification graphics or performance curves are grouped here.
Application and configuration
OD-05T0914L application fit
Use these notes to translate brochure data into selection questions: application, working point, noise, lifetime, voltage options and nearby model alternatives.
Working-point review
Confirm the loaded flow at the required pressure or vacuum, then review tubing loss, inlet filtration, valve restriction and the safety margin between nominal and maximum conditions.
Noise, lifetime and voltage
Review voltage, motor type, expected life, noise target, duty cycle and mounting isolation before requesting samples or a model-specific drawing.
- Voltage
- 24V
- Max Flow
- 14L/min
- Max Vacuum
- -80 kPa
- Max Pressure
- 1.9 Bar
Model comparison
OD-05T0914L and nearby alternatives
When flow, pressure or vacuum, voltage, size or lifetime requirements change, compare nearby models before requesting a custom configuration.
| Model | Category | Key specifications | Next action |
|---|---|---|---|
| OD-05T0914L | Diaphragm air / vacuum pump | Voltage 24V; Max Flow 14L/min; Max Vacuum -80 kPa | Current model |
| OD-04AB / OD-04VB | Diaphragm air / vacuum pump | Voltage 6/9/12/24V DC; Air flow 7-20lpm; Liquid flow 1.5 L/min | View model |
| OD-05T0610AC | Diaphragm air / vacuum pump | Voltage 200-220AC; Max Flow 7.5L/min; Max Vacuum -85 kPa | View model |
| OD-05T1043AC | Diaphragm air / vacuum pump | Voltage 220V; Max Flow 43L/min; Max Vacuum -89 kPa | View model |
