Application scenarios
Typical uses include gas sampling, compact analyzers, medical equipment, beauty equipment and small pneumatic modules that need clean air transfer or vacuum generation.
OD-05T0920L

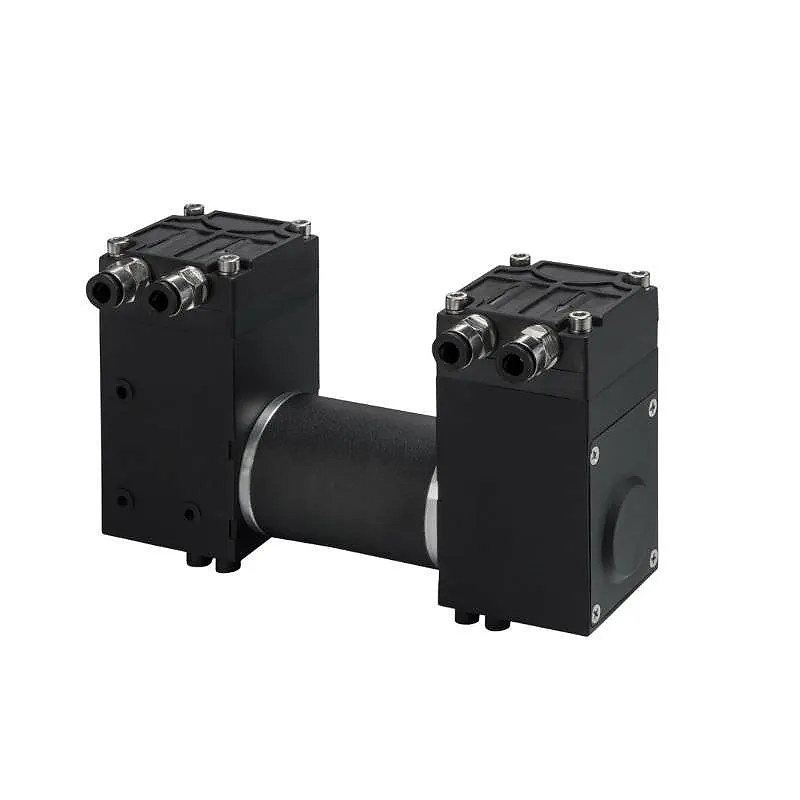

24V Double Head Diaphragm Vacuum Pump 20L Membrane Pump OD-05T0920L
Discover the OD-05T0920L double head diaphragm vacuum pump - 24V, 20L/min, -95kPa high vacuum, compact design, long life & OEM customization by JSG.
Diaphragm air / vacuum pumpOD-05T0920L32 technical parameters2 technical drawings
Product functions
Key functions
OD-05T0920L supports the following roles in equipment fluid systems. Use the technical parameters below together with the actual working point for selection.
Function 1Air transfer
Function 2Vacuum generation
Function 3Equipment-level integration
Product data
Technical specifications
The following specifications apply to OD-05T0920L. Also consider the medium, working point, power supply, duty cycle and installation conditions when selecting the product.
Voltage12/24V
Max Flow20L/min
Max Vacuum-95 kPa
Max Pressure1.9 Bar
MotorBrush motor
Max Power30W
Weight1.03kg
ParameterValue
ModelOD-05T0920L
Voltage Range12 V / 24 V DC
Maximum Flow Rate20 L/min (float meter)
Maximum Vacuum-95 kPa
Maximum Pressure1.9 bar
Motor TypeBrush DC Motor
Max Power30 W
Storage Temperature-40 ℃ ~ 60 ℃
Operating Environment0 ℃ ~ 45 ℃
Medium Temperature-10 ℃ ~ 45 ℃
Dimensions (L×W×H)171 × 64 × 105 mm
Weight1.03 kg
Service Life> 4,000 hours continuous duty
ComponentMaterial / Performance
Pump HeadPPS (engineering thermoplastic)
Diaphragm/ValveEPDM
Pump BodyAluminium Alloy - lightweight, strong, corrosion-resistant
Lifetime (continuous duty)>4,000 hours
Customization AspectAvailable Options / Notes
Diaphragm MaterialsEPDM standard, FKM optional
Electrical Cable / ConnectorCustom cable length and connector type
Label / BrandingOEM labeling available
Pump ConfigurationSingle-head: OD-05T0920L (20 L/min, -95 kPa, 1.9 Bar, 30 W)
Integration SupportEngineering guidance for integration in compact devices

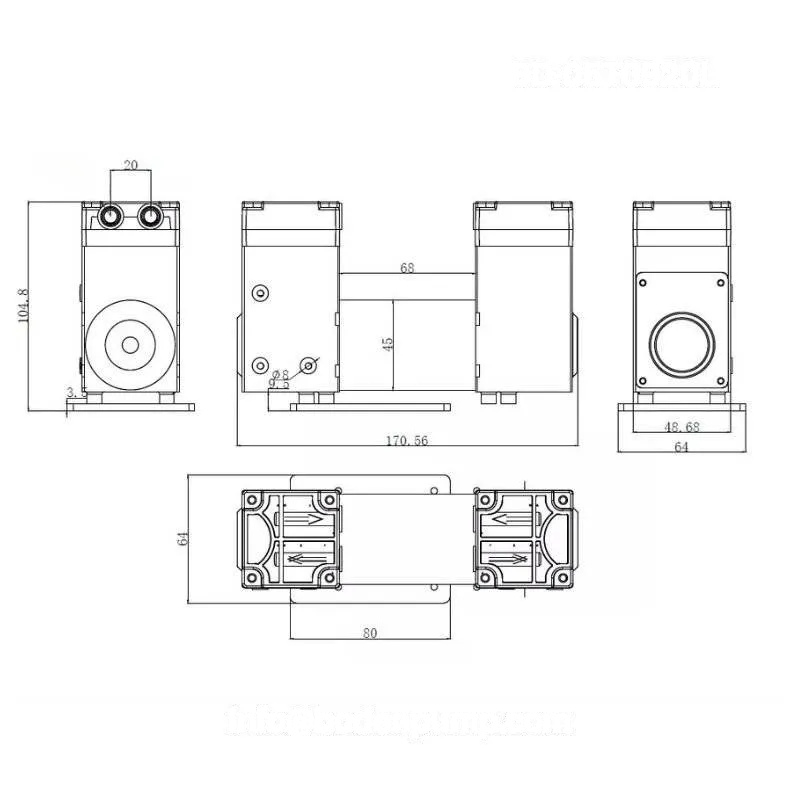

Technical drawings

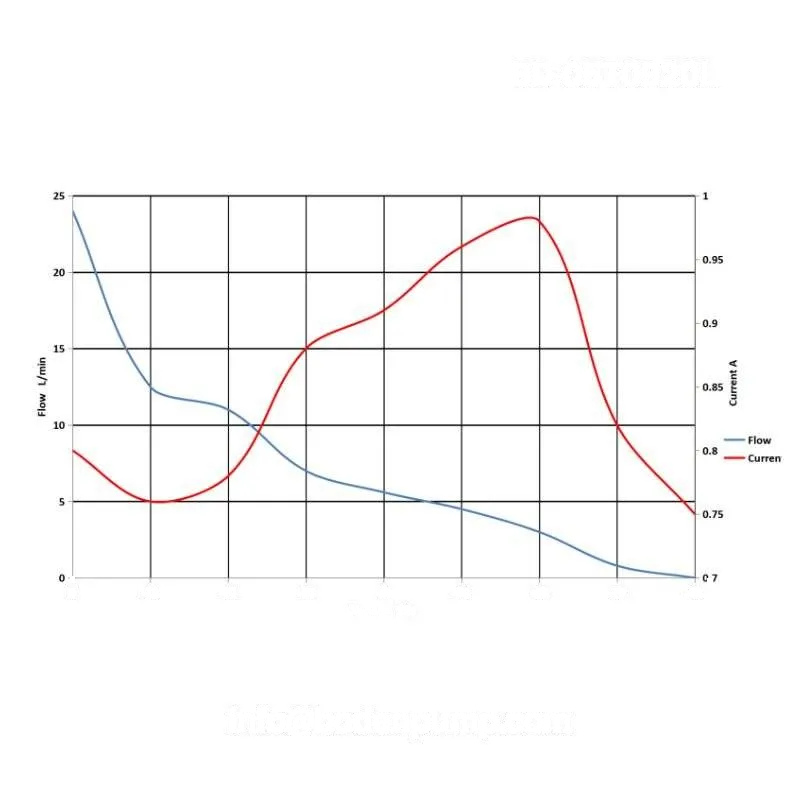

OD-05T0920L dimensions and performance graphics
Images classified as dimensional drawings, specification graphics or performance curves are grouped here.
Application and configuration
OD-05T0920L application fit
Use these notes to translate brochure data into selection questions: application, working point, noise, lifetime, voltage options and nearby model alternatives.
Working-point review
Confirm the loaded flow at the required pressure or vacuum, then review tubing loss, inlet filtration, valve restriction and the safety margin between nominal and maximum conditions.
Noise, lifetime and voltage
Review voltage, motor type, expected life, noise target, duty cycle and mounting isolation before requesting samples or a model-specific drawing.
- Voltage
- 12/24V
- Max Flow
- 20L/min
- Max Vacuum
- -95 kPa
- Max Pressure
- 1.9 Bar
Model comparison
OD-05T0920L and nearby alternatives
When flow, pressure or vacuum, voltage, size or lifetime requirements change, compare nearby models before requesting a custom configuration.
| Model | Category | Key specifications | Next action |
|---|---|---|---|
| OD-05T0920L | Diaphragm air / vacuum pump | Voltage 12/24V; Max Flow 20L/min; Max Vacuum -95 kPa | Current model |
| OD-04AB / OD-04VB | Diaphragm air / vacuum pump | Voltage 6/9/12/24V DC; Air flow 7-20lpm; Liquid flow 1.5 L/min | View model |
| OD-05T0610AC | Diaphragm air / vacuum pump | Voltage 200-220AC; Max Flow 7.5L/min; Max Vacuum -85 kPa | View model |
| OD-05T1043AC | Diaphragm air / vacuum pump | Voltage 220V; Max Flow 43L/min; Max Vacuum -89 kPa | View model |
Technical resources
Downloads
View product documents and engineering drawings for the OD-05T0920L series. For 3D files matched to OD-05T0920L, include the current model in the RFQ.
OD-05T0920L Specification
Locally synchronized file, 133 KB.
Download PDFProduct documents and 2D drawings
View PDF product documents and engineering drawings for the OD-05T0920L series.
View PDF resourcesCAD and configuration files
Submit the model, working point and mounting requirements for files matched to the project configuration.
Request CAD filesContinue browsing
