OD-05T1040L
24V Vacuum Pump 40LPM 12V Oil Free Mini Diaphragm Pumps -85kpa OD-05T1040L
High-flow 40 L/min diaphragm vacuum pump (12V/24V), oil-free, -85 kPa, 1 bar pressure, 6000-8000h lifetime. Ideal for automation, chemical, and lifting systems.
Diaphragm air / vacuum pumpOD-05T1040L33 technical parameters2 technical drawings
Product functions
Key functions
OD-05T1040L supports the following roles in equipment fluid systems. Use the technical parameters below together with the actual working point for selection.
Function 1Air transfer
Function 2Vacuum generation
Function 3Equipment-level integration
White-background imagery

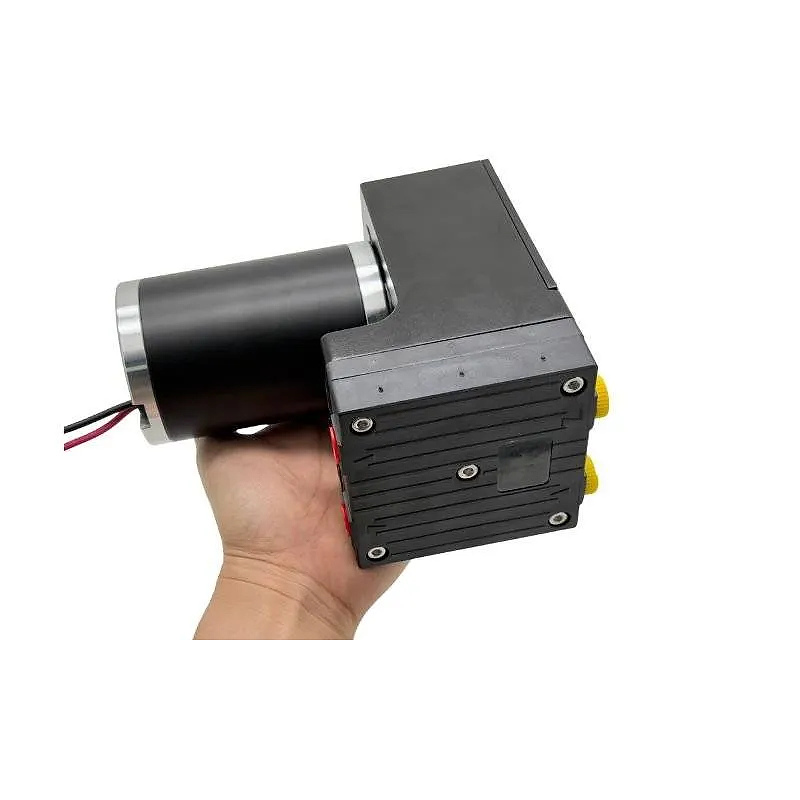

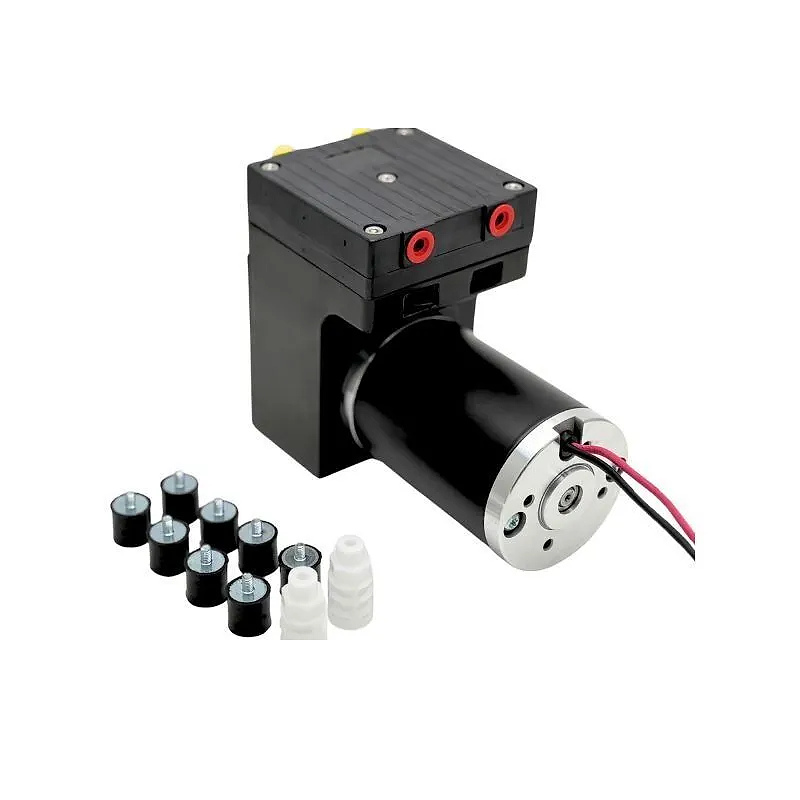

OD-05T1040L product images
These images are served from the synchronized local product library as white-background product views.
Product data
Technical specifications
The following specifications apply to OD-05T1040L. Also consider the medium, working point, power supply, duty cycle and installation conditions when selecting the product.
Voltage12/24V
Max Flow40L/min
Max Vacuum-85 kPa
Max Pressure1Bar
MotorHigh-end brush motor
Max Power50W
Weight1.87kg
ParameterValue
ModelOD-05T1040L
Voltage Range12 / 24 V DC
Max Flow Rate40 L/min (at -80 kPa: 1.5 L/min)
Max Negative Pressure-85 kPa
Max Positive Pressure1 bar
Motor TypeHigh-end brush motor
Max Power50 W
IP RatingIP20
Service Life6,000-8,000 hours
Storage Temperature-40 ℃ ~ 60 ℃
Operating Environment-10 ℃ ~ 45 ℃
Medium Temperature-10 ℃ ~ 45 ℃
Dimensions (L×W×H)151 × 83 × 120 mm
Weight1.87 kg
ComponentMaterial / Performance
Pump HeadPPS - high-strength engineering thermoplastic
Diaphragm/ValveEPDM standard (FKM/PTFE optional)
Pump BodyAluminum alloy - lightweight, corrosion-resistant, thermally conductive
Service life6,000-8,000 hours continuous duty under standard conditions
Customization AspectOptions / Notes
Diaphragm MaterialsEPDM, FKM, PTFE
Electrical Cable / ConnectorCustom lengths and types for OEM integration
Label / BrandingCustom product labeling for OEM projects
Pump ConfigurationSingle-head or dual-head options
Integration SupportEngineering guidance for compact automation and vacuum systems
Technical drawings

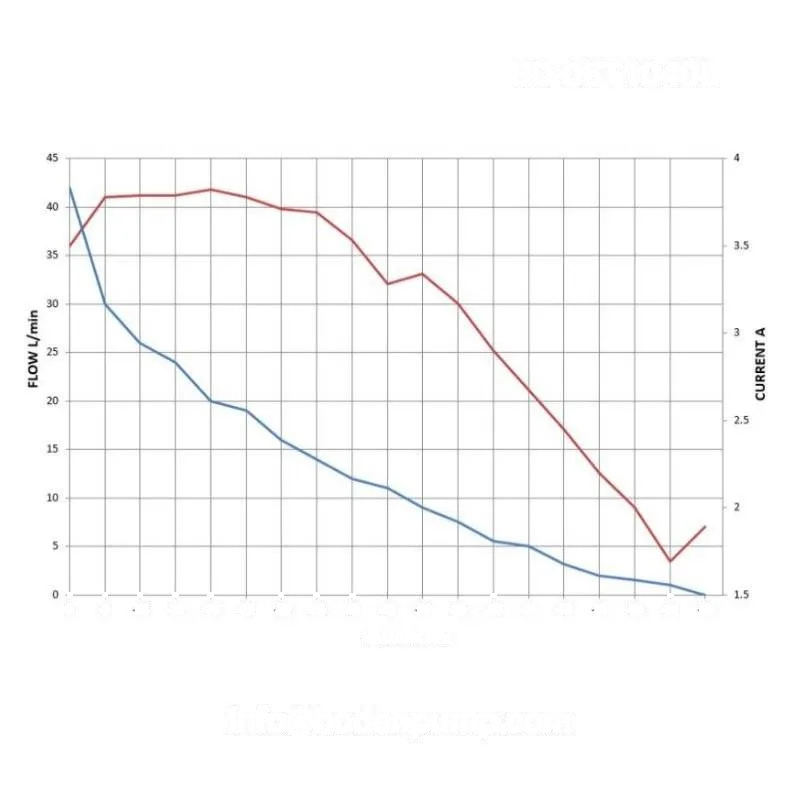

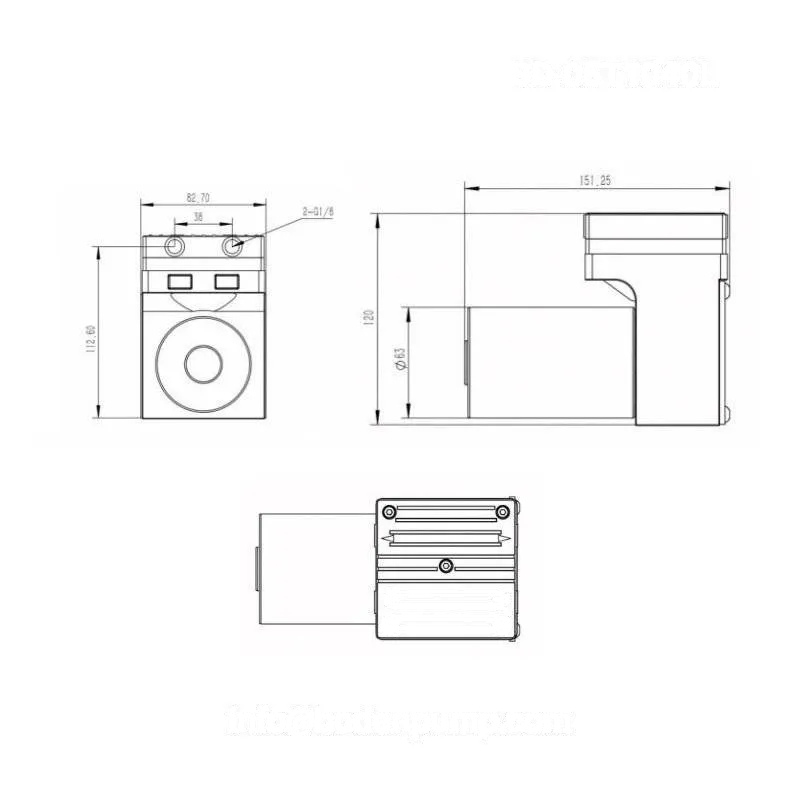

OD-05T1040L dimensions and performance graphics
Images classified as dimensional drawings, specification graphics or performance curves are grouped here.
Application and configuration
OD-05T1040L application fit
Use these notes to translate brochure data into selection questions: application, working point, noise, lifetime, voltage options and nearby model alternatives.
Working-point review
Confirm the loaded flow at the required pressure or vacuum, then review tubing loss, inlet filtration, valve restriction and the safety margin between nominal and maximum conditions.
Noise, lifetime and voltage
Review voltage, motor type, expected life, noise target, duty cycle and mounting isolation before requesting samples or a model-specific drawing.
- Voltage
- 12/24V
- Max Flow
- 40L/min
- Max Vacuum
- -85 kPa
- Max Pressure
- 1Bar
Model comparison
OD-05T1040L and nearby alternatives
When flow, pressure or vacuum, voltage, size or lifetime requirements change, compare nearby models before requesting a custom configuration.
| Model | Category | Key specifications | Next action |
|---|---|---|---|
| OD-05T1040L | Diaphragm air / vacuum pump | Voltage 12/24V; Max Flow 40L/min; Max Vacuum -85 kPa | Current model |
| OD-04AB / OD-04VB | Diaphragm air / vacuum pump | Voltage 6/9/12/24V DC; Air flow 7-20lpm; Liquid flow 1.5 L/min | View model |
| OD-05T0610AC | Diaphragm air / vacuum pump | Voltage 200-220AC; Max Flow 7.5L/min; Max Vacuum -85 kPa | View model |
| OD-05T1043AC | Diaphragm air / vacuum pump | Voltage 220V; Max Flow 43L/min; Max Vacuum -89 kPa | View model |
Technical resources
Downloads
View product documents and engineering drawings for the OD-05T1040L series. For 3D files matched to OD-05T1040L, include the current model in the RFQ.
OD-05T1040L 24V Mini Diaphragm Air Vacuum Pump
Locally synchronized file, 151 KB.
Download PDFProduct documents and 2D drawings
View PDF product documents and engineering drawings for the OD-05T1040L series.
View PDF resourcesCAD and configuration files
Submit the model, working point and mounting requirements for files matched to the project configuration.
