OD-05T0910LAC
AC Sampling Pump 10L Aluminum Alloy Continuous Operation PTFE Diaphragm Gas Pump OD-05T0910LAC
Discover the OD-05T0910LAC AC sampling pump with 10L/min flow, -80kPa vacuum, and >10,000h life. Ideal for CEMS, VOC analysis, and laboratory gas sampling.
Diaphragm air / vacuum pumpOD-05T0910LAC32 technical parameters3 technical drawings
Product functions
Key functions
OD-05T0910LAC supports the following roles in equipment fluid systems. Use the technical parameters below together with the actual working point for selection.
Function 1Air transfer
Function 2Vacuum generation
Function 3Equipment-level integration
Product data
Technical specifications
The following specifications apply to OD-05T0910LAC. Also consider the medium, working point, power supply, duty cycle and installation conditions when selecting the product.
Voltage220V/ 50Hz
Max Flow10L/min
Max Vacuum-80 kPa
Max Pressure1.9 Bar
Motor200-220 V/ 50Hz Shade-pole
Max Power60W
Weight1.32kg
ParameterValue
ModelOD-05T0910LAC
Voltage Range220V / 50Hz
Maximum Flow Rate10 L/min
Maximum Negative Pressure-80 kPa
Maximum Positive Pressure1.9 bar
Motor Type200-220V / 50Hz Shade-pole AC motor
Max Power60 W
IP RatingIP00
Service Life>10,000 hours
Storage Temperature-40 ℃ ~ 60 ℃
Operating Temperature0 ℃ ~ 45 ℃
Dimensions (L×W×H)127.6 × 61 × 105 mm
Weight1.32 kg
ComponentMaterial / Performance
Pump HeadPPS (engineering thermoplastic)
Diaphragm / ValveEPDM
Pump BodyAluminium alloy - strong, durable, and corrosion-resistant
Lifetime (continuous duty)>10,000 hours under normal operating conditions
Customization AspectAvailable Options / Notes
Diaphragm MaterialsEPDM standard (FKM optional)
Electrical Cable / ConnectorCustom cable length and connector type for OEM integration
Label / BrandingCustom labeling for OEM projects
Pump ConfigurationSingle-head: OD-05T0910LAC (10 L/min, 220V AC, -80 kPa, 1.9 bar, 60 W)
Integration SupportEngineering guidance for compact analyzers
Technical drawings

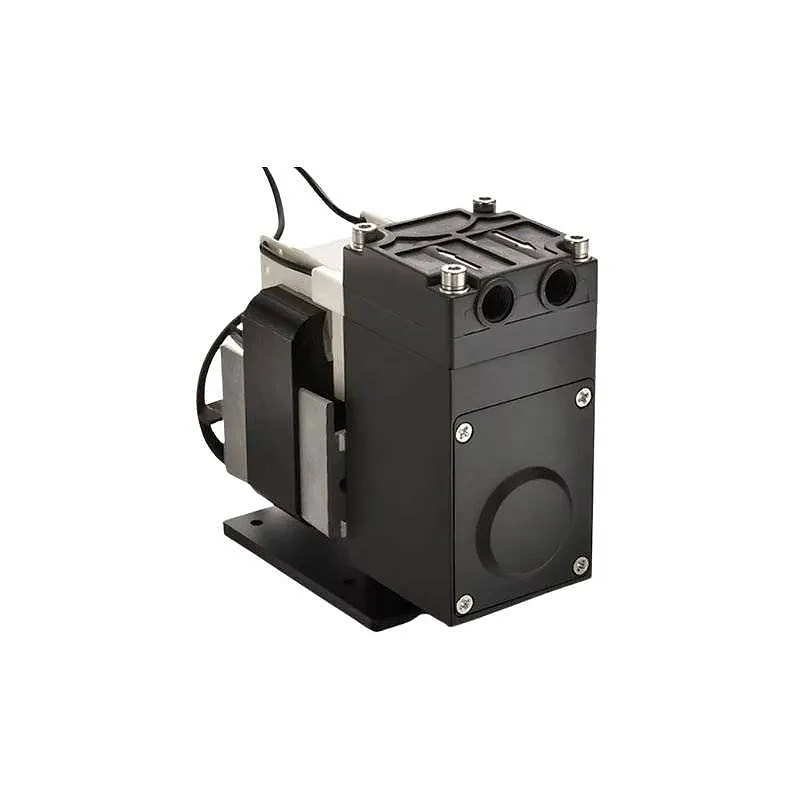

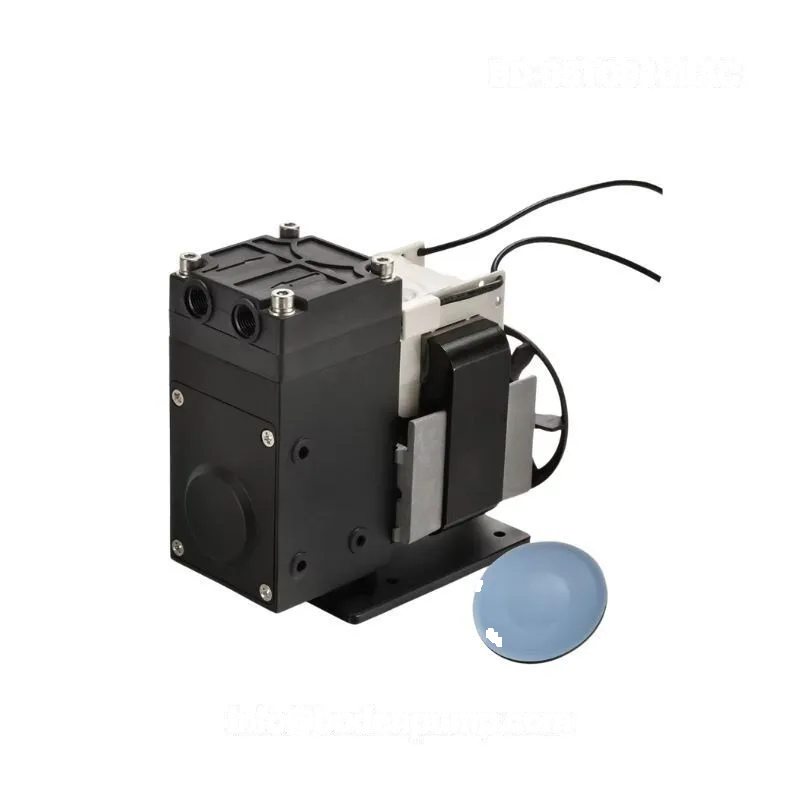

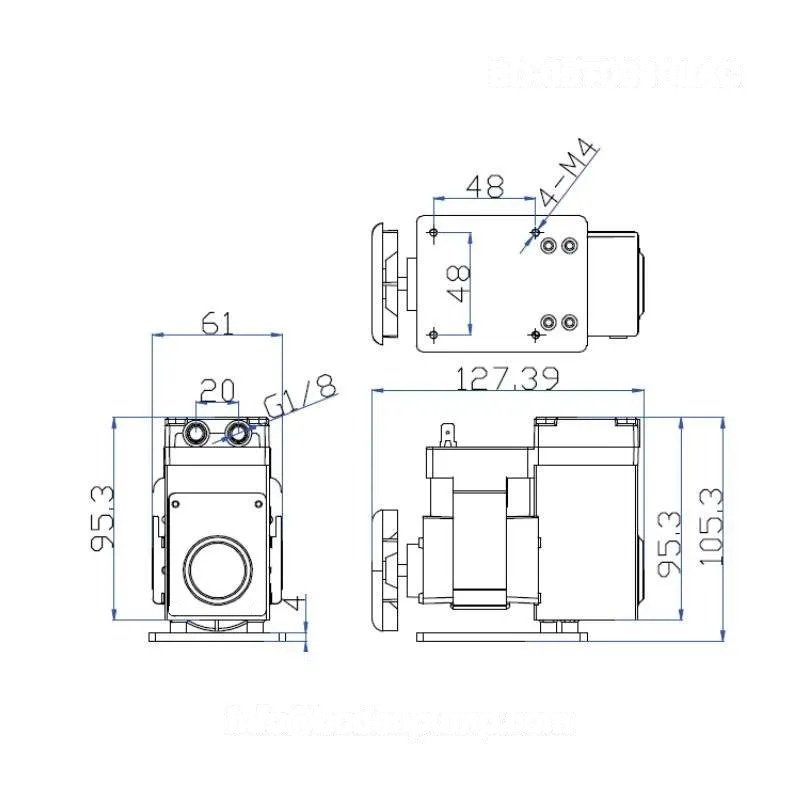

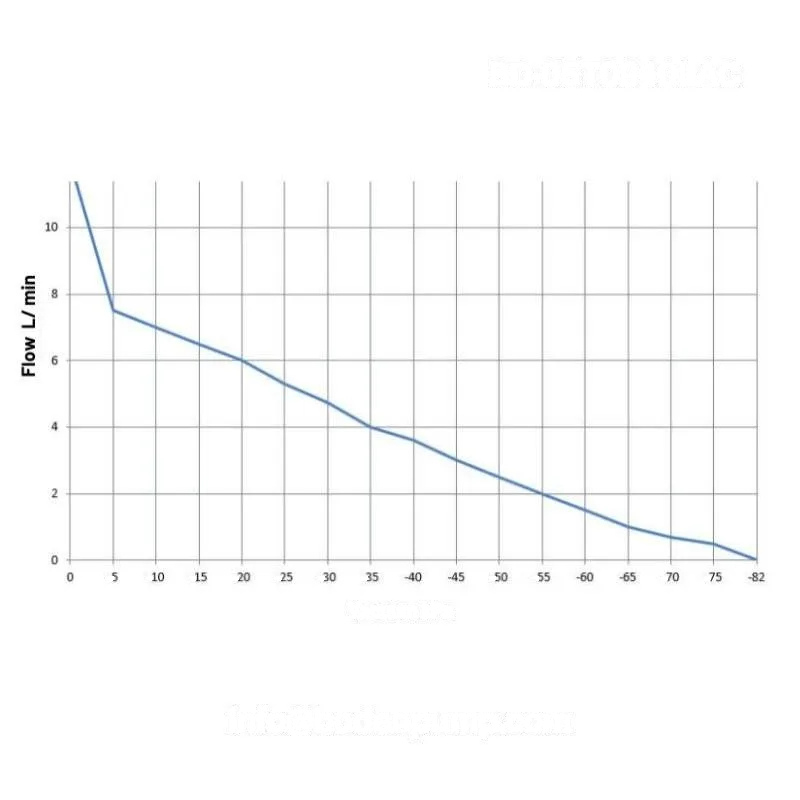

OD-05T0910LAC dimensions and performance graphics
Images classified as dimensional drawings, specification graphics or performance curves are grouped here.
Application and configuration
OD-05T0910LAC application fit
Use these notes to translate brochure data into selection questions: application, working point, noise, lifetime, voltage options and nearby model alternatives.
Working-point review
Confirm the loaded flow at the required pressure or vacuum, then review tubing loss, inlet filtration, valve restriction and the safety margin between nominal and maximum conditions.
Noise, lifetime and voltage
Review voltage, motor type, expected life, noise target, duty cycle and mounting isolation before requesting samples or a model-specific drawing.
- Voltage
- 220V/ 50Hz
- Max Flow
- 10L/min
- Max Vacuum
- -80 kPa
- Max Pressure
- 1.9 Bar
Model comparison
OD-05T0910LAC and nearby alternatives
When flow, pressure or vacuum, voltage, size or lifetime requirements change, compare nearby models before requesting a custom configuration.
| Model | Category | Key specifications | Next action |
|---|---|---|---|
| OD-05T0910LAC | Diaphragm air / vacuum pump | Voltage 220V/ 50Hz; Max Flow 10L/min; Max Vacuum -80 kPa | Current model |

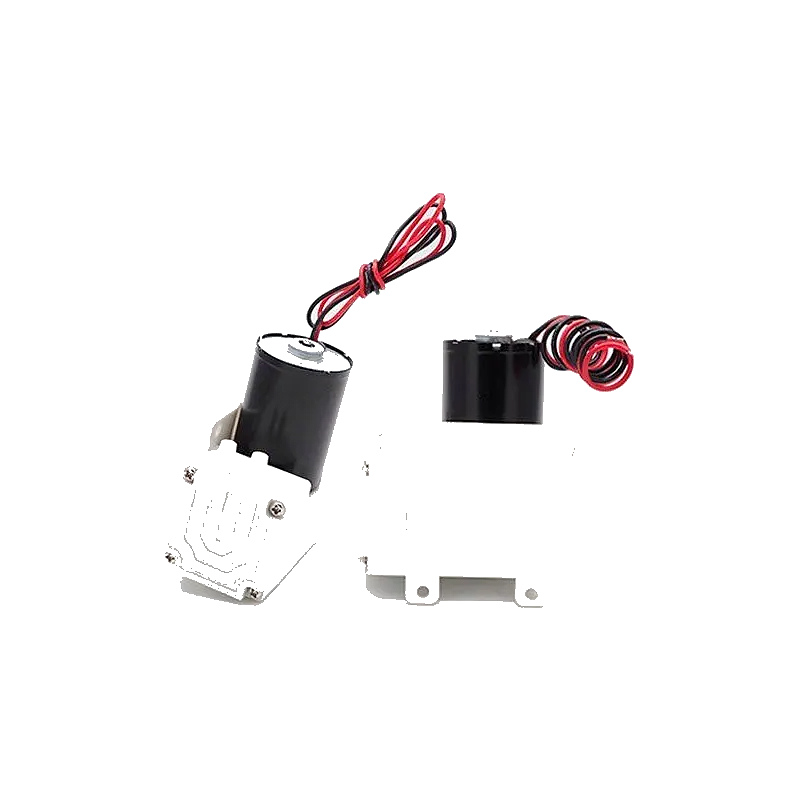

| OD-04AB / OD-04VB | Diaphragm air / vacuum pump | Voltage 6/9/12/24V DC; Air flow 7-20lpm; Liquid flow 1.5 L/min | View model |
| OD-05T0610AC | Diaphragm air / vacuum pump | Voltage 200-220AC; Max Flow 7.5L/min; Max Vacuum -85 kPa | View model |
| OD-05T1043AC | Diaphragm air / vacuum pump | Voltage 220V; Max Flow 43L/min; Max Vacuum -89 kPa | View model |
Technical resources
Downloads
View product documents and engineering drawings for the OD-05T0910LAC series. For 3D files matched to OD-05T0910LAC, include the current model in the RFQ.
OD-05T0910LAC 220V AC Sampling Pump
Locally synchronized file, 157 KB.
Download PDFProduct documents and 2D drawings
View PDF product documents and engineering drawings for the OD-05T0910LAC series.
View PDF resourcesCAD and configuration files
Submit the model, working point and mounting requirements for files matched to the project configuration.
Request CAD filesContinue browsing
Related pump models
Diaphragm air / vacuum pump

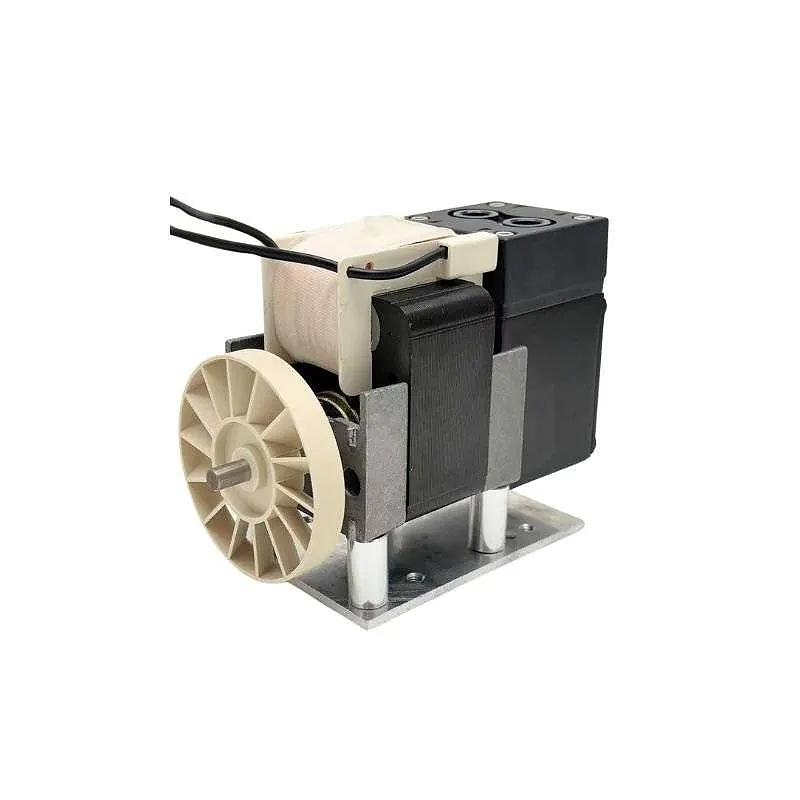

220V 50HZ Sampling Pump AC Gas Diaphragm Pump For CEMS OD-05T0610AC
View product
Diaphragm air / vacuum pump

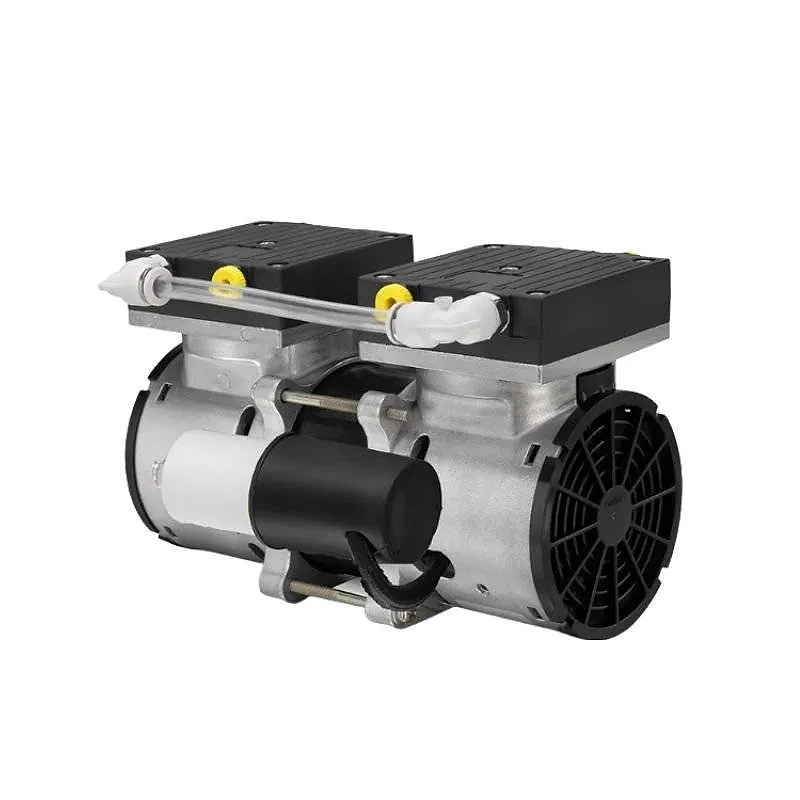

Oil-Free Diaphragm Vacuum Pump AC 220V 43L Small High Vacuum Pumps -89KPA OD-05T1043AC JSG
View productRequest a quote for OD-05T0910LAC
Provide the medium, flow, pressure or vacuum, voltage, duty cycle and mounting requirements so we can match the product configuration and supporting documents.
