Application scenarios
Typical uses include gas sampling, compact analyzers, medical equipment, beauty equipment and small pneumatic modules that need clean air transfer or vacuum generation.
OD-05TVB-S
Diaphragm Brushless Pump DC 12V/24V Quiet Micro Vacuum Pump for Medical and Samping OD-05TVB-S
Compact 12V/24V brushless diaphragm pump OD-05TVB-S with 4.6L/min flow, -70kPa vacuum, quiet operation, and 10,000h lifetime for medical & sampling.
Diaphragm air / vacuum pumpOD-05TVB-S32 technical parameters2 technical drawings
Product functions
Key functions
OD-05TVB-S supports the following roles in equipment fluid systems. Use the technical parameters below together with the actual working point for selection.
Function 1Air transfer
Function 2Vacuum generation
Function 3Equipment-level integration
White-background imagery

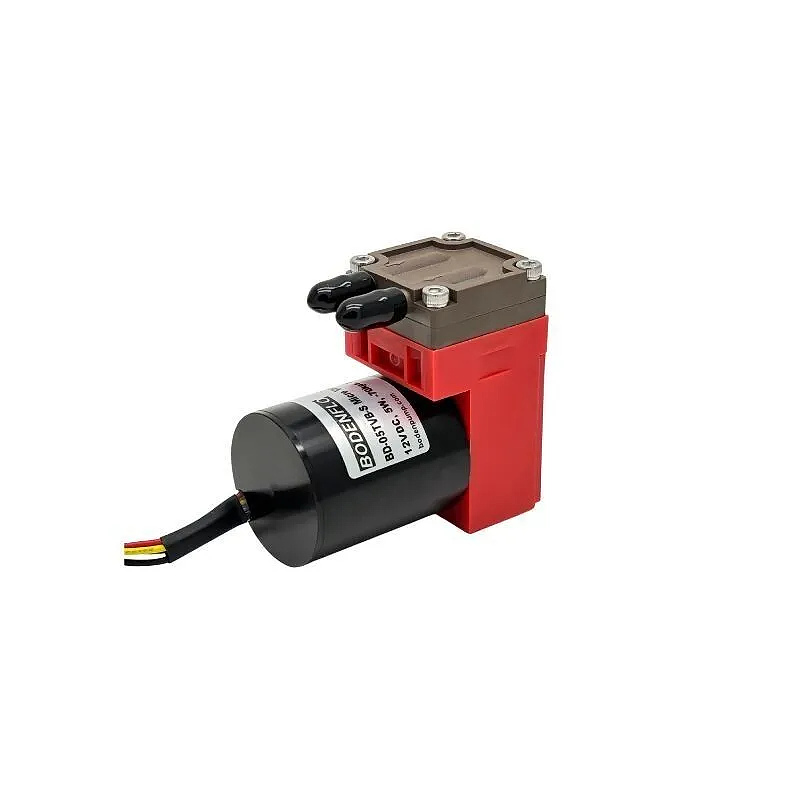

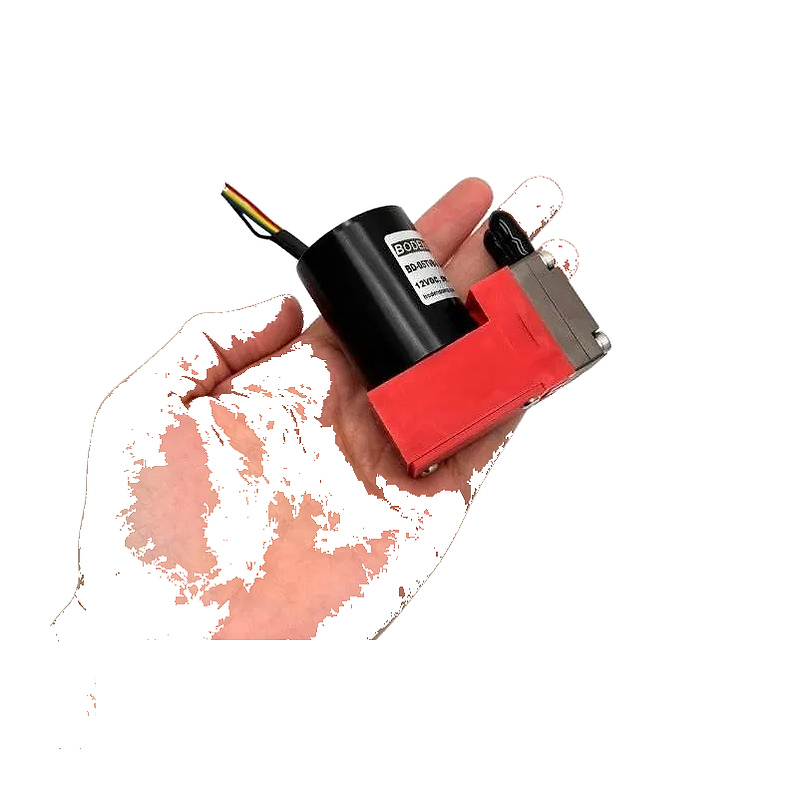

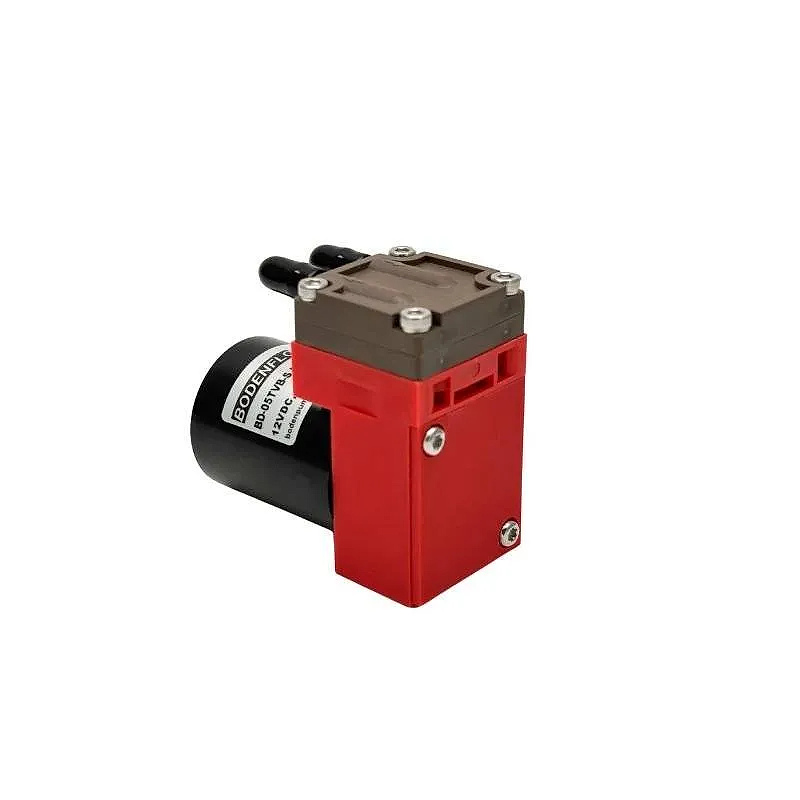

OD-05TVB-S product images
These images are served from the synchronized local product library as white-background product views.
Product data
Technical specifications
The following specifications apply to OD-05TVB-S. Also consider the medium, working point, power supply, duty cycle and installation conditions when selecting the product.
Voltage12/24V
Max Flow4.6L/min
Max Vacuum-70 kPa
Max Pressure1~1.5Bar
MotorHigh-end DC brushless motor
Max Power5 W
Weight148g
ParameterValue
ModelOD-05TVB-S
Voltage Range12 V / 24 V DC
Max Flow Rate4.6 L/min (float flow meter) 3.0 L/min (electronic flow meter)
Max Negative Pressure-70 kPa (525mmHg)
Max Positive Pressure1.0 - 1.5 bar
Motor TypeHigh-end DC brushless motor
Waterproof LevelIP20
Service Life>10,000 hours
Storage Temperature-40 ℃ ~ 60 ℃
Operating Temperature (Ambient)-20 ℃ ~ 50 ℃
Medium Temperature-10 ℃ ~ 45 ℃
Dimensions (L × W × H)60.4 × 32 × 55 mm
Weight148 g
ComponentMaterial
Pump HeadPPS - high thermal and chemical resistance
Diaphragm / ValveEPDM (optional FKM for enhanced chemical resistance)
Pump BodyNylon - lightweight and impact-resistant
Service life>10,000 hours in clean, dry environments
CustomizationAvailable Options
Voltage Configuration12V air pump or 24V air pump
Diaphragm materialEPDM (Standard), FKM (Custom)
Connector TypeOEM-specified cable and plug
Private LabelingCustom labels and branding for OEM packaging
Application EngineeringSupport for integration into medical, lab, or analytical systems
Technical drawings

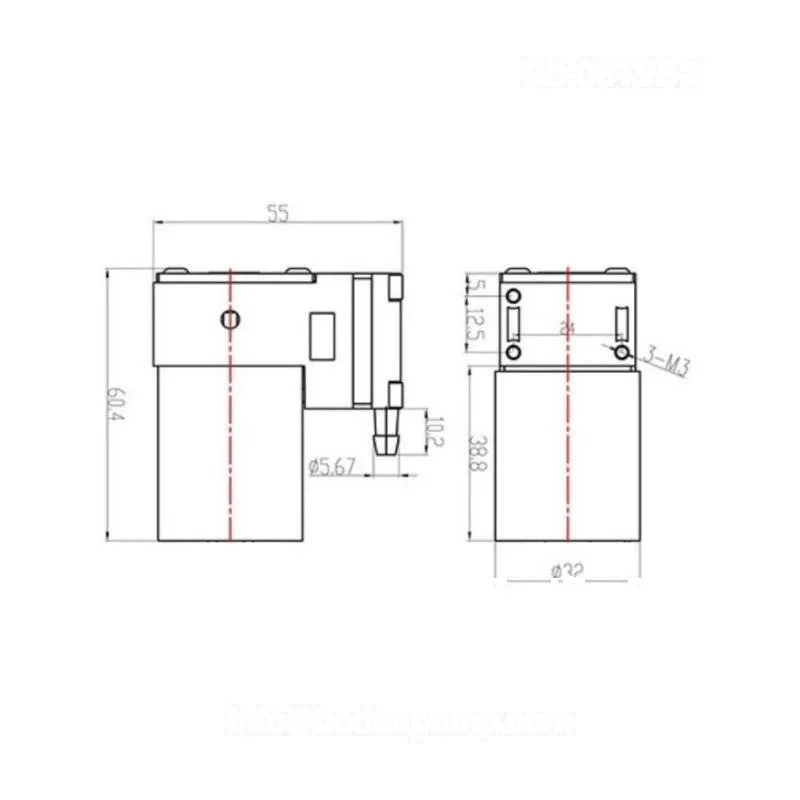

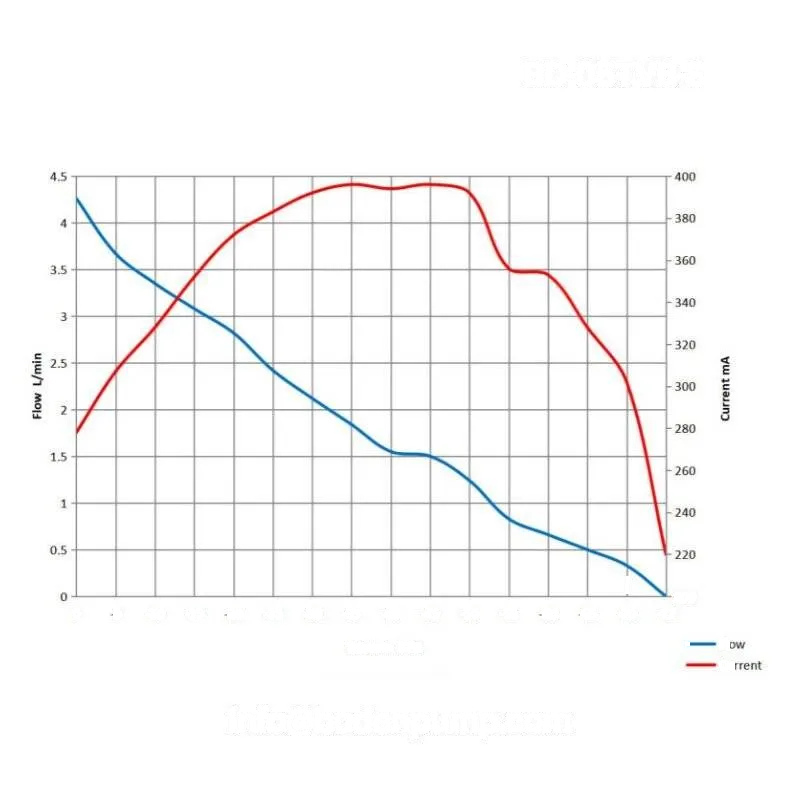

OD-05TVB-S dimensions and performance graphics
Images classified as dimensional drawings, specification graphics or performance curves are grouped here.
Application and configuration
OD-05TVB-S application fit
Use these notes to translate brochure data into selection questions: application, working point, noise, lifetime, voltage options and nearby model alternatives.
Working-point review
Confirm the loaded flow at the required pressure or vacuum, then review tubing loss, inlet filtration, valve restriction and the safety margin between nominal and maximum conditions.
Noise, lifetime and voltage
Review voltage, motor type, expected life, noise target, duty cycle and mounting isolation before requesting samples or a model-specific drawing.
- Voltage
- 12/24V
- Max Flow
- 4.6L/min
- Max Vacuum
- -70 kPa
- Max Pressure
- 1~1.5Bar
Model comparison
OD-05TVB-S and nearby alternatives
When flow, pressure or vacuum, voltage, size or lifetime requirements change, compare nearby models before requesting a custom configuration.
| Model | Category | Key specifications | Next action |
|---|---|---|---|
| OD-05TVB-S | Diaphragm air / vacuum pump | Voltage 12/24V; Max Flow 4.6L/min; Max Vacuum -70 kPa | Current model |
| OD-04AB / OD-04VB | Diaphragm air / vacuum pump | Voltage 6/9/12/24V DC; Air flow 7-20lpm; Liquid flow 1.5 L/min | View model |
| OD-05T0610AC | Diaphragm air / vacuum pump | Voltage 200-220AC; Max Flow 7.5L/min; Max Vacuum -85 kPa | View model |
| OD-05T1043AC | Diaphragm air / vacuum pump | Voltage 220V; Max Flow 43L/min; Max Vacuum -89 kPa | View model |
Technical resources
Downloads
View product documents and engineering drawings for the OD-05TVB-S series. For 3D files matched to OD-05TVB-S, include the current model in the RFQ.
Brushless-motor-function-manual.pdf
Locally synchronized file, 162 KB.
Download PDFOD-05TVB-S Micro Diaphragm Pump
Locally synchronized file, 157 KB.
Download PDFProduct documents and 2D drawings
View PDF product documents and engineering drawings for the OD-05TVB-S series.
View PDF resourcesCAD and configuration files
Submit the model, working point and mounting requirements for files matched to the project configuration.
Request CAD filesContinue browsing
Related pump models
Diaphragm air / vacuum pump
220V 50HZ Sampling Pump AC Gas Diaphragm Pump For CEMS OD-05T0610AC
View product
Diaphragm air / vacuum pump
Oil-Free Diaphragm Vacuum Pump AC 220V 43L Small High Vacuum Pumps -89KPA OD-05T1043AC JSG
View productRequest a quote for OD-05TVB-S
Provide the medium, flow, pressure or vacuum, voltage, duty cycle and mounting requirements so we can match the product configuration and supporting documents.
