OD-05TR4LB

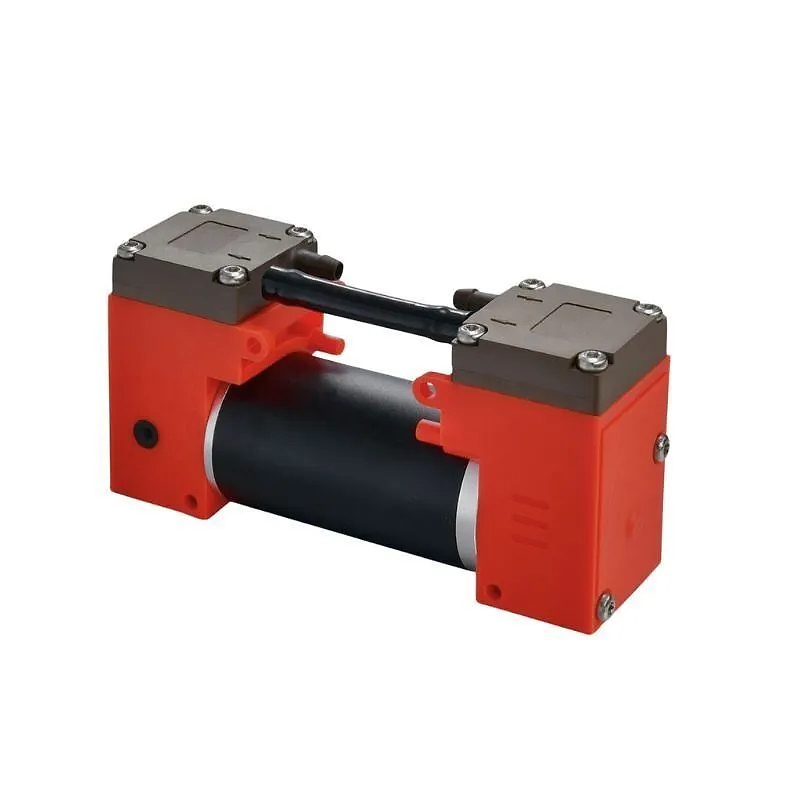

Brushless Double Head Compressor 12V 24V Small Size High Pressure Air Pumps 5bar 4L/min OD-05TR4LB
Discover the OD-05TR4LB brushless double-head mini compressor, delivering 4 L/min flow, -70 kPa vacuum, and 4-5 bar pressure. Ideal for medical devices, high-end beauty equipment, analytical instruments, and high-pressure atomization.
Miniature compressorOD-05TR4LB30 technical parameters2 technical drawings
Product functions
Key functions
OD-05TR4LB supports the following roles in equipment fluid systems. Use the technical parameters below together with the actual working point for selection.
Function 1Pressure supply
Function 2Vacuum duty
Function 3Configuration integration
Product data
Technical specifications
The following specifications apply to OD-05TR4LB. Also consider the medium, working point, power supply, duty cycle and installation conditions when selecting the product.
Voltage12V / 24V
Max Flow4L/min
Max Vacuum-70 kPa
Max Pressure4-5Bar
MotorHigh-end brushless DC motor
Max Power11W
Weight260g
ParameterValue
ModelOD-05TR4LB
Voltage Range12V / 24V DC
Maximum Flow4 L/min
Maximum Negative Pressure-70 kPa
Maximum Positive Pressure4-5 bar
Motor TypeHigh-end brushless DC motor
Maximum Power11W
Storage Temperature-40°C to 60°C
Operating Environment-20°C to 50°C
Dimensions114 × 31 × 55 mm
Weight260 g
ComponentMaterial / Performance
Pump HeadPPS - high pressure resistance & strong chemical durability
ValveEPDM (FKM optional for enhanced chemical compatibility)
Piston CupPTFE - excellent chemical resistance & low friction
Pump BodyPPS - lightweight, corrosion-resistant, high mechanical strength
Customization AspectAvailable Options
Diaphragm / ValveEPDM, FKM
Voltage12V / 24V DC
BrandingBased on the model provided by the customer
MountingCustomized brackets and anti-vibration dampers
Electrical OptionsCustom cable lengths and connector types
Technical drawings

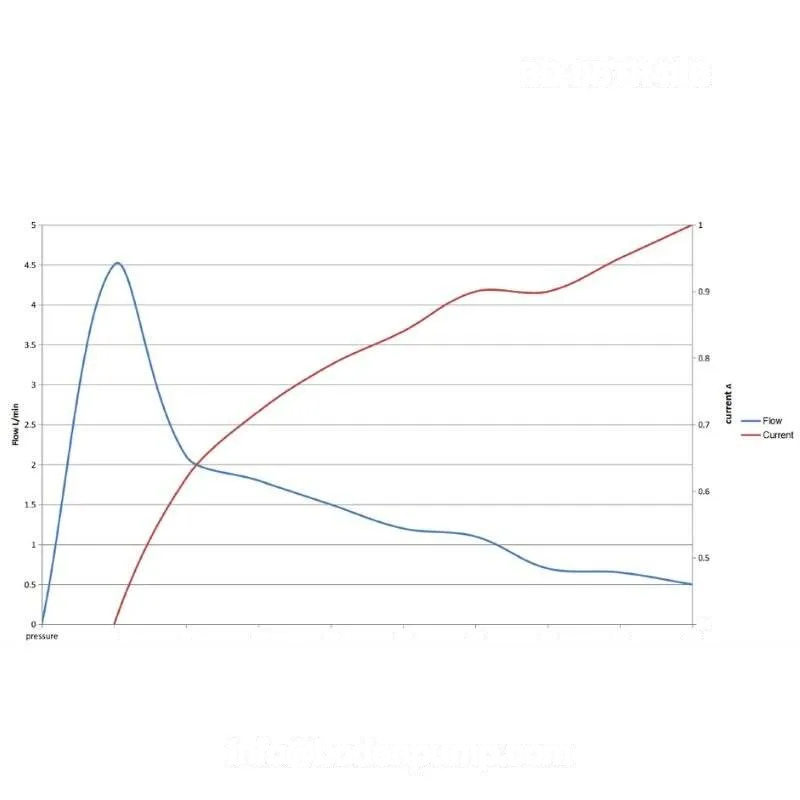

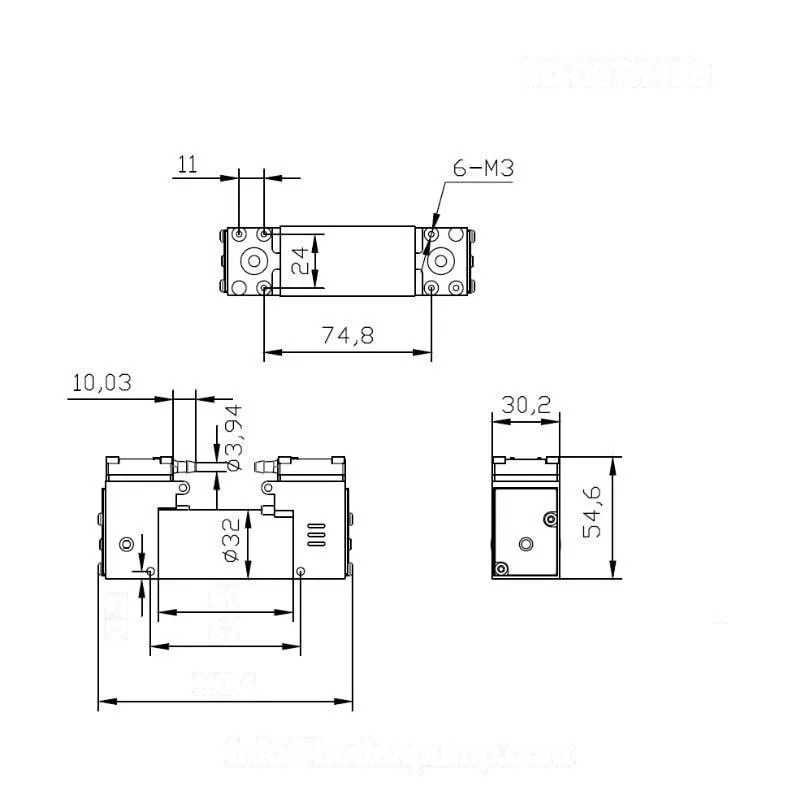

OD-05TR4LB dimensions and performance graphics
Images classified as dimensional drawings, specification graphics or performance curves are grouped here.
Application and configuration
OD-05TR4LB application fit
Use these notes to translate brochure data into selection questions: application, working point, noise, lifetime, voltage options and nearby model alternatives.
Working-point review
Confirm the pressure, flow and duty cycle at the equipment inlet, then compare startup load and thermal rise under the intended enclosure condition.
Noise, lifetime and voltage
Review voltage, current, motor type, cooling condition, vibration isolation and target lifetime before requesting samples.
- Voltage
- 12V / 24V
- Max Flow
- 4L/min
- Max Vacuum
- -70 kPa
- Max Pressure
- 4-5Bar
Model comparison
OD-05TR4LB and nearby alternatives
When flow, pressure or vacuum, voltage, size or lifetime requirements change, compare nearby models before requesting a custom configuration.
| Model | Category | Key specifications | Next action |
|---|---|---|---|
| OD-05TR4LB | Miniature compressor | Voltage 12V / 24V; Max Flow 4L/min; Max Vacuum -70 kPa | Current model |
| OD-08A-D / OD-08V-D | Miniature compressor | Voltage 24V; Air flow 80L/min(40L/minx2); Pressure 2-7bar | View model |
| OD-05TVB | Miniature compressor | Voltage DC 12V/24V; Air flow 7.2L/min; Vacuum -72kPa or -90kPa | View model |
| OD-08AB-D / OD-08VB-D | Miniature compressor | Voltage 24V; Air flow 80L/min(40L/minx2); Pressure 2-7bar | View model |
