OD-08AB-D

OD-08AB-D/OD-08VB-D Double head Small Air Compressor & High Flow Air Pump

Name: OD-08AB-D/OD-08VB-D Double head Small Air Compressor & High Flow Air Pump
Brand: JSG
SKU: OD-08AB-D / OD-08VB-D

Double head Small Air Compressor & High Flow Air Pump - piston in the cylinder makes a reciprocating linear movement through the action of the crank connecting rod

Miniature compressorOD-08AB-D6 technical parameters1 technical drawings

View specifications Request this model

small compressor for pressure and flow, 80lpm high flow

Product functions

Key functions

OD-08AB-D / OD-08VB-D supports the following roles in equipment fluid systems. Use the technical parameters below together with the actual working point for selection.

Function 1Pressure supply

Function 2Vacuum duty

Function 3Configuration integration

White-background imagery

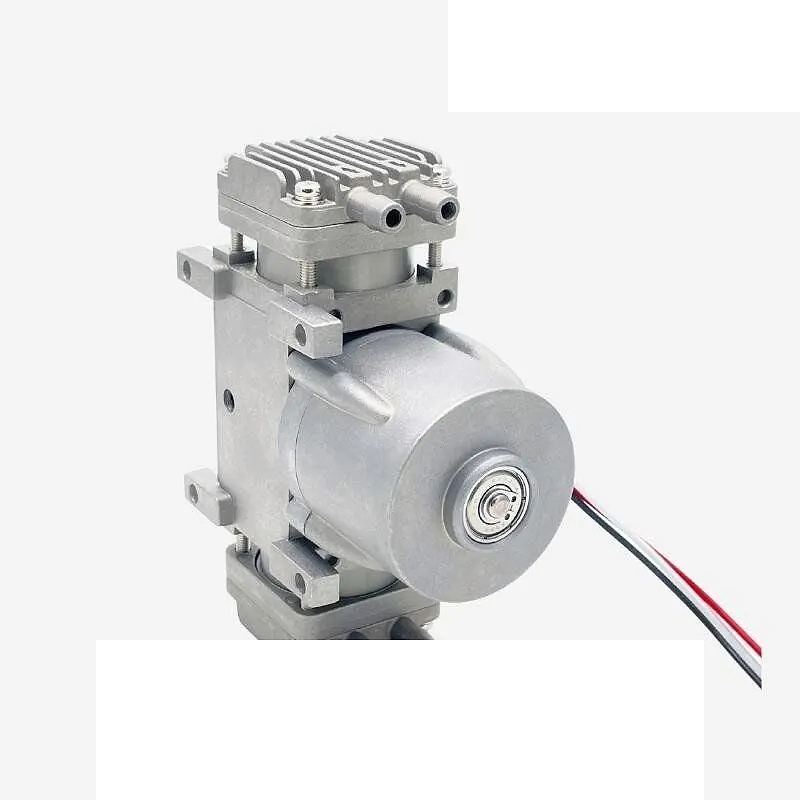

OD-08AB-D / OD-08VB-D product images

These images are served from the synchronized local product library as white-background product views.

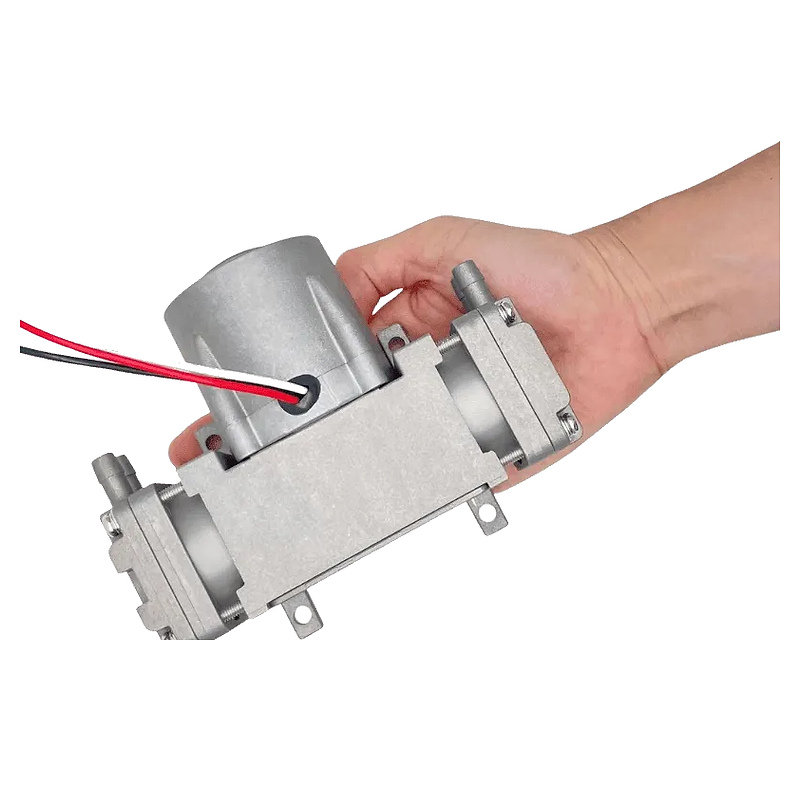

Miniature compressor Pumps small size 80lpm — Product view 2

Product data

Technical specifications

The following specifications apply to OD-08AB-D / OD-08VB-D. Also consider the medium, working point, power supply, duty cycle and installation conditions when selecting the product.

Voltage24V

Air flow80L/min(40L/minx2)

Pressure2-7bar

Vacuum-85kpa

Motorbrush/brushless

DiaphragmEPDM/FKM

Technical drawings

OD-08AB-D / OD-08VB-D dimensions and performance graphics

Images classified as dimensional drawings, specification graphics or performance curves are grouped here.

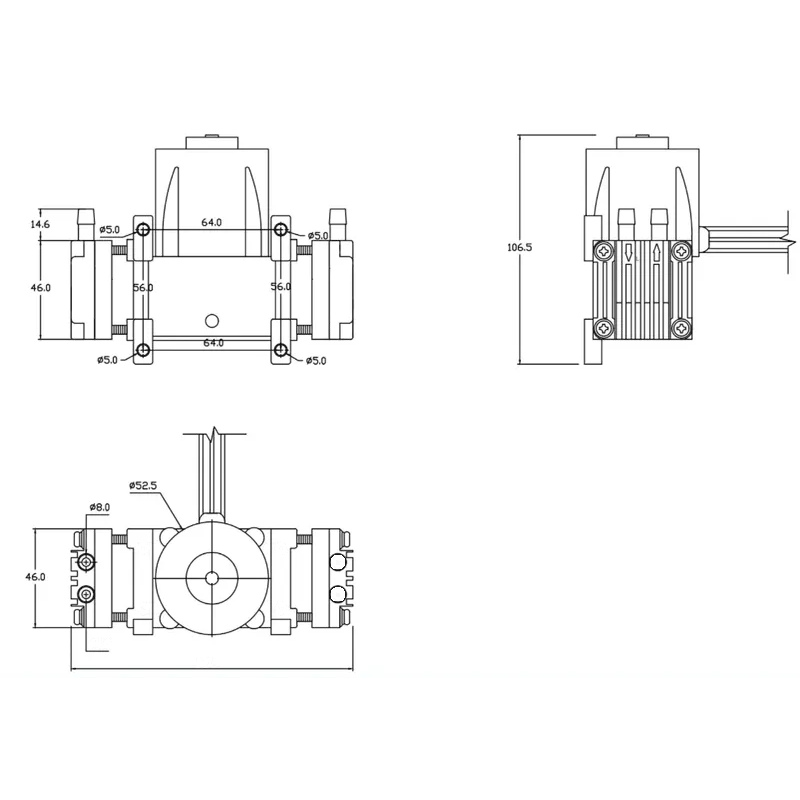

2D Drawing small air compressor — Technical drawing 1

Application and configuration

OD-08AB-D / OD-08VB-D application fit

Use these notes to translate brochure data into selection questions: application, working point, noise, lifetime, voltage options and nearby model alternatives.

Application scenarios

Typical uses include pressure supply, compact compression and vacuum or air modules inside instruments, automation systems and OEM equipment.

Working-point review

Confirm the pressure, flow and duty cycle at the equipment inlet, then compare startup load and thermal rise under the intended enclosure condition.

Noise, lifetime and voltage

Review voltage, current, motor type, cooling condition, vibration isolation and target lifetime before requesting samples.

Voltage: 24V
Air flow: 80L/min(40L/minx2)
Pressure: 2-7bar
Vacuum: -85kpa

Model comparison

OD-08AB-D / OD-08VB-D and nearby alternatives

When flow, pressure or vacuum, voltage, size or lifetime requirements change, compare nearby models before requesting a custom configuration.

Model	Category	Key specifications	Next action
OD-08AB-D / OD-08VB-D	Miniature compressor	Voltage 24V; Air flow 80L/min(40L/minx2); Pressure 2-7bar	Current model
OD-08A-D / OD-08V-D	Miniature compressor	Voltage 24V; Air flow 80L/min(40L/minx2); Pressure 2-7bar	View model
OD-05TVB	Miniature compressor	Voltage DC 12V/24V; Air flow 7.2L/min; Vacuum -72kPa or -90kPa	View model
OD-08AB-S / OD-08VB-S	Miniature compressor	Voltage 24V; Air flow 20-45L/min; Pressure 6-7bar	View model
