Application scenarios
Typical uses include pressure supply, compact compression and vacuum or air modules inside instruments, automation systems and OEM equipment.
OD-05TVB
OD-05TVB Brushless Diaphragm Pump Compressor - JSG
OD-05TVB: Premium micro diaphragm vacuum pump for precision applications; optimal performance, durability, and efficiency.
Miniature compressorOD-05TVB5 technical parameters1 technical drawings
Product functions
Key functions
OD-05TVB supports the following roles in equipment fluid systems. Use the technical parameters below together with the actual working point for selection.
Function 1Pressure supply
Function 2Vacuum duty
Function 3Configuration integration
White-background imagery
OD-05TVB product images
These images are served from the synchronized local product library as white-background product views.
Product data
Technical specifications
The following specifications apply to OD-05TVB. Also consider the medium, working point, power supply, duty cycle and installation conditions when selecting the product.
VoltageDC 12V/24V
Air flow7.2L/min
Vacuum-72kPa or -90kPa
Motorbrush/brushless
DiaphragmEPDM

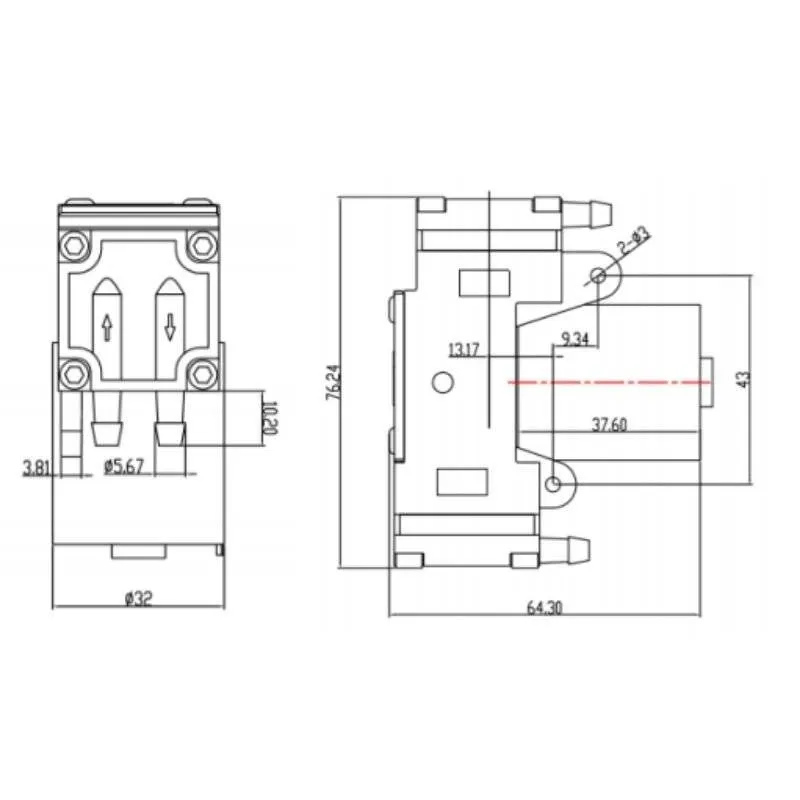

Technical drawings
OD-05TVB dimensions and performance graphics
Images classified as dimensional drawings, specification graphics or performance curves are grouped here.
Application and configuration
OD-05TVB application fit
Use these notes to translate brochure data into selection questions: application, working point, noise, lifetime, voltage options and nearby model alternatives.
Working-point review
Confirm the pressure, flow and duty cycle at the equipment inlet, then compare startup load and thermal rise under the intended enclosure condition.
Noise, lifetime and voltage
Review voltage, current, motor type, cooling condition, vibration isolation and target lifetime before requesting samples.
- Voltage
- DC 12V/24V
- Air flow
- 7.2L/min
- Vacuum
- -72kPa or -90kPa
- Motor
- brush/brushless
Model comparison
OD-05TVB and nearby alternatives
When flow, pressure or vacuum, voltage, size or lifetime requirements change, compare nearby models before requesting a custom configuration.
| Model | Category | Key specifications | Next action |
|---|---|---|---|
| OD-05TVB | Miniature compressor | Voltage DC 12V/24V; Air flow 7.2L/min; Vacuum -72kPa or -90kPa | Current model |
| OD-08A-D / OD-08V-D | Miniature compressor | Voltage 24V; Air flow 80L/min(40L/minx2); Pressure 2-7bar | View model |
| OD-08AB-D / OD-08VB-D | Miniature compressor | Voltage 24V; Air flow 80L/min(40L/minx2); Pressure 2-7bar | View model |
| OD-08AB-S / OD-08VB-S | Miniature compressor | Voltage 24V; Air flow 20-45L/min; Pressure 6-7bar | View model |
Technical resources
Downloads
View product documents and engineering drawings for the OD-05TVB series. For 3D files matched to OD-05TVB, include the current model in the RFQ.
Product documents and 2D drawings
View PDF product documents and engineering drawings for the OD-05TVB series.
View PDF resourcesCAD and configuration files
Submit the model, working point and mounting requirements for files matched to the project configuration.
Request CAD filesContinue browsing
Related pump models
Miniature compressor
OD-08AB-S/OD-08VB-S Small Air Compressor & High Flow Air Vacuum Pump
View productRequest a quote for OD-05TVB
Provide the medium, flow, pressure or vacuum, voltage, duty cycle and mounting requirements so we can match the product configuration and supporting documents.
