OD-05T0910L

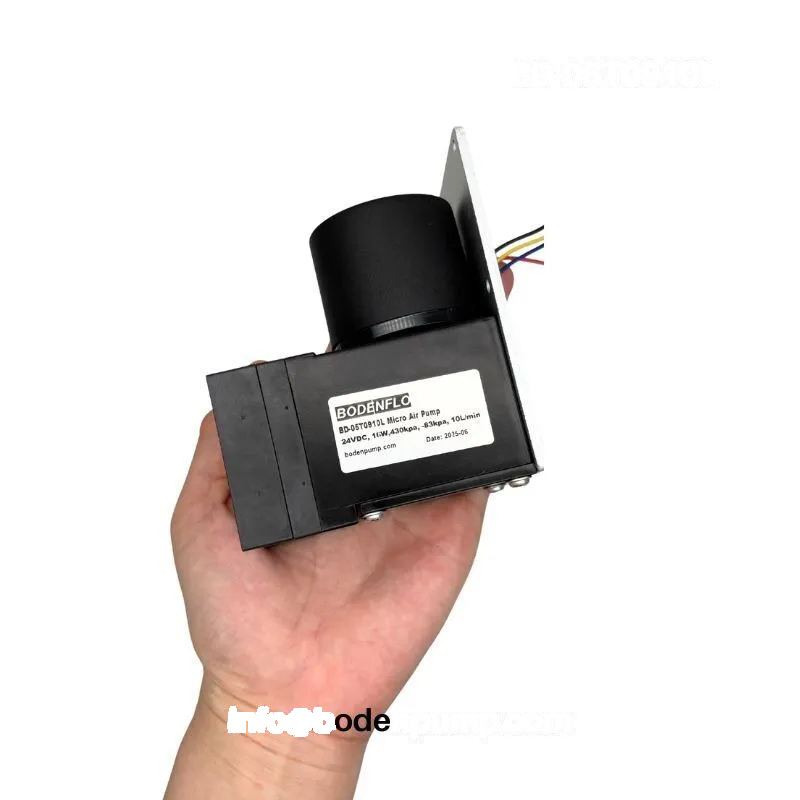

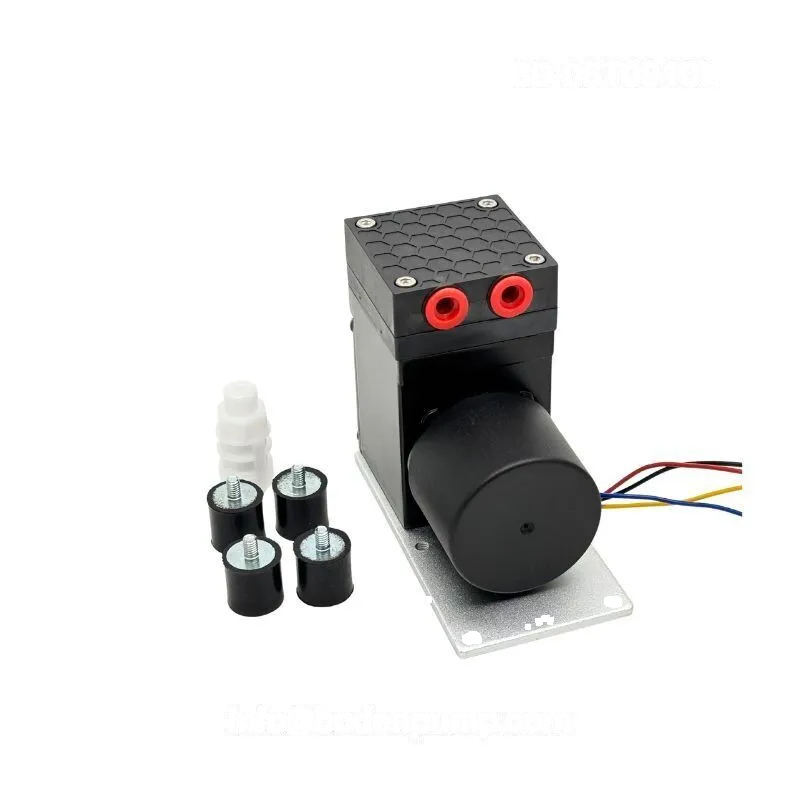

Brushless Vacuum Pump 10L/min 12/24V DC Small Air Diaphragm Pump OD-05T0910L
Discover OD-05T0910L brushless vacuum pump: 10L/min flow, -85kPa vacuum, >3 bar pressure. Reliable, oil-free, compact diaphragm pump for OEM applications.
Diaphragm air / vacuum pumpOD-05T0910L33 technical parameters4 technical drawings
Product functions
Key functions
OD-05T0910L supports the following roles in equipment fluid systems. Use the technical parameters below together with the actual working point for selection.
Function 1Air transfer
Function 2Vacuum generation
Function 3Equipment-level integration
Product data
Technical specifications
The following specifications apply to OD-05T0910L. Also consider the medium, working point, power supply, duty cycle and installation conditions when selecting the product.
Voltage12/24V
Max Flow10L/min
Max Vacuum-85 kPa
Max Pressure3 Bar
MotorBrushless motor
Max Power16W
Weight450g
ParameterValue
ModelOD-05T0910L
Voltage Options12 V / 24 V DC
Maximum Flow Rate> 10 L/min
Maximum Negative Pressure> -85 kPa
Maximum Positive Pressure> 3 bar
Noise Level65 dB
Motor TypeBrushless DC Motor
Maximum Power16 W
IP RatingIP20
Service Life> 8,000 hours
Storage Temperature-40 ℃ ~ 60 ℃
Operating Temperature-20 ℃ ~ 45 ℃
Dimensions (L × W × H)98 × 50 × 80 mm
Weight450 g
ComponentMaterial / Performance
Pump HeadPPS - high-strength, chemical-resistant thermoplastic
Diaphragm / ValveEPDM standard; PTFE/FKM optional for aggressive gases
Pump BodyEngineering plastics - durable, lightweight
Lifetime (continuous duty)> 8,000 hours continuous duty in clean, non-corrosive environments
Customization AspectAvailable Options / Notes
Diaphragm MaterialsEPDM, PTFE, or FKM for different chemical resistance requirements
Electrical Cable / ConnectorCustom cable length and connector type for OEM integration
Label / BrandingCustom product labeling available
Pump ConfigurationSingle-head OD-05T0910L standard model; other configurations available upon request
Integration SupportEngineering assistance for seamless installation in CEMS, analyzers, or industrial systems
Technical drawings

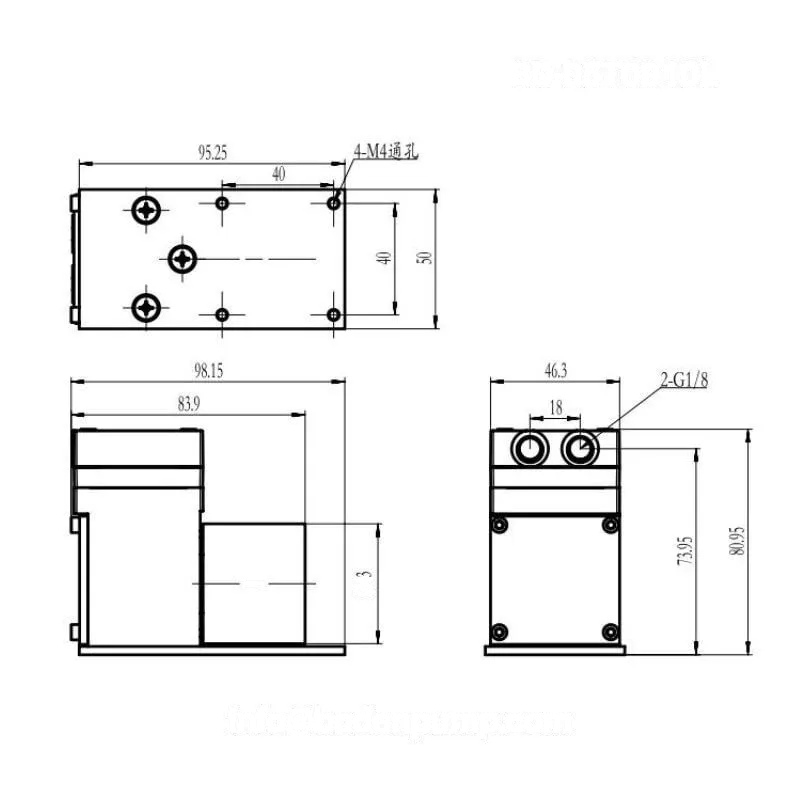

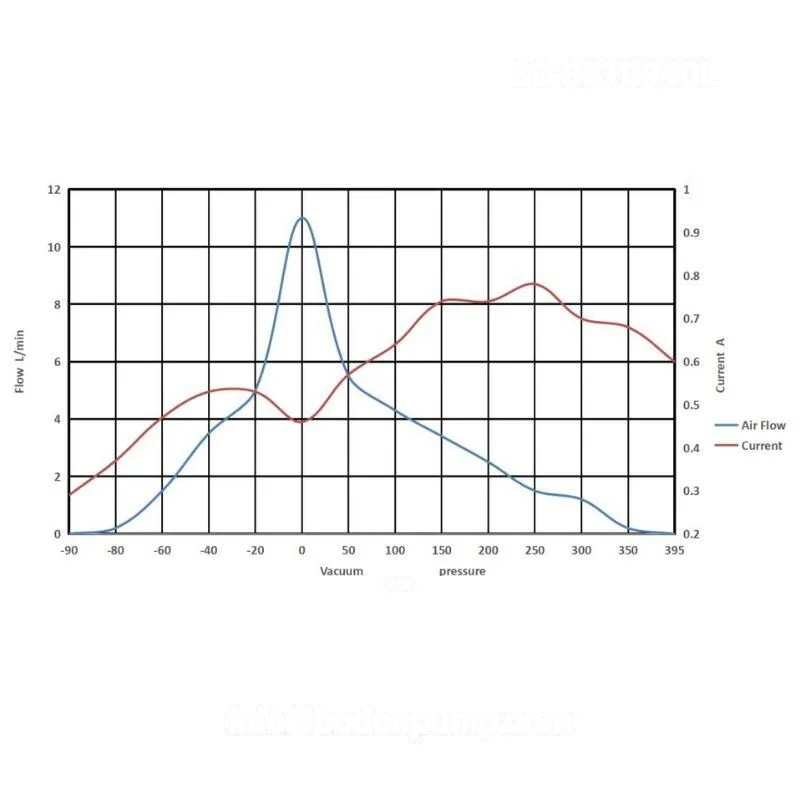

OD-05T0910L dimensions and performance graphics
Images classified as dimensional drawings, specification graphics or performance curves are grouped here.
Application and configuration
OD-05T0910L application fit
Use these notes to translate brochure data into selection questions: application, working point, noise, lifetime, voltage options and nearby model alternatives.
Working-point review
Confirm the loaded flow at the required pressure or vacuum, then review tubing loss, inlet filtration, valve restriction and the safety margin between nominal and maximum conditions.
Noise, lifetime and voltage
Review voltage, motor type, expected life, noise target, duty cycle and mounting isolation before requesting samples or a model-specific drawing.
- Voltage
- 12/24V
- Max Flow
- 10L/min
- Max Vacuum
- -85 kPa
- Max Pressure
- 3 Bar
Model comparison
OD-05T0910L and nearby alternatives
When flow, pressure or vacuum, voltage, size or lifetime requirements change, compare nearby models before requesting a custom configuration.
| Model | Category | Key specifications | Next action |
|---|---|---|---|
| OD-05T0910L | Diaphragm air / vacuum pump | Voltage 12/24V; Max Flow 10L/min; Max Vacuum -85 kPa | Current model |
| OD-04AB / OD-04VB | Diaphragm air / vacuum pump | Voltage 6/9/12/24V DC; Air flow 7-20lpm; Liquid flow 1.5 L/min | View model |
| OD-05T0610AC | Diaphragm air / vacuum pump | Voltage 200-220AC; Max Flow 7.5L/min; Max Vacuum -85 kPa | View model |
| OD-05T1043AC | Diaphragm air / vacuum pump | Voltage 220V; Max Flow 43L/min; Max Vacuum -89 kPa | View model |
Technical resources
Downloads
View product documents and engineering drawings for the OD-05T0910L series. For 3D files matched to OD-05T0910L, include the current model in the RFQ.
OD-05T0910L Wire Connection Guide
Locally synchronized file, 97 KB.
Download PDFOD-05T0910L Brushless Vacuum Pump
Locally synchronized file, 196 KB.
Download PDFProduct documents and 2D drawings
View PDF product documents and engineering drawings for the OD-05T0910L series.
View PDF resourcesCAD and configuration files
Submit the model, working point and mounting requirements for files matched to the project configuration.
Request CAD filesContinue browsing
