Application scenarios
Typical uses include gas sampling, compact analyzers, medical equipment, beauty equipment and small pneumatic modules that need clean air transfer or vacuum generation.
OD-05T046L
Coreless Diaphragm Pump Best Negative Pressure Pump OD-05T046L
OD-05T046L coreless diaphragm pump delivers 6 L/min & -63 kPa vacuum. Ideal for medical, gas sampling, lab vacuum, and automation systems.
Diaphragm air / vacuum pumpOD-05T046L34 technical parameters2 technical drawings
Product functions
Key functions
OD-05T046L supports the following roles in equipment fluid systems. Use the technical parameters below together with the actual working point for selection.
Function 1Air transfer
Function 2Vacuum generation
Function 3Equipment-level integration
White-background imagery

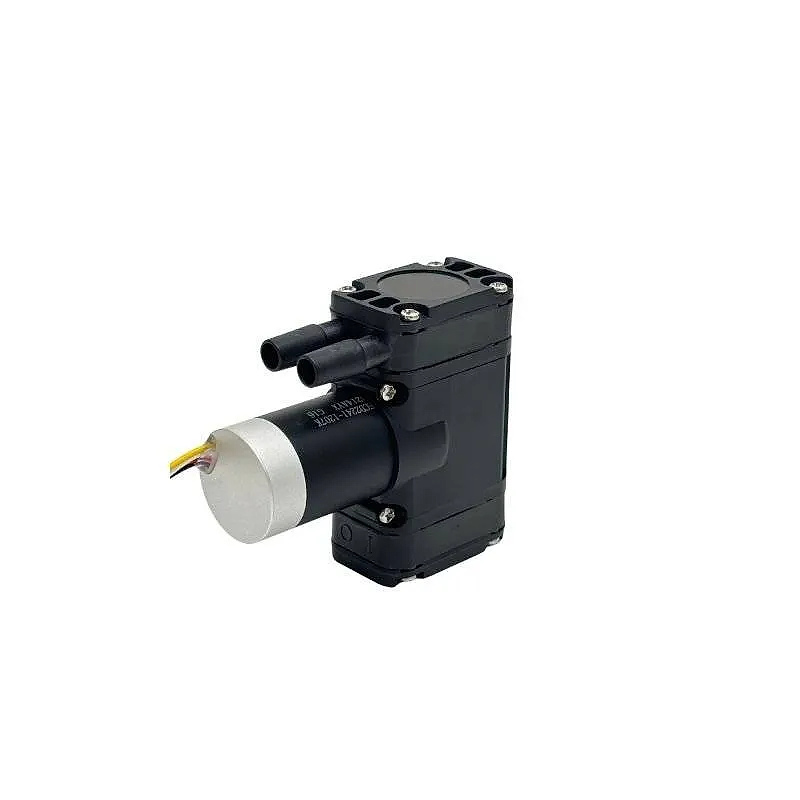

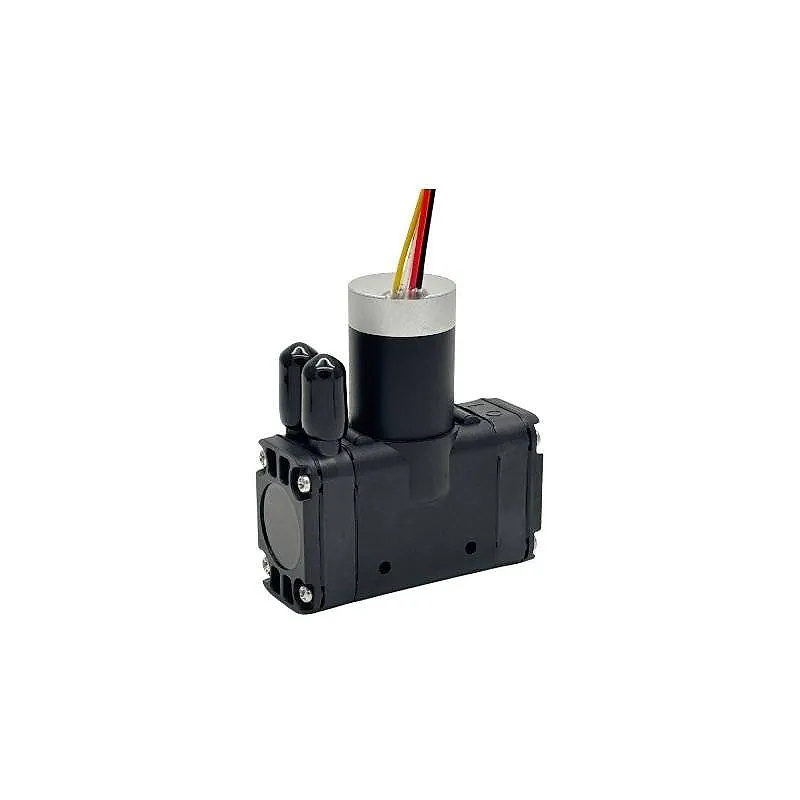

OD-05T046L product images
These images are served from the synchronized local product library as white-background product views.
Product data
Technical specifications
The following specifications apply to OD-05T046L. Also consider the medium, working point, power supply, duty cycle and installation conditions when selecting the product.
Voltage1-5V
Max Flow6L/min
Max Vacuum-63 kPa
MotorCoreless motor
Max Power5 W
Weight98g
ParameterValue
ModelOD-05T046L
Voltage Range1-5 V DC
Max Flow Rate6 L/min
Max Negative Pressure-63 kPa
Motor TypeCoreless DC Motor
Service Life>6,000 hours
IP RatingIP00
Storage Temperature-40 ℃ to 60 ℃
Operating Temperature0 ℃ to 45 ℃
Pump Head MaterialNylon
Diaphragm/ValveEPDM (FKM optional)
Pump BodyNylon
Dimensions55 × 22 × 58 mm
Weight98 g
ComponentMaterial / Feature
Pump HeadNylon - durable and chemical resistant
Diaphragm/ValveEPDM (imported) - long life and clean gas path
Pump BodyNylon - high strength, low weight
Motor BearingsImported ball bearings - smooth, quiet run
Seal DesignProfessional design ensures low leakage
Customization AspectAvailable Options / Notes
Diaphragm MaterialsEPDM standard, FKM available on request
Label / BrandingCustom OEM label or white-label service
Motor Voltage3.3 V, 5 V compatible versions
Connectors & WiringTailored wire length and terminal options
Mounting ConfigurationCustom brackets and port layout for integration
Color / Body FinishAvailable for volume orders
Technical drawings

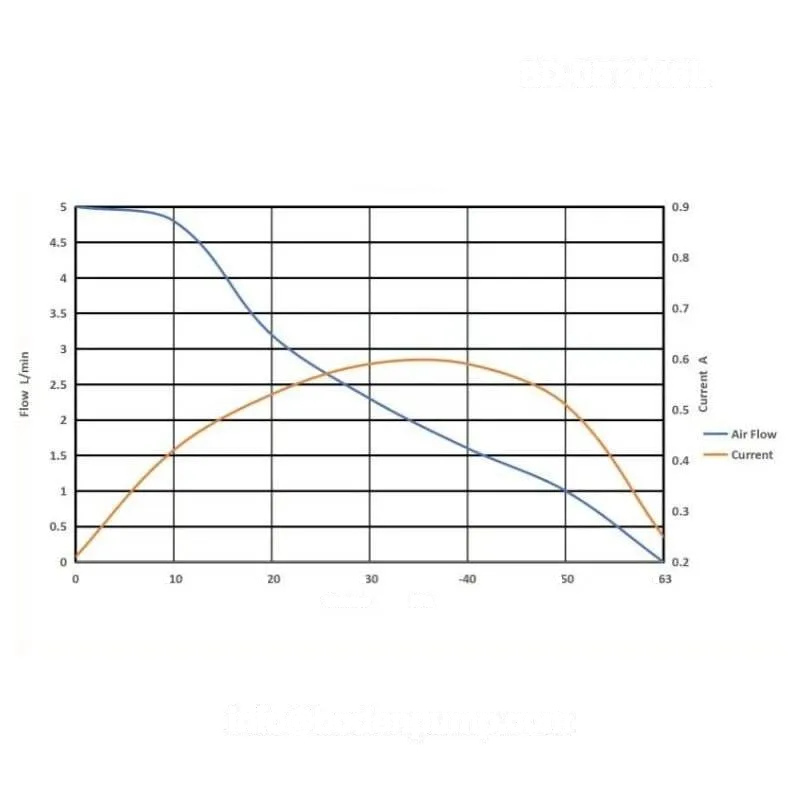

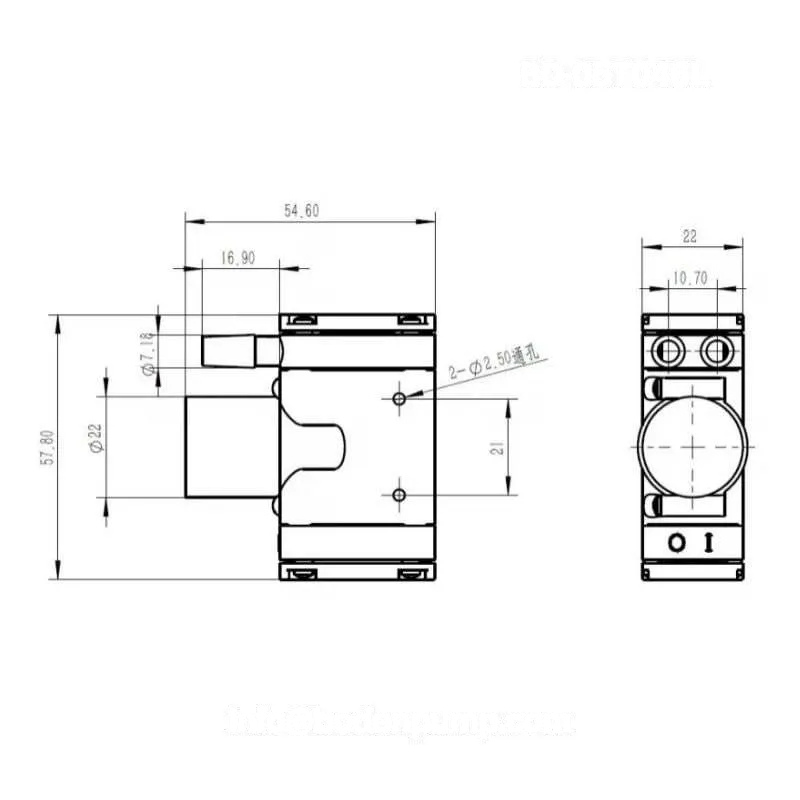

OD-05T046L dimensions and performance graphics
Images classified as dimensional drawings, specification graphics or performance curves are grouped here.
Application and configuration
OD-05T046L application fit
Use these notes to translate brochure data into selection questions: application, working point, noise, lifetime, voltage options and nearby model alternatives.
Working-point review
Confirm the loaded flow at the required pressure or vacuum, then review tubing loss, inlet filtration, valve restriction and the safety margin between nominal and maximum conditions.
Noise, lifetime and voltage
Review voltage, motor type, expected life, noise target, duty cycle and mounting isolation before requesting samples or a model-specific drawing.
- Voltage
- 1-5V
- Max Flow
- 6L/min
- Max Vacuum
- -63 kPa
- Motor
- Coreless motor
Model comparison
OD-05T046L and nearby alternatives
When flow, pressure or vacuum, voltage, size or lifetime requirements change, compare nearby models before requesting a custom configuration.
| Model | Category | Key specifications | Next action |
|---|---|---|---|
| OD-05T046L | Diaphragm air / vacuum pump | Voltage 1-5V; Max Flow 6L/min; Max Vacuum -63 kPa | Current model |
| OD-04AB / OD-04VB | Diaphragm air / vacuum pump | Voltage 6/9/12/24V DC; Air flow 7-20lpm; Liquid flow 1.5 L/min | View model |
| OD-05T0610AC | Diaphragm air / vacuum pump | Voltage 200-220AC; Max Flow 7.5L/min; Max Vacuum -85 kPa | View model |
| OD-05T1043AC | Diaphragm air / vacuum pump | Voltage 220V; Max Flow 43L/min; Max Vacuum -89 kPa | View model |
Technical resources
Downloads
View product documents and engineering drawings for the OD-05T046L series. For 3D files matched to OD-05T046L, include the current model in the RFQ.
Coreless Diaphragm Pump OD-05T046L
Locally synchronized file, 150 KB.
Download PDFProduct documents and 2D drawings
View PDF product documents and engineering drawings for the OD-05T046L series.
View PDF resourcesCAD and configuration files
Submit the model, working point and mounting requirements for files matched to the project configuration.
Request CAD filesContinue browsing
