OD-08A-S
DC 24V OD-08A-S/OD-08V-S 45Lpm Small Air Compress Vacuum pump
Positive pressure pump and OD-08VB-S negative pressure pump products, consisting of long-life brushless motor and Aluminum alloy material pump body, the above
Diaphragm air / vacuum pumpOD-08A-S6 technical parameters1 technical drawings
Product functions
Key functions
OD-08A-S / OD-08V-S supports the following roles in equipment fluid systems. Use the technical parameters below together with the actual working point for selection.
Function 1Air transfer
Function 2Vacuum generation
Function 3Equipment-level integration
White-background imagery

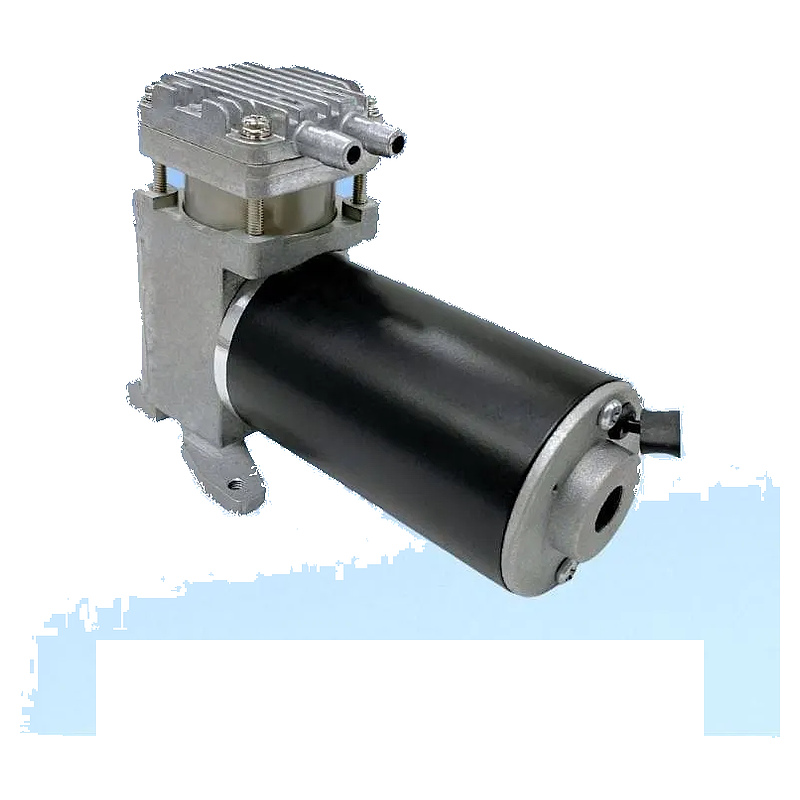

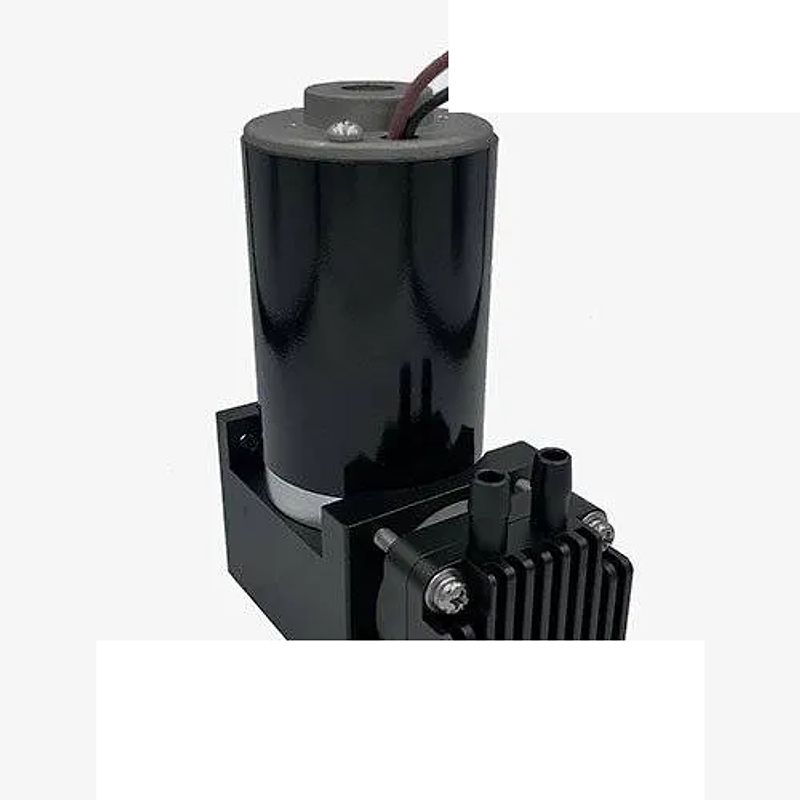

OD-08A-S / OD-08V-S product images
These images are served from the synchronized local product library as white-background product views.
Product data
Technical specifications
The following specifications apply to OD-08A-S / OD-08V-S. Also consider the medium, working point, power supply, duty cycle and installation conditions when selecting the product.
Voltage24V
Air flow20-45L/min
Pressure4-6bar
Vacuum-85kpa
Motorbrush/brushless
DiaphragmEPDM/FKM
Technical drawings

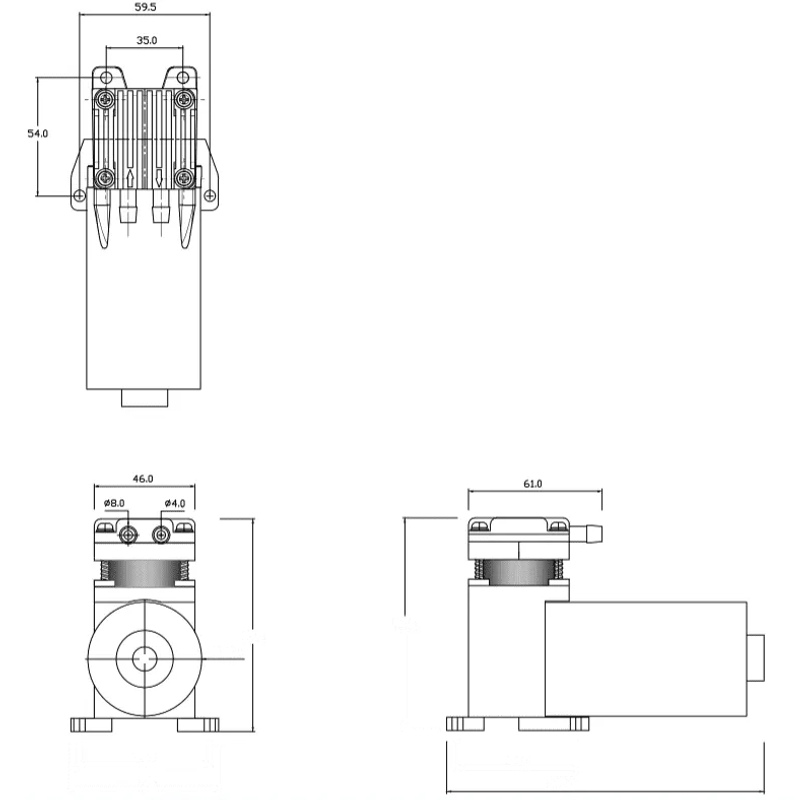

OD-08A-S / OD-08V-S dimensions and performance graphics
Images classified as dimensional drawings, specification graphics or performance curves are grouped here.
Application and configuration
OD-08A-S / OD-08V-S application fit
Use these notes to translate brochure data into selection questions: application, working point, noise, lifetime, voltage options and nearby model alternatives.
Working-point review
Confirm the loaded flow at the required pressure or vacuum, then review tubing loss, inlet filtration, valve restriction and the safety margin between nominal and maximum conditions.
Noise, lifetime and voltage
Review voltage, motor type, expected life, noise target, duty cycle and mounting isolation before requesting samples or a model-specific drawing.
- Voltage
- 24V
- Air flow
- 20-45L/min
- Pressure
- 4-6bar
- Vacuum
- -85kpa
Model comparison
OD-08A-S / OD-08V-S and nearby alternatives
When flow, pressure or vacuum, voltage, size or lifetime requirements change, compare nearby models before requesting a custom configuration.
| Model | Category | Key specifications | Next action |
|---|---|---|---|
| OD-08A-S / OD-08V-S | Diaphragm air / vacuum pump | Voltage 24V; Air flow 20-45L/min; Pressure 4-6bar | Current model |
| OD-04AB / OD-04VB | Diaphragm air / vacuum pump | Voltage 6/9/12/24V DC; Air flow 7-20lpm; Liquid flow 1.5 L/min | View model |
| OD-05T0610AC | Diaphragm air / vacuum pump | Voltage 200-220AC; Max Flow 7.5L/min; Max Vacuum -85 kPa | View model |
| OD-05T1043AC | Diaphragm air / vacuum pump | Voltage 220V; Max Flow 43L/min; Max Vacuum -89 kPa | View model |
Technical resources
Downloads
View product documents and engineering drawings for the OD-08A-S series. For 3D files matched to OD-08A-S / OD-08V-S, include the current model in the RFQ.
Product documents and 2D drawings
View PDF product documents and engineering drawings for the OD-08A-S series.
View PDF resourcesCAD and configuration files
Submit the model, working point and mounting requirements for files matched to the project configuration.
Request CAD filesContinue browsing
Related pump models
Diaphragm air / vacuum pump
220V 50HZ Sampling Pump AC Gas Diaphragm Pump For CEMS OD-05T0610AC
View product
Diaphragm air / vacuum pump
Oil-Free Diaphragm Vacuum Pump AC 220V 43L Small High Vacuum Pumps -89KPA OD-05T1043AC JSG
View productRequest a quote for OD-08A-S / OD-08V-S
Provide the medium, flow, pressure or vacuum, voltage, duty cycle and mounting requirements so we can match the product configuration and supporting documents.
