Application scenarios
Typical uses include gas sampling, compact analyzers, medical equipment, beauty equipment and small pneumatic modules that need clean air transfer or vacuum generation.
OD-05TVB-S.1
DC Air Pump 12V 24V Vacuum Suction Pump 5.5L OD-05TVB-S.1
JSG OD-05TVB-S.1 brushless DC air pump delivers 5.5L/min flow, -70kPa vacuum, and 1.5Bar pressure for NPWT, gas sampling, and lab automation.
Diaphragm air / vacuum pumpOD-05TVB-S.133 technical parameters2 technical drawings
Product functions
Key functions
OD-05TVB-S.1 supports the following roles in equipment fluid systems. Use the technical parameters below together with the actual working point for selection.
Function 1Air transfer
Function 2Vacuum generation
Function 3Equipment-level integration

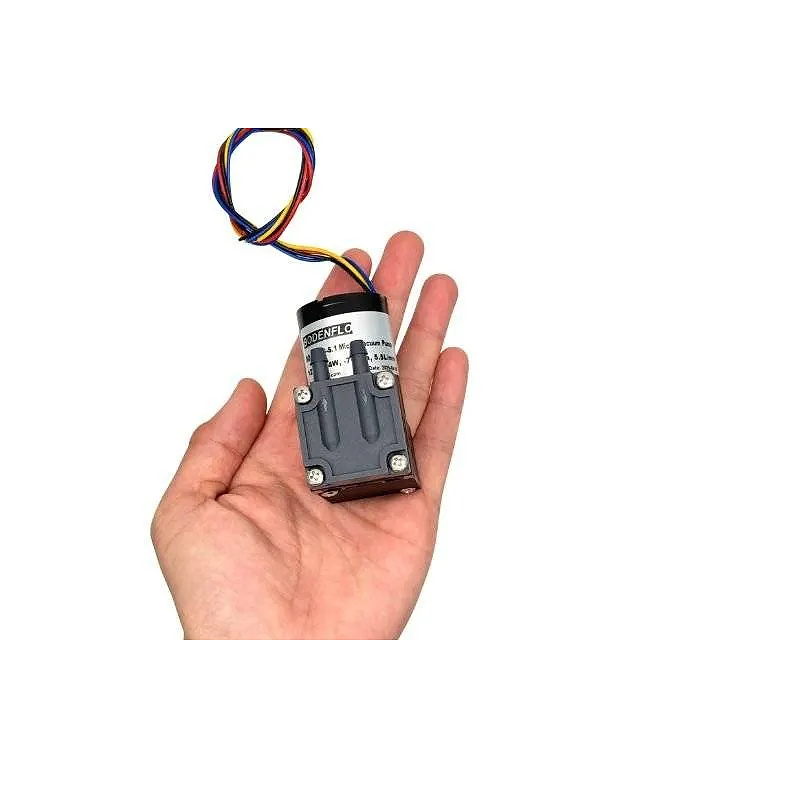

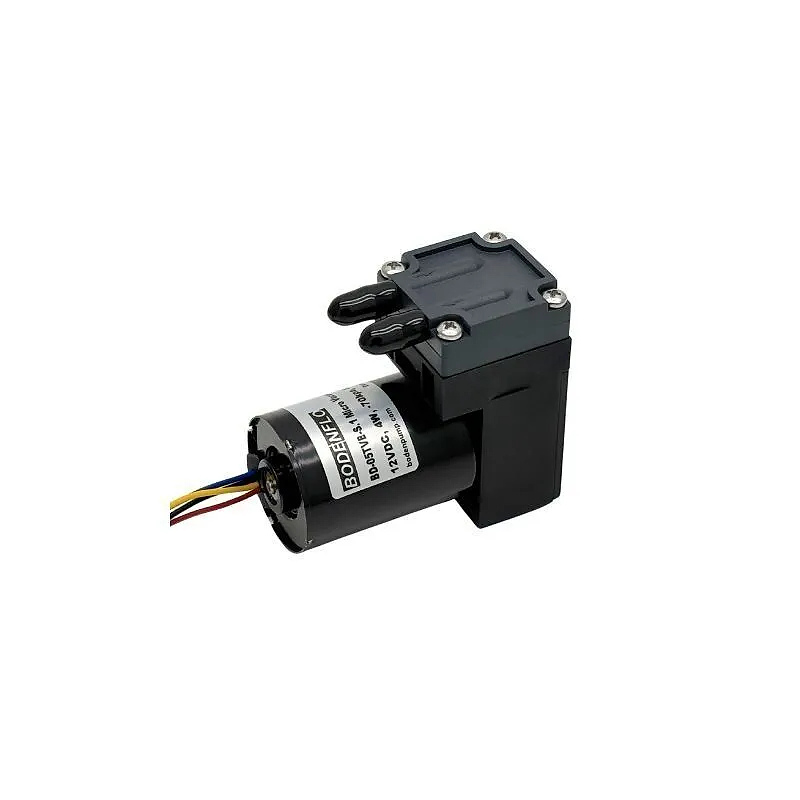

White-background imagery
OD-05TVB-S.1 product images
These images are served from the synchronized local product library as white-background product views.
Product data
Technical specifications
The following specifications apply to OD-05TVB-S.1. Also consider the medium, working point, power supply, duty cycle and installation conditions when selecting the product.
Voltage12/24V
Max Flow5.5L/min
Max Vacuum-70 kPa
Max Pressure1~1.5Bar
MotorDC brushless motor
Max Power4 W
Weight148g
ParameterValue
ModelOD-05TVB-S.1
Voltage Range12 V / 24 V
Max Flow5.5 L/min
Max Negative Pressure-70 kPa
Max Positive Pressure1~1.5 Bar
Motor TypeBrushless DC Motor
IP RatingIP20
Service Life>8000 hours
Storage Temp.-40 ℃ ~ 60 ℃
Operating Temp.-20 ℃ ~ 50 ℃
Medium Temp.-10 ℃ ~ 45 ℃
Dimensions60.4 × 32 × 55 mm
Weight148 g
ComponentMaterial / Notes
Pump HeadPPS - High-temperature, corrosion resistant
DiaphragmEPDM (FKM optional) - High chemical resistance
ValveEPDM (FKM optional)
Pump BodyNylon - Strong, lightweight, durable
BearingsImported ball bearings - Reduce noise, extend life
Seal DesignCustom professional seal - Ensures low leakage
Customization AspectOptions / Notes
Voltage / Connector12V or 24V, custom cables and connectors
Diaphragm materialStandard EPDM or optional FKM for chemicals
Label / BrandingOEM branding and private label options
Mounting and PortsTailored for your equipment design

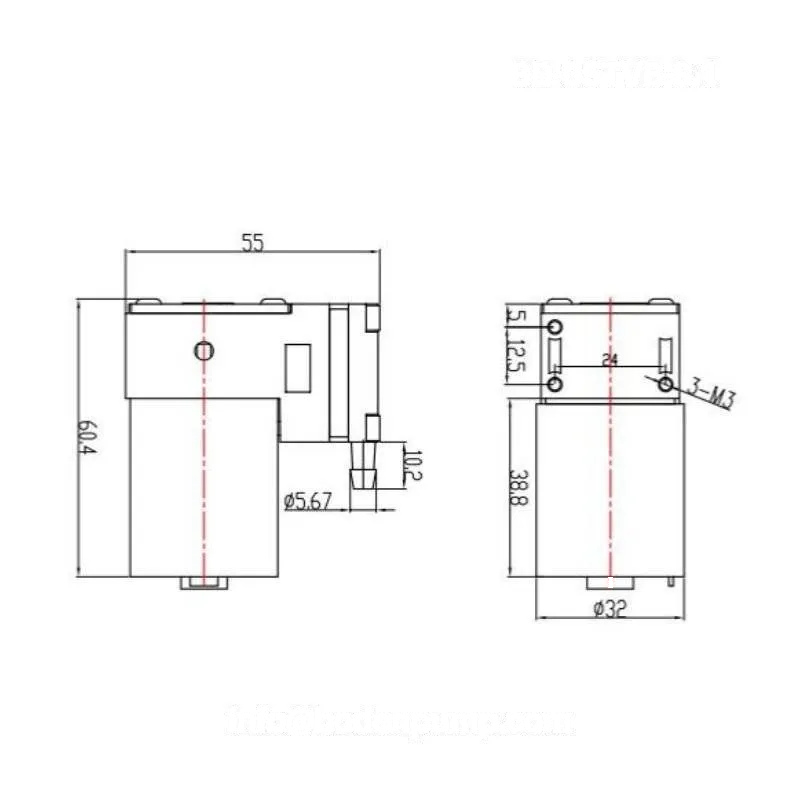

Technical drawings

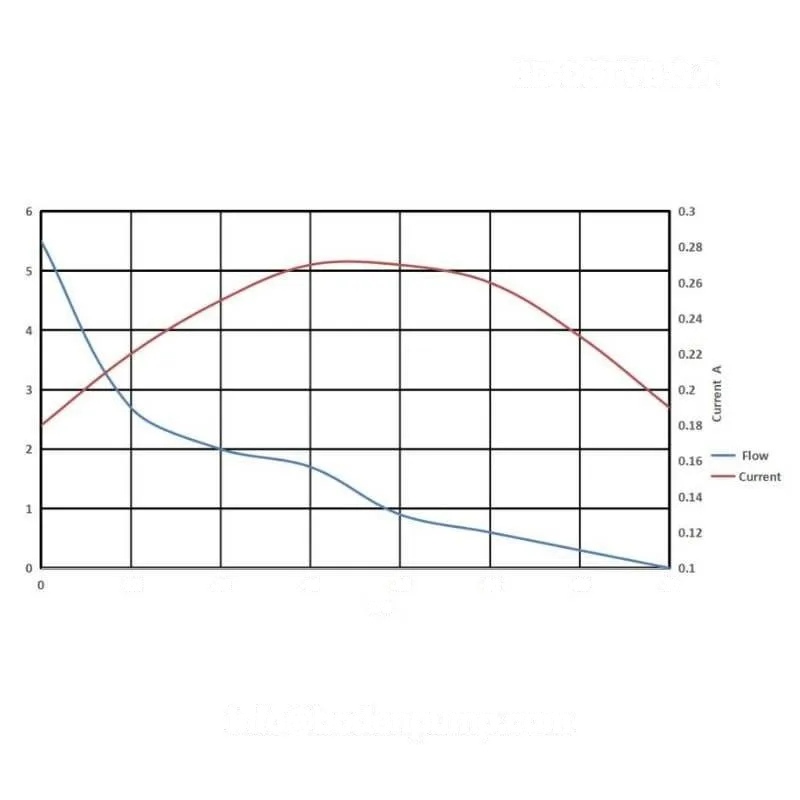

OD-05TVB-S.1 dimensions and performance graphics
Images classified as dimensional drawings, specification graphics or performance curves are grouped here.
Application and configuration
OD-05TVB-S.1 application fit
Use these notes to translate brochure data into selection questions: application, working point, noise, lifetime, voltage options and nearby model alternatives.
Working-point review
Confirm the loaded flow at the required pressure or vacuum, then review tubing loss, inlet filtration, valve restriction and the safety margin between nominal and maximum conditions.
Noise, lifetime and voltage
Review voltage, motor type, expected life, noise target, duty cycle and mounting isolation before requesting samples or a model-specific drawing.
- Voltage
- 12/24V
- Max Flow
- 5.5L/min
- Max Vacuum
- -70 kPa
- Max Pressure
- 1~1.5Bar
Model comparison
OD-05TVB-S.1 and nearby alternatives
When flow, pressure or vacuum, voltage, size or lifetime requirements change, compare nearby models before requesting a custom configuration.
| Model | Category | Key specifications | Next action |
|---|---|---|---|
| OD-05TVB-S.1 | Diaphragm air / vacuum pump | Voltage 12/24V; Max Flow 5.5L/min; Max Vacuum -70 kPa | Current model |
| OD-04AB / OD-04VB | Diaphragm air / vacuum pump | Voltage 6/9/12/24V DC; Air flow 7-20lpm; Liquid flow 1.5 L/min | View model |
| OD-05T0610AC | Diaphragm air / vacuum pump | Voltage 200-220AC; Max Flow 7.5L/min; Max Vacuum -85 kPa | View model |
| OD-05T1043AC | Diaphragm air / vacuum pump | Voltage 220V; Max Flow 43L/min; Max Vacuum -89 kPa | View model |
Technical resources
Downloads
View product documents and engineering drawings for the OD-05TVB-S.1 series. For 3D files matched to OD-05TVB-S.1, include the current model in the RFQ.
OD-05TVB-S.1 Miniature Diaphragm Pump
Locally synchronized file, 153 KB.
Download PDFProduct documents and 2D drawings
View PDF product documents and engineering drawings for the OD-05TVB-S.1 series.
View PDF resourcesCAD and configuration files
Submit the model, working point and mounting requirements for files matched to the project configuration.
