OD-05T1040DU
60Lpm Aluminum Double Head Air Pump -85kpa DC 12V 24V Vacuum Pump Stable Flow OD-05T1040DU
Discover OD-05T1040DU double head air pump: 60 L/min high flow, -98 kPa deep vacuum, 24V DC, aluminum build, 8,000h lifespan, OEM-ready design.
Diaphragm air / vacuum pumpOD-05T1040DU32 technical parameters2 technical drawings
Product functions
Key functions
OD-05T1040DU supports the following roles in equipment fluid systems. Use the technical parameters below together with the actual working point for selection.
Function 1Air transfer
Function 2Vacuum generation
Function 3Equipment-level integration
White-background imagery

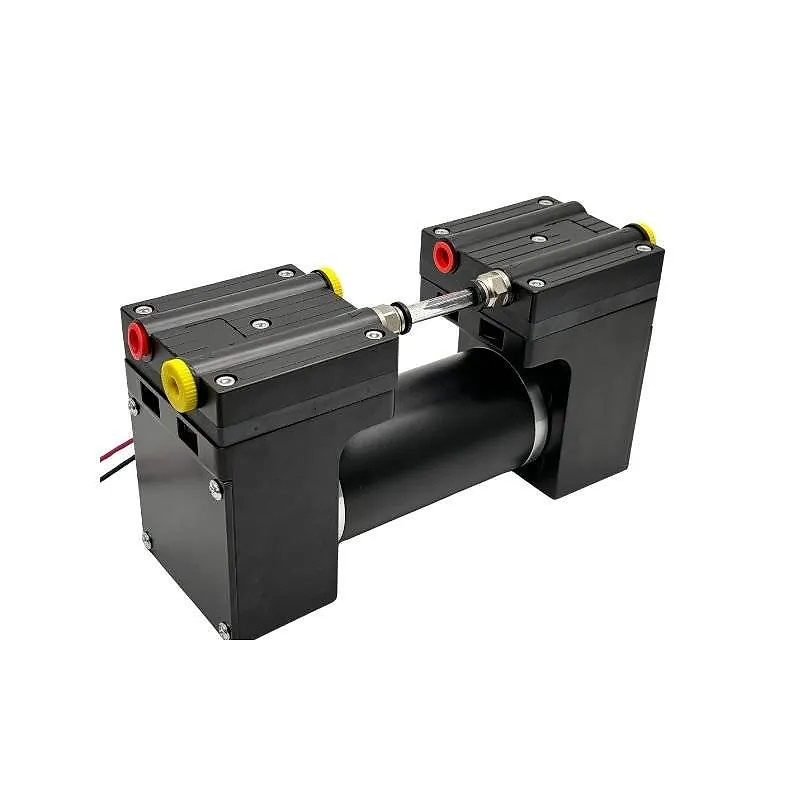

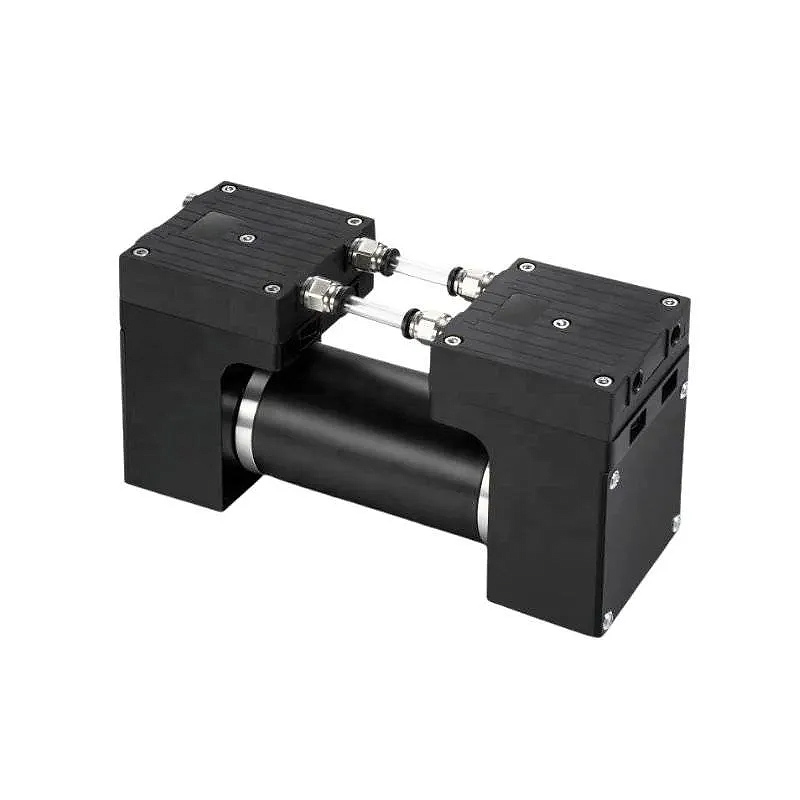

OD-05T1040DU product images
These images are served from the synchronized local product library as white-background product views.
Product data
Technical specifications
The following specifications apply to OD-05T1040DU. Also consider the medium, working point, power supply, duty cycle and installation conditions when selecting the product.
Voltage24V
Max Flow40 L/min(series) / 60 L/min(parallel)
Max Vacuum-85 kPa(parallel) / -98 kPa(series)
Max Pressure2Bar
MotorDC High-End Brushed
Max Power100W
Weight3.32kg
ParameterValue
ModelOD-05T1040DU
Voltage Range24 V DC
Parallel Connection60 L/min, -85 kPa
Series Connection40 L/min, -98 kPa
Max Positive Pressure2 bar
Motor TypeHigh-end brushed DC motor
Max Power100 W
IP RatingIP20
Service Life>8,000 hours continuous duty
Storage Temperature-40 ℃ ~ 60 ℃
Operating Temperature-10 ℃ ~ 45 ℃
Dimensions (L×W×H)231 × 81 × 120 mm
Weight3.32 kg
ComponentMaterial / Performance
Pump HeadAluminum alloy, NPT1/4
Diaphragm/ValveEPDM standard (PTFE/FKM optional)
Pump BodyAluminum alloy with electrophoresis coating
Customization AspectAvailable Options / Notes
Diaphragm MaterialsEPDM standard, PTFE/FKM optional
Connector TypeCustom fittings or ports available
Voltage12 V and 24 V versions possible
Label / BrandingOEM labeling for private branding
Mounting OptionsCustomized brackets or dampers for integration
Cable / ConnectorCustom cable length and type
Technical drawings

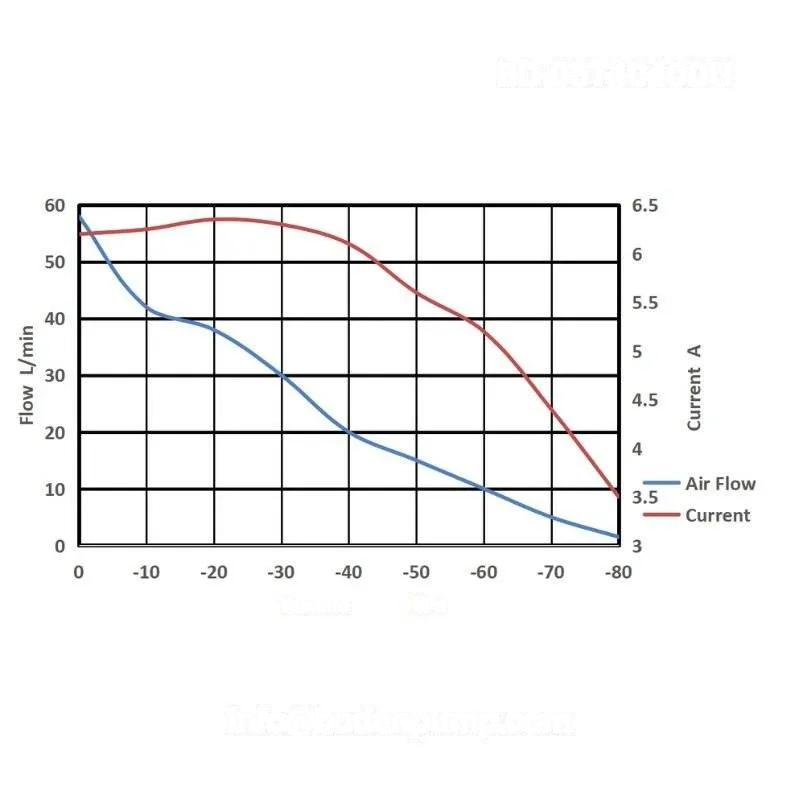

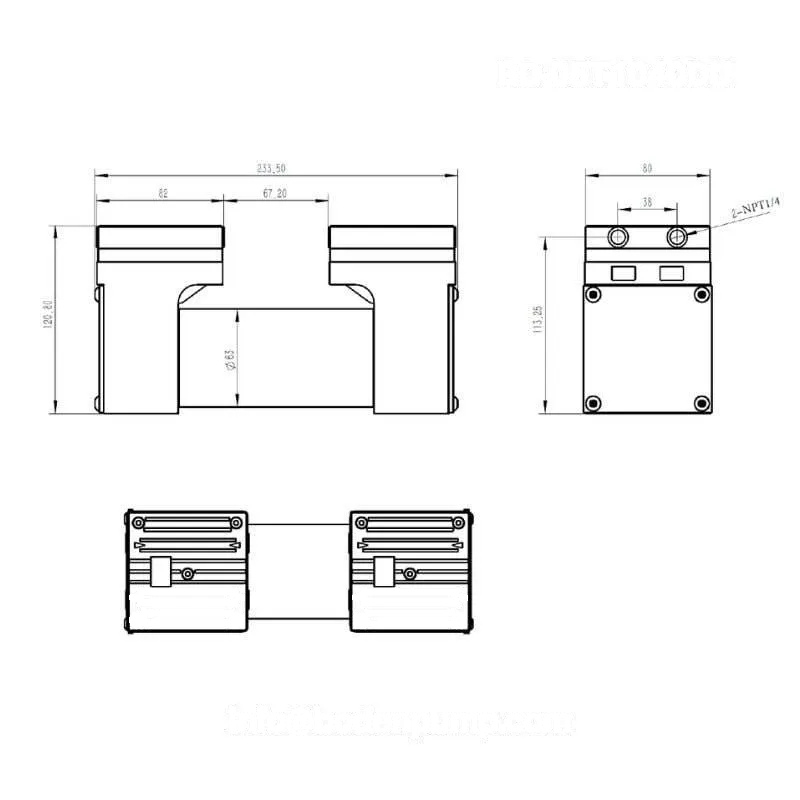

OD-05T1040DU dimensions and performance graphics
Images classified as dimensional drawings, specification graphics or performance curves are grouped here.
Application and configuration
OD-05T1040DU application fit
Use these notes to translate brochure data into selection questions: application, working point, noise, lifetime, voltage options and nearby model alternatives.
Working-point review
Confirm the loaded flow at the required pressure or vacuum, then review tubing loss, inlet filtration, valve restriction and the safety margin between nominal and maximum conditions.
Noise, lifetime and voltage
Review voltage, motor type, expected life, noise target, duty cycle and mounting isolation before requesting samples or a model-specific drawing.
- Voltage
- 24V
- Max Flow
- 40 L/min(series) / 60 L/min(parallel)
- Max Vacuum
- -85 kPa(parallel) / -98 kPa(series)
- Max Pressure
- 2Bar
Model comparison
OD-05T1040DU and nearby alternatives
When flow, pressure or vacuum, voltage, size or lifetime requirements change, compare nearby models before requesting a custom configuration.
| Model | Category | Key specifications | Next action |
|---|---|---|---|
| OD-05T1040DU | Diaphragm air / vacuum pump | Voltage 24V; Max Flow 40 L/min(series) / 60 L/min(parallel); Max Vacuum -85 kPa(parallel) / -98 kPa(series) | Current model |
| OD-04AB / OD-04VB | Diaphragm air / vacuum pump | Voltage 6/9/12/24V DC; Air flow 7-20lpm; Liquid flow 1.5 L/min | View model |
| OD-05T0610AC | Diaphragm air / vacuum pump | Voltage 200-220AC; Max Flow 7.5L/min; Max Vacuum -85 kPa | View model |
| OD-05T1043AC | Diaphragm air / vacuum pump | Voltage 220V; Max Flow 43L/min; Max Vacuum -89 kPa | View model |
Technical resources
Downloads
View product documents and engineering drawings for the OD-05T1040DU series. For 3D files matched to OD-05T1040DU, include the current model in the RFQ.
OD-05T1040DU Double Head Air Pump
Locally synchronized file, 152 KB.
Download PDFProduct documents and 2D drawings
View PDF product documents and engineering drawings for the OD-05T1040DU series.
View PDF resourcesCAD and configuration files
Submit the model, working point and mounting requirements for files matched to the project configuration.
Request CAD filesContinue browsing
Related pump models
Diaphragm air / vacuum pump
220V 50HZ Sampling Pump AC Gas Diaphragm Pump For CEMS OD-05T0610AC
View product
Diaphragm air / vacuum pump
Oil-Free Diaphragm Vacuum Pump AC 220V 43L Small High Vacuum Pumps -89KPA OD-05T1043AC JSG
View productRequest a quote for OD-05T1040DU
Provide the medium, flow, pressure or vacuum, voltage, duty cycle and mounting requirements so we can match the product configuration and supporting documents.
