OD-05TR12LB

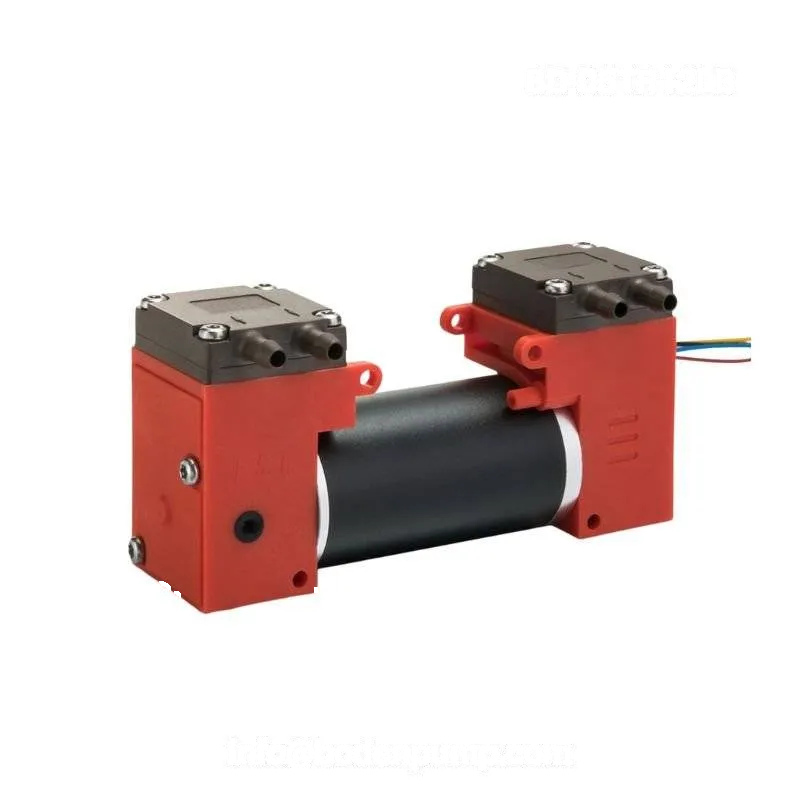

Double Head Piston Pump 12/24 Volt Electric Brushless Mini Compressor Pump 12L OD-05TR12LB
Oil-free double head brushless piston pump delivering 12 L/min flow, -70 kPa vacuum and 2 bar pressure. Compact OEM solution with customization support.
Piston air / vacuum pumpOD-05TR12LB32 technical parameters3 technical drawings
Product functions
Key functions
OD-05TR12LB supports the following roles in equipment fluid systems. Use the technical parameters below together with the actual working point for selection.
Function 1Air delivery
Function 2Vacuum duty
Function 3Equipment integration
Product data
Technical specifications
The following specifications apply to OD-05TR12LB. Also consider the medium, working point, power supply, duty cycle and installation conditions when selecting the product.
Voltage12V / 24V
Max Flow12L/min
Max Vacuum-70 kPa
Max Pressure2Bar
MotorHigh-end brushless DC motor
Max Power11W
Weight267g
ParameterValue
ModelOD-05TR12LB
Voltage Range12 V / 24 V DC
Maximum Flow12 L/min (Floater flow meter data)
Max Negative Pressure-70 kPa
Max Positive Pressure2 bar
Motor TypeHigh-end brushless DC motor
Max Power11 W
Storage Temperature-40 ℃ ~ 60 ℃
Operating Environment-20 ℃ ~ 45 ℃
Dimensions108 × 31 × 54 mm
Weight267 g
ComponentMaterial / Feature
Pump HeadImported PPS - high strength, corrosion resistant
ValveEPDM (FKM optional)
Piston CupPTFE - low friction, high durability
Pump BodyHigh-strength nylon
MotorBrushless DC motor
Customization AspectAvailable Options
Diaphragm / Valve MaterialsEPDM, FKM
Voltage12 V / 24 V
ConnectorsCustomer-specified connector types
Label / BrandingBased on the model provided by the customer
MountingCustomized brackets, vibration dampers
Cable LengthCustom wire lengths and connectors
Technical drawings

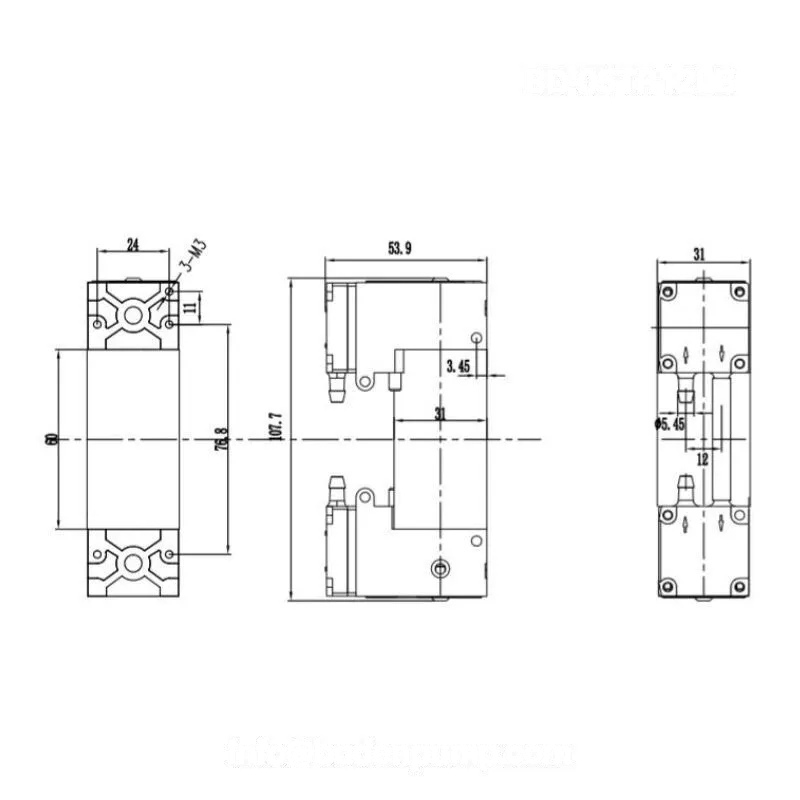

OD-05TR12LB dimensions and performance graphics
Images classified as dimensional drawings, specification graphics or performance curves are grouped here.
Application and configuration
OD-05TR12LB application fit
Use these notes to translate brochure data into selection questions: application, working point, noise, lifetime, voltage options and nearby model alternatives.
Working-point review
Compare the required pressure or vacuum against the stated flow, then allow margin for fittings, filters and changes in duty cycle.
Noise, lifetime and voltage
Review voltage, motor choice, noise target, lifetime target and mounting conditions before locking the sample configuration.
- Voltage
- 12V / 24V
- Max Flow
- 12L/min
- Max Vacuum
- -70 kPa
- Max Pressure
- 2Bar
Model comparison
OD-05TR12LB and nearby alternatives
When flow, pressure or vacuum, voltage, size or lifetime requirements change, compare nearby models before requesting a custom configuration.
| Model | Category | Key specifications | Next action |
|---|---|---|---|
| OD-05TR12LB | Piston air / vacuum pump | Voltage 12V / 24V; Max Flow 12L/min; Max Vacuum -70 kPa | Current model |
| OD-079A-M / OD-079V-M | Piston air / vacuum pump | Voltage 24V; Air flow 30-50L/min; Pressure 7bar | View model |
| OD-07A / OD-07V | Piston air / vacuum pump | Voltage DC 12V/24V; Air flow 15L/minup to 40L/min; Pressure 4.5 bar up to 6.5 bar | View model |
| OD-07A-M / OD-07V-M | Piston air / vacuum pump | Voltage DC 12V/24V; Air flow 15L/minup to 40L/min; Pressure 4.5 bar up to 6.5 bar | View model |
Technical resources
Downloads
View product documents and engineering drawings for the OD-05TR12LB series. For 3D files matched to OD-05TR12LB, include the current model in the RFQ.
OD-05TR12L Double-Head Piston Pump
Locally synchronized file, 202 KB.
Download PDFProduct documents and 2D drawings
View PDF product documents and engineering drawings for the OD-05TR12LB series.
View PDF resourcesCAD and configuration files
Submit the model, working point and mounting requirements for files matched to the project configuration.
Request CAD filesContinue browsing
Related pump models
Piston air / vacuum pump
OD-079A-M/OD-079V-M Oilless OEM Small Piston Air Vacuum Pumps And Compressors
View product
Piston air / vacuum pump
OD-07A-M/OD-07V-M oilless Small Piston Air Vacuum Pump Pneumatic Air Suction Pumps
View productRequest a quote for OD-05TR12LB
Provide the medium, flow, pressure or vacuum, voltage, duty cycle and mounting requirements so we can match the product configuration and supporting documents.
