Application scenarios
Typical uses include gas sampling, compact analyzers, medical equipment, beauty equipment and small pneumatic modules that need clean air transfer or vacuum generation.
OD-05T30KH
Double Head Vacuum Pump High-flow 50L/min Gas Diaphragm Pump 50W OD-05T30KH
OD-05T30KH High-flow double head vacuum pump delivering 50L/min with oil-free diaphragm design. Ideal for OEM systems requiring stable vacuum and airflow.
Diaphragm air / vacuum pumpOD-05T30KH39 technical parameters2 technical drawings
Product functions
Key functions
OD-05T30KH supports the following roles in equipment fluid systems. Use the technical parameters below together with the actual working point for selection.
Function 1Air transfer
Function 2Vacuum generation
Function 3Equipment-level integration
White-background imagery

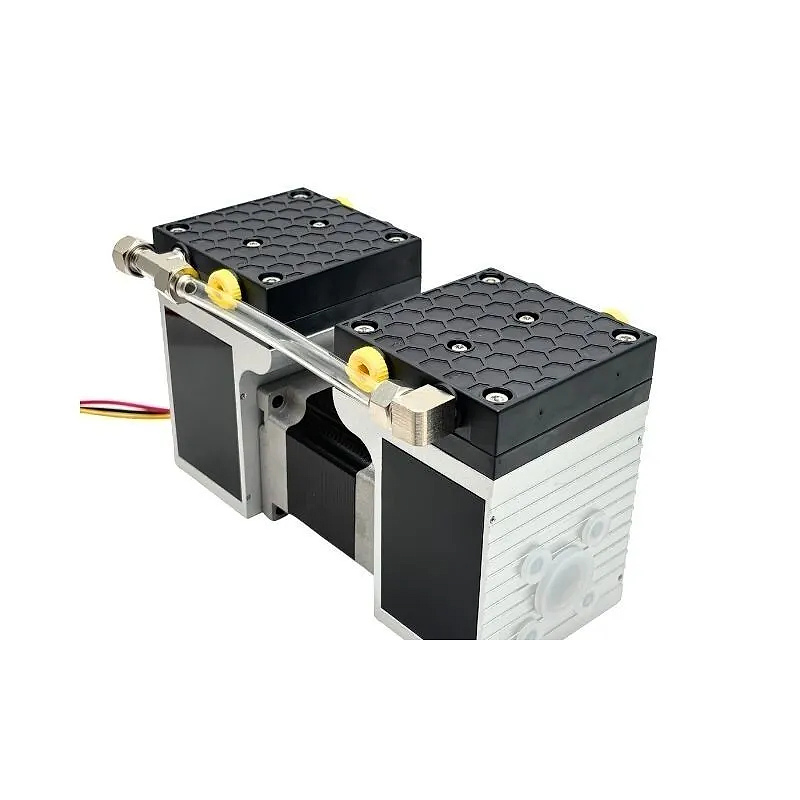

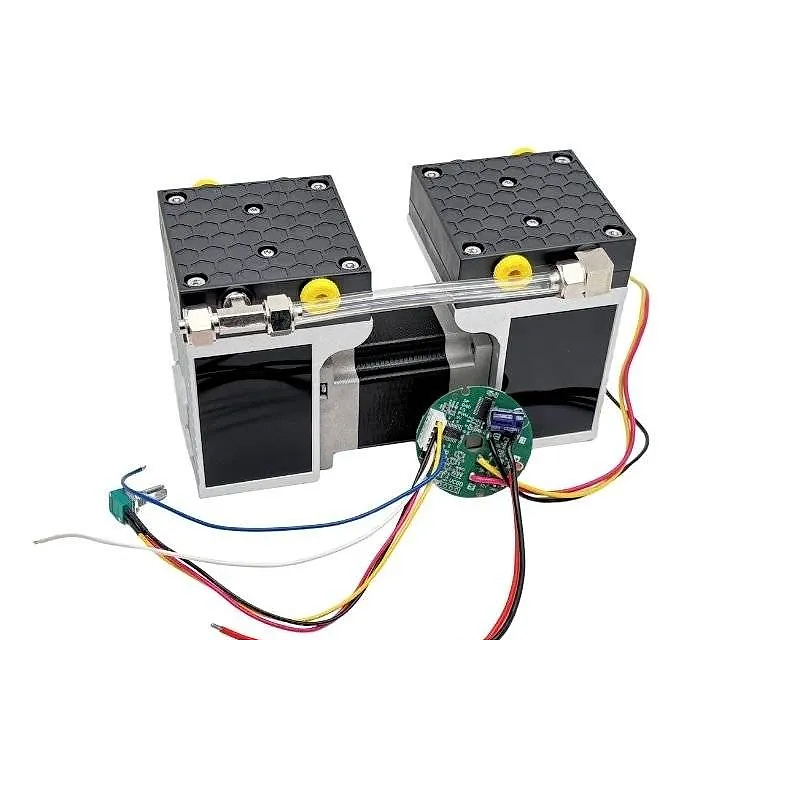

OD-05T30KH product images
These images are served from the synchronized local product library as white-background product views.
Product data
Technical specifications
The following specifications apply to OD-05T30KH. Also consider the medium, working point, power supply, duty cycle and installation conditions when selecting the product.
Voltage24V
Max Flow50L/min
Max Vacuum-80 kPa
Max Pressure1.2Bar
MotorHigh-end brushless motor
Max Power50W
Weight1.8kg
ParameterValue
ModelOD-05T30KH
Voltage Range24 V
Maximum Flow50 L/min
Maximum Negative Pressure-80 kPa
Maximum Positive Pressure1.2 bar
Motor TypeHigh-end brushless motor
Max Power50 W
Waterproof LevelIP20
Storage Temperature-40 ℃ ~ 60 ℃
Operating Temperature-20 ℃ ~ 45 ℃
Dimensions (L×W×H)173 × 70 × 104.5 mm
Weight1.8 kg
ComponentMaterial / Performance
Pump HeadImported PPS - corrosion resistant
Diaphragm / ValveKEE / EPDM - chemically compatible
Pump BodyAluminum alloy - durable and lightweight
Customization AspectAvailable Options
Diaphragm MaterialsEPDM, FKM, PTFE
Voltage12 V / 24 V DC
Connector TypeCustomer-specified connector
Label / BrandingBased on the model provided by the customer
Mounting OptionsCustom brackets, vibration dampers
Cable / WiringCustom lengths and configurations
Wire ColorSignal Name | Function | Control / Integration Notes
Thick RedPower + | DC power positive | Connect to rated DC supply
Thick BlackPower - | DC power negative | Power ground
YellowSP | Analog speed control | Accepts analog reference
WhitePWM | PWM speed control | 1-10 kHz recommended; motor starts >10% duty
BlueFG | Speed feedback | Square-wave output, 12 pulses/rev (4-pole BLDC)
Thin BlackGND | Signal ground | Common ground
Thin Red5 V | Reference output | For external potentiometer or controller

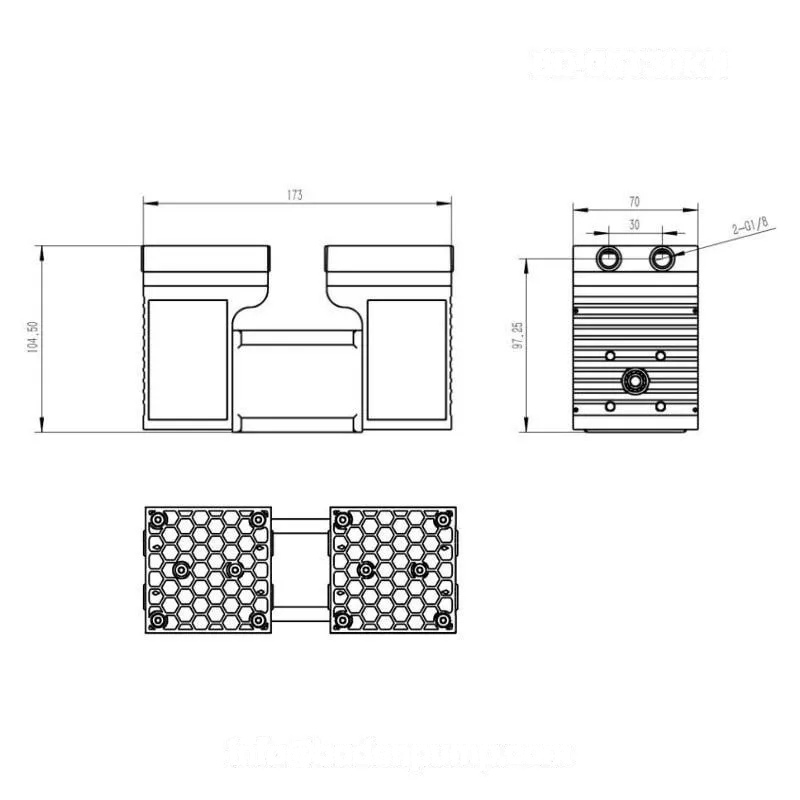

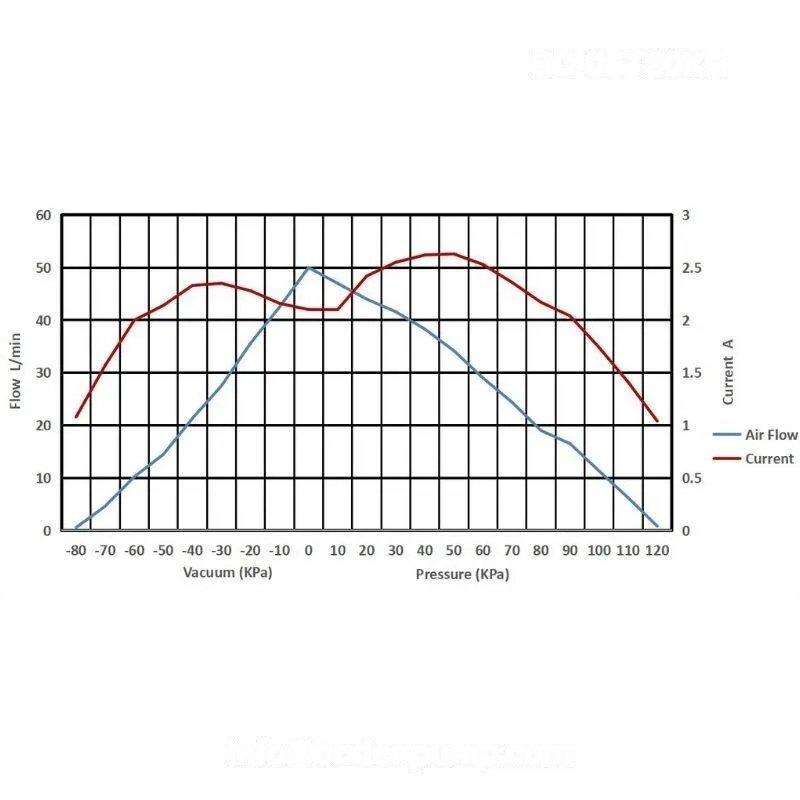

Technical drawings
OD-05T30KH dimensions and performance graphics
Images classified as dimensional drawings, specification graphics or performance curves are grouped here.
Application and configuration
OD-05T30KH application fit
Use these notes to translate brochure data into selection questions: application, working point, noise, lifetime, voltage options and nearby model alternatives.
Working-point review
Confirm the loaded flow at the required pressure or vacuum, then review tubing loss, inlet filtration, valve restriction and the safety margin between nominal and maximum conditions.
Noise, lifetime and voltage
Review voltage, motor type, expected life, noise target, duty cycle and mounting isolation before requesting samples or a model-specific drawing.
- Voltage
- 24V
- Max Flow
- 50L/min
- Max Vacuum
- -80 kPa
- Max Pressure
- 1.2Bar
Model comparison
OD-05T30KH and nearby alternatives
When flow, pressure or vacuum, voltage, size or lifetime requirements change, compare nearby models before requesting a custom configuration.
| Model | Category | Key specifications | Next action |
|---|---|---|---|
| OD-05T30KH | Diaphragm air / vacuum pump | Voltage 24V; Max Flow 50L/min; Max Vacuum -80 kPa | Current model |
| OD-04AB / OD-04VB | Diaphragm air / vacuum pump | Voltage 6/9/12/24V DC; Air flow 7-20lpm; Liquid flow 1.5 L/min | View model |
| OD-05T0610AC | Diaphragm air / vacuum pump | Voltage 200-220AC; Max Flow 7.5L/min; Max Vacuum -85 kPa | View model |
| OD-05T1043AC | Diaphragm air / vacuum pump | Voltage 220V; Max Flow 43L/min; Max Vacuum -89 kPa | View model |
Technical resources
Downloads
View product documents and engineering drawings for the OD-05T30KH series. For 3D files matched to OD-05T30KH, include the current model in the RFQ.
OD-05T30KH Wiring Diagram & Speed Control Guide
Locally synchronized file, 126 KB.
Download PDFOD-05T30KH Double Head Vacuum Pump
Locally synchronized file, 203 KB.
Download PDFProduct documents and 2D drawings
View PDF product documents and engineering drawings for the OD-05T30KH series.
View PDF resourcesCAD and configuration files
Submit the model, working point and mounting requirements for files matched to the project configuration.
Request CAD filesContinue browsing
