Application scenarios
Typical uses include gas sampling, compact analyzers, medical equipment, beauty equipment and small pneumatic modules that need clean air transfer or vacuum generation.
OD-05T0617LB
Dual Head Mini Diaphragm Air Pump 17 L/min Brushless DC Air Vacuum Pump OD-05T0617LB | JSG
Dual head mini diaphragm air pump with 17 L/min airflow, -95 kPa vacuum, and BLDC motor. Ideal for medical sampling, gas detection, and OEM gas handling systems.
Diaphragm air / vacuum pumpOD-05T0617LB35 technical parameters1 technical drawings
Product functions
Key functions
OD-05T0617LB supports the following roles in equipment fluid systems. Use the technical parameters below together with the actual working point for selection.
Function 1Air transfer
Function 2Vacuum generation
Function 3Equipment-level integration
White-background imagery

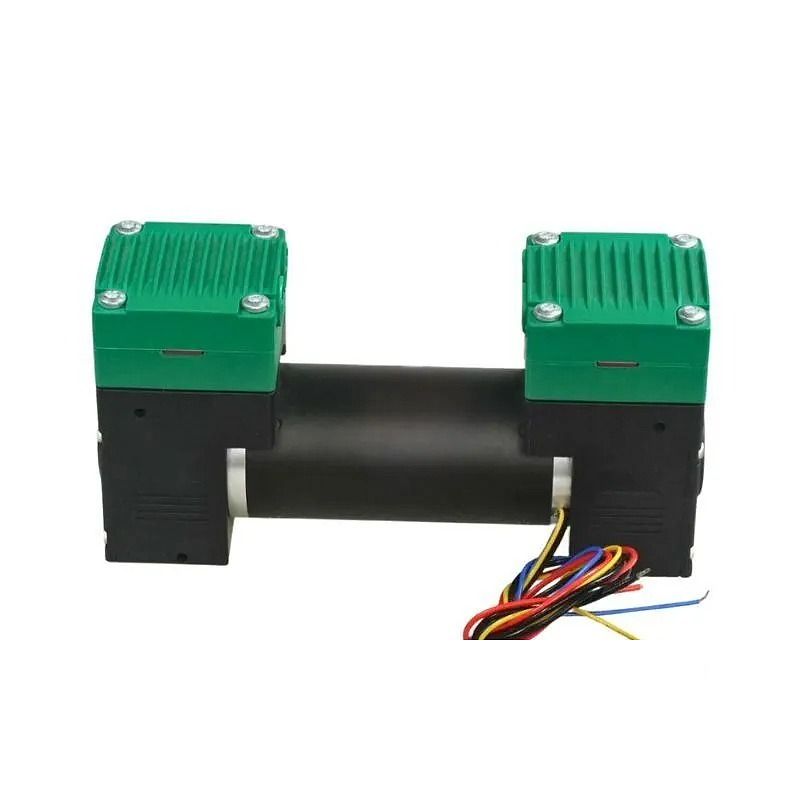

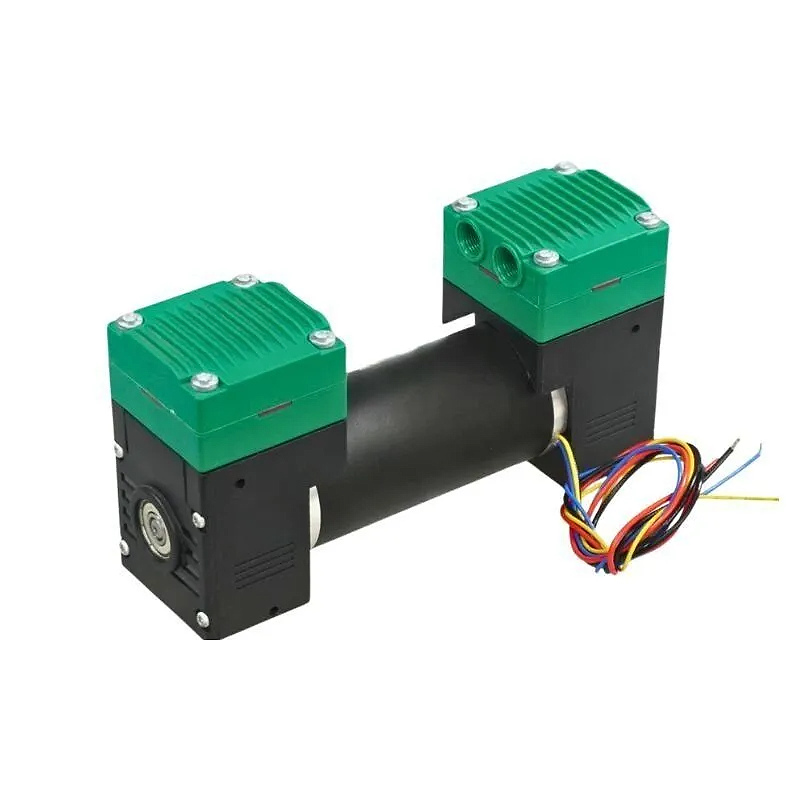

OD-05T0617LB product images
These images are served from the synchronized local product library as white-background product views.
Product data
Technical specifications
The following specifications apply to OD-05T0617LB. Also consider the medium, working point, power supply, duty cycle and installation conditions when selecting the product.
Voltage24 V DC
Max Flow17 L/min (parallel connection), 12 L/min (series connection)
Max Vacuum-80 kPa (parallel connection), -95 kPa (series connection)
Max Pressure3.8 bar
MotorBrushless DC Motor
Service life10000 h
Weight720 g
CategorySpecification
ModelOD-05T0617LB
TypeBLDC Air Pump
StructureDual Head Mini Diaphragm Air Pump
Voltage Range24 V DC
Flow17 L/min (0.600 cfm)
Negative Pressure-80 kPa (-23.6 in.Hg / -800 mbar / -600 mmHg)
Flow12 L/min (0.424 cfm)
Negative Pressure-95 kPa (-28.1 in.Hg / -950 mbar / -713 mmHg)
Max Positive Pressure3.8 bar (55.1 psi / 3800 mbar / 0.38 MPa)
Motor TypeBrushless DC Motor
No-Load Current2 A
Dimensions160 × 46 × 80 mm (6.30 × 1.81 × 3.15 in)
Weight720 g (1.59 lb)
Inlet and Outlet ThreadsG1/8
Operating Environment5°C to 40°C
Medium Temperature10°C to 60°C
ComponentMaterial / Feature
Pump HeadPA66
Diaphragm / ValveEPDM
Gas PathOil-free, low leakage design
InterfaceG1/8 inlet and outlet threads
ItemCustomization Options
Connection ModeParallel or series connection according to flow and vacuum requirements
MaterialsEPDM standard; customized FKM rubber options available
WiringCustom cable length and wire definition
ConnectorOpen leads, plug connectors, or OEM interface
BrandingCustomer-specific marking or private label

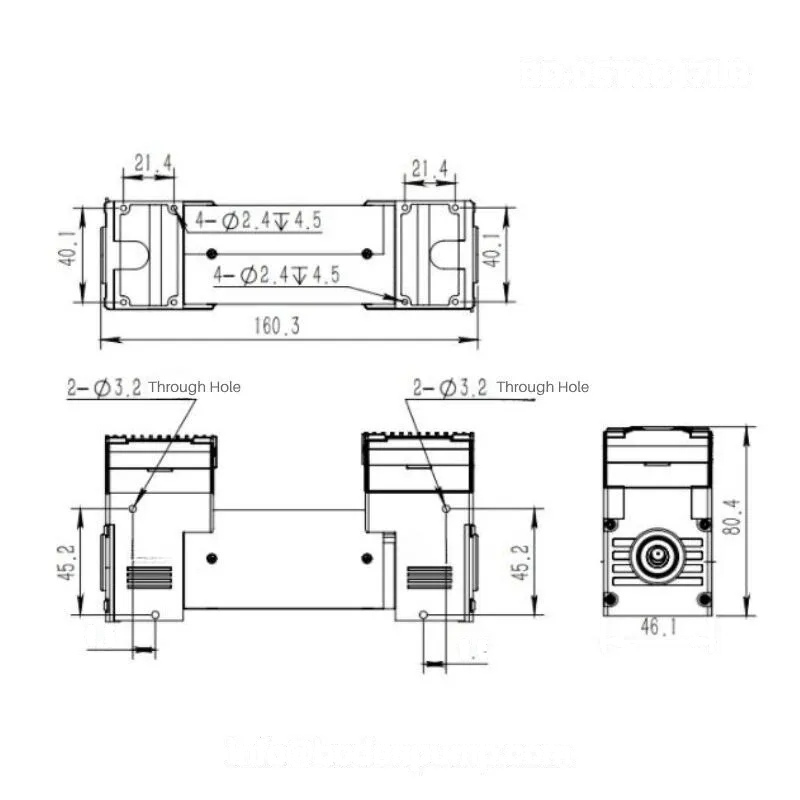

Technical drawings
OD-05T0617LB dimensions and performance graphics
Images classified as dimensional drawings, specification graphics or performance curves are grouped here.
Application and configuration
OD-05T0617LB application fit
Use these notes to translate brochure data into selection questions: application, working point, noise, lifetime, voltage options and nearby model alternatives.
Working-point review
Confirm the loaded flow at the required pressure or vacuum, then review tubing loss, inlet filtration, valve restriction and the safety margin between nominal and maximum conditions.
Noise, lifetime and voltage
Review voltage, motor type, expected life, noise target, duty cycle and mounting isolation before requesting samples or a model-specific drawing.
- Voltage
- 24 V DC
- Max Flow
- 17 L/min (parallel connection), 12 L/min (series connection)
- Max Vacuum
- -80 kPa (parallel connection), -95 kPa (series connection)
- Max Pressure
- 3.8 bar
Model comparison
OD-05T0617LB and nearby alternatives
When flow, pressure or vacuum, voltage, size or lifetime requirements change, compare nearby models before requesting a custom configuration.
| Model | Category | Key specifications | Next action |
|---|---|---|---|
| OD-05T0617LB | Diaphragm air / vacuum pump | Voltage 24 V DC; Max Flow 17 L/min (parallel connection), 12 L/min (series connection); Max Vacuum -80 kPa (parallel connection), -95 kPa (series connection) | Current model |
| OD-04AB / OD-04VB | Diaphragm air / vacuum pump | Voltage 6/9/12/24V DC; Air flow 7-20lpm; Liquid flow 1.5 L/min | View model |
| OD-05T0610AC | Diaphragm air / vacuum pump | Voltage 200-220AC; Max Flow 7.5L/min; Max Vacuum -85 kPa | View model |
| OD-05T1043AC | Diaphragm air / vacuum pump | Voltage 220V; Max Flow 43L/min; Max Vacuum -89 kPa | View model |
Technical resources
Downloads
View product documents and engineering drawings for the OD-05T0617LB series. For 3D files matched to OD-05T0617LB, include the current model in the RFQ.
OD-05T0617LB Dual Head Mini Diaphragm Air Pump Datasheet (PDF)
Locally synchronized file, 133 KB.
Download PDFProduct documents and 2D drawings
View PDF product documents and engineering drawings for the OD-05T0617LB series.
View PDF resourcesCAD and configuration files
Submit the model, working point and mounting requirements for files matched to the project configuration.
