Application scenarios
Typical uses include gas sampling, compact analyzers, medical equipment, beauty equipment and small pneumatic modules that need clean air transfer or vacuum generation.
OD-05T0511L
Dual Head Diaphragm Pump 11 L/min Silent DC Micro Air Pump OD-05T0511L | JSG
OD-05T0511L dual head diaphragm pump provides 11 L/min flow, -93 kPa vacuum, 1.5 bar pressure, and oil-free gas transfer for OEM systems.
Diaphragm air / vacuum pumpOD-05T0511L35 technical parameters1 technical drawings
Product functions
Key functions
OD-05T0511L supports the following roles in equipment fluid systems. Use the technical parameters below together with the actual working point for selection.
Function 1Air transfer
Function 2Vacuum generation
Function 3Equipment-level integration
White-background imagery

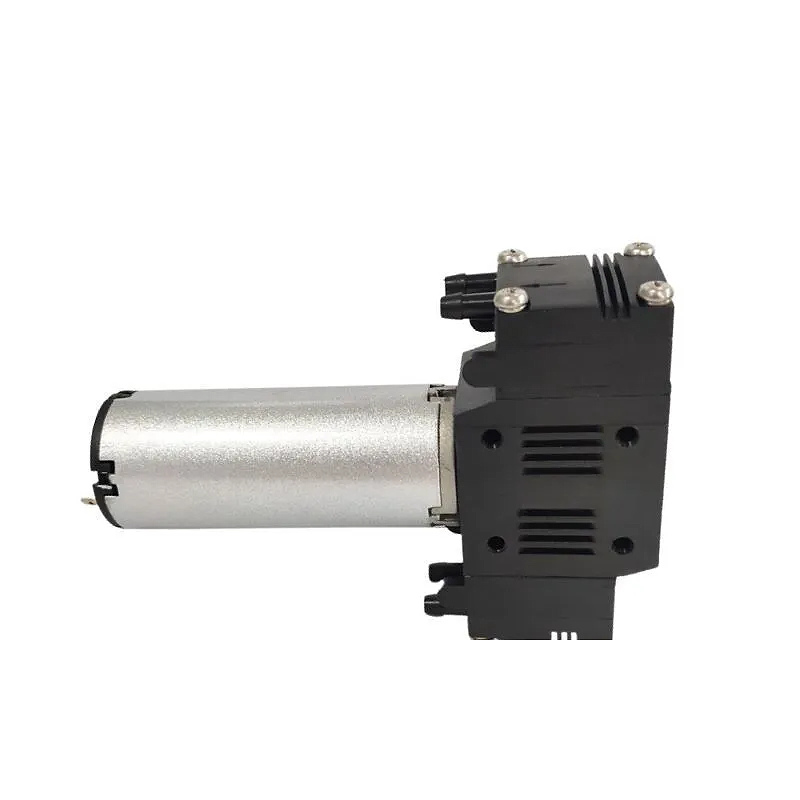

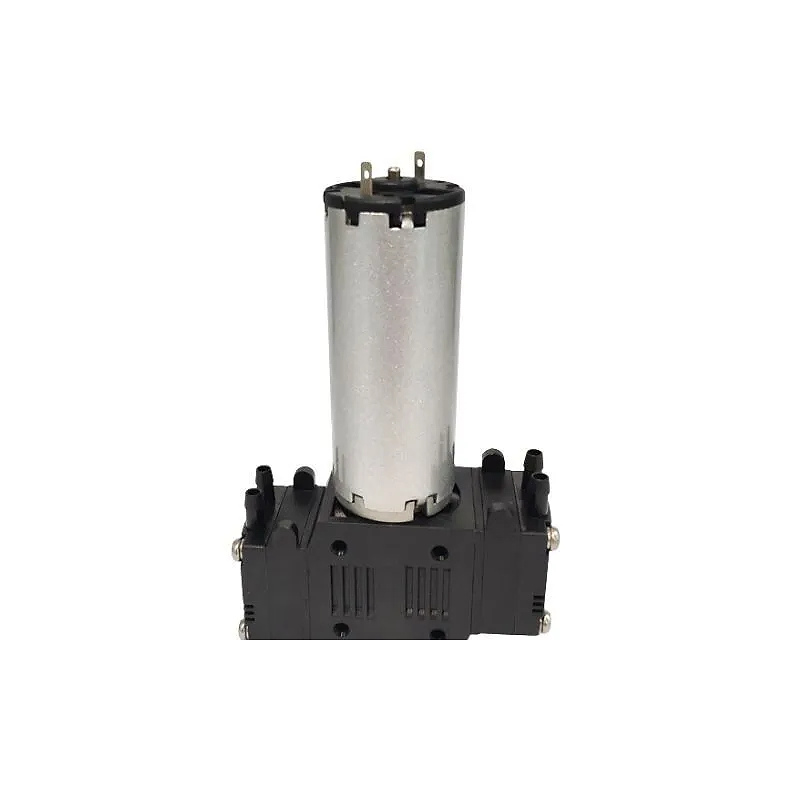

OD-05T0511L product images
These images are served from the synchronized local product library as white-background product views.
Product data
Technical specifications
The following specifications apply to OD-05T0511L. Also consider the medium, working point, power supply, duty cycle and installation conditions when selecting the product.
Voltage12 V / 24 V DC
Max Flow11 L/min (parallel connection), 7 L/min (series connection)
Max Vacuum-75 kPa (parallel connection), -93 kPa (series connection)
Max Pressure1.5 bar
MotorBrushed DC Motor
Max Power18 W
Weight330 g
CategorySpecification
ModelOD-05T0511L
TypeMicro Diaphragm Pump
StructureDual Head Diaphragm Pump
Voltage Range12 V / 24 V DC
Flow11 L/min (0.388 cfm)
Negative Pressure-75 kPa (-22.1 in.Hg / -750 mbar / -563 mmHg)
Flow7 L/min (0.247 cfm)
Negative Pressure-93 kPa (-27.5 in.Hg / -930 mbar / -698 mmHg)
Max Positive Pressure1.5 bar (21.8 psi / 1500 mbar / 0.15 MPa)
Motor TypeBrushed DC Motor
No-Load Current12 V: 0.7 A / 24 V: 0.35 A
Service life3000 h
Dimensions121.7 × 31 × 79 mm (4.79 × 1.22 × 3.11 in)
Weight330 g (0.73 lb)
Recommended Tubing SizeID4 mm / OD6 mm soft hose
Operating Environment5°C to 40°C
Medium Temperature10°C to 40°C
ComponentMaterial / Feature
Pump HeadPA66
Diaphragm / ValveEPDM
Gas PathOil-free, low leakage design
ItemCustomization Options
MaterialsEPDM standard; customized FKM rubber options available
WiringCustom cable length and wire definition
ConnectorOpen leads, plug connectors, or OEM interface
TubingID4 mm / OD6 mm soft hose standard; custom tubing available
BrandingCustomer-specific marking or private label
Technical drawings

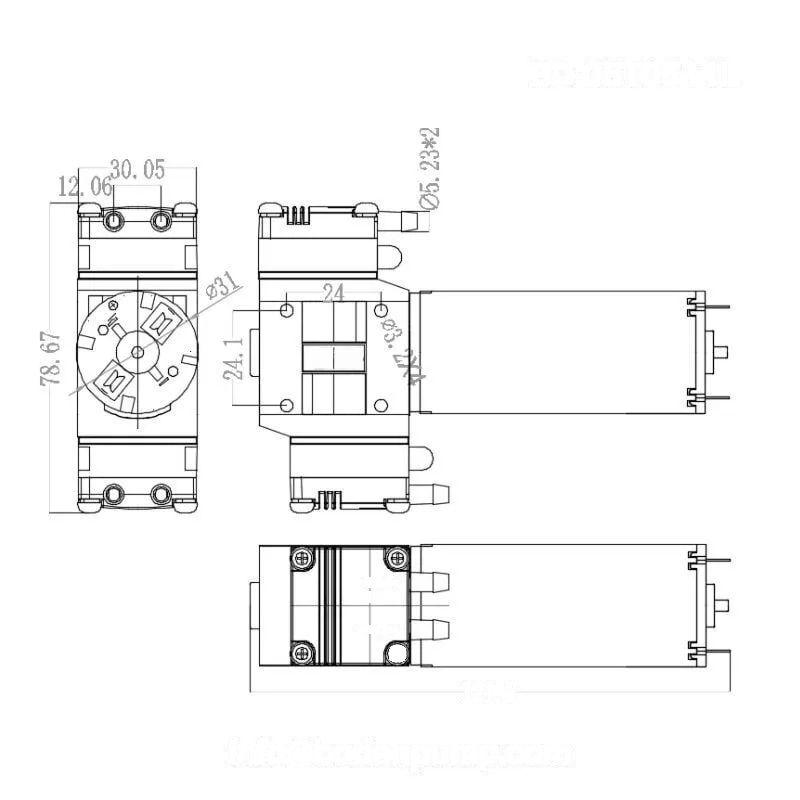

OD-05T0511L dimensions and performance graphics
Images classified as dimensional drawings, specification graphics or performance curves are grouped here.
Application and configuration
OD-05T0511L application fit
Use these notes to translate brochure data into selection questions: application, working point, noise, lifetime, voltage options and nearby model alternatives.
Working-point review
Confirm the loaded flow at the required pressure or vacuum, then review tubing loss, inlet filtration, valve restriction and the safety margin between nominal and maximum conditions.
Noise, lifetime and voltage
Review voltage, motor type, expected life, noise target, duty cycle and mounting isolation before requesting samples or a model-specific drawing.
- Voltage
- 12 V / 24 V DC
- Max Flow
- 11 L/min (parallel connection), 7 L/min (series connection)
- Max Vacuum
- -75 kPa (parallel connection), -93 kPa (series connection)
- Max Pressure
- 1.5 bar
Model comparison
OD-05T0511L and nearby alternatives
When flow, pressure or vacuum, voltage, size or lifetime requirements change, compare nearby models before requesting a custom configuration.
| Model | Category | Key specifications | Next action |
|---|---|---|---|
| OD-05T0511L | Diaphragm air / vacuum pump | Voltage 12 V / 24 V DC; Max Flow 11 L/min (parallel connection), 7 L/min (series connection); Max Vacuum -75 kPa (parallel connection), -93 kPa (series connection) | Current model |
| OD-04AB / OD-04VB | Diaphragm air / vacuum pump | Voltage 6/9/12/24V DC; Air flow 7-20lpm; Liquid flow 1.5 L/min | View model |
| OD-05T0610AC | Diaphragm air / vacuum pump | Voltage 200-220AC; Max Flow 7.5L/min; Max Vacuum -85 kPa | View model |
| OD-05T1043AC | Diaphragm air / vacuum pump | Voltage 220V; Max Flow 43L/min; Max Vacuum -89 kPa | View model |
Technical resources
Downloads
View product documents and engineering drawings for the OD-05T0511L series. For 3D files matched to OD-05T0511L, include the current model in the RFQ.
OD-05T0511L Dual Head Diaphragm Pump Datasheet (PDF)
Locally synchronized file, 159 KB.
Download PDFProduct documents and 2D drawings
View PDF product documents and engineering drawings for the OD-05T0511L series.
View PDF resourcesCAD and configuration files
Submit the model, working point and mounting requirements for files matched to the project configuration.
