Application scenarios
Typical uses include gas sampling, compact analyzers, medical equipment, beauty equipment and small pneumatic modules that need clean air transfer or vacuum generation.
OD-05TVB

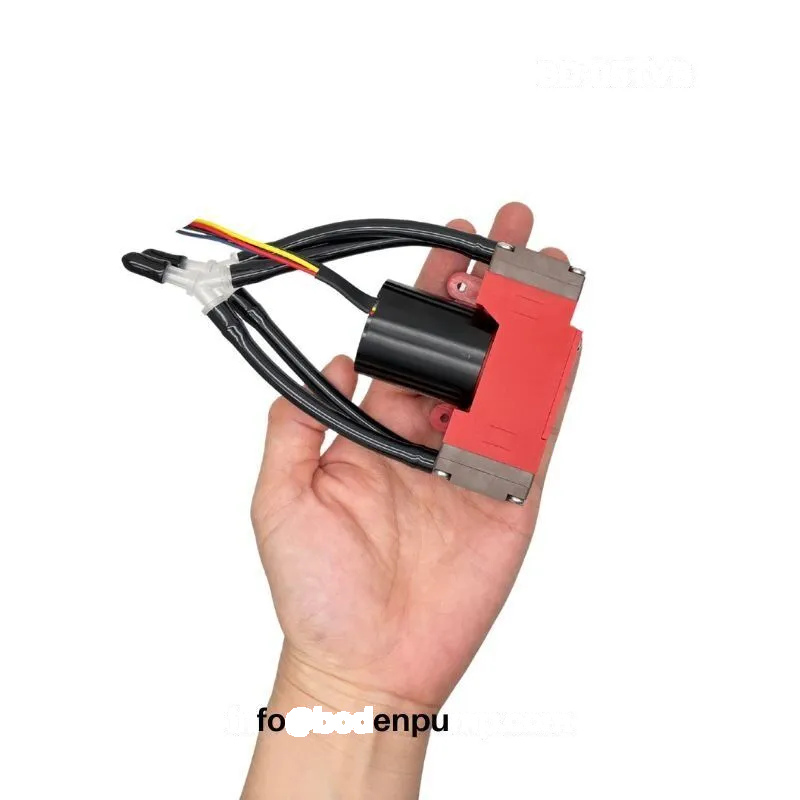

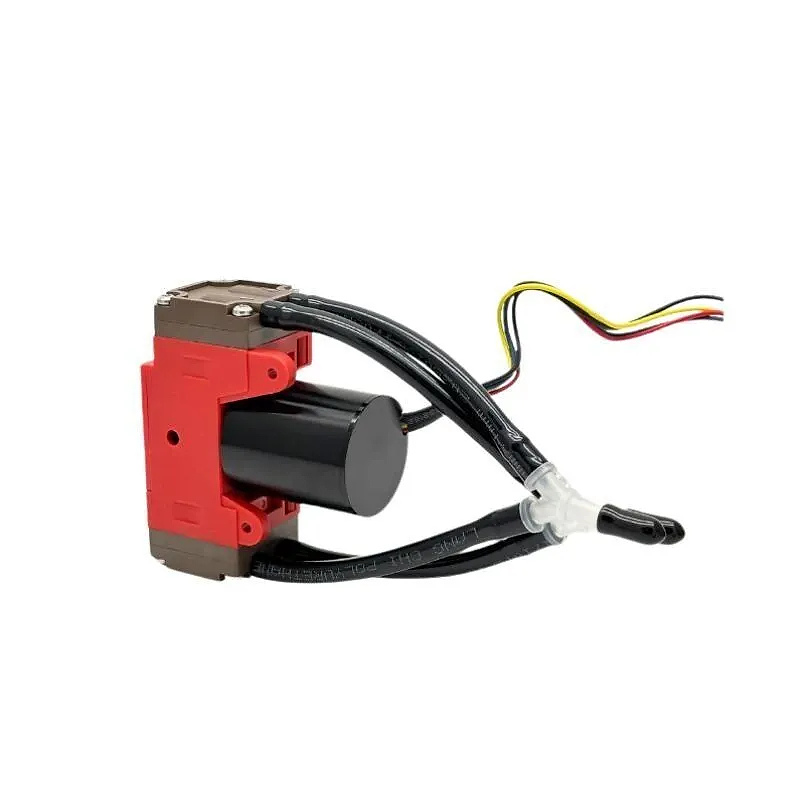

Dual Head Diaphragm Pump -70kpa -90kpa High Negative Pressure DC Vacuum Pump For Medical And Sampling OD-05TVB
Discover OD-05TVB dual-head brushless diaphragm pump with -90kPa vacuum and 7.2L/min flow. Ideal for Medical, gas sampling, and lab devices.
Diaphragm air / vacuum pumpOD-05TVB36 technical parameters4 technical drawings
Product functions
Key functions
OD-05TVB supports the following roles in equipment fluid systems. Use the technical parameters below together with the actual working point for selection.
Function 1Air transfer
Function 2Vacuum generation
Function 3Equipment-level integration
Product data
Technical specifications
The following specifications apply to OD-05TVB. Also consider the medium, working point, power supply, duty cycle and installation conditions when selecting the product.
Voltage12/24V
Max Flow7.2L/min (parallel)
Max Vacuum-70 kPa (parallel)
Max Pressure1~1.5Bar
MotorBrushless motor
Max Power8 W
Weight188g
ParameterValue
ModelOD-05TVB
Voltage Range12 V / 24 V
Parallel Mode7.2 L/min, -70 kPa
Series Mode4.6 L/min, -90 kPa
Max Positive Pressure1.0 - 1.5 bar
Motor TypeBrushless DC
Max Power Consumption8 W
IP RatingIP54
Storage Temperature-40 ℃ ~ 60 ℃
Operating Temp.-20 ℃ ~ 45 ℃
Medium Temp.-10 ℃ ~ 45 ℃
Pump Head MaterialPPS (Polyphenylene Sulfide)
Diaphragm/ValveEPDM (Optional FKM)
Pump BodyNylon
Dimensions76.2 × 32 × 64.3 mm
Weight188 g
ComponentMaterial / Features
Pump HeadPPS - Excellent thermal and chemical resistance
Diaphragm/ValveEPDM standard, FKM optional - anti-corrosive
Pump BodyNylon - Durable, impact-resistant
SealingProfessional-grade low leakage
Service life>8000-10,000 hours (brushless motor)
Customization AspectOptions / Notes
Diaphragm materialEPDM (standard) / FKM (for corrosive media)
Electrical ConnectorCustom cable length / terminal type
Pump Label & BrandingCustom labeling for OEM clients
Pump ConfigurationDual-head (parallel or series); consult for best setup
Operating Voltage12 V or 24 V options available for flexible integration
Technical drawings

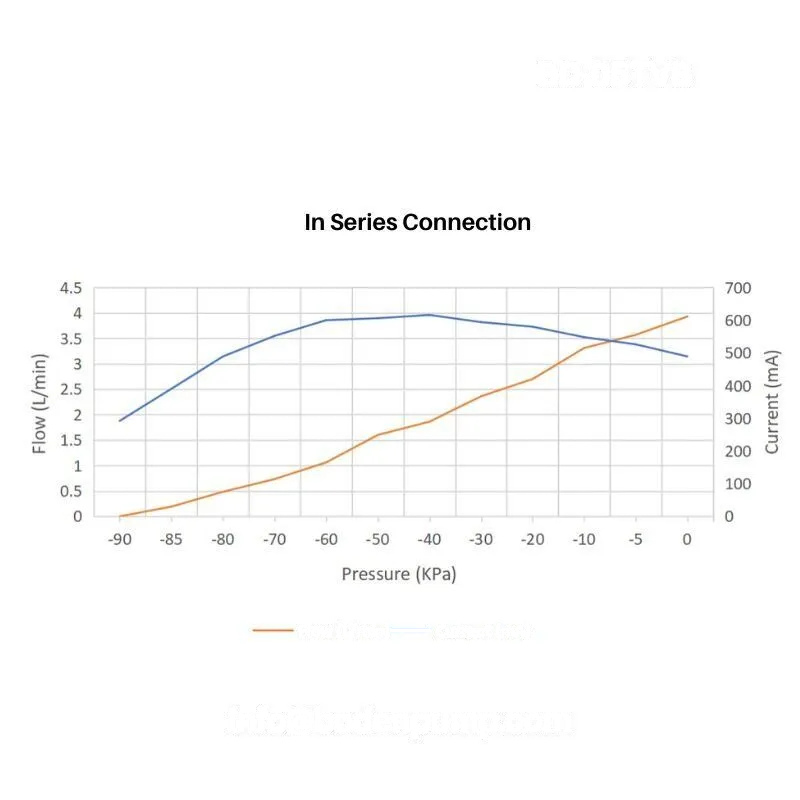

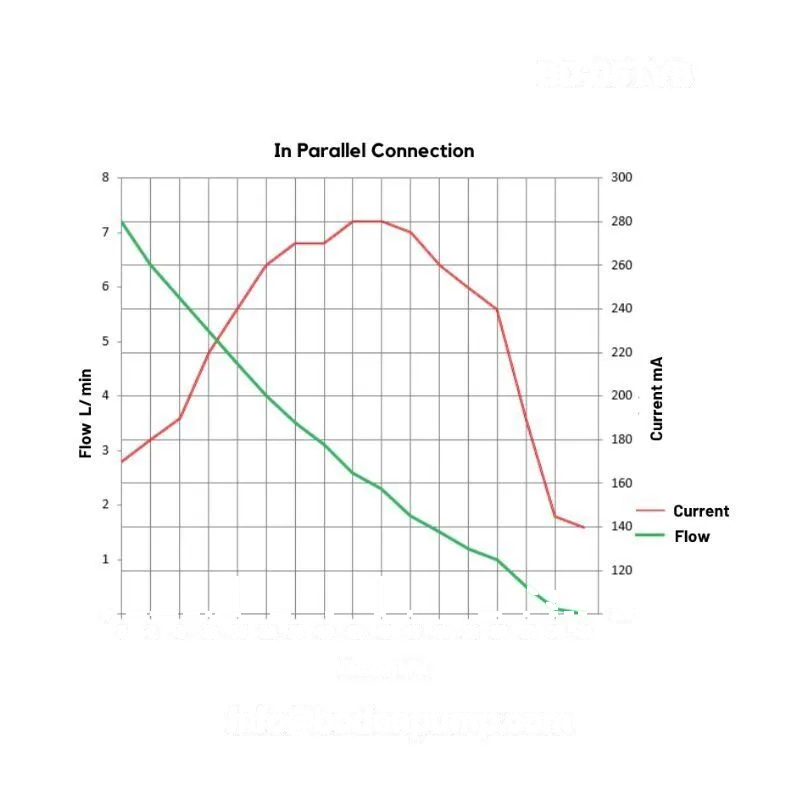

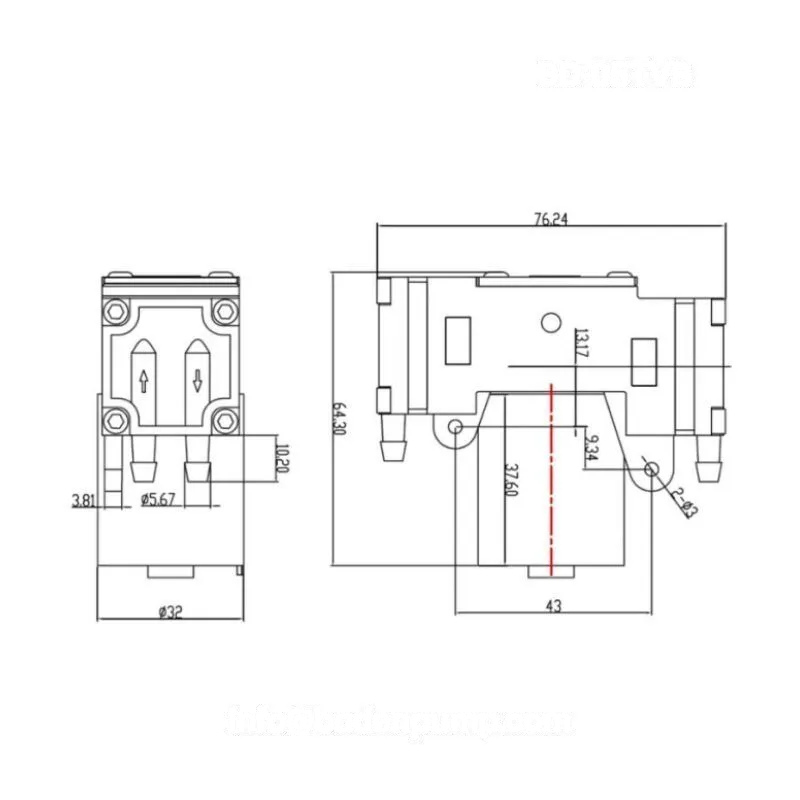

OD-05TVB dimensions and performance graphics
Images classified as dimensional drawings, specification graphics or performance curves are grouped here.
Application and configuration
OD-05TVB application fit
Use these notes to translate brochure data into selection questions: application, working point, noise, lifetime, voltage options and nearby model alternatives.
Working-point review
Confirm the loaded flow at the required pressure or vacuum, then review tubing loss, inlet filtration, valve restriction and the safety margin between nominal and maximum conditions.
Noise, lifetime and voltage
Review voltage, motor type, expected life, noise target, duty cycle and mounting isolation before requesting samples or a model-specific drawing.
- Voltage
- 12/24V
- Max Flow
- 7.2L/min (parallel)
- Max Vacuum
- -70 kPa (parallel)
- Max Pressure
- 1~1.5Bar
Model comparison
OD-05TVB and nearby alternatives
When flow, pressure or vacuum, voltage, size or lifetime requirements change, compare nearby models before requesting a custom configuration.
| Model | Category | Key specifications | Next action |
|---|---|---|---|
| OD-05TVB | Diaphragm air / vacuum pump | Voltage 12/24V; Max Flow 7.2L/min (parallel); Max Vacuum -70 kPa (parallel) | Current model |
| OD-04AB / OD-04VB | Diaphragm air / vacuum pump | Voltage 6/9/12/24V DC; Air flow 7-20lpm; Liquid flow 1.5 L/min | View model |
| OD-05T0610AC | Diaphragm air / vacuum pump | Voltage 200-220AC; Max Flow 7.5L/min; Max Vacuum -85 kPa | View model |
| OD-05T1043AC | Diaphragm air / vacuum pump | Voltage 220V; Max Flow 43L/min; Max Vacuum -89 kPa | View model |
Technical resources
Downloads
View product documents and engineering drawings for the OD-05TVB series. For 3D files matched to OD-05TVB, include the current model in the RFQ.
OD-05TVB Brushless Motor Wiring & Function Manual
Locally synchronized file, 162 KB.
Download PDFOD-05TVB Brushless Diaphragm Pump Specification
Locally synchronized file, 225 KB.
Download PDFProduct documents and 2D drawings
View PDF product documents and engineering drawings for the OD-05TVB series.
View PDF resourcesCAD and configuration files
Submit the model, working point and mounting requirements for files matched to the project configuration.
Request CAD filesContinue browsing
Related pump models
Diaphragm air / vacuum pump
220V 50HZ Sampling Pump AC Gas Diaphragm Pump For CEMS OD-05T0610AC
View product
Diaphragm air / vacuum pump
Oil-Free Diaphragm Vacuum Pump AC 220V 43L Small High Vacuum Pumps -89KPA OD-05T1043AC JSG
View productRequest a quote for OD-05TVB
Provide the medium, flow, pressure or vacuum, voltage, duty cycle and mounting requirements so we can match the product configuration and supporting documents.
