OD-05T01.51000EP

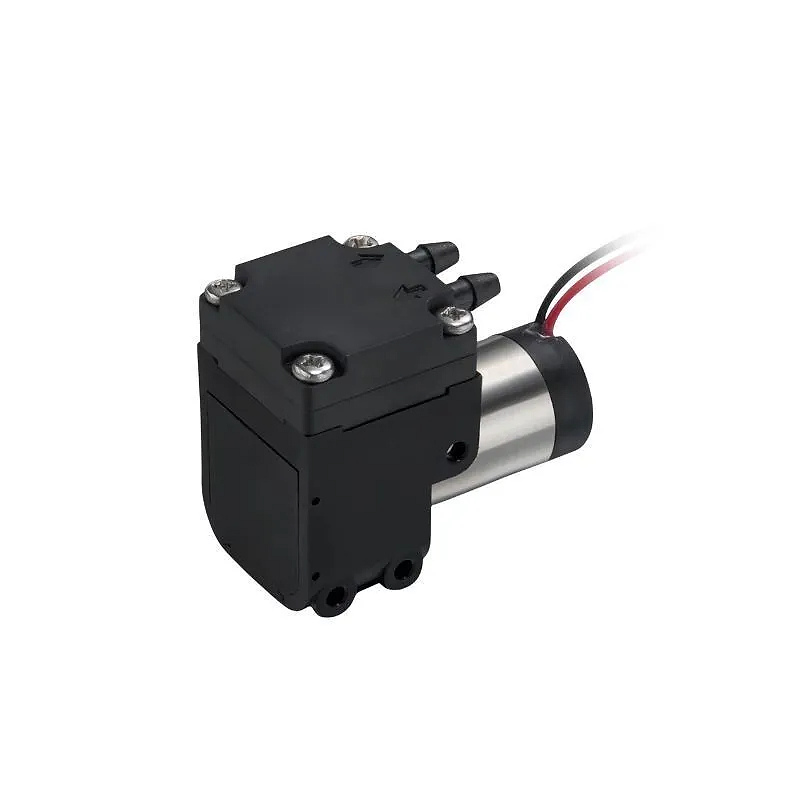

Eccentric Diaphragm Pump - Lightweight Gas Sapmling Pump OD-05T01.51000EP
Compact eccentric diaphragm pump OD-05T01.51000EP, coreless motor, 1 L/min flow, +50 kPa pressure, oil-free, low 0.4 W power for gas sampling and CEMS.
Diaphragm air / vacuum pumpOD-05T01.51000EP33 technical parameters2 technical drawings
Product functions
Key functions
OD-05T01.51000EP supports the following roles in equipment fluid systems. Use the technical parameters below together with the actual working point for selection.
Function 1Air transfer
Function 2Vacuum generation
Function 3Equipment-level integration
Product data
Technical specifications
The following specifications apply to OD-05T01.51000EP. Also consider the medium, working point, power supply, duty cycle and installation conditions when selecting the product.
Voltage1 - 4 V DC
Max Flow1000ml/min
Max Vacuum-40 kPa
Max Pressure+50 kPa
MotorDC coreless brush motor
Max Power0.4 W
Weight29 g
ParameterValue
ModelOD-05T01.51000EP
Voltage Range1-4 V DC
Max Flow Rate1 L/min
Max Negative Pressure-40 kPa
Max Positive Pressure+50 kPa
Motor TypeCoreless Brushed DC Motor
IP RatingIP20
Service Life6,000-8,000 hours
Storage Temperature-40 ℃ ~ 60 ℃
Operating Temperature-20 ℃ ~ 50 ℃
Pump HeadPPS
Diaphragm/ValveEPDM (optional FKM)
Pump BodyNylon
Dimensions42 × 34 × 23 mm
ComponentMaterial / Performance
Pump HeadPPS (durable engineering plastic)
Diaphragm/ValveEPDM standard (FKM optional)
Pump BodyNylon - high strength, lightweight
Service life6,000-8,000 hours in clean air use
CustomizationOptions Available
Diaphragm materialEPDM or FKM
Cable / ConnectorCustom length and terminal configuration
Branding / LabelingCustom OEM label design
Configuration OptionsSingle-head: OD-05T01.51000EP
Integration SupportEngineering support for OEM development
Technical drawings

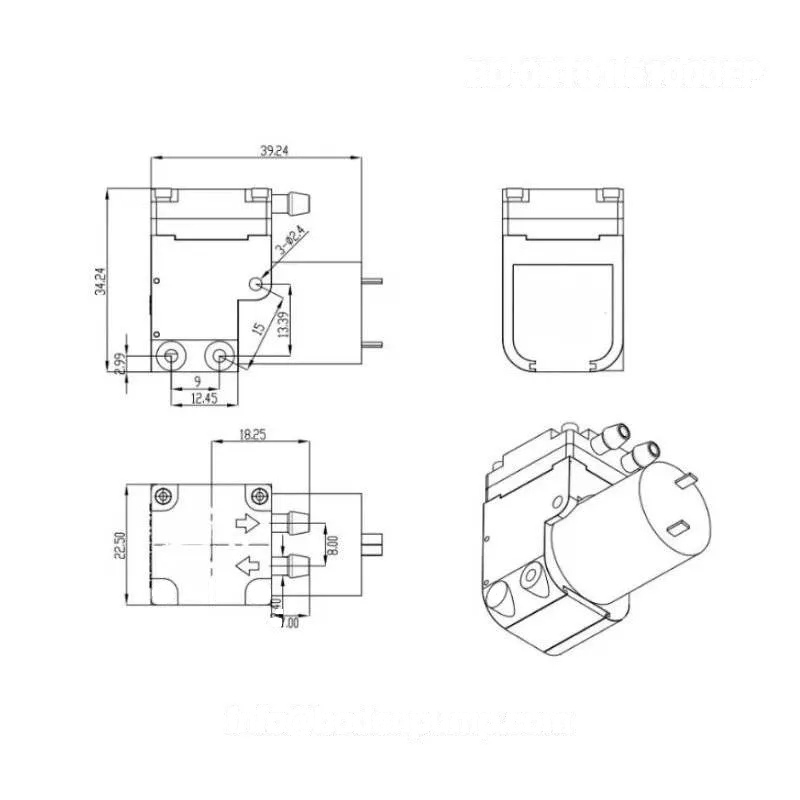

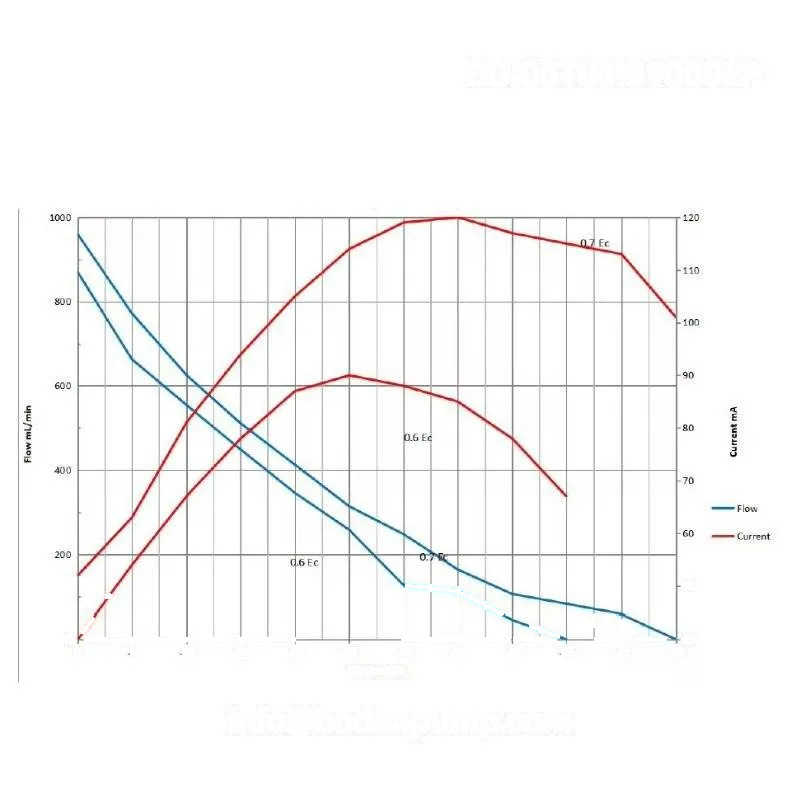

OD-05T01.51000EP dimensions and performance graphics
Images classified as dimensional drawings, specification graphics or performance curves are grouped here.
Application and configuration
OD-05T01.51000EP application fit
Use these notes to translate brochure data into selection questions: application, working point, noise, lifetime, voltage options and nearby model alternatives.
Working-point review
Confirm the loaded flow at the required pressure or vacuum, then review tubing loss, inlet filtration, valve restriction and the safety margin between nominal and maximum conditions.
Noise, lifetime and voltage
Review voltage, motor type, expected life, noise target, duty cycle and mounting isolation before requesting samples or a model-specific drawing.
- Voltage
- 1 - 4 V DC
- Max Flow
- 1000ml/min
- Max Vacuum
- -40 kPa
- Max Pressure
- +50 kPa
Model comparison
OD-05T01.51000EP and nearby alternatives
When flow, pressure or vacuum, voltage, size or lifetime requirements change, compare nearby models before requesting a custom configuration.
| Model | Category | Key specifications | Next action |
|---|---|---|---|
| OD-05T01.51000EP | Diaphragm air / vacuum pump | Voltage 1 - 4 V DC; Max Flow 1000ml/min; Max Vacuum -40 kPa | Current model |
| OD-04AB / OD-04VB | Diaphragm air / vacuum pump | Voltage 6/9/12/24V DC; Air flow 7-20lpm; Liquid flow 1.5 L/min | View model |
| OD-05T0610AC | Diaphragm air / vacuum pump | Voltage 200-220AC; Max Flow 7.5L/min; Max Vacuum -85 kPa | View model |
| OD-05T1043AC | Diaphragm air / vacuum pump | Voltage 220V; Max Flow 43L/min; Max Vacuum -89 kPa | View model |
Technical resources
Downloads
View product documents and engineering drawings for the OD-05T01.51000EP series. For 3D files matched to OD-05T01.51000EP, include the current model in the RFQ.
OD-05T01.51000EP Eccentric Diaphragm Pump Datasheet
Locally synchronized file, 175 KB.
Download PDFProduct documents and 2D drawings
View PDF product documents and engineering drawings for the OD-05T01.51000EP series.
View PDF resourcesCAD and configuration files
Submit the model, working point and mounting requirements for files matched to the project configuration.
Request CAD filesContinue browsing
Related pump models
Diaphragm air / vacuum pump
220V 50HZ Sampling Pump AC Gas Diaphragm Pump For CEMS OD-05T0610AC
View product
Diaphragm air / vacuum pump
Oil-Free Diaphragm Vacuum Pump AC 220V 43L Small High Vacuum Pumps -89KPA OD-05T1043AC JSG
View productRequest a quote for OD-05T01.51000EP
Provide the medium, flow, pressure or vacuum, voltage, duty cycle and mounting requirements so we can match the product configuration and supporting documents.
