OD-05T043L
5V Vacuum Pump -88kpa 3L Coreless Motor Eccentric Diaphragm Pump OD-05T043L
JSG OD-05T043L 5V micro diaphragm pump delivers -88kPa vacuum and 3 L/min flow. Compact, low-noise, oil-free pump for VOC analysis, gas sampling, and laboratory use.
Diaphragm air / vacuum pumpOD-05T043L29 technical parameters2 technical drawings
Product functions
Key functions
OD-05T043L supports the following roles in equipment fluid systems. Use the technical parameters below together with the actual working point for selection.
Function 1Air transfer
Function 2Vacuum generation
Function 3Equipment-level integration
White-background imagery

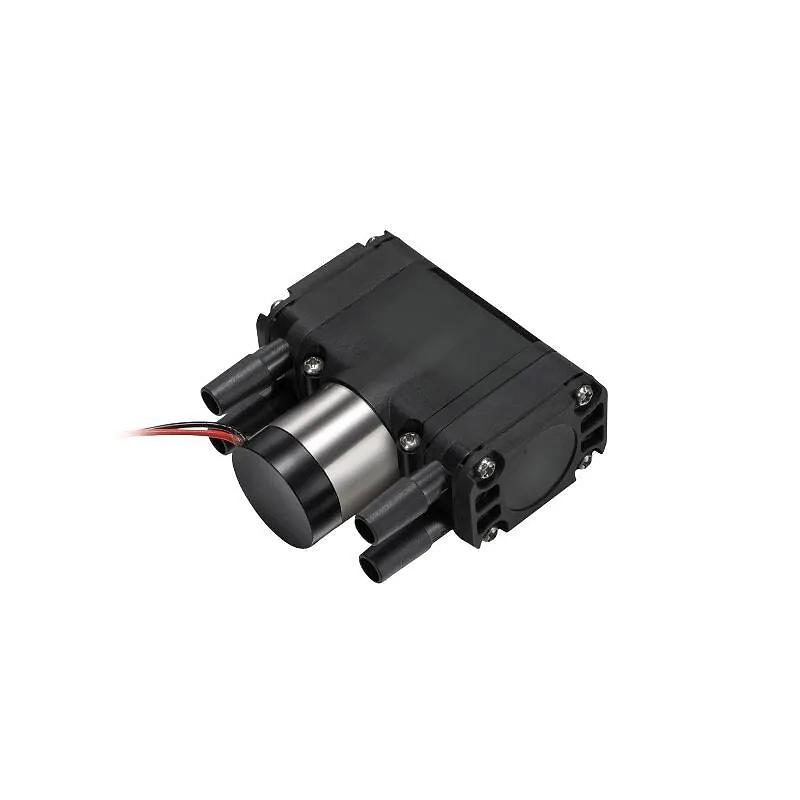

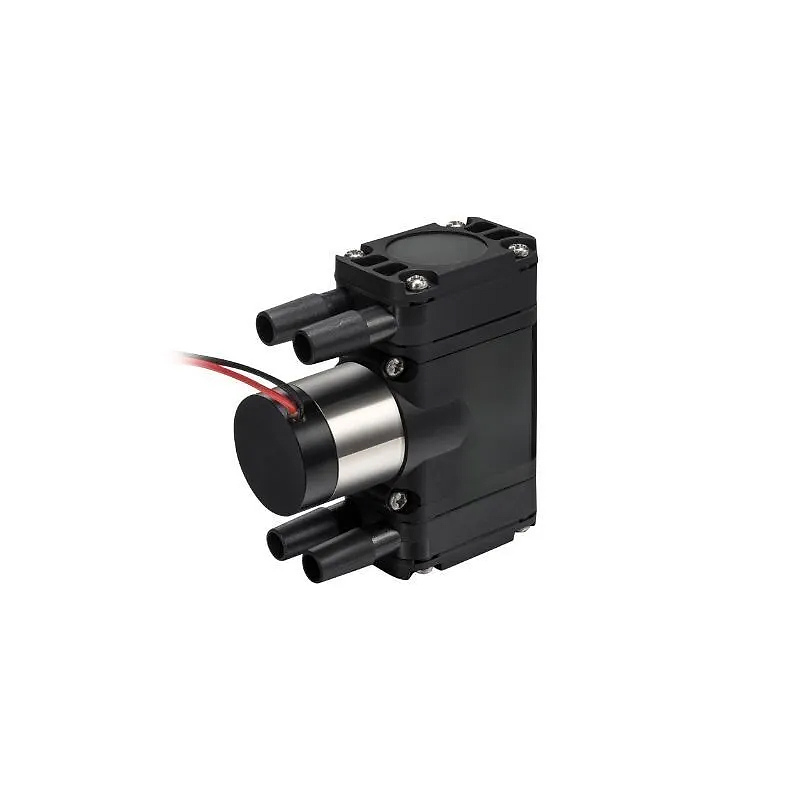

OD-05T043L product images
These images are served from the synchronized local product library as white-background product views.
Product data
Technical specifications
The following specifications apply to OD-05T043L. Also consider the medium, working point, power supply, duty cycle and installation conditions when selecting the product.
Voltage5V
Max Flow3L/min
Max Vacuum-88 kPa
MotorCoreless motor
Max Power5 W
Weight99g
ParameterValue
ModelOD-05T043L
Voltage Range5 V DC
Max Flow (float meter)3 L/min
Motor TypeCoreless DC Motor
IP RatingIP00
Service Life>5,000 hours
Operating Temp.0 °C to 45 °C
Storage Temp.-40 °C to 60 °C
Pump Head MaterialNylon
Diaphragm/Valve MaterialEPDM
Pump Body MaterialNylon
Dimensions55 × 22 × 58 mm
Weight99 g
ComponentMaterial / Performance
Pump HeadNylon - lightweight, durable
Diaphragm/ValveEPDM - chemical-resistant, durable
Pump BodyNylon - lightweight, durable
Service Life>5,000 hours (coreless motor)
Customization AspectOptions / Notes
Wire & ConnectorCustom wire length and connector types
Label / BrandingCustom branding for OEM projects
Integration SupportEngineering advice for seamless design fit
Technical drawings

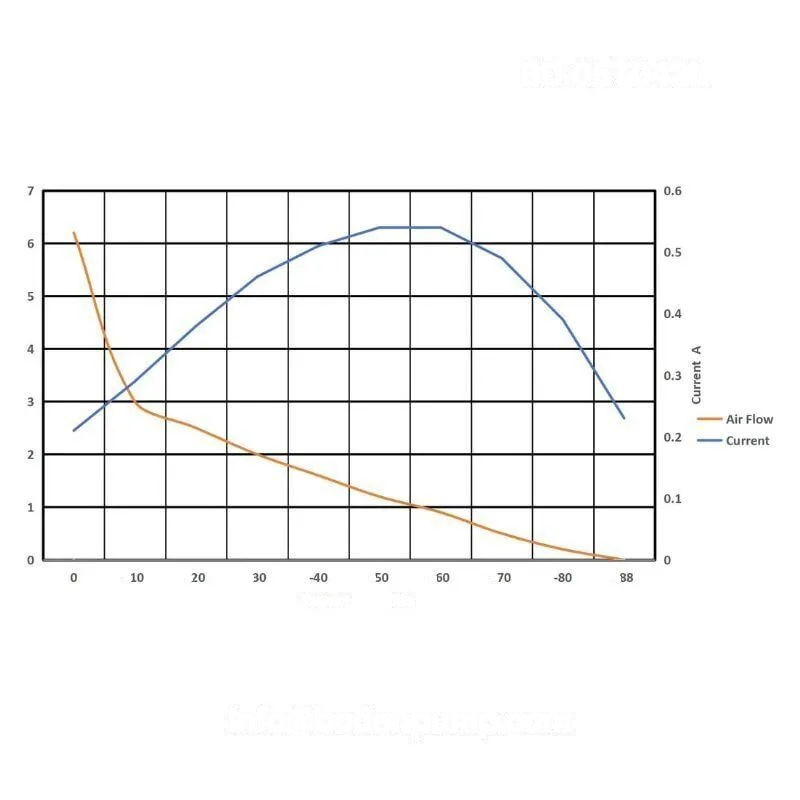

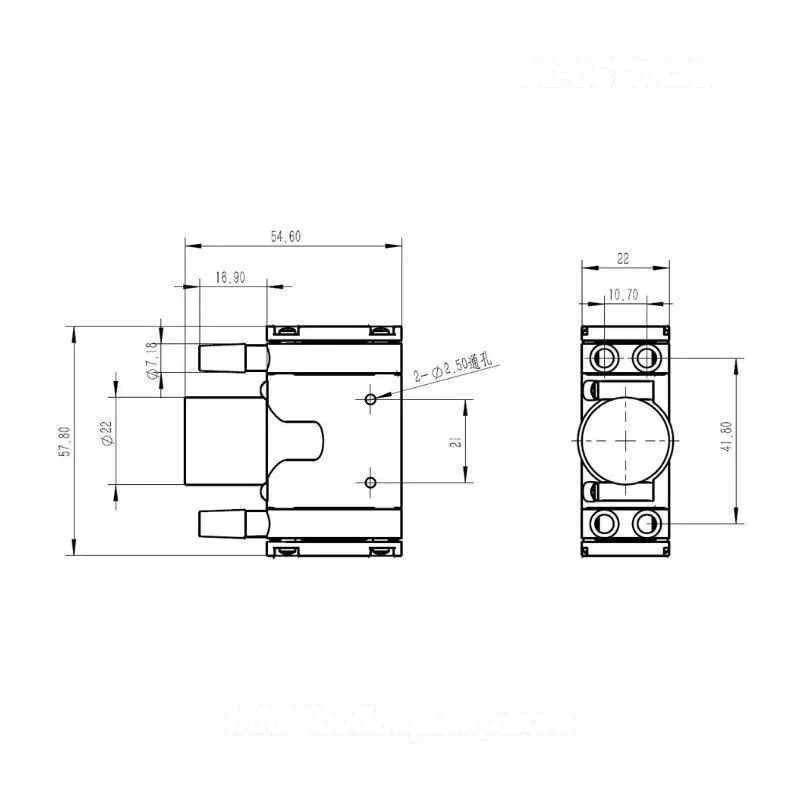

OD-05T043L dimensions and performance graphics
Images classified as dimensional drawings, specification graphics or performance curves are grouped here.
Application and configuration
OD-05T043L application fit
Use these notes to translate brochure data into selection questions: application, working point, noise, lifetime, voltage options and nearby model alternatives.
Working-point review
Confirm the loaded flow at the required pressure or vacuum, then review tubing loss, inlet filtration, valve restriction and the safety margin between nominal and maximum conditions.
Noise, lifetime and voltage
Review voltage, motor type, expected life, noise target, duty cycle and mounting isolation before requesting samples or a model-specific drawing.
- Voltage
- 5V
- Max Flow
- 3L/min
- Max Vacuum
- -88 kPa
- Motor
- Coreless motor
Model comparison
OD-05T043L and nearby alternatives
When flow, pressure or vacuum, voltage, size or lifetime requirements change, compare nearby models before requesting a custom configuration.
| Model | Category | Key specifications | Next action |
|---|---|---|---|
| OD-05T043L | Diaphragm air / vacuum pump | Voltage 5V; Max Flow 3L/min; Max Vacuum -88 kPa | Current model |
| OD-04AB / OD-04VB | Diaphragm air / vacuum pump | Voltage 6/9/12/24V DC; Air flow 7-20lpm; Liquid flow 1.5 L/min | View model |
| OD-05T0610AC | Diaphragm air / vacuum pump | Voltage 200-220AC; Max Flow 7.5L/min; Max Vacuum -85 kPa | View model |
| OD-05T1043AC | Diaphragm air / vacuum pump | Voltage 220V; Max Flow 43L/min; Max Vacuum -89 kPa | View model |
