OD-05T055L

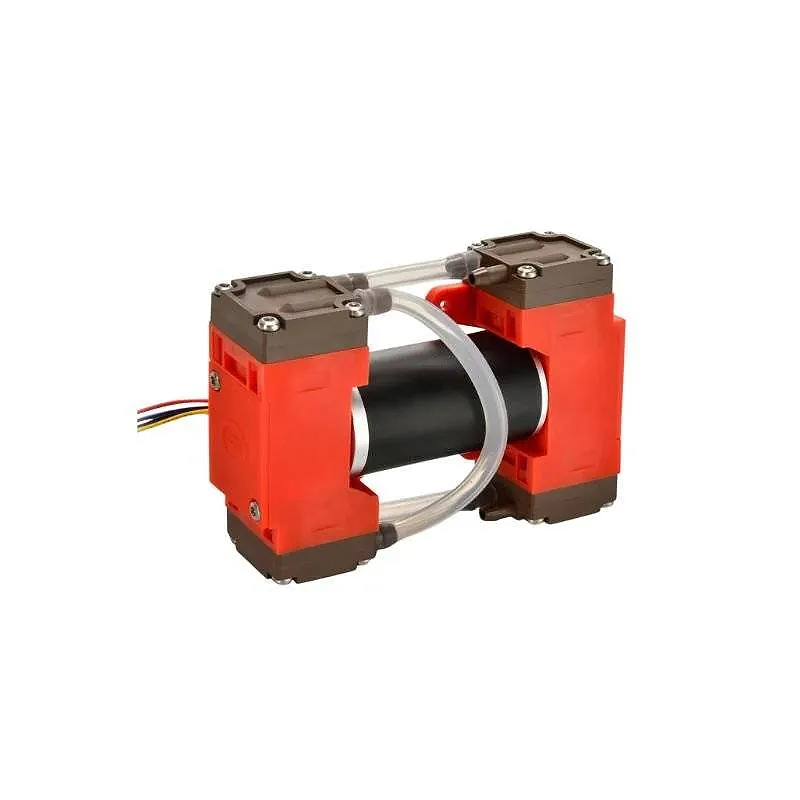

Negative Pressure Vacuum Pump -98kpa 5L DC Four Head Diaphragm Pump OD-05T055L
High negative pressure diaphragm pump OD-05T055L delivers -98 kPa vacuum, 5 L/min flow, brushless DC motor, ideal for CEMS, VOC, lab & medical devices.
Diaphragm air / vacuum pumpOD-05T055L32 technical parameters2 technical drawings
Product functions
Key functions
OD-05T055L supports the following roles in equipment fluid systems. Use the technical parameters below together with the actual working point for selection.
Function 1Air transfer
Function 2Vacuum generation
Function 3Equipment-level integration
Product data
Technical specifications
The following specifications apply to OD-05T055L. Also consider the medium, working point, power supply, duty cycle and installation conditions when selecting the product.
Voltage12/24V
Max Flow5L/min
Max Vacuum-98 kPa
Max Pressure1~1.5Bar
MotorHigh-end DC brushless motor
Max Power11 W
Weight327g
ParameterValue
ModelOD-05T055L
Voltage Range12 V / 24 V DC
Max Flow Rate5 L/min
Max Negative Pressure≥ -98 kPa
Max Positive Pressure1 - 1.5 bar
Motor TypeHigh-end Brushless DC Motor
Max Power Consumption11 W
IP RatingIP40
Service Life> 10,000 hours
Storage Temperature-40 ℃ to 60 ℃
Operating Temperature-20 ℃ to 50 ℃
Dimensions113 × 32 × 76 mm
Weight327 g
ComponentMaterial / Performance
Pump HeadPPS - high-performance engineering thermoplastic
Diaphragm/ValveEPDM (Optional FKM for chemical resistance)
Pump BodyPPS - durable, heat-resistant, corrosion-resistant
Waterproof RatingIP40
Customization AspectAvailable Options
Diaphragm materialStandard EPDM / Optional FKM for corrosion
Voltage Options12 V or 24 V brushless motor
Cable / ConnectorCustom cable length, terminal types
Branding & LabelsCustom OEM labeling and private branding
Configuration OptionsSingle-head, Dual-head, or Four-head designs

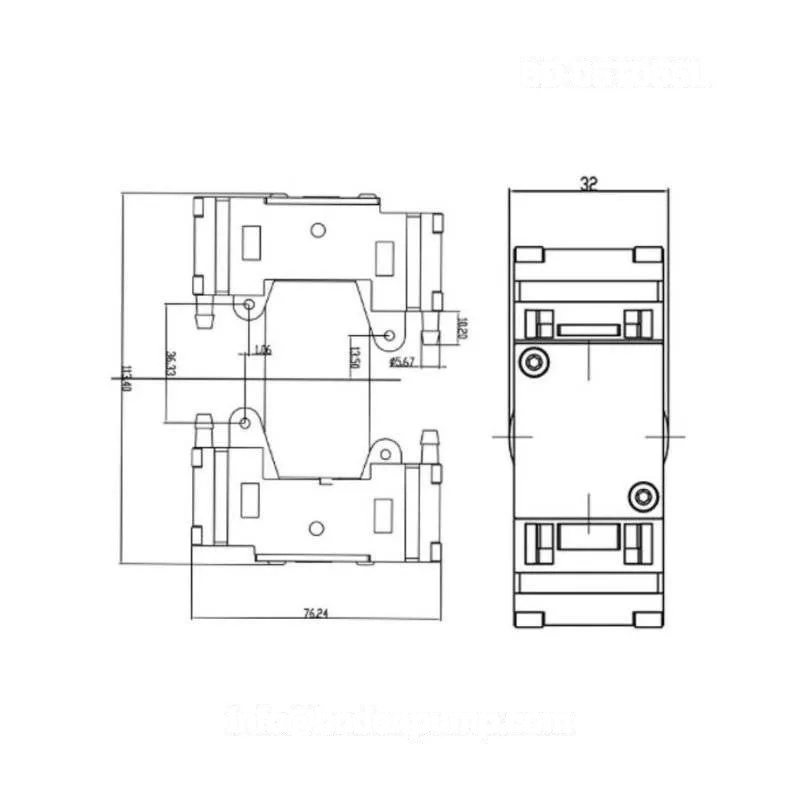

Technical drawings

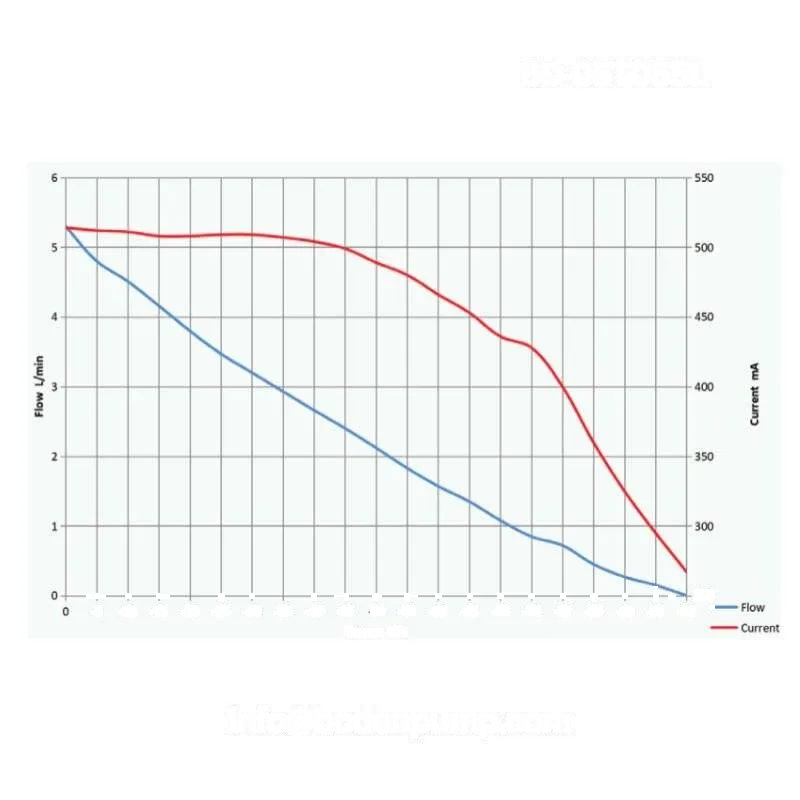

OD-05T055L dimensions and performance graphics
Images classified as dimensional drawings, specification graphics or performance curves are grouped here.
Application and configuration
OD-05T055L application fit
Use these notes to translate brochure data into selection questions: application, working point, noise, lifetime, voltage options and nearby model alternatives.
Working-point review
Confirm the loaded flow at the required pressure or vacuum, then review tubing loss, inlet filtration, valve restriction and the safety margin between nominal and maximum conditions.
Noise, lifetime and voltage
Review voltage, motor type, expected life, noise target, duty cycle and mounting isolation before requesting samples or a model-specific drawing.
- Voltage
- 12/24V
- Max Flow
- 5L/min
- Max Vacuum
- -98 kPa
- Max Pressure
- 1~1.5Bar
Model comparison
OD-05T055L and nearby alternatives
When flow, pressure or vacuum, voltage, size or lifetime requirements change, compare nearby models before requesting a custom configuration.
| Model | Category | Key specifications | Next action |
|---|---|---|---|
| OD-05T055L | Diaphragm air / vacuum pump | Voltage 12/24V; Max Flow 5L/min; Max Vacuum -98 kPa | Current model |
| OD-04AB / OD-04VB | Diaphragm air / vacuum pump | Voltage 6/9/12/24V DC; Air flow 7-20lpm; Liquid flow 1.5 L/min | View model |
| OD-05T0610AC | Diaphragm air / vacuum pump | Voltage 200-220AC; Max Flow 7.5L/min; Max Vacuum -85 kPa | View model |
| OD-05T1043AC | Diaphragm air / vacuum pump | Voltage 220V; Max Flow 43L/min; Max Vacuum -89 kPa | View model |
