OD-05T054L

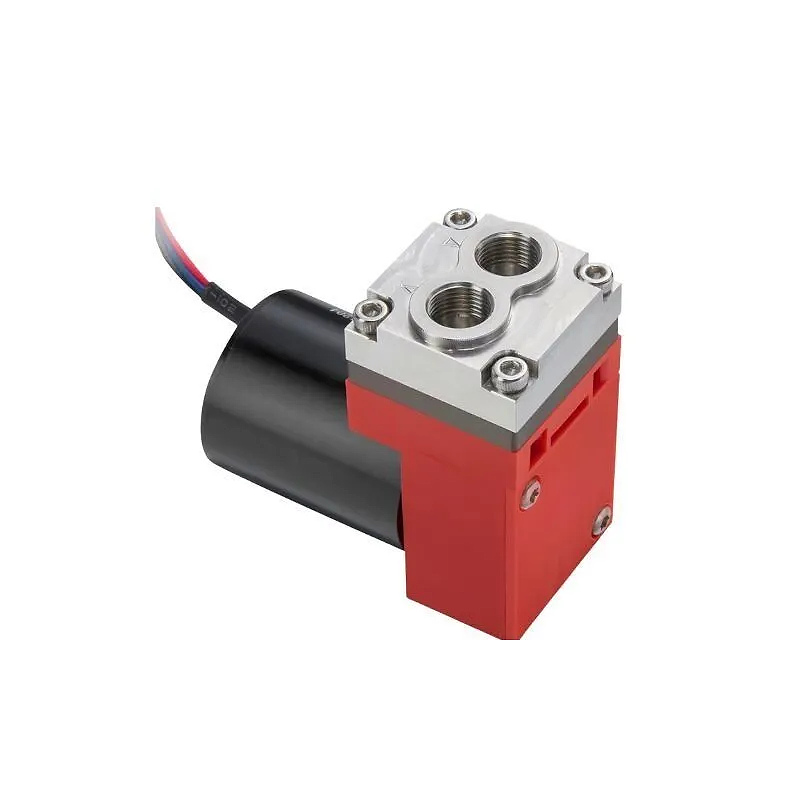

Gas Sampling Pump Stainless Steel High-Temperature Mini Diaphragm Pump OD-05T054L
OD-05T054L stainless steel gas sampling pump, 4 L/min, -60 kPa vacuum, 120 ℃ resistance. Ideal for CEMS, VOC analyzers, and high-temperature gas analysis.
Diaphragm air / vacuum pumpOD-05T054L33 technical parameters2 technical drawings
Product functions
Key functions
OD-05T054L supports the following roles in equipment fluid systems. Use the technical parameters below together with the actual working point for selection.
Function 1Air transfer
Function 2Vacuum generation
Function 3Equipment-level integration
Product data
Technical specifications
The following specifications apply to OD-05T054L. Also consider the medium, working point, power supply, duty cycle and installation conditions when selecting the product.
Voltage12/24V
Max Flow4L/min
Max Vacuum-60 kPa
Max Pressure1Bar
MotorHigh-end DC brushless motor
Max Power5 W
Weight168g
ParameterValue
ModelOD-05T054L
Voltage Range12 V / 24 V DC
Max Flow Rate4 L/min
Max Negative Pressure-60 kPa
Max Positive Pressure1 Bar
Motor TypeHigh-end DC Brushless Motor
Max Power Consumption5 W
IP RatingIP54
Service Life>8000 hours
Storage Temperature-40 ℃ ~ 60 ℃
Operating Environment-20 ℃ ~ 45 ℃
Medium Temperature Range-10 ℃ ~ 120 ℃
Dimensions (L×W×H)61 × 32 × 61 mm
Weight168 g
ComponentMaterial / Performance
Pump HeadStainless Steel - corrosion & heat resistant
Diaphragm / ValveImported FKM - high chemical compatibility
Pump BodyImported Nylon - lightweight, durable
Motor BearingsHigh-precision ball bearings
Sealing DesignIndustrial-grade, low leakage
Customization AspectAvailable Options / Notes
Diaphragm MaterialsFKM (standard); EPDM (on request)
Cable/Connector TypeCustom wiring, terminal, or connector integration
Branding/LabelCustom label with client’s logo and specifications
Pump ConfigurationCustom mounting brackets, feet, or dual-head design

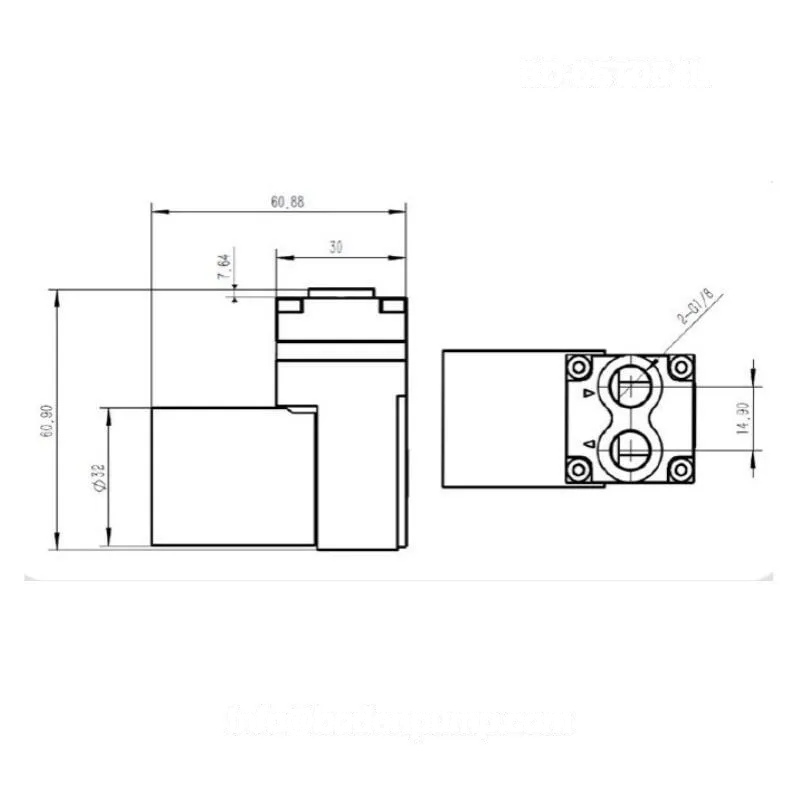

Technical drawings

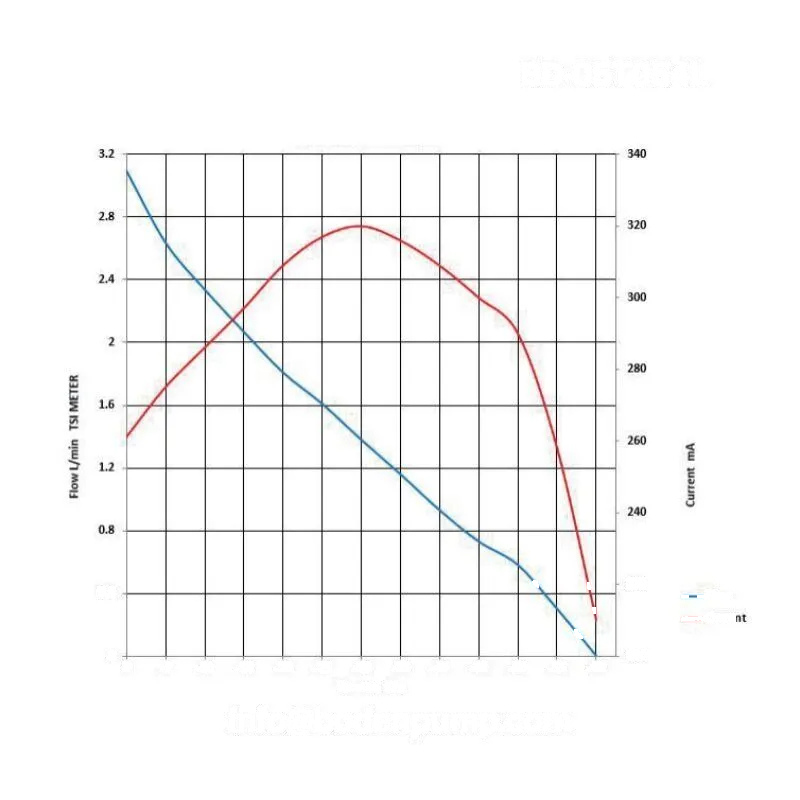

OD-05T054L dimensions and performance graphics
Images classified as dimensional drawings, specification graphics or performance curves are grouped here.
Application and configuration
OD-05T054L application fit
Use these notes to translate brochure data into selection questions: application, working point, noise, lifetime, voltage options and nearby model alternatives.
Working-point review
Confirm the loaded flow at the required pressure or vacuum, then review tubing loss, inlet filtration, valve restriction and the safety margin between nominal and maximum conditions.
Noise, lifetime and voltage
Review voltage, motor type, expected life, noise target, duty cycle and mounting isolation before requesting samples or a model-specific drawing.
- Voltage
- 12/24V
- Max Flow
- 4L/min
- Max Vacuum
- -60 kPa
- Max Pressure
- 1Bar
Model comparison
OD-05T054L and nearby alternatives
When flow, pressure or vacuum, voltage, size or lifetime requirements change, compare nearby models before requesting a custom configuration.
| Model | Category | Key specifications | Next action |
|---|---|---|---|
| OD-05T054L | Diaphragm air / vacuum pump | Voltage 12/24V; Max Flow 4L/min; Max Vacuum -60 kPa | Current model |
| OD-04AB / OD-04VB | Diaphragm air / vacuum pump | Voltage 6/9/12/24V DC; Air flow 7-20lpm; Liquid flow 1.5 L/min | View model |
| OD-05T0610AC | Diaphragm air / vacuum pump | Voltage 200-220AC; Max Flow 7.5L/min; Max Vacuum -85 kPa | View model |
| OD-05T1043AC | Diaphragm air / vacuum pump | Voltage 220V; Max Flow 43L/min; Max Vacuum -89 kPa | View model |
Technical resources
Downloads
View product documents and engineering drawings for the OD-05T054L series. For 3D files matched to OD-05T054L, include the current model in the RFQ.
OD-05T054L Stainless Steel Gas Sampling Pump
Locally synchronized file, 150 KB.
Download PDFProduct documents and 2D drawings
View PDF product documents and engineering drawings for the OD-05T054L series.
View PDF resourcesCAD and configuration files
Submit the model, working point and mounting requirements for files matched to the project configuration.
Request CAD filesContinue browsing
Related pump models
Diaphragm air / vacuum pump
220V 50HZ Sampling Pump AC Gas Diaphragm Pump For CEMS OD-05T0610AC
View product
Diaphragm air / vacuum pump
Oil-Free Diaphragm Vacuum Pump AC 220V 43L Small High Vacuum Pumps -89KPA OD-05T1043AC JSG
View productRequest a quote for OD-05T054L
Provide the medium, flow, pressure or vacuum, voltage, duty cycle and mounting requirements so we can match the product configuration and supporting documents.
