OD-05TR32L

High Pressure Piston Compressor Small 10Bar Double Head -98KPA Piston Vaccum Pump OD-05TR32L

Name: High Pressure Piston Compressor Small 10Bar Double Head -98KPA Piston Vaccum Pump OD-05TR32L
Brand: JSG
SKU: OD-05TR32L

High-pressure oil-free piston compressor with dual-mode flow and deep vacuum up to -98 kPa. Compact solution for OEM pneumatic systems.

Piston air / vacuum pumpOD-05TR32L36 technical parameters2 technical drawings

View specifications Request this model

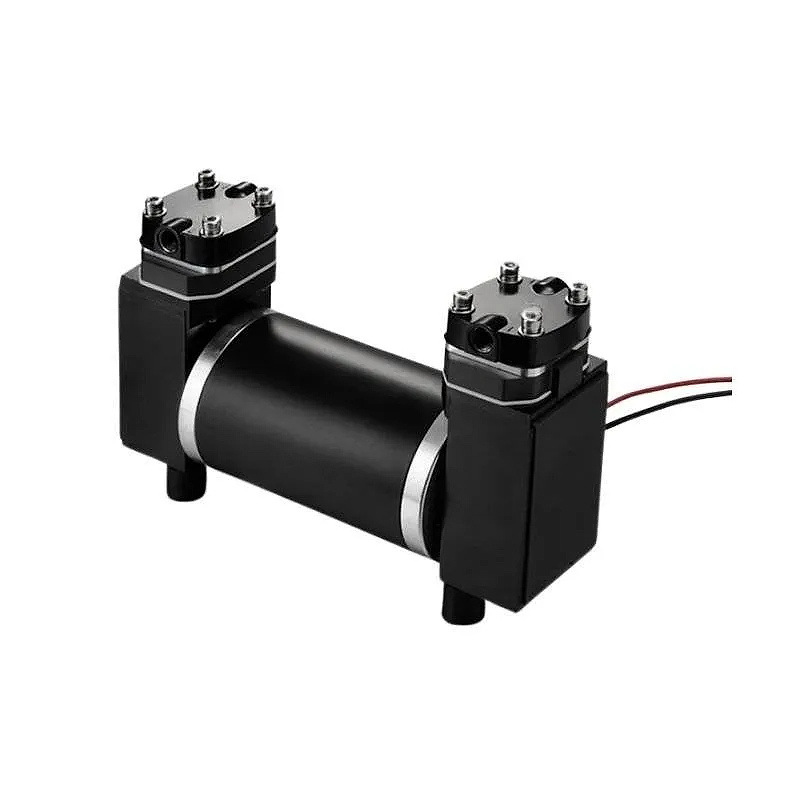

High-pressure micro piston compressor front view OD-05TR32L

Product functions

Key functions

OD-05TR32L supports the following roles in equipment fluid systems. Use the technical parameters below together with the actual working point for selection.

Function 1Air delivery

Function 2Vacuum duty

Function 3Equipment integration

Product data

Technical specifications

The following specifications apply to OD-05TR32L. Also consider the medium, working point, power supply, duty cycle and installation conditions when selecting the product.

Voltage12V / 24V

Max Flow32L/minParallel) / 17L/min(Series)

Max Vacuum-85 kPa(Parallel) / -98 kPa(Series)

Max Pressure8-10Bar (almost no flow at 10Bar)

MotorHigh-end brushed DC motor

Max Power150W

Weight2063g

ParameterValue

ModelOD-05TR32L

Voltage Range12 / 24 V DC

Flow (Parallel)32 L/min

Vacuum (Parallel)-85 kPa

Flow (Series)17 L/min

Vacuum (Series)-98 kPa

Max Positive Pressure8-10 bar (very low flow at 10 bar)

Motor TypeHigh-end brushed DC motor

Max Power150 W

Waterproof LevelIP00

Storage Temperature-40 ℃ ~ 60 ℃

Medium Temperature-10 ℃ ~ 45 ℃

Inlet/OutletG1/8 threaded

Dimensions185 × 63 × 105 mm

Weight2063 g

ComponentMaterial / Performance

Pump HeadAluminum alloy

Valve PlateStainless steel

Piston CupPTFE

Pump BodyAluminum alloy

Inlet / OutletG1/8 threaded

AspectAvailable Options

Piston Cup MaterialPTFE (standard)

Voltage12 V / 24 V

Connector TypeCustomized per customer specification

Label / BrandingBased on the model provided by the customer

Mounting OptionsBrackets, dampers, custom installation bases

Cable / ConnectorCustom lengths, terminals, plug types

Technical drawings

OD-05TR32L dimensions and performance graphics

Images classified as dimensional drawings, specification graphics or performance curves are grouped here.

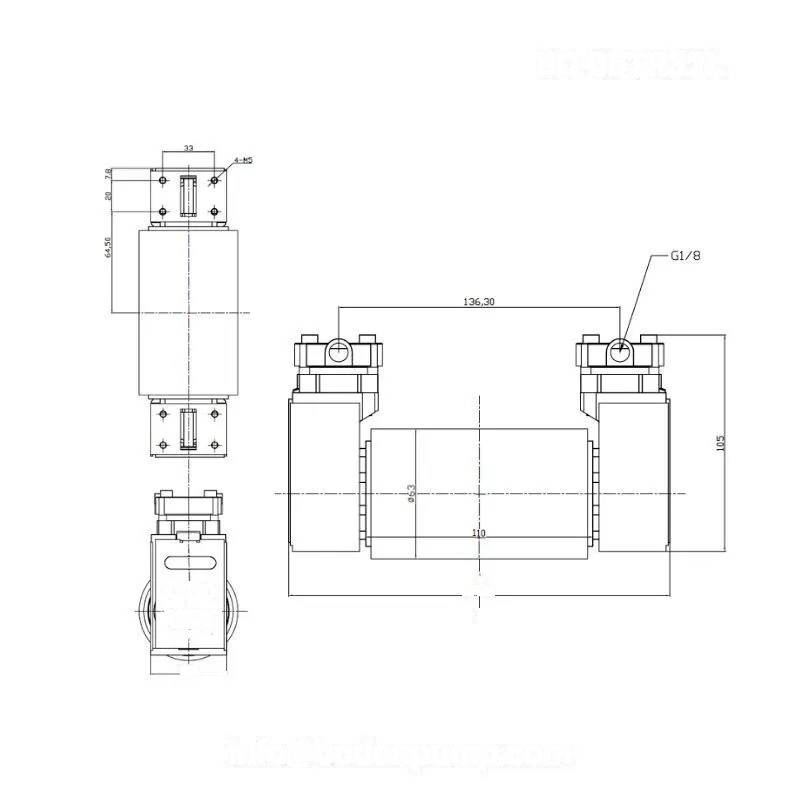

Micro piston compressor dimensions diagram OD-05TR32L — Technical drawing 1

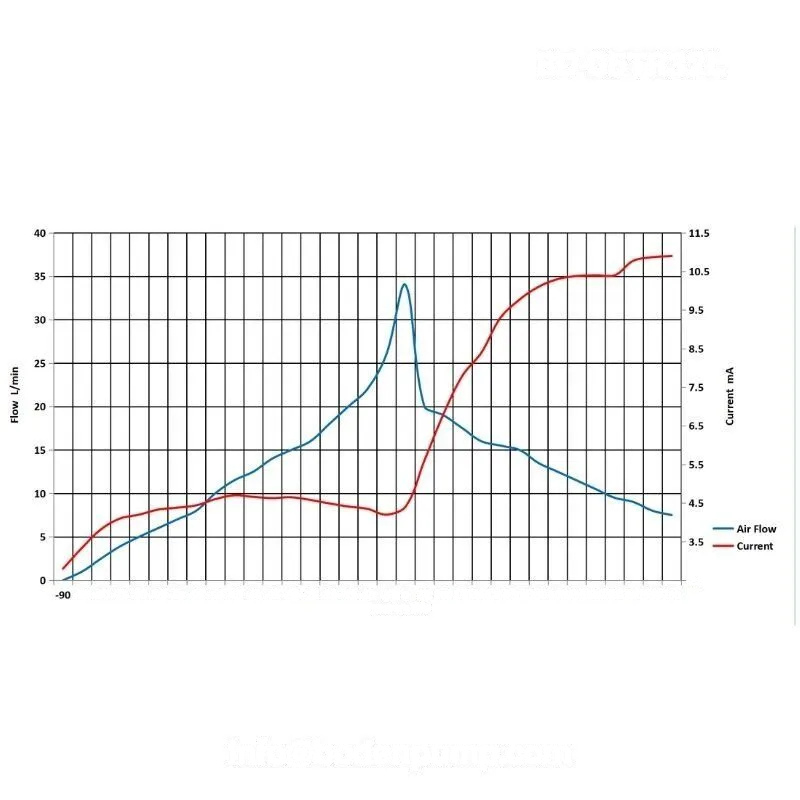

Micro piston compressor flow and vacuum curve OD-05TR32L — Technical drawing 2

Application and configuration

OD-05TR32L application fit

Use these notes to translate brochure data into selection questions: application, working point, noise, lifetime, voltage options and nearby model alternatives.

Application scenarios

Typical uses include compact air delivery, vacuum duty, sampling and equipment-level pneumatic functions where a piston architecture is preferred.

Working-point review

Compare the required pressure or vacuum against the stated flow, then allow margin for fittings, filters and changes in duty cycle.

Noise, lifetime and voltage

Review voltage, motor choice, noise target, lifetime target and mounting conditions before locking the sample configuration.

Voltage: 12V / 24V
Max Flow: 32L/minParallel) / 17L/min(Series)
Max Vacuum: -85 kPa(Parallel) / -98 kPa(Series)
Max Pressure: 8-10Bar (almost no flow at 10Bar)

Model comparison

OD-05TR32L and nearby alternatives

When flow, pressure or vacuum, voltage, size or lifetime requirements change, compare nearby models before requesting a custom configuration.

Model	Category	Key specifications	Next action
OD-05TR32L	Piston air / vacuum pump	Voltage 12V / 24V; Max Flow 32L/minParallel) / 17L/min(Series); Max Vacuum -85 kPa(Parallel) / -98 kPa(Series)	Current model
OD-079A-M / OD-079V-M	Piston air / vacuum pump	Voltage 24V; Air flow 30-50L/min; Pressure 7bar	View model
OD-07A / OD-07V	Piston air / vacuum pump	Voltage DC 12V/24V; Air flow 15L/minup to 40L/min; Pressure 4.5 bar up to 6.5 bar	View model
OD-07A-M / OD-07V-M	Piston air / vacuum pump	Voltage DC 12V/24V; Air flow 15L/minup to 40L/min; Pressure 4.5 bar up to 6.5 bar	View model

Technical resources

Downloads

View product documents and engineering drawings for the OD-05TR32L series. For 3D files matched to OD-05TR32L, include the current model in the RFQ.

OD-05TR32L High-Pressure Piston Compressor

Locally synchronized file, 159 KB.

Download PDF

Product documents and 2D drawings

View PDF product documents and engineering drawings for the OD-05TR32L series.

View PDF resources

CAD and configuration files

Submit the model, working point and mounting requirements for files matched to the project configuration.

Request CAD files

Request a quote for OD-05TR32L

Provide the medium, flow, pressure or vacuum, voltage, duty cycle and mounting requirements so we can match the product configuration and supporting documents.

Submit product RFQ
