OD-05T067LM

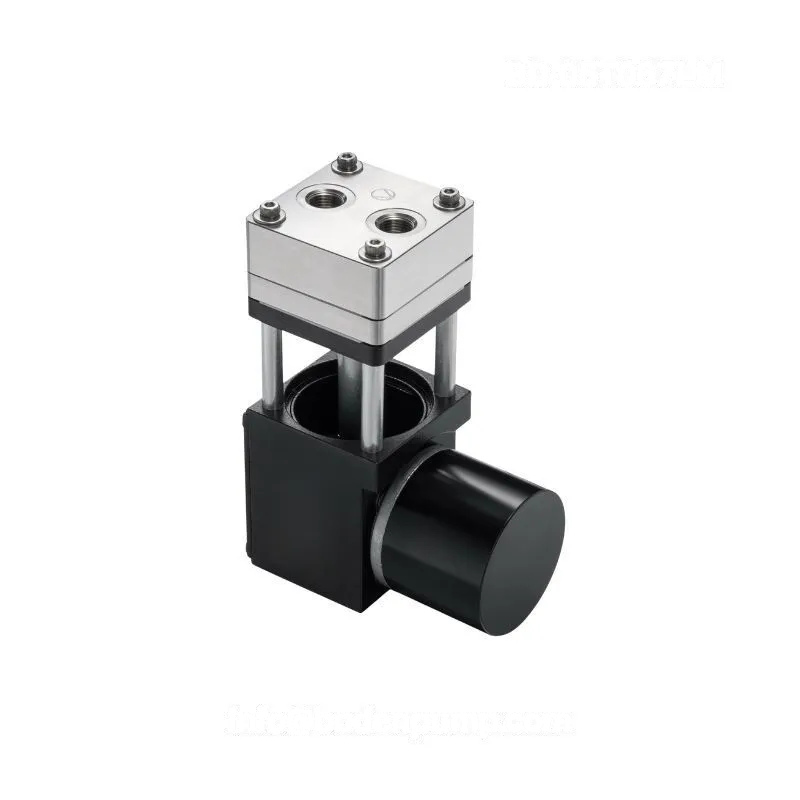

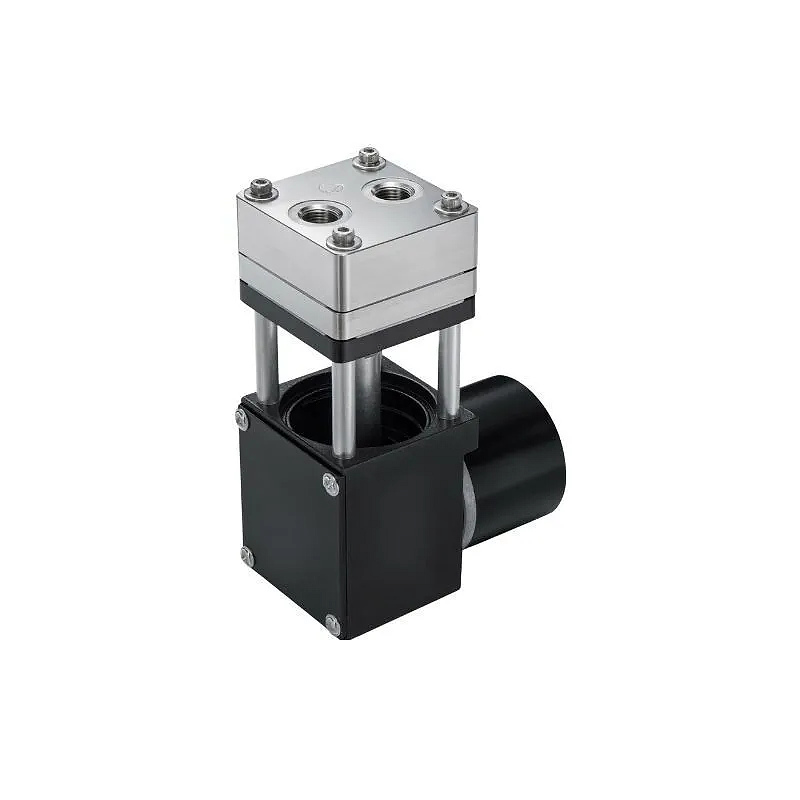

Brushless Vacuum Pump 316 Stainless Steel High Temperature 7L 24V Gas Sampling Pump OD-05T067LM
24V brushless stainless steel vacuum pump with PTFE diaphragm, 7 L/min flow, -70 kPa vacuum, and 240 ℃ resistance for gas sampling and medical devices.
Diaphragm air / vacuum pumpOD-05T067LM34 technical parameters2 technical drawings
Product functions
Key functions
OD-05T067LM supports the following roles in equipment fluid systems. Use the technical parameters below together with the actual working point for selection.
Function 1Air transfer
Function 2Vacuum generation
Function 3Equipment-level integration
Product data
Technical specifications
The following specifications apply to OD-05T067LM. Also consider the medium, working point, power supply, duty cycle and installation conditions when selecting the product.
Voltage24V
Max Flow7L/min
Max Vacuum-70 kPa
Max Pressure1-1.5 Bar
MotorBrushless motor
Max Power20W
Weight610g
ParameterValue
ModelOD-05T067LM
Voltage Range24 V DC
Maximum Flow Rate7 L/min
Maximum Negative Pressure-70 kPa
Maximum Positive Pressure1-1.5 bar
Motor TypeBrushless DC Motor
Max Power20 W
Ingress Protection (IP)IP00
Service Life>8,000 hours
Storage Temperature-40 ℃ ~ 60 ℃
Operating Temperature0 ℃ ~ 45 ℃
Medium Temperature-10 ℃ ~ 240 ℃
Dimensions (L×W×H)121 × 46 × 83.5 mm
Weight610 g
ComponentMaterial / Performance
Pump Head316 Stainless Steel - excellent corrosion resistance
DiaphragmPTFE - chemical resistant, high temperature tolerance
ValvesFKM - reliable sealing in harsh environments
Pump BodyAluminum Alloy - lightweight, strong, thermally conductive
Service Life>8,000 hours continuous duty with imported ball bearings
Customization AspectAvailable Options / Notes
Diaphragm MaterialsPTFE standard; FKM valves; custom options on request
Electrical Connector / CableCustom lengths and connector types for seamless integration
Pump ConfigurationSingle head with brushless motor, customizable power and voltage
Branding / LabelingOEM label and packaging available
Engineering SupportCustom design consultation and prototype services
Technical drawings

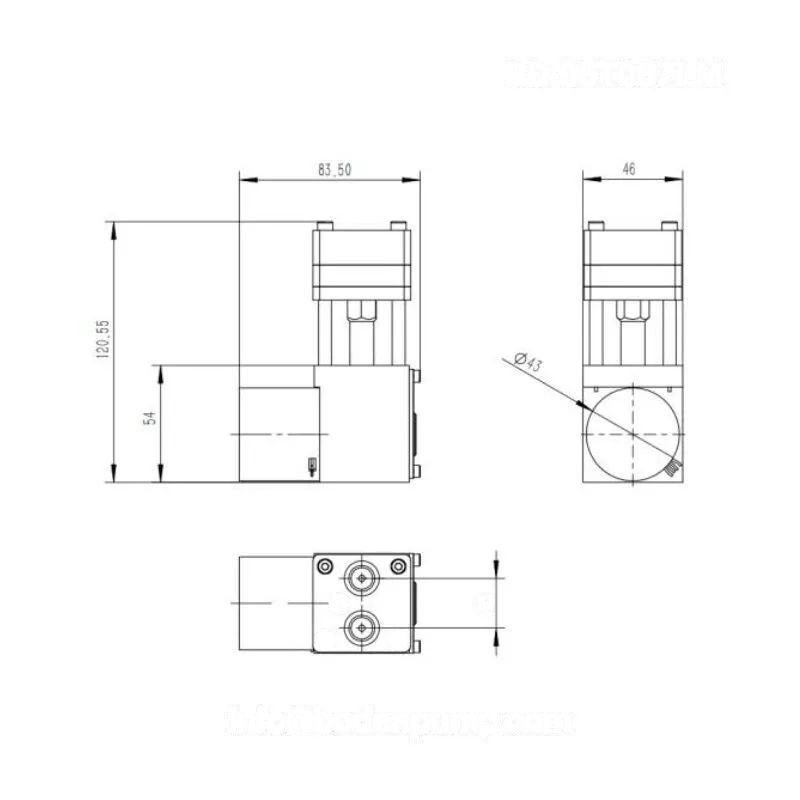

OD-05T067LM dimensions and performance graphics
Images classified as dimensional drawings, specification graphics or performance curves are grouped here.
Application and configuration
OD-05T067LM application fit
Use these notes to translate brochure data into selection questions: application, working point, noise, lifetime, voltage options and nearby model alternatives.
Working-point review
Confirm the loaded flow at the required pressure or vacuum, then review tubing loss, inlet filtration, valve restriction and the safety margin between nominal and maximum conditions.
Noise, lifetime and voltage
Review voltage, motor type, expected life, noise target, duty cycle and mounting isolation before requesting samples or a model-specific drawing.
- Voltage
- 24V
- Max Flow
- 7L/min
- Max Vacuum
- -70 kPa
- Max Pressure
- 1-1.5 Bar
Model comparison
OD-05T067LM and nearby alternatives
When flow, pressure or vacuum, voltage, size or lifetime requirements change, compare nearby models before requesting a custom configuration.
| Model | Category | Key specifications | Next action |
|---|---|---|---|
| OD-05T067LM | Diaphragm air / vacuum pump | Voltage 24V; Max Flow 7L/min; Max Vacuum -70 kPa | Current model |
| OD-04AB / OD-04VB | Diaphragm air / vacuum pump | Voltage 6/9/12/24V DC; Air flow 7-20lpm; Liquid flow 1.5 L/min | View model |
| OD-05T0610AC | Diaphragm air / vacuum pump | Voltage 200-220AC; Max Flow 7.5L/min; Max Vacuum -85 kPa | View model |
| OD-05T1043AC | Diaphragm air / vacuum pump | Voltage 220V; Max Flow 43L/min; Max Vacuum -89 kPa | View model |
Technical resources
Downloads
View product documents and engineering drawings for the OD-05T067LM series. For 3D files matched to OD-05T067LM, include the current model in the RFQ.
OD-05T067LM Brushless Vacuum Pump Wiring Guide
Locally synchronized file, 48 KB.
Download PDFOD-05T067LM Brushless Stainless Steel High Temp Vacuum Pump
Locally synchronized file, 115 KB.
Download PDFProduct documents and 2D drawings
View PDF product documents and engineering drawings for the OD-05T067LM series.
View PDF resourcesCAD and configuration files
Submit the model, working point and mounting requirements for files matched to the project configuration.
Request CAD filesContinue browsing
