OD-05T02.53000
Medical Diaphragm Pump 5V Coreless Air Vacuum Pump OD-05T02.53000
Compact 5V miniature diaphragm pump for medical, gas sampling & analyzers. High flow, deep vacuum, oil-free, long life. OEM options available.
Diaphragm air / vacuum pumpOD-05T02.5300033 technical parameters3 technical drawings
Product functions
Key functions
OD-05T02.53000 supports the following roles in equipment fluid systems. Use the technical parameters below together with the actual working point for selection.
Function 1Air transfer
Function 2Vacuum generation
Function 3Equipment-level integration
White-background imagery

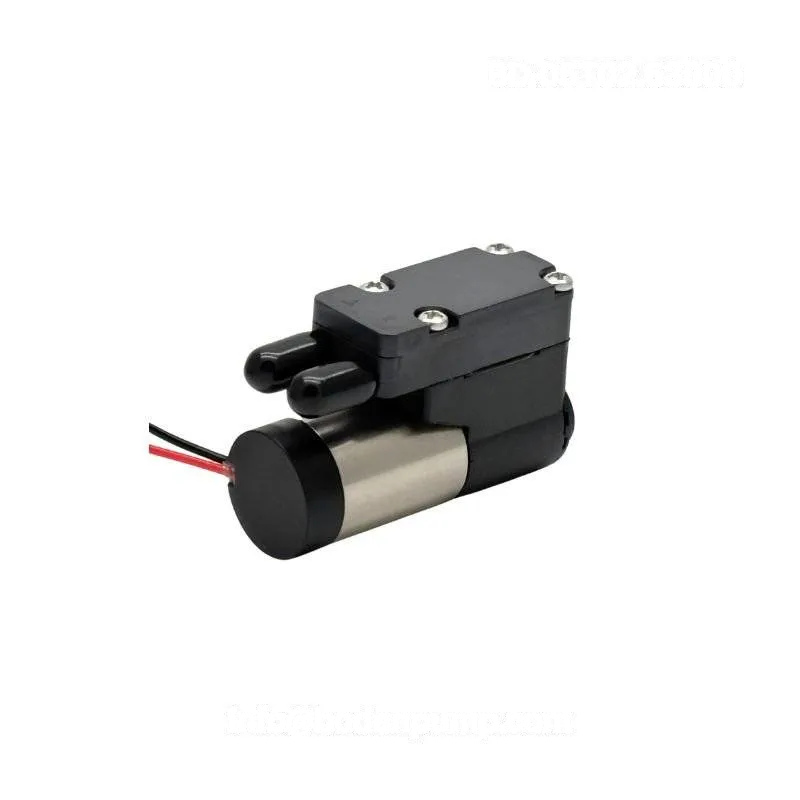

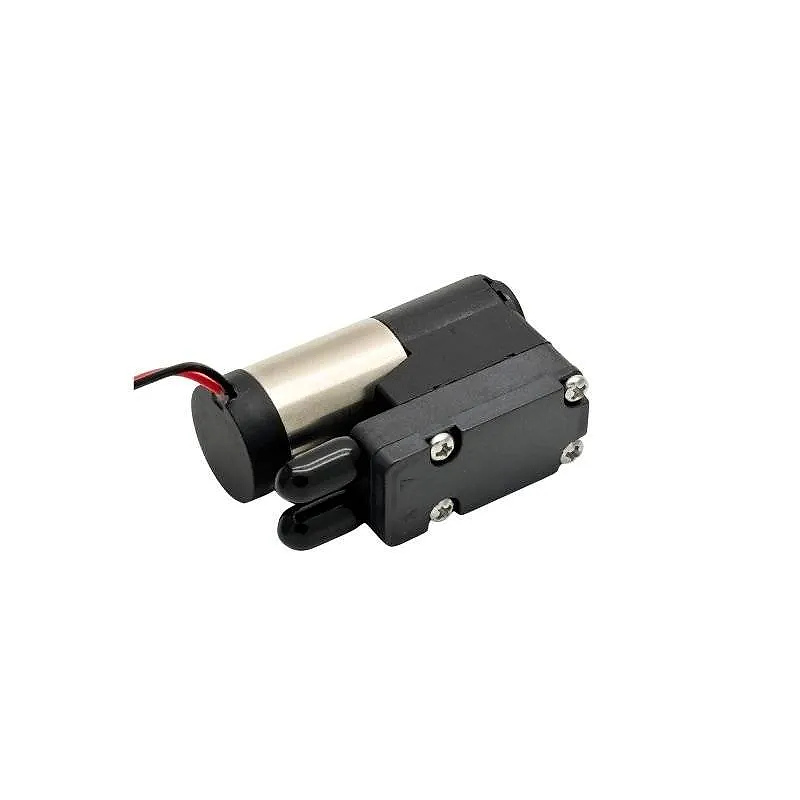

OD-05T02.53000 product images
These images are served from the synchronized local product library as white-background product views.
Product data
Technical specifications
The following specifications apply to OD-05T02.53000. Also consider the medium, working point, power supply, duty cycle and installation conditions when selecting the product.
Voltage1V~5V
Max Flow3L/min
Max Vacuum-60 kPa
Max Pressure+70 kPa
MotorDC brushed coreless motor
Max Power1.6 W
Weight35 g
ParameterValue
ModelOD-05T02.53000
Voltage Range1-5 V DC
Max Flow Rate3 L/min
Max Negative Pressure-60 kPa
Max Positive Pressure+70 kPa
Motor TypeBrushed Coreless DC Motor
Waterproof RatingIP20
Service Life6,000-8,000 hours
Storage Temperature-40 ℃ ~ +60 ℃
Operating Temperature-10 ℃ ~ +45 ℃
Pump HeadPPS
Diaphragm/ValveEPDM (Optional FKM)
Pump BodyNylon
Dimensions43 × 29 × 16 mm
ComponentMaterial / Performance
Pump HeadPPS - High heat resistance and durability
Diaphragm/ValveEPDM (Standard), FKM (Optional) - chemical compatibility
Pump BodyNylon - lightweight and impact-resistant
Service Life6,000-8,000 hours in clean gas environments
Customization AspectOptions / Notes
Diaphragm materialEPDM standard or FKM for enhanced chemical resistance
Cable/ConnectorCustom cable lengths, connector types
Branding/LabelCustom labeling available for OEM orders
Pump ConfigurationAvailable in standard or dual-head designs
Integration SupportFull engineering support for compact OEM devices
Technical drawings

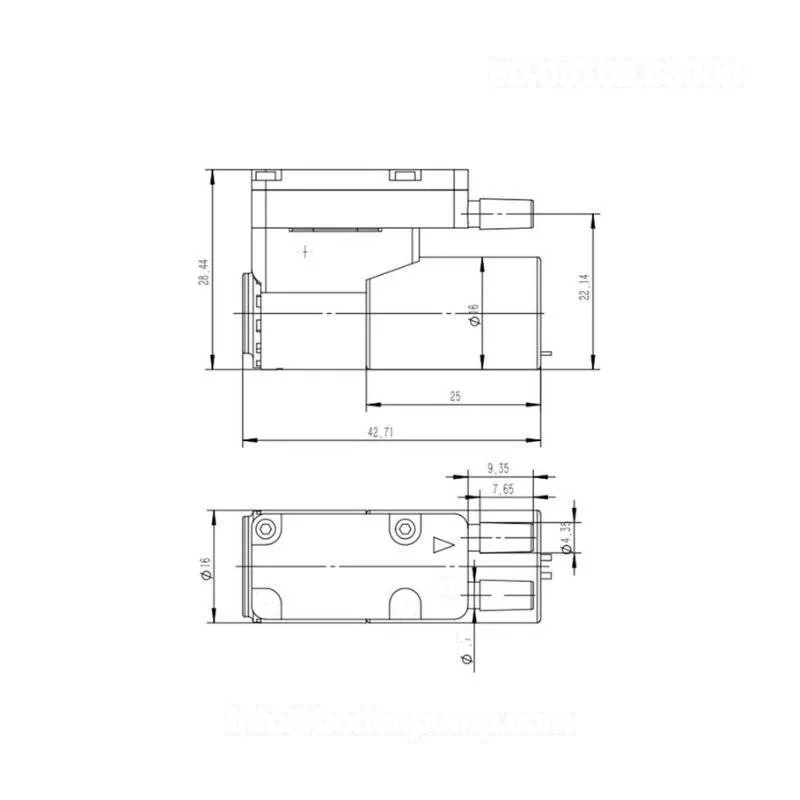

OD-05T02.53000 dimensions and performance graphics
Images classified as dimensional drawings, specification graphics or performance curves are grouped here.
Application and configuration
OD-05T02.53000 application fit
Use these notes to translate brochure data into selection questions: application, working point, noise, lifetime, voltage options and nearby model alternatives.
Working-point review
Confirm the loaded flow at the required pressure or vacuum, then review tubing loss, inlet filtration, valve restriction and the safety margin between nominal and maximum conditions.
Noise, lifetime and voltage
Review voltage, motor type, expected life, noise target, duty cycle and mounting isolation before requesting samples or a model-specific drawing.
- Voltage
- 1V~5V
- Max Flow
- 3L/min
- Max Vacuum
- -60 kPa
- Max Pressure
- +70 kPa
Model comparison
OD-05T02.53000 and nearby alternatives
When flow, pressure or vacuum, voltage, size or lifetime requirements change, compare nearby models before requesting a custom configuration.
| Model | Category | Key specifications | Next action |
|---|---|---|---|
| OD-05T02.53000 | Diaphragm air / vacuum pump | Voltage 1V~5V; Max Flow 3L/min; Max Vacuum -60 kPa | Current model |
| OD-04AB / OD-04VB | Diaphragm air / vacuum pump | Voltage 6/9/12/24V DC; Air flow 7-20lpm; Liquid flow 1.5 L/min | View model |
| OD-05T0610AC | Diaphragm air / vacuum pump | Voltage 200-220AC; Max Flow 7.5L/min; Max Vacuum -85 kPa | View model |
| OD-05T1043AC | Diaphragm air / vacuum pump | Voltage 220V; Max Flow 43L/min; Max Vacuum -89 kPa | View model |
