OD-05T0617L

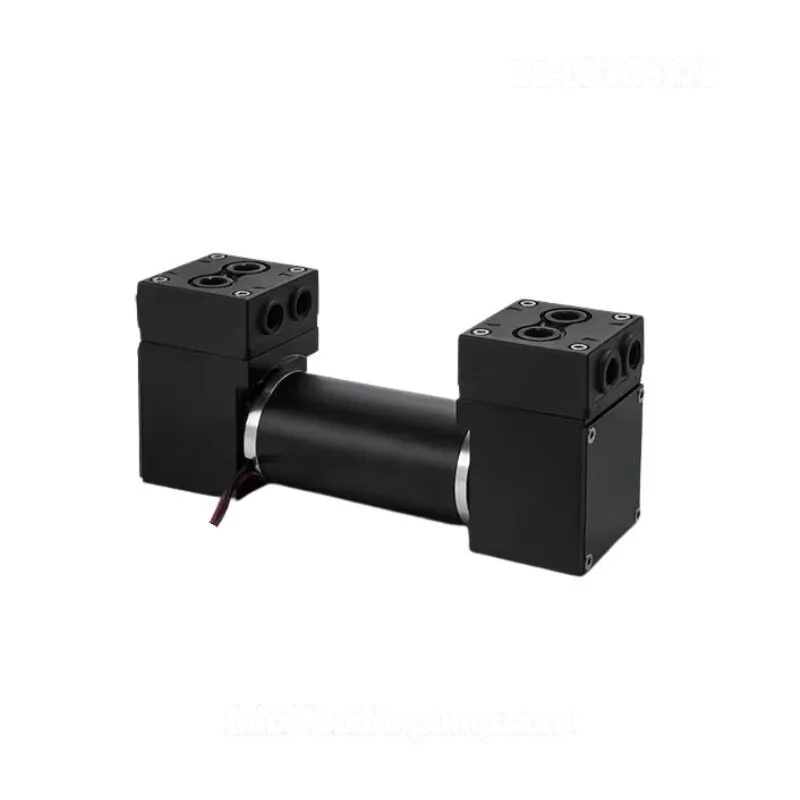

Medical Diaphragm Pump China 17L Dual-Head Small Electric Air Vacuum Pump OD-05T0617L
JSG OD-05T0617L medical diaphragm pump delivers 17 L/min flow or -95 kPa vacuum with dual-head design. Reliable China OEM supplier for medical devices.
Diaphragm air / vacuum pumpOD-05T0617L37 technical parameters3 technical drawings
Product functions
Key functions
OD-05T0617L supports the following roles in equipment fluid systems. Use the technical parameters below together with the actual working point for selection.
Function 1Air transfer
Function 2Vacuum generation
Function 3Equipment-level integration
Product data
Technical specifications
The following specifications apply to OD-05T0617L. Also consider the medium, working point, power supply, duty cycle and installation conditions when selecting the product.
Voltage12/24V
Max Flow17L/min(Parallel)/7L/min(Series)
Max Vacuum-85 kPa(Parallel)/-95 kPa(Series)
Max Pressure1.7 Bar
MotorBrushed DC motor
Max Power14W
Weight943g
ParameterValue
ModelOD-05T0617L
Voltage Range12 V / 24 V DC
Flow (Parallel)17 L/min
Negative Pressure (Parallel)-85 kPa
Flow (Series)7 L/min
Negative Pressure (Series)-95 kPa
Max Positive Pressure1.7 bar
Motor TypeBrushed DC Motor
Max Power Consumption14 W
IP RatingIP00
Service Life4,000 - 6,000 hours
Storage Temperature-40 ℃ ~ 60 ℃
Operating Temperature0 ℃ ~ 45 ℃
Medium Temperature-10 ℃ ~ 45 ℃
Dimensions (L × W × H)197 × 46 × 77 mm
Weight943 g
ComponentMaterial / Performance
Pump HeadPPS - High-strength engineering thermoplastic
DiaphragmEPDM standard (PTFE optional for corrosion resistance)
ValveEPDM standard (FKM/FFKM optional)
Pump BodyAluminium alloy - corrosion resistant, high thermal conductivity
Service life4,000-6,000 h continuous duty
Customization AspectAvailable Options / Notes
Diaphragm MaterialsEPDM, PTFE
Valve MaterialsEPDM, FKM, FFKM
Electrical ConnectorCustom cable length and connectors
BrandingOEM labeling and private branding available
ConfigurationParallel (high flow) or Series (deep vacuum)
Engineering SupportApplication-specific integration advice for medical devices
Technical drawings

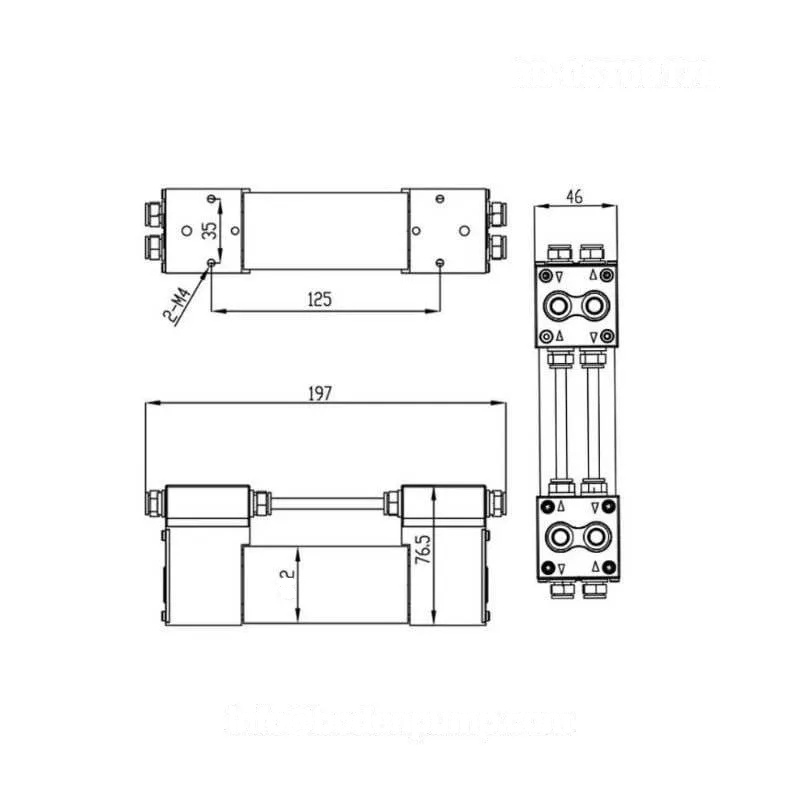

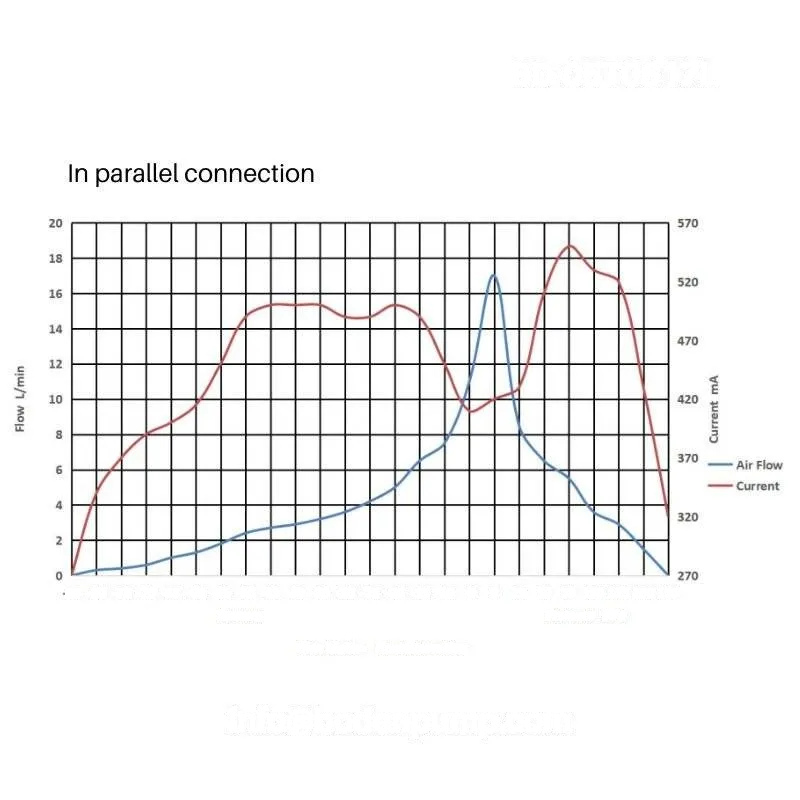

OD-05T0617L dimensions and performance graphics
Images classified as dimensional drawings, specification graphics or performance curves are grouped here.
Application and configuration
OD-05T0617L application fit
Use these notes to translate brochure data into selection questions: application, working point, noise, lifetime, voltage options and nearby model alternatives.
Working-point review
Confirm the loaded flow at the required pressure or vacuum, then review tubing loss, inlet filtration, valve restriction and the safety margin between nominal and maximum conditions.
Noise, lifetime and voltage
Review voltage, motor type, expected life, noise target, duty cycle and mounting isolation before requesting samples or a model-specific drawing.
- Voltage
- 12/24V
- Max Flow
- 17L/min(Parallel)/7L/min(Series)
- Max Vacuum
- -85 kPa(Parallel)/-95 kPa(Series)
- Max Pressure
- 1.7 Bar
Model comparison
OD-05T0617L and nearby alternatives
When flow, pressure or vacuum, voltage, size or lifetime requirements change, compare nearby models before requesting a custom configuration.
| Model | Category | Key specifications | Next action |
|---|---|---|---|
| OD-05T0617L | Diaphragm air / vacuum pump | Voltage 12/24V; Max Flow 17L/min(Parallel)/7L/min(Series); Max Vacuum -85 kPa(Parallel)/-95 kPa(Series) | Current model |
| OD-04AB / OD-04VB | Diaphragm air / vacuum pump | Voltage 6/9/12/24V DC; Air flow 7-20lpm; Liquid flow 1.5 L/min | View model |
| OD-05T0610AC | Diaphragm air / vacuum pump | Voltage 200-220AC; Max Flow 7.5L/min; Max Vacuum -85 kPa | View model |
| OD-05T1043AC | Diaphragm air / vacuum pump | Voltage 220V; Max Flow 43L/min; Max Vacuum -89 kPa | View model |
Technical resources
Downloads
View product documents and engineering drawings for the OD-05T0617L series. For 3D files matched to OD-05T0617L, include the current model in the RFQ.
OD-05T0617L Medical Diaphragm Pump Specification
Locally synchronized file, 183 KB.
Download PDFProduct documents and 2D drawings
View PDF product documents and engineering drawings for the OD-05T0617L series.
View PDF resourcesCAD and configuration files
Submit the model, working point and mounting requirements for files matched to the project configuration.
Request CAD filesContinue browsing
Related pump models
Diaphragm air / vacuum pump
220V 50HZ Sampling Pump AC Gas Diaphragm Pump For CEMS OD-05T0610AC
View product
Diaphragm air / vacuum pump
Oil-Free Diaphragm Vacuum Pump AC 220V 43L Small High Vacuum Pumps -89KPA OD-05T1043AC JSG
View productRequest a quote for OD-05T0617L
Provide the medium, flow, pressure or vacuum, voltage, duty cycle and mounting requirements so we can match the product configuration and supporting documents.
