OD-05T30K30L

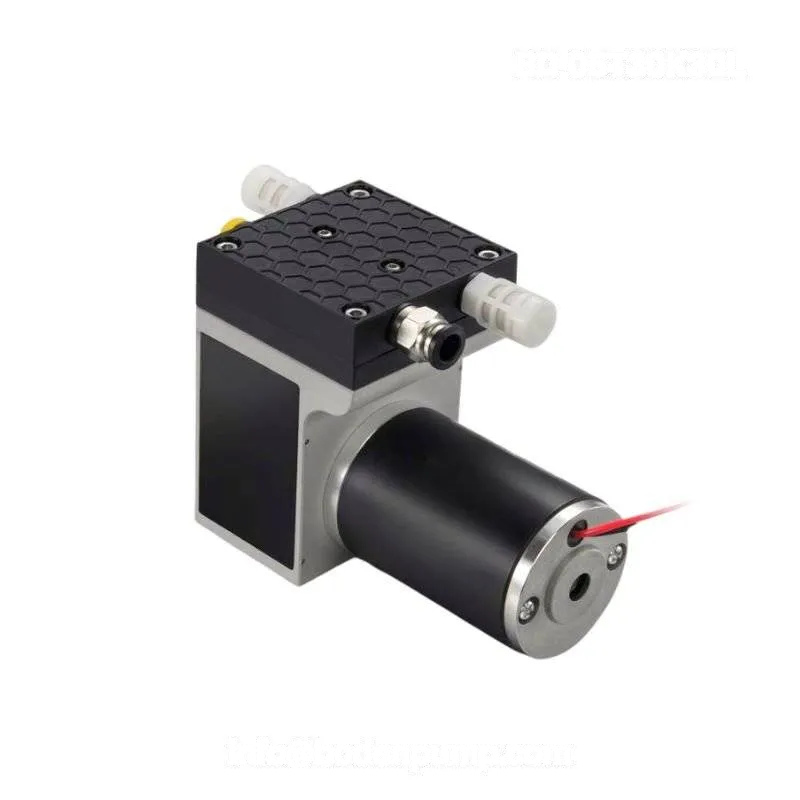

China Diaphragm Pump Manufacturer Brush DC Micro Air Vacuum Pump Oilless OD-05T30K30L
High-flow oil-free diaphragm pump with 30 L/min airflow, -88 kPa vacuum, and 1.3 bar pressure. OEM micro air pump for industrial and medical systems.
Diaphragm air / vacuum pumpOD-05T30K30L32 technical parameters3 technical drawings
Product functions
Key functions
OD-05T30K30L supports the following roles in equipment fluid systems. Use the technical parameters below together with the actual working point for selection.
Function 1Air transfer
Function 2Vacuum generation
Function 3Equipment-level integration
Product data
Technical specifications
The following specifications apply to OD-05T30K30L. Also consider the medium, working point, power supply, duty cycle and installation conditions when selecting the product.
Voltage12V / 24V
Max Flow30L/min
Max Vacuum-85 kPa
Max Pressure1.3Bar
MotorBrush motor
Max Power40W
Weight1.13kg
ParameterValue
ModelOD-05T30K30L
Voltage Range12V / 24V
Maximum Flow30 L/min
Maximum Negative Pressure-88 kPa
Maximum Positive Pressure1.3 bar
Motor TypeBrushed DC motor
Max Power40 W
Waterproof LevelIP20
Storage Temperature-40 ℃ ~ 60 ℃
Operating Environment-10 ℃ ~ 45 ℃
Dimensions133.5 × 70 × 103 mm
Weight1.13 kg
ComponentMaterial / Performance
Pump HeadPPS - high corrosion resistance
Diaphragm / ValveEPDM (optional materials available upon request)
Pump BodyAluminum alloy
MotorHigh-end brushed DC motor
Customization AspectAvailable Options
Diaphragm MaterialsEPDM, FKM, PTFE
Voltage12V / 24V DC
Connector TypeBased on customer's required connector model
Label / BrandingBased on the model provided by the customer
Mounting OptionsCustom brackets, vibration dampers
Cable / ConnectorCustom lengths and wire configurations
Technical drawings

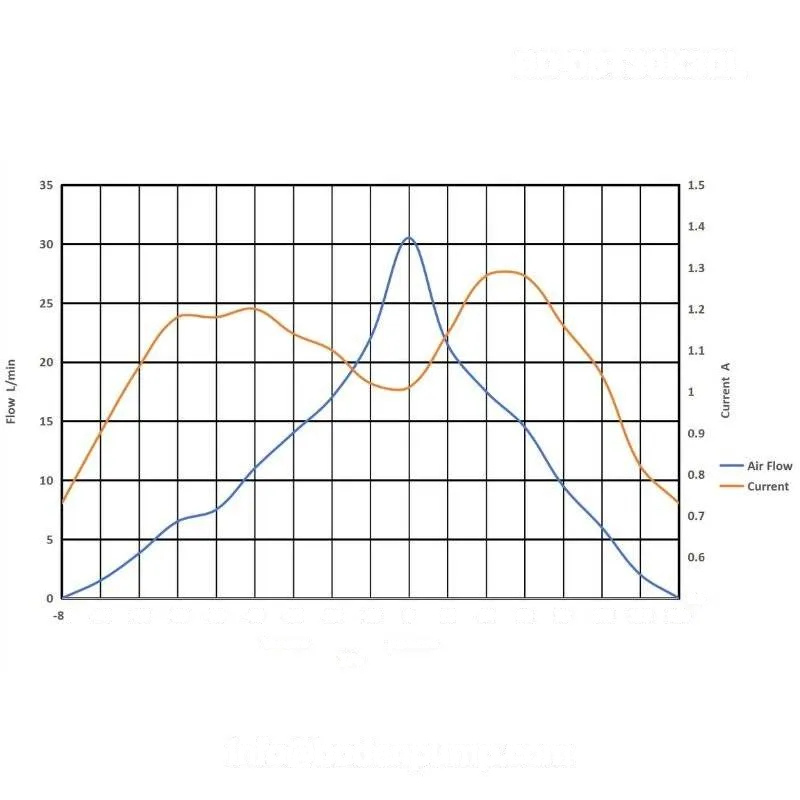

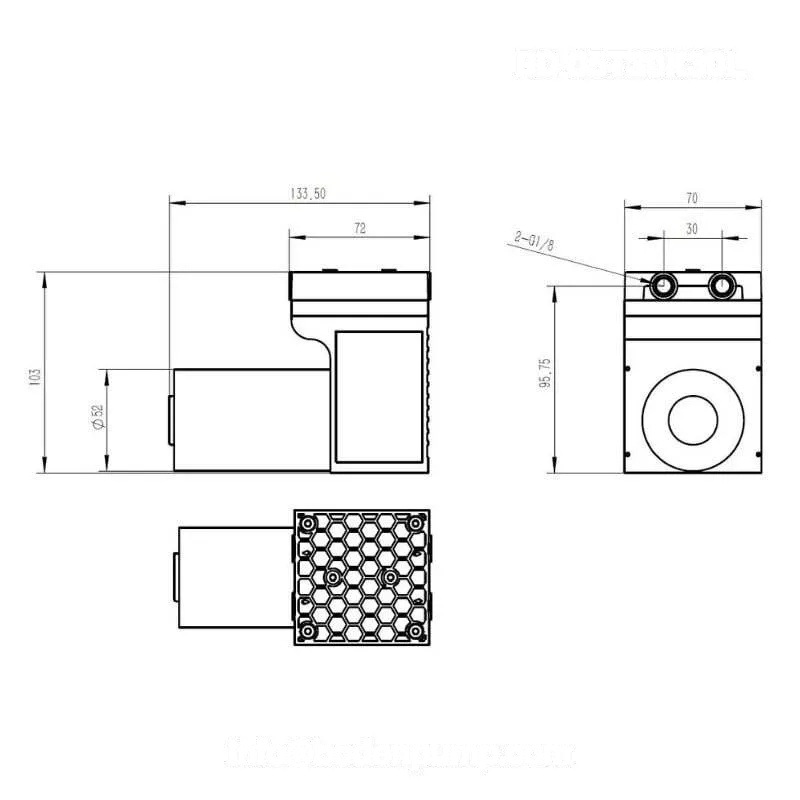

OD-05T30K30L dimensions and performance graphics
Images classified as dimensional drawings, specification graphics or performance curves are grouped here.
Application and configuration
OD-05T30K30L application fit
Use these notes to translate brochure data into selection questions: application, working point, noise, lifetime, voltage options and nearby model alternatives.
Working-point review
Confirm the loaded flow at the required pressure or vacuum, then review tubing loss, inlet filtration, valve restriction and the safety margin between nominal and maximum conditions.
Noise, lifetime and voltage
Review voltage, motor type, expected life, noise target, duty cycle and mounting isolation before requesting samples or a model-specific drawing.
- Voltage
- 12V / 24V
- Max Flow
- 30L/min
- Max Vacuum
- -85 kPa
- Max Pressure
- 1.3Bar
Model comparison
OD-05T30K30L and nearby alternatives
When flow, pressure or vacuum, voltage, size or lifetime requirements change, compare nearby models before requesting a custom configuration.
| Model | Category | Key specifications | Next action |
|---|---|---|---|
| OD-05T30K30L | Diaphragm air / vacuum pump | Voltage 12V / 24V; Max Flow 30L/min; Max Vacuum -85 kPa | Current model |
| OD-04AB / OD-04VB | Diaphragm air / vacuum pump | Voltage 6/9/12/24V DC; Air flow 7-20lpm; Liquid flow 1.5 L/min | View model |
| OD-05T0610AC | Diaphragm air / vacuum pump | Voltage 200-220AC; Max Flow 7.5L/min; Max Vacuum -85 kPa | View model |
| OD-05T1043AC | Diaphragm air / vacuum pump | Voltage 220V; Max Flow 43L/min; Max Vacuum -89 kPa | View model |
Technical resources
Downloads
View product documents and engineering drawings for the OD-05T30K30L series. For 3D files matched to OD-05T30K30L, include the current model in the RFQ.
OD-05T30K30L China Diaphragm Pump
Locally synchronized file, 196 KB.
Download PDFProduct documents and 2D drawings
View PDF product documents and engineering drawings for the OD-05T30K30L series.
View PDF resourcesCAD and configuration files
Submit the model, working point and mounting requirements for files matched to the project configuration.
