Application scenarios
Typical uses include pressure supply, compact compression and vacuum or air modules inside instruments, automation systems and OEM equipment.
OD-05TR32LB
Micro Double Head Pump 12V 24V 145psi Swing Brushless Compressors & Vacuum Pumps OD-05TR32LB
High-pressure micro double-head swing piston pump with parallel or series operation for high flow or deep vacuum. Brushless, oil-free design for OEM systems.
Miniature compressorOD-05TR32LB36 technical parameters2 technical drawings
Product functions
Key functions
OD-05TR32LB supports the following roles in equipment fluid systems. Use the technical parameters below together with the actual working point for selection.
Function 1Pressure supply
Function 2Vacuum duty
Function 3Configuration integration
White-background imagery

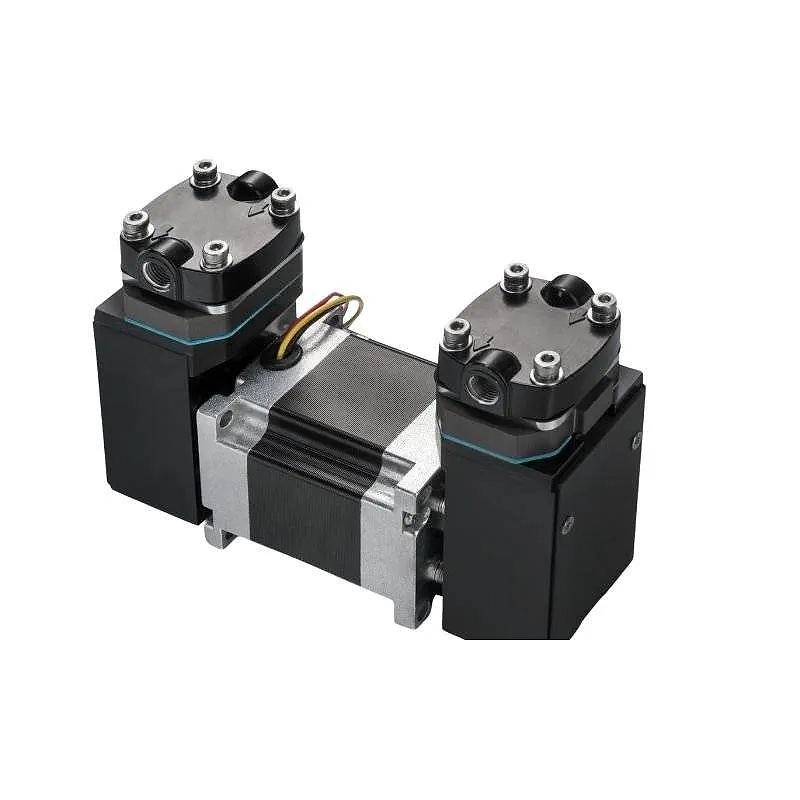

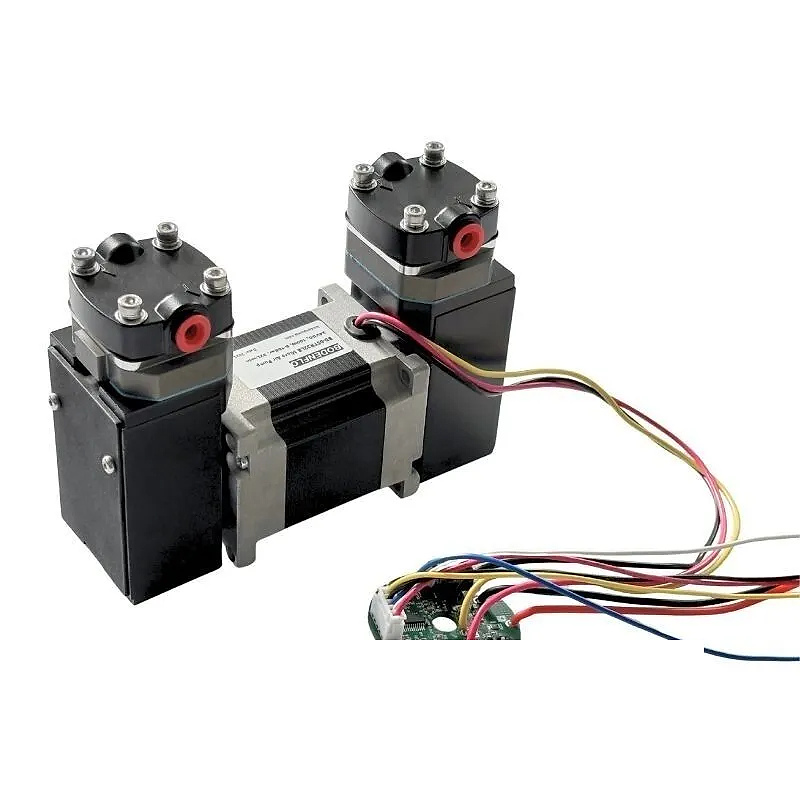

OD-05TR32LB product images
These images are served from the synchronized local product library as white-background product views.
Product data
Technical specifications
The following specifications apply to OD-05TR32LB. Also consider the medium, working point, power supply, duty cycle and installation conditions when selecting the product.
Voltage12V / 24V
Max Flow32L/min
Max Vacuum-85 kPa
Max Pressure8-10Bar (almost no flow at 10Bar)
MotorHigh-end brushless DC motor
Max Power100W
Weight1.62kg
ParameterValue
ModelOD-05TR32LB
Voltage Range12 / 24 V DC
Flow (Parallel)32 L/min
Vacuum (Parallel)-85 kPa
Flow (Series)17 L/min
Vacuum (Series)-98 kPa
Max Positive Pressure8-10 bar (almost no flow at 10bar)
Motor TypeHigh-end brushless DC motor
Max Power100 W
Waterproof LevelIP00
Storage Temperature-40 ℃ ~ 60 ℃
Medium Temperature-10 ℃ ~ 45 ℃
Dimensions (L×W×H)154 × 57 × 109 mm
Weight1.62 kg
ComponentMaterial / Performance
Pump HeadAluminum alloy
Valve PlateStainless steel
Piston CupPTFE
Pump BodyAluminum alloy
Inlet / OutletG1/8 threaded
AspectAvailable Options
Diaphragm MaterialsPTFE, FKM, EPDM
Voltage12 V / 24 V DC
Connector TypeCustom connector based on customer requirements
Label / BrandingBased on the model provided by the customer
Mounting OptionsCustomized brackets, vibration dampers
Cable / WiringCustom lengths and connector types
Multi-head ConfigurationParallel or series connection customization
Technical drawings

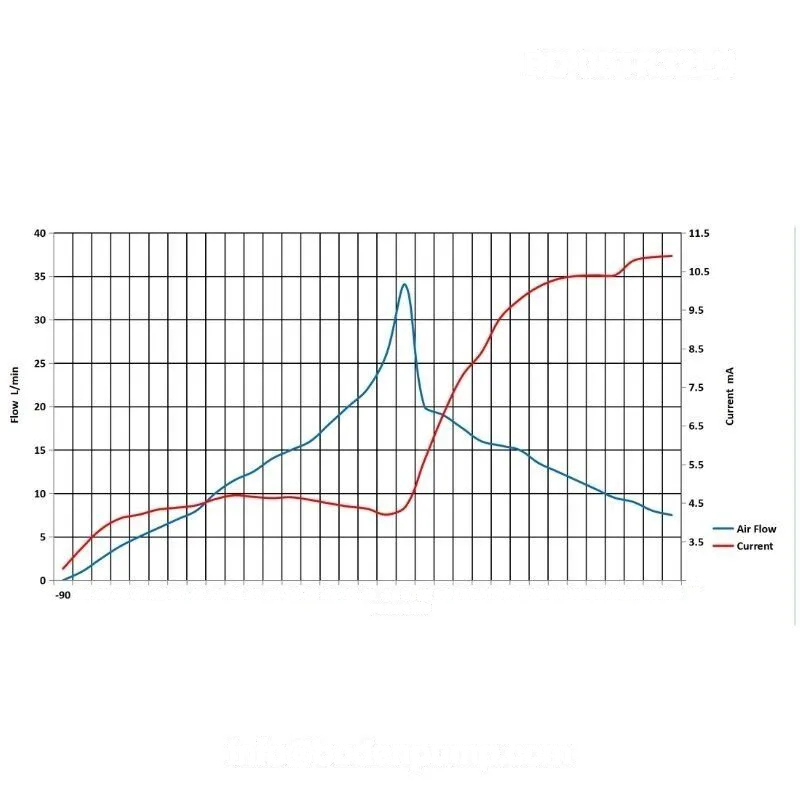

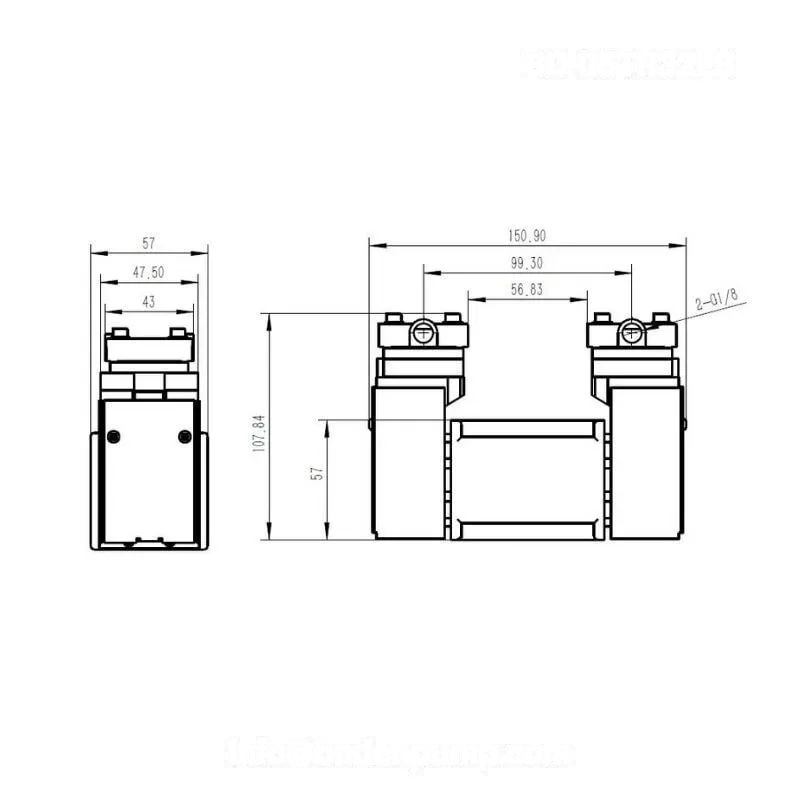

OD-05TR32LB dimensions and performance graphics
Images classified as dimensional drawings, specification graphics or performance curves are grouped here.
Application and configuration
OD-05TR32LB application fit
Use these notes to translate brochure data into selection questions: application, working point, noise, lifetime, voltage options and nearby model alternatives.
Working-point review
Confirm the pressure, flow and duty cycle at the equipment inlet, then compare startup load and thermal rise under the intended enclosure condition.
Noise, lifetime and voltage
Review voltage, current, motor type, cooling condition, vibration isolation and target lifetime before requesting samples.
- Voltage
- 12V / 24V
- Max Flow
- 32L/min
- Max Vacuum
- -85 kPa
- Max Pressure
- 8-10Bar (almost no flow at 10Bar)
Model comparison
OD-05TR32LB and nearby alternatives
When flow, pressure or vacuum, voltage, size or lifetime requirements change, compare nearby models before requesting a custom configuration.
| Model | Category | Key specifications | Next action |
|---|---|---|---|
| OD-05TR32LB | Miniature compressor | Voltage 12V / 24V; Max Flow 32L/min; Max Vacuum -85 kPa | Current model |

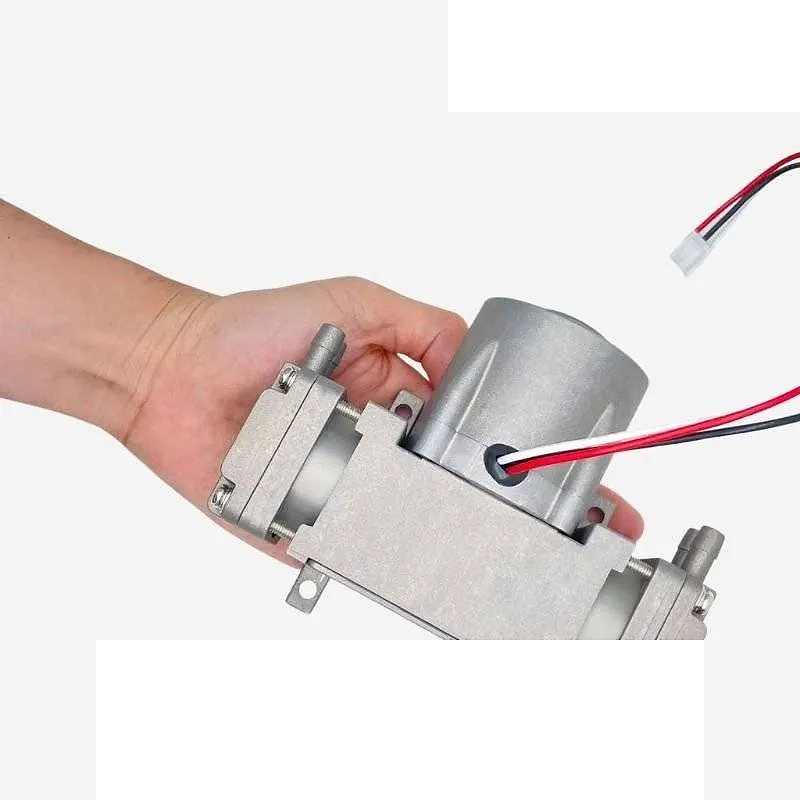

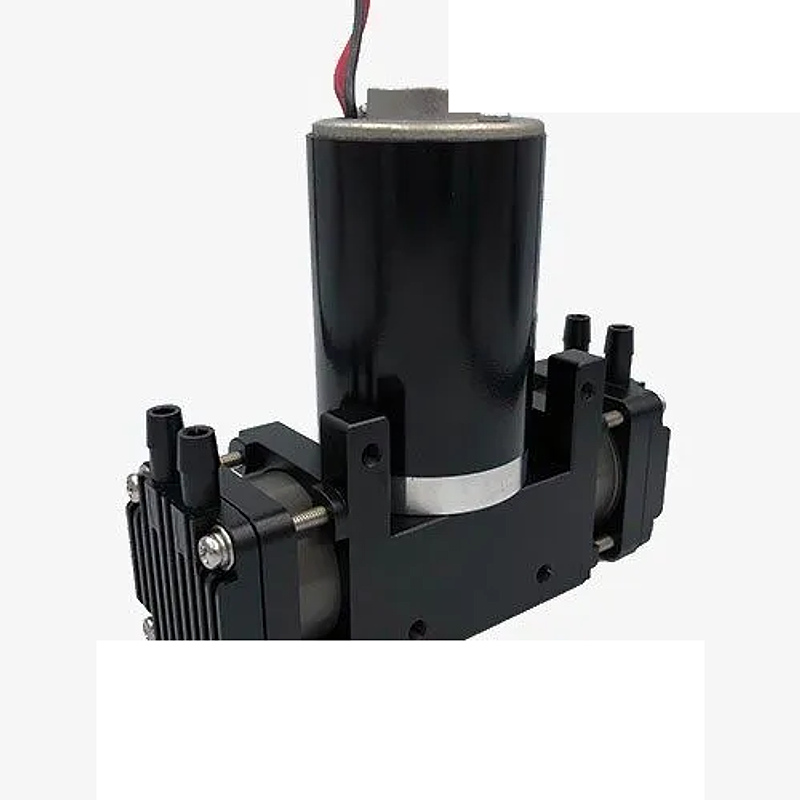

| OD-08A-D / OD-08V-D | Miniature compressor | Voltage 24V; Air flow 80L/min(40L/minx2); Pressure 2-7bar | View model |

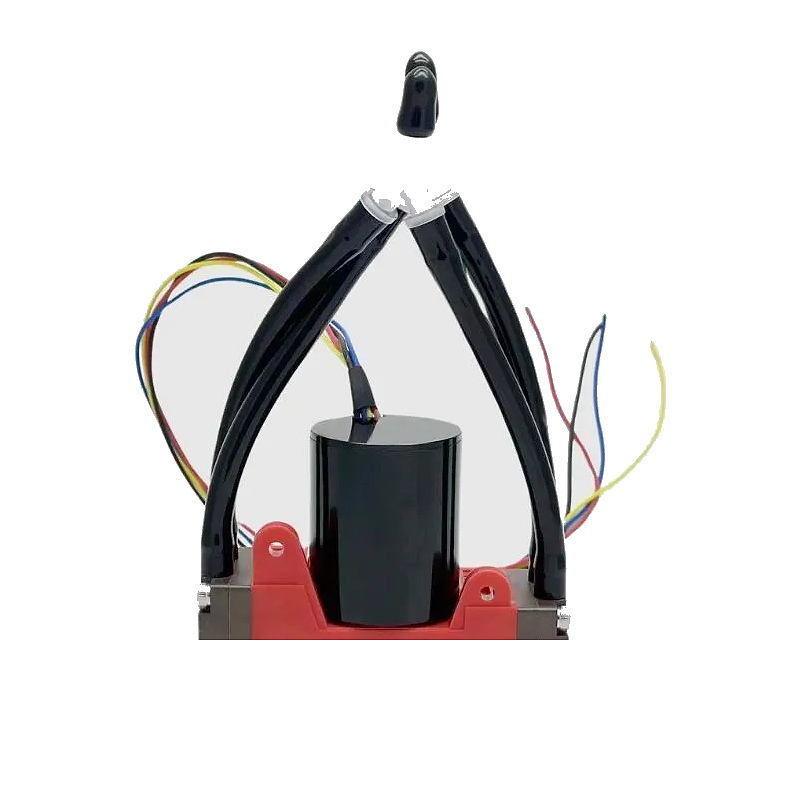

| OD-05TVB | Miniature compressor | Voltage DC 12V/24V; Air flow 7.2L/min; Vacuum -72kPa or -90kPa | View model |
| OD-08AB-D / OD-08VB-D | Miniature compressor | Voltage 24V; Air flow 80L/min(40L/minx2); Pressure 2-7bar | View model |
Technical resources
Downloads
View product documents and engineering drawings for the OD-05TR32LB series. For 3D files matched to OD-05TR32LB, include the current model in the RFQ.
OD-05TR32LB Wiring Diagram & Speed Control Guide
Locally synchronized file, 124 KB.
Download PDFOD-05TR32LB Micro Double Head Pump
Locally synchronized file, 214 KB.
Download PDFProduct documents and 2D drawings
View PDF product documents and engineering drawings for the OD-05TR32LB series.
View PDF resourcesCAD and configuration files
Submit the model, working point and mounting requirements for files matched to the project configuration.
Request CAD filesContinue browsing
Related pump models
Request a quote for OD-05TR32LB
Provide the medium, flow, pressure or vacuum, voltage, duty cycle and mounting requirements so we can match the product configuration and supporting documents.
