OD-05T30K36LB
Micro Membrane Pump 36L/min 12 24V Volt Oil Less Vacuum Pump Low Noise OD-05T30K36LB
Compact micro membrane pump with 30L/min flow, oil-free vacuum performance, and brushless diaphragm design for stable, low-noise OEM systems. Model: OD-05T30K36LB
Diaphragm air / vacuum pumpOD-05T30K36LB31 technical parameters2 technical drawings
Product functions
Key functions
OD-05T30K36LB supports the following roles in equipment fluid systems. Use the technical parameters below together with the actual working point for selection.
Function 1Air transfer
Function 2Vacuum generation
Function 3Equipment-level integration
White-background imagery

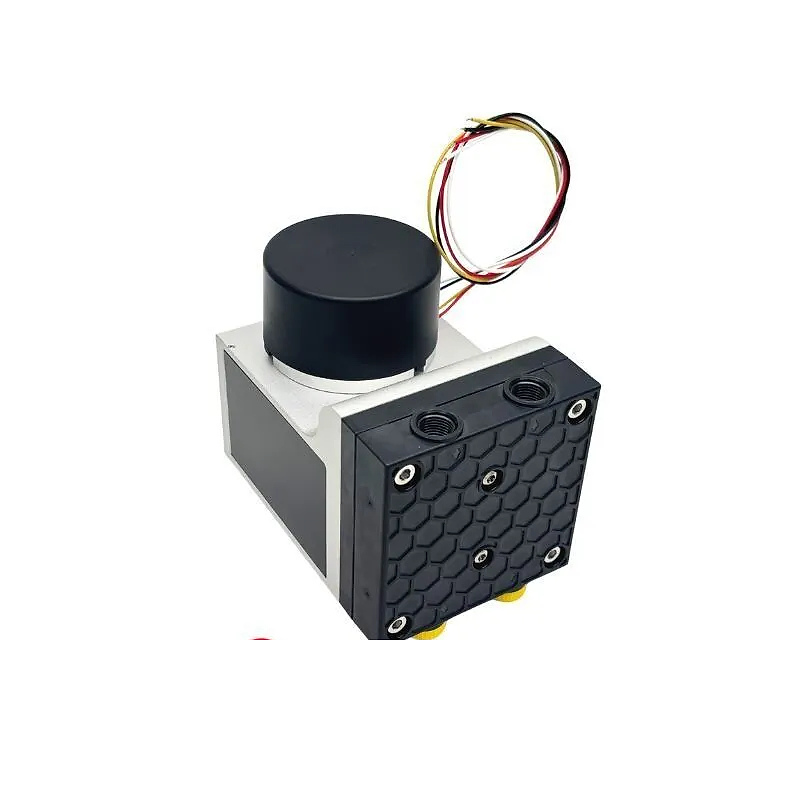

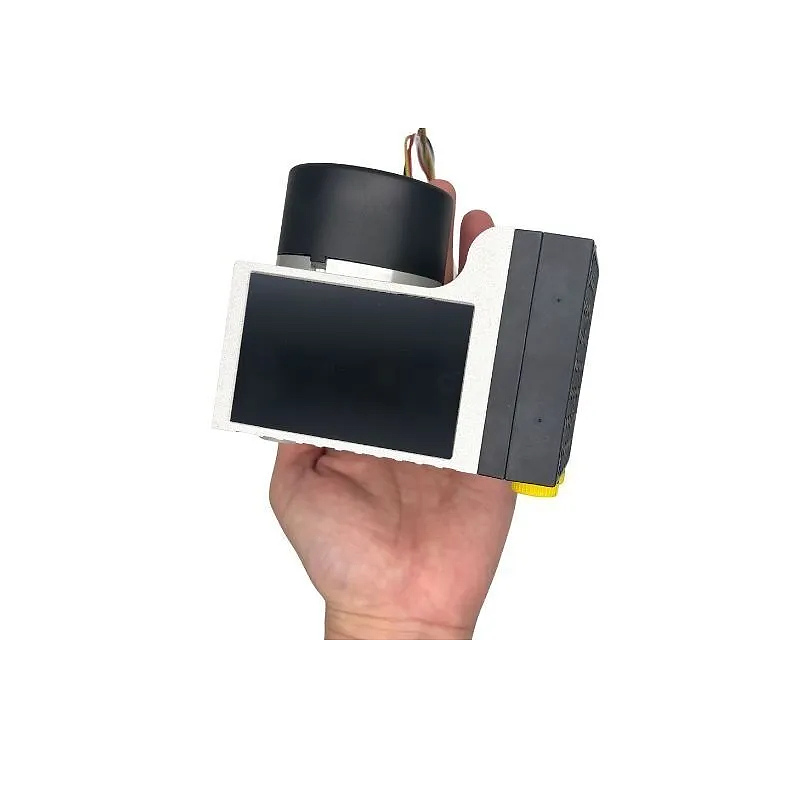

OD-05T30K36LB product images
These images are served from the synchronized local product library as white-background product views.
Product data
Technical specifications
The following specifications apply to OD-05T30K36LB. Also consider the medium, working point, power supply, duty cycle and installation conditions when selecting the product.
Voltage12V / 24V
Max Flow30L/min
Max Vacuum-85 kPa
Max Pressure1.4Bar
MotorHigh-end brushless DC motor
Max Power40W
Weight716g
ParameterValue
ModelOD-05T30K36LB
Voltage Range12 V / 24 V DC
Maximum Flow30 L/min
Maximum Negative Pressure-85 kPa
Maximum Positive Pressure1.4 bar
Motor TypeBrushless DC motor
Max Power40 W
IP RatingIP20
Storage Temperature-40 ℃ ~ 60 ℃
Operating Temperature-10 ℃ ~ 45 ℃
Dimensions103 × 70 × 84 mm
Weight716 g
ComponentMaterial / Notes
Pump HeadPPS - corrosion-resistant, high strength
Diaphragm / ValveEPDM (FKM/PTFE optional for OEM)
Pump BodyAluminum alloy
AspectAvailable Options
Diaphragm / Valve MaterialsEPDM (standard), FKM, PTFE
Voltage Options12 V DC / 24 V DC
Connector TypeCustomized based on customer's connector samples or specified model
Label / BrandingBased on the model provided by the customer
Mounting OptionsCustom brackets, shock-absorbing dampers, special installation structures
Cable / Wire ConfigurationCustom cable length, wire gauge, and connector type

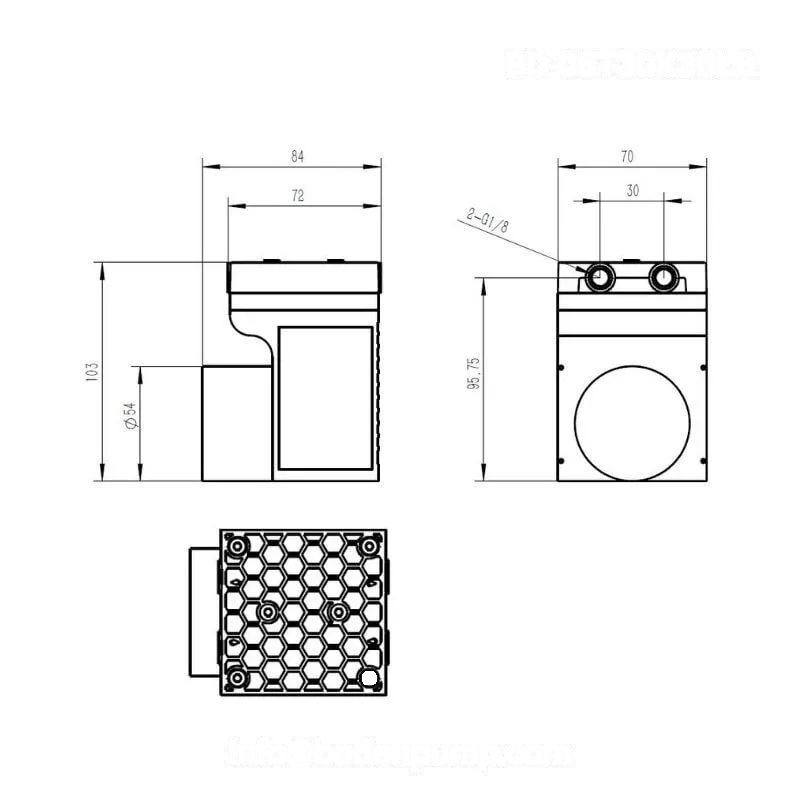

Technical drawings

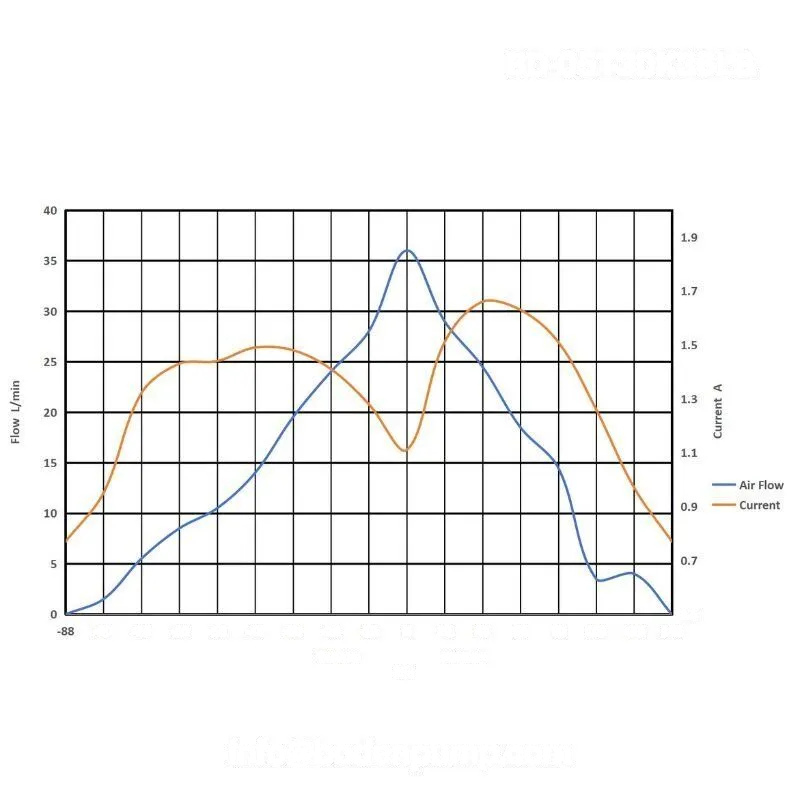

OD-05T30K36LB dimensions and performance graphics
Images classified as dimensional drawings, specification graphics or performance curves are grouped here.
Application and configuration
OD-05T30K36LB application fit
Use these notes to translate brochure data into selection questions: application, working point, noise, lifetime, voltage options and nearby model alternatives.
Working-point review
Confirm the loaded flow at the required pressure or vacuum, then review tubing loss, inlet filtration, valve restriction and the safety margin between nominal and maximum conditions.
Noise, lifetime and voltage
Review voltage, motor type, expected life, noise target, duty cycle and mounting isolation before requesting samples or a model-specific drawing.
- Voltage
- 12V / 24V
- Max Flow
- 30L/min
- Max Vacuum
- -85 kPa
- Max Pressure
- 1.4Bar
Model comparison
OD-05T30K36LB and nearby alternatives
When flow, pressure or vacuum, voltage, size or lifetime requirements change, compare nearby models before requesting a custom configuration.
| Model | Category | Key specifications | Next action |
|---|---|---|---|
| OD-05T30K36LB | Diaphragm air / vacuum pump | Voltage 12V / 24V; Max Flow 30L/min; Max Vacuum -85 kPa | Current model |
| OD-04AB / OD-04VB | Diaphragm air / vacuum pump | Voltage 6/9/12/24V DC; Air flow 7-20lpm; Liquid flow 1.5 L/min | View model |
| OD-05T0610AC | Diaphragm air / vacuum pump | Voltage 200-220AC; Max Flow 7.5L/min; Max Vacuum -85 kPa | View model |
| OD-05T1043AC | Diaphragm air / vacuum pump | Voltage 220V; Max Flow 43L/min; Max Vacuum -89 kPa | View model |
Technical resources
Downloads
View product documents and engineering drawings for the OD-05T30K36LB series. For 3D files matched to OD-05T30K36LB, include the current model in the RFQ.
OD-05T30K36L Wire Connection Instructions
Locally synchronized file, 91 KB.
Download PDFOD-05T30K36LB Micro Membrane Pump
Locally synchronized file, 209 KB.
Download PDFProduct documents and 2D drawings
View PDF product documents and engineering drawings for the OD-05T30K36LB series.
View PDF resourcesCAD and configuration files
Submit the model, working point and mounting requirements for files matched to the project configuration.
