Typical uses include gas sampling, compact analyzers, medical equipment, beauty equipment and small pneumatic modules that need clean air transfer or vacuum generation.
OD-05T01.52000B
Mini Air Pump Compact 5V Brushless Gas Sampling Pump OD-05T01.52000B
Compact 5V brushless mini diaphragm pump, 2 L/min flow, ±50 kPa, >10,000h life. Ideal for CEMS, analyzers, handheld, medical, and automation systems.
Diaphragm air / vacuum pumpOD-05T01.52000B33 technical parameters2 technical drawings
Product functions
Key functions
OD-05T01.52000B supports the following roles in equipment fluid systems. Use the technical parameters below together with the actual working point for selection.
Function 1Air transfer
Function 2Vacuum generation
Function 3Equipment-level integration
White-background imagery

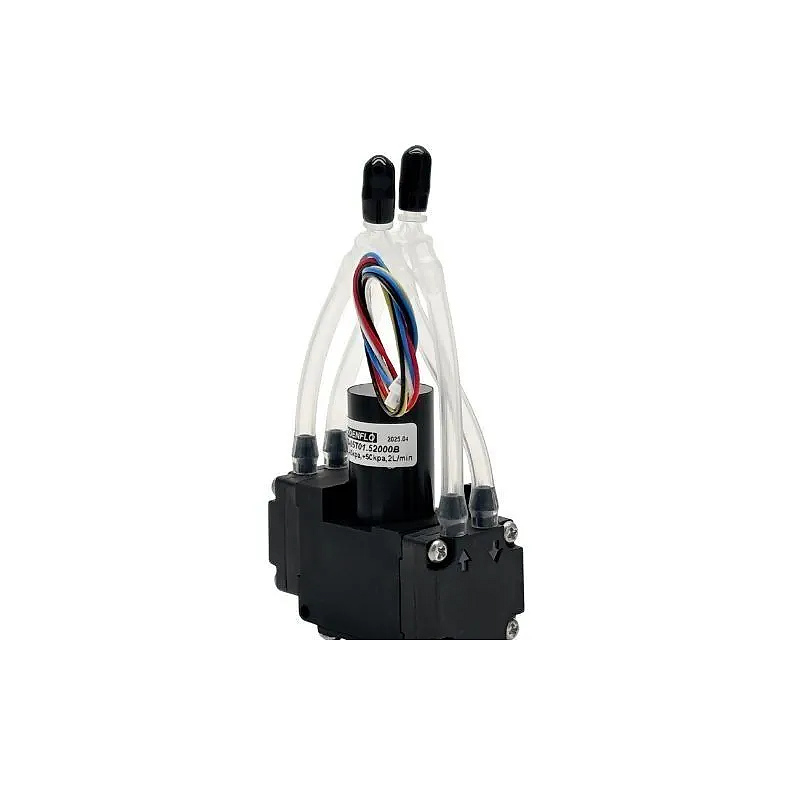

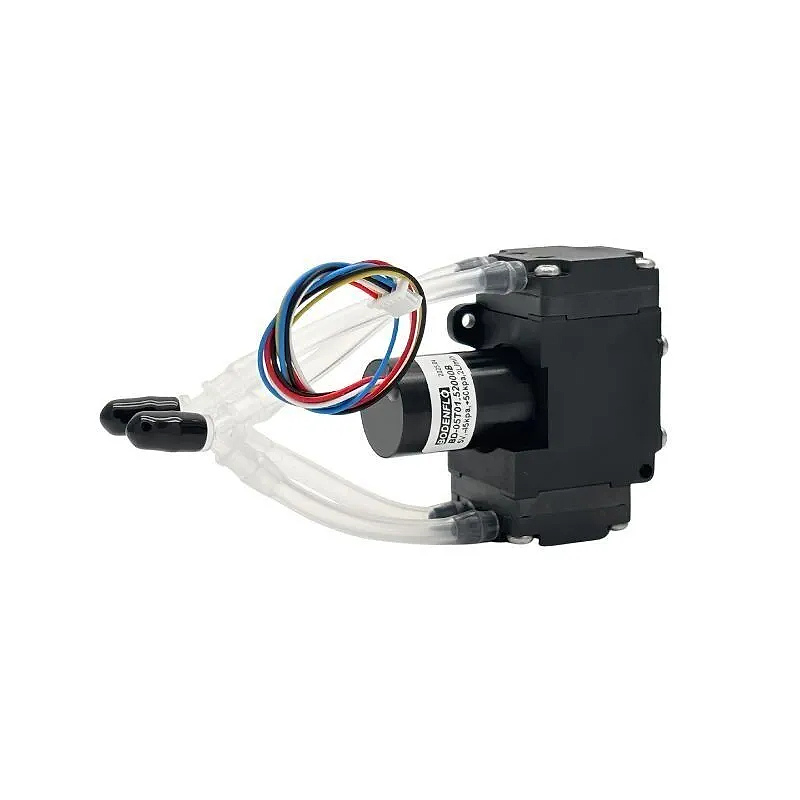

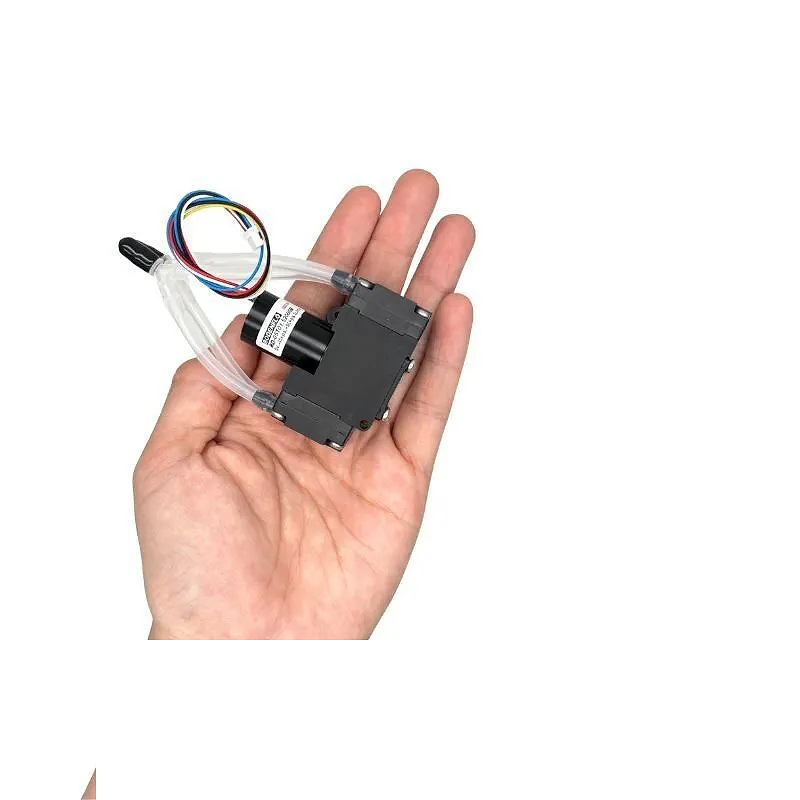

OD-05T01.52000B product images
These images are served from the synchronized local product library as white-background product views.
Product data
Technical specifications
The following specifications apply to OD-05T01.52000B. Also consider the medium, working point, power supply, duty cycle and installation conditions when selecting the product.
Voltage5V
Max Flow2L/min
Max Vacuum-45 kPa
Max Pressure+50 kPa
MotorDC brushless motor
Max Power0.8 W
Weight41 g
ParameterValue
ModelOD-05T01.52000B
Voltage Range5 V DC
Max Flow Rate2 L/min
Max Negative Pressure-45 kPa
Max Positive Pressure+50 kPa
Motor TypeBrushless DC Motor
IP RatingIP20
Service Life>10,000 hours
Storage Temperature-40 ℃ ~ 60 ℃
Operating Temperature-20 ℃ ~ 45 ℃
Pump Head MaterialNylon / PPS
Diaphragm / ValveEPDM (Optional FKM)
Pump Body MaterialNylon
Dimensions49 × 47 × 23 mm
ComponentMaterial / Performance
Pump HeadPPS or Nylon (high chemical resistance)
Diaphragm/ValveEPDM standard (FKM optional)
Pump BodyNylon - lightweight and durable
Service Life>10,000 hours under normal conditions
Customization AspectOptions Available
Diaphragm materialEPDM or FKM
Connector/CableCustom cable length & connector type
BrandingPrivate labeling for OEM projects
Integration SupportEngineering drawings, 3D models
Custom Pressure RangeOptional tuning within structure limits
Technical drawings

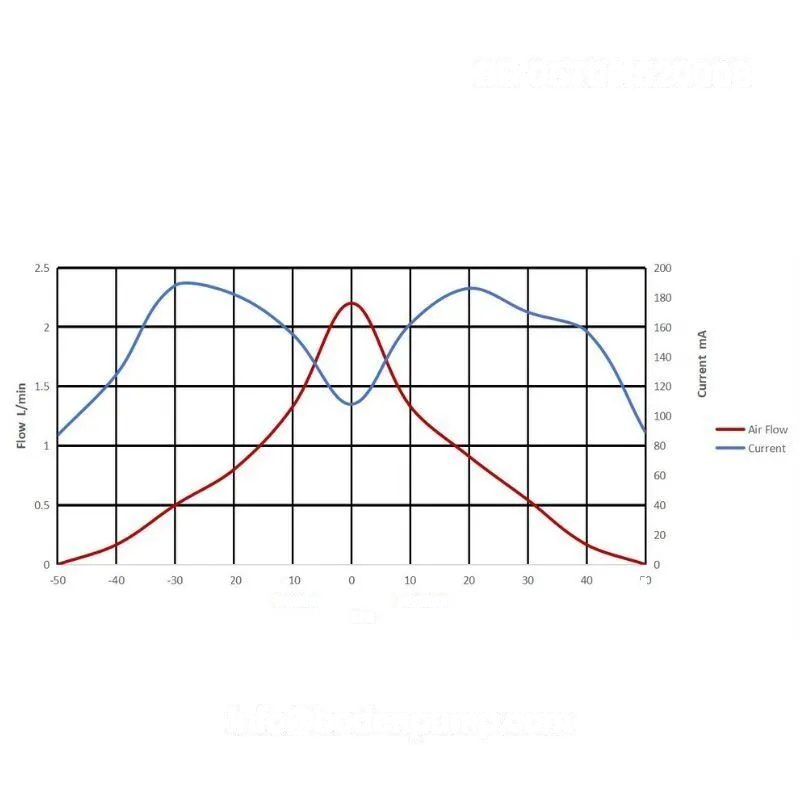

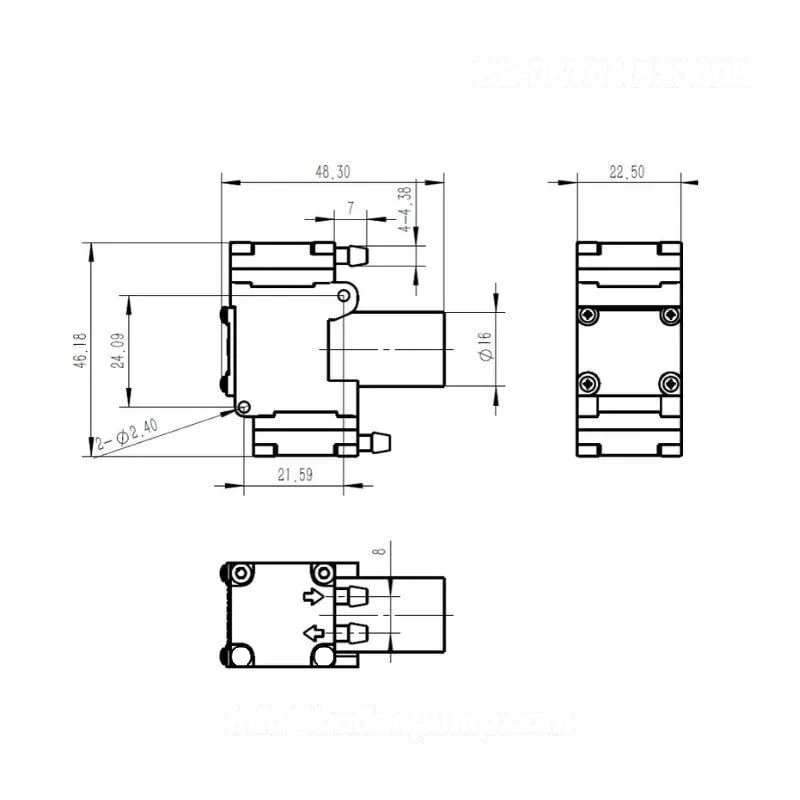

OD-05T01.52000B dimensions and performance graphics
Images classified as dimensional drawings, specification graphics or performance curves are grouped here.
Application and configuration
OD-05T01.52000B application fit
Use these notes to translate brochure data into selection questions: application, working point, noise, lifetime, voltage options and nearby model alternatives.
Working-point review
Confirm the loaded flow at the required pressure or vacuum, then review tubing loss, inlet filtration, valve restriction and the safety margin between nominal and maximum conditions.
Noise, lifetime and voltage
Review voltage, motor type, expected life, noise target, duty cycle and mounting isolation before requesting samples or a model-specific drawing.
- Voltage
- 5V
- Max Flow
- 2L/min
- Max Vacuum
- -45 kPa
- Max Pressure
- +50 kPa
Model comparison
OD-05T01.52000B and nearby alternatives
When flow, pressure or vacuum, voltage, size or lifetime requirements change, compare nearby models before requesting a custom configuration.
| Model | Category | Key specifications | Next action |
|---|---|---|---|
| OD-05T01.52000B | Diaphragm air / vacuum pump | Voltage 5V; Max Flow 2L/min; Max Vacuum -45 kPa | Current model |
| OD-04AB / OD-04VB | Diaphragm air / vacuum pump | Voltage 6/9/12/24V DC; Air flow 7-20lpm; Liquid flow 1.5 L/min | View model |
| OD-05T0610AC | Diaphragm air / vacuum pump | Voltage 200-220AC; Max Flow 7.5L/min; Max Vacuum -85 kPa | View model |
| OD-05T1043AC | Diaphragm air / vacuum pump | Voltage 220V; Max Flow 43L/min; Max Vacuum -89 kPa | View model |
Technical resources
Downloads
View product documents and engineering drawings for the OD-05T01.52000B series. For 3D files matched to OD-05T01.52000B, include the current model in the RFQ.
OD-05T01.52000B Mini Air Pump Wiring Connection Instructions
Locally synchronized file, 90 KB.
Download PDFOD-05T01.52000B Mini Air Pump Datasheet
Locally synchronized file, 177 KB.
Download PDFProduct documents and 2D drawings
View PDF product documents and engineering drawings for the OD-05T01.52000B series.
View PDF resourcesCAD and configuration files
Submit the model, working point and mounting requirements for files matched to the project configuration.
