OD-05T02500B
Mini Diaphragm Pump 5V Gas Sampling Pump OD-05T02500B
Compact 5V brushless mini diaphragm pump for precision gas sampling. 550 ml/min flow, long life, oil-free design for VOC, CEMS, and medical devices.
Diaphragm air / vacuum pumpOD-05T02500B34 technical parameters2 technical drawings
Product functions
Key functions
OD-05T02500B supports the following roles in equipment fluid systems. Use the technical parameters below together with the actual working point for selection.
Function 1Air transfer
Function 2Vacuum generation
Function 3Equipment-level integration
White-background imagery

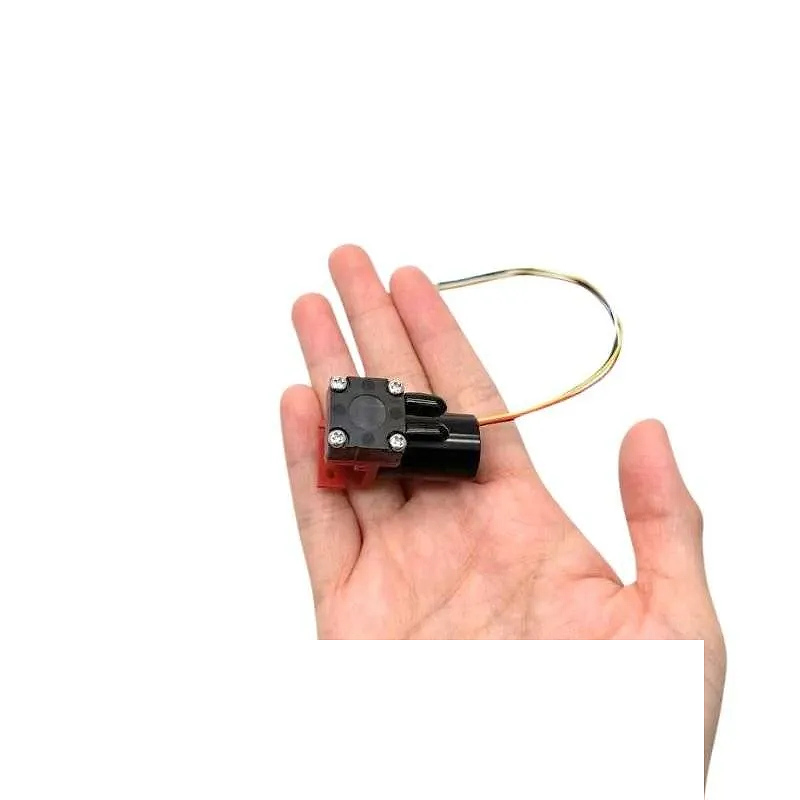

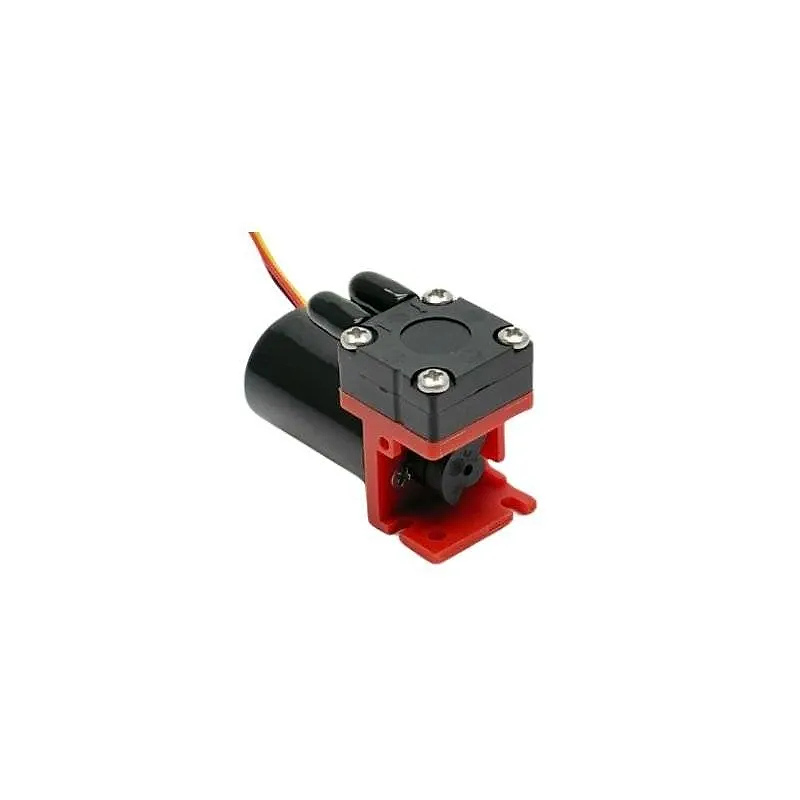

OD-05T02500B product images
These images are served from the synchronized local product library as white-background product views.
Product data
Technical specifications
The following specifications apply to OD-05T02500B. Also consider the medium, working point, power supply, duty cycle and installation conditions when selecting the product.
Voltage5V
Max Flow250/400/500/550ml/min
Max Vacuum-45 kPa
Max Pressure+44 kPa
MotorDC brushless motor
Max Power0.5 W
Weight22 g
ParameterValue
ModelOD-05T02500B
Voltage Range5 V DC
Max Flow Rate250/400/500/550 ml/min
Max Negative Pressure-45 kPa
Max Positive Pressure+44 kPa
Motor TypeBrushless DC Motor
IP RatingIP00 / IP50 (optional)
Service Life>8,000 hours
Storage Temperature-40 ℃ ~ 60 ℃
Operating Temperature-20 ℃ ~ 50 ℃
Pump HeadPOM
Diaphragm/ValveEPDM (Optional FKM)
Pump BodyPOM
Dimensions38 × 17 × 25 mm
ComponentMaterial / Performance
Pump HeadPOM - precision molded engineering plastic
Diaphragm/ValveEPDM standard (FKM optional), corrosion resistant
Pump BodyPOM - rigid, lightweight
Service life>8,000 hours (non-stop clean air use)
Customization AspectAvailable Options / Notes
Diaphragm MaterialsEPDM or FKM
Cable / Connector OptionsTailored length, connector type
BrandingCustom labeling or laser marking for OEM projects
IP RatingIP00 standard, IP50 optional
Pump Head OptionsCustom housing colors or materials (MOQ required)
Engineering SupportExpert guidance for embedded or handheld design
Technical drawings

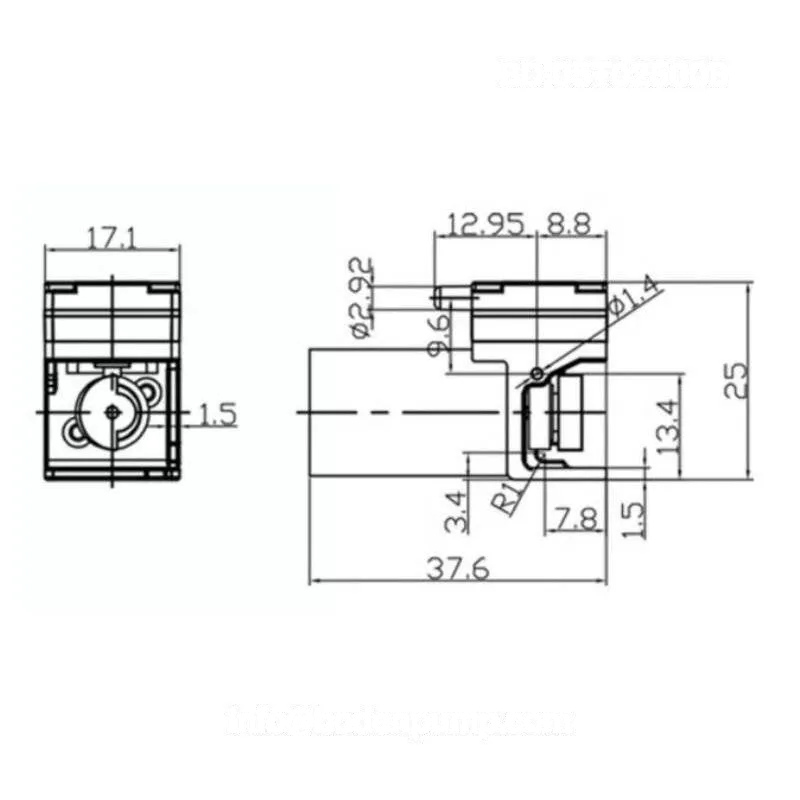

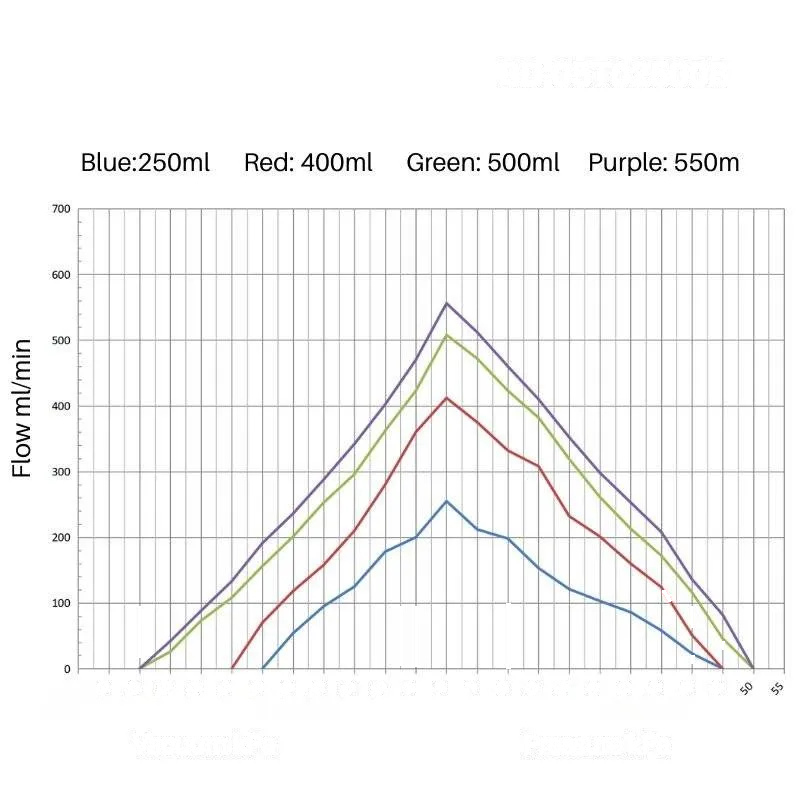

OD-05T02500B dimensions and performance graphics
Images classified as dimensional drawings, specification graphics or performance curves are grouped here.
Application and configuration
OD-05T02500B application fit
Use these notes to translate brochure data into selection questions: application, working point, noise, lifetime, voltage options and nearby model alternatives.
Working-point review
Confirm the loaded flow at the required pressure or vacuum, then review tubing loss, inlet filtration, valve restriction and the safety margin between nominal and maximum conditions.
Noise, lifetime and voltage
Review voltage, motor type, expected life, noise target, duty cycle and mounting isolation before requesting samples or a model-specific drawing.
- Voltage
- 5V
- Max Flow
- 250/400/500/550ml/min
- Max Vacuum
- -45 kPa
- Max Pressure
- +44 kPa
Model comparison
OD-05T02500B and nearby alternatives
When flow, pressure or vacuum, voltage, size or lifetime requirements change, compare nearby models before requesting a custom configuration.
| Model | Category | Key specifications | Next action |
|---|---|---|---|
| OD-05T02500B | Diaphragm air / vacuum pump | Voltage 5V; Max Flow 250/400/500/550ml/min; Max Vacuum -45 kPa | Current model |
| OD-04AB / OD-04VB | Diaphragm air / vacuum pump | Voltage 6/9/12/24V DC; Air flow 7-20lpm; Liquid flow 1.5 L/min | View model |
| OD-05T0610AC | Diaphragm air / vacuum pump | Voltage 200-220AC; Max Flow 7.5L/min; Max Vacuum -85 kPa | View model |
| OD-05T1043AC | Diaphragm air / vacuum pump | Voltage 220V; Max Flow 43L/min; Max Vacuum -89 kPa | View model |
Technical resources
Downloads
View product documents and engineering drawings for the OD-05T02500B series. For 3D files matched to OD-05T02500B, include the current model in the RFQ.
OD-05T02500B Wiring & Connection Guide
Locally synchronized file, 94 KB.
Download PDFOD-05T02500B 5V Technical Specifications | JSG
Locally synchronized file, 216 KB.
Download PDFProduct documents and 2D drawings
View PDF product documents and engineering drawings for the OD-05T02500B series.
View PDF resourcesCAD and configuration files
Submit the model, working point and mounting requirements for files matched to the project configuration.
