OD-05T01.51500B
Mini Diaphragm Pump 1.5 L/min Stable Flow Brushless Micro Gas Pump OD-05T01.51500B
JSG OD-05T01.51500B brushless mini diaphragm pump delivers 1.5 L/min, -45 kPa vacuum, >8000h life. Ideal for CEMS, analyzers, and portable medical devices.
Diaphragm air / vacuum pumpOD-05T01.51500B31 technical parameters1 technical drawings
Product functions
Key functions
OD-05T01.51500B supports the following roles in equipment fluid systems. Use the technical parameters below together with the actual working point for selection.
Function 1Air transfer
Function 2Vacuum generation
Function 3Equipment-level integration
White-background imagery

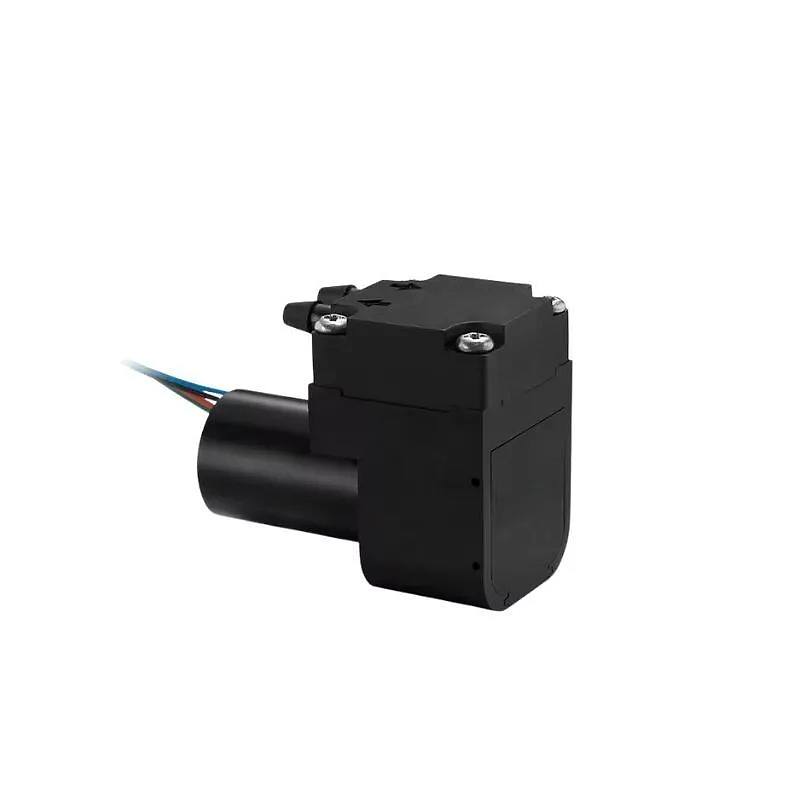

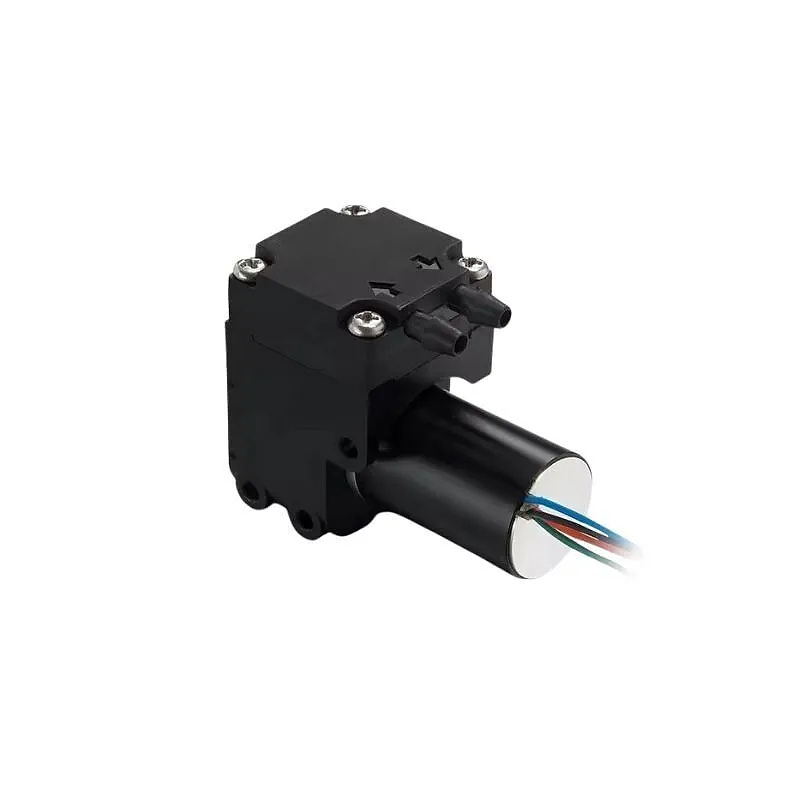

OD-05T01.51500B product images
These images are served from the synchronized local product library as white-background product views.
Product data
Technical specifications
The following specifications apply to OD-05T01.51500B. Also consider the medium, working point, power supply, duty cycle and installation conditions when selecting the product.
Voltage5V/12V
Max Flow1L/min or 1.5L/min
Max Vacuum-45 kPa
Max Pressure+50 kPa
MotorDC brushless motor
Max Power0.4 W
Weight29 g
ParameterValue
ModelOD-05T01.51500B
Voltage Range5V / 12V
Max Flow Rate1L/min or 1.5 L/min
Max Positive Pressure+50 kPa
Motor TypeBrushless DC Motor
Waterproof RatingIP20
Service Life>8000 hours
Storage Temperature-40 ℃ to 60 ℃
Operating Temperature-20 ℃ to 45 ℃
Pump HeadPPS
Diaphragm / ValveEPDM (Optional FKM)
Pump BodyNylon
Dimensions42 × 35 × 23 mm
ComponentMaterial / Performance
Pump HeadPPS - chemical & heat resistant
Diaphragm / ValveEPDM (standard), FKM (optional)
Pump BodyNylon - durable & lightweight
Service life>8000 hours (clean environment)
AspectOptions / Notes
Diaphragm materialEPDM (standard) / FKM (for chemical resistance)
Label & PackagingOEM branding & private labeling support
Electrical ConnectorCustom wire length or connector per application
System IntegrationTechnical support for embedded product development
Technical drawings

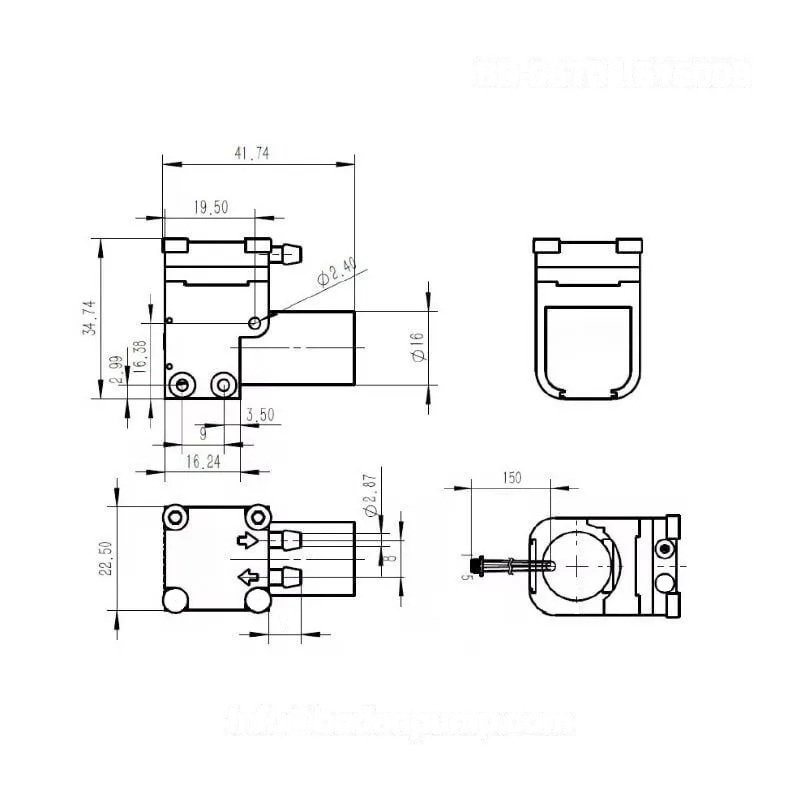

OD-05T01.51500B dimensions and performance graphics
Images classified as dimensional drawings, specification graphics or performance curves are grouped here.
Application and configuration
OD-05T01.51500B application fit
Use these notes to translate brochure data into selection questions: application, working point, noise, lifetime, voltage options and nearby model alternatives.
Working-point review
Confirm the loaded flow at the required pressure or vacuum, then review tubing loss, inlet filtration, valve restriction and the safety margin between nominal and maximum conditions.
Noise, lifetime and voltage
Review voltage, motor type, expected life, noise target, duty cycle and mounting isolation before requesting samples or a model-specific drawing.
- Voltage
- 5V/12V
- Max Flow
- 1L/min or 1.5L/min
- Max Vacuum
- -45 kPa
- Max Pressure
- +50 kPa
Model comparison
OD-05T01.51500B and nearby alternatives
When flow, pressure or vacuum, voltage, size or lifetime requirements change, compare nearby models before requesting a custom configuration.
| Model | Category | Key specifications | Next action |
|---|---|---|---|
| OD-05T01.51500B | Diaphragm air / vacuum pump | Voltage 5V/12V; Max Flow 1L/min or 1.5L/min; Max Vacuum -45 kPa | Current model |
| OD-04AB / OD-04VB | Diaphragm air / vacuum pump | Voltage 6/9/12/24V DC; Air flow 7-20lpm; Liquid flow 1.5 L/min | View model |
| OD-05T0610AC | Diaphragm air / vacuum pump | Voltage 200-220AC; Max Flow 7.5L/min; Max Vacuum -85 kPa | View model |
| OD-05T1043AC | Diaphragm air / vacuum pump | Voltage 220V; Max Flow 43L/min; Max Vacuum -89 kPa | View model |
Technical resources
Downloads
View product documents and engineering drawings for the OD-05T01.51500B series. For 3D files matched to OD-05T01.51500B, include the current model in the RFQ.
od-05t0151500b-mini-diaphragm-pump-datasheet-JSG
Locally synchronized file, 150 KB.
Download PDFProduct documents and 2D drawings
View PDF product documents and engineering drawings for the OD-05T01.51500B series.
View PDF resourcesCAD and configuration files
Submit the model, working point and mounting requirements for files matched to the project configuration.
Request CAD filesContinue browsing
Related pump models
Diaphragm air / vacuum pump
220V 50HZ Sampling Pump AC Gas Diaphragm Pump For CEMS OD-05T0610AC
View product
Diaphragm air / vacuum pump
Oil-Free Diaphragm Vacuum Pump AC 220V 43L Small High Vacuum Pumps -89KPA OD-05T1043AC JSG
View productRequest a quote for OD-05T01.51500B
Provide the medium, flow, pressure or vacuum, voltage, duty cycle and mounting requirements so we can match the product configuration and supporting documents.
