OD-05T01530
Mini Diaphragm Pump - Ultra-Compact 3.3V Gas Sampling Pump OD-05T01530
Ultra-compact 3.3V mini diaphragm pump for gas sampling, VOC analyzers, medical devices, and portable instruments. Low power, 530 ml/min flow, long life.
Diaphragm air / vacuum pumpOD-05T0153033 technical parameters2 technical drawings
Product functions
Key functions
OD-05T01530 supports the following roles in equipment fluid systems. Use the technical parameters below together with the actual working point for selection.
Function 1Air transfer
Function 2Vacuum generation
Function 3Equipment-level integration
White-background imagery

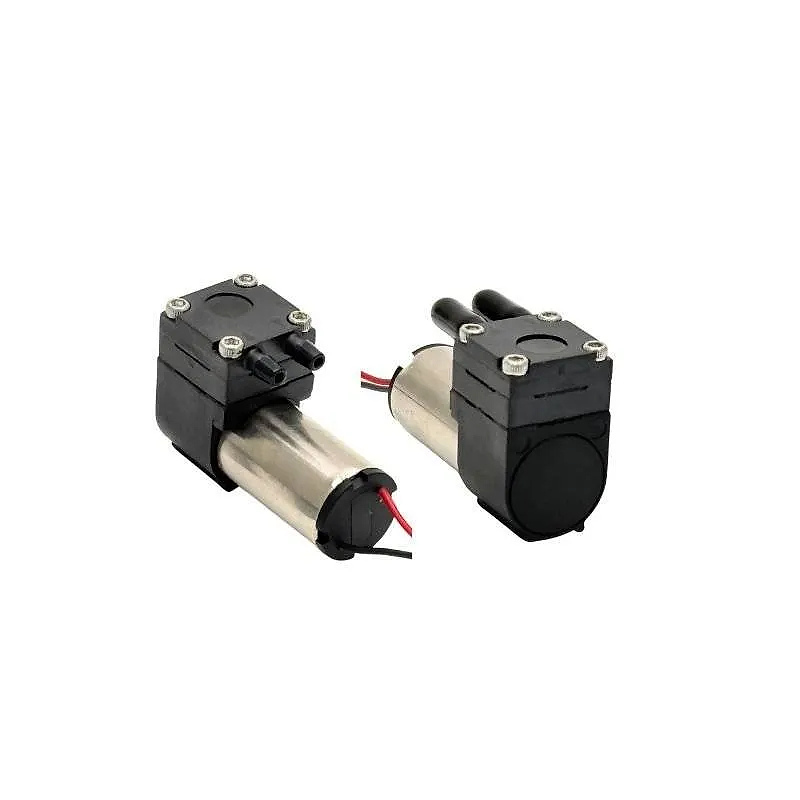

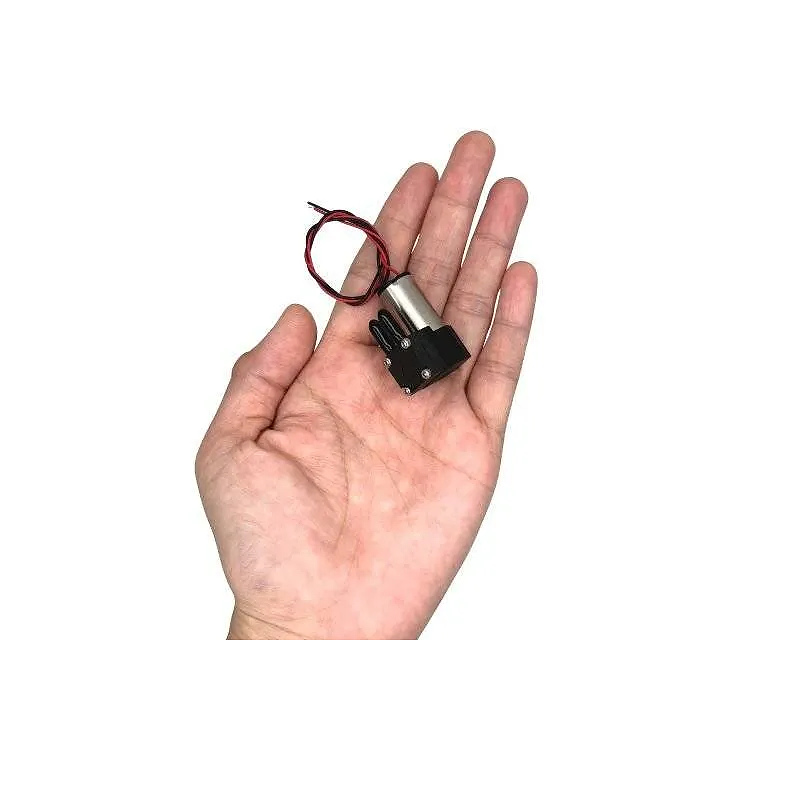

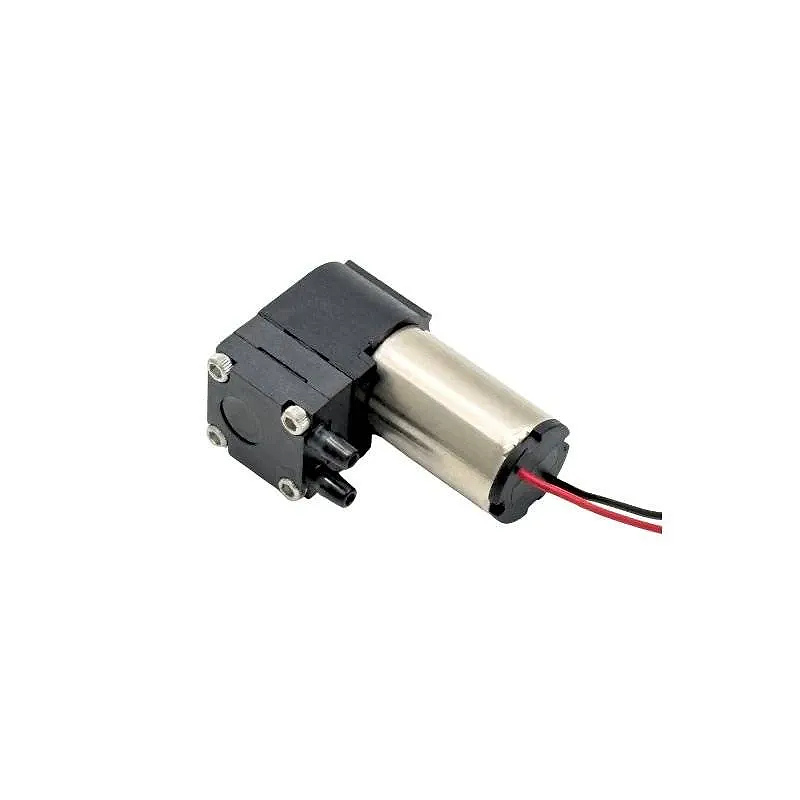

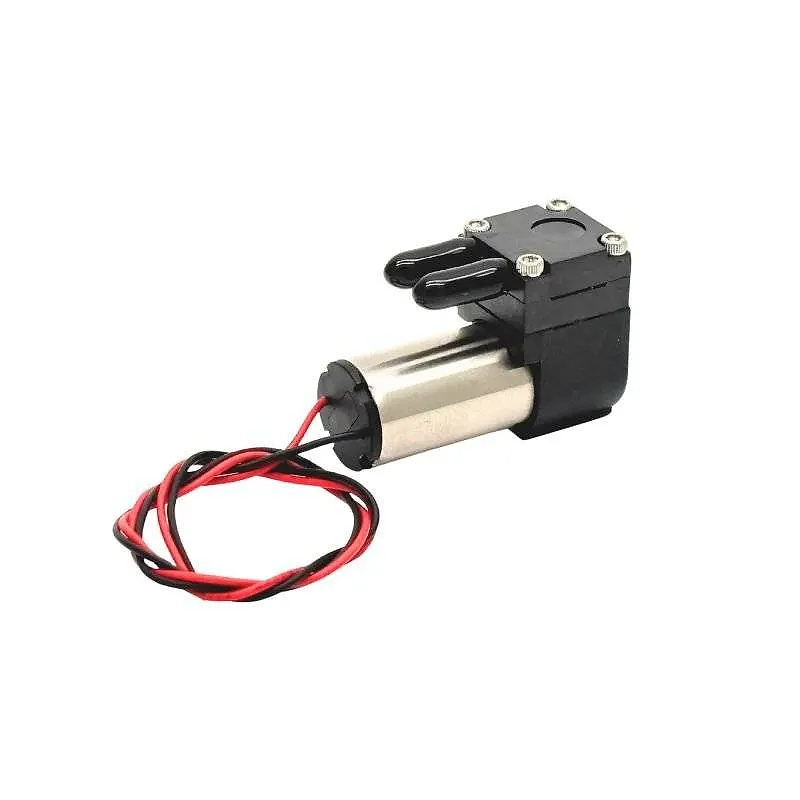

OD-05T01530 product images
These images are served from the synchronized local product library as white-background product views.
Product data
Technical specifications
The following specifications apply to OD-05T01530. Also consider the medium, working point, power supply, duty cycle and installation conditions when selecting the product.
Voltage1 V - 4 V DC (Typical 3.3 V)
Max Flow530 ml/min
Max Vacuum-47 kPa
Max Pressure+44 kPa
MotorBrushed DC
Max Power0.3 W
Weight14.2 g
ParameterValue
ModelOD-05T01530
Voltage Range1-4 V DC (Typical 3.3 V)
Max Flow Rate (3.3 V)530 ml/min
Max Negative Pressure-47 kPa
Max Positive Pressure44 kPa
Motor TypeBrushed DC Motor
IP RatingIP40
Service Life>6,000 hours
Storage Temperature-40 ℃ ~ 60 ℃
Operating Temperature-20 ℃ ~ 45 ℃
Pump HeadPPS
Diaphragm/ValveEPDM (Optional FKM)
Pump BodyNylon
Dimensions33 × 23 × 13.5 mm
ComponentMaterial / Performance
Pump HeadPPS (engineering thermoplastic)
Diaphragm/ValveEPDM standard (FKM optional)
Pump BodyNylon - strong, lightweight, durable
Lifetime (continuous duty)>6,000 hours in clean, non-corrosive environments
Customization AspectAvailable Options / Notes
Diaphragm MaterialsEPDM or FKM
Electrical Cable / ConnectorCustom cable length and connector type for OEM integration
Label / BrandingCustom product labeling for OEM projects
Pump ConfigurationSingle-head: OD-05T01530 (530 ml/min, 3.3V, -47 kPa, 44 kPa, 0.3 W) Dual-head: OD-05T011088 (1088 ml/min, 3.3V, -47 kPa, 44 kPa, 0.7 W)
Integration SupportEngineering guidance for compact analyzers
Technical drawings

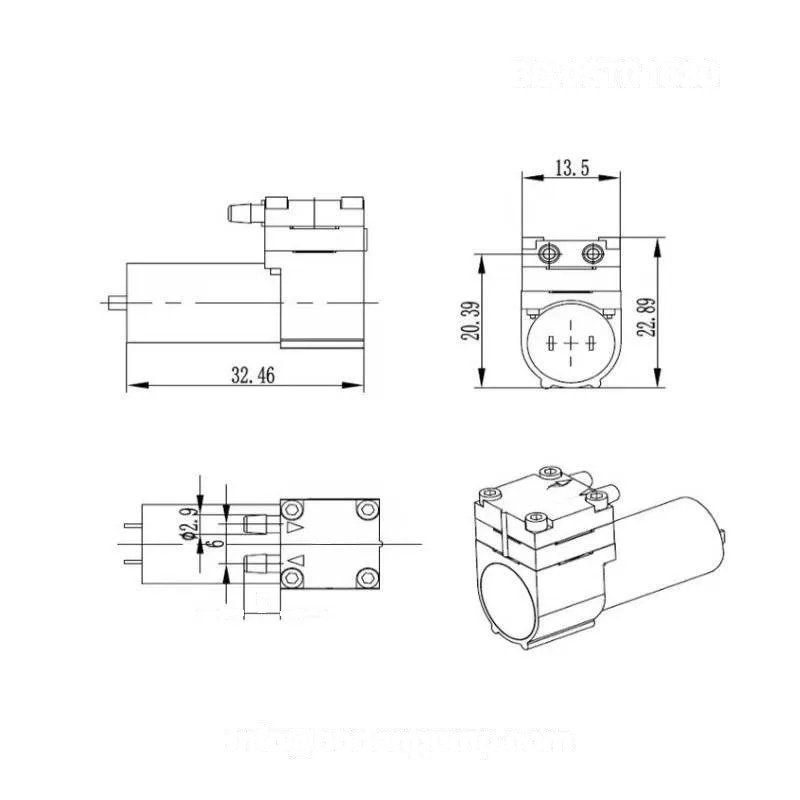

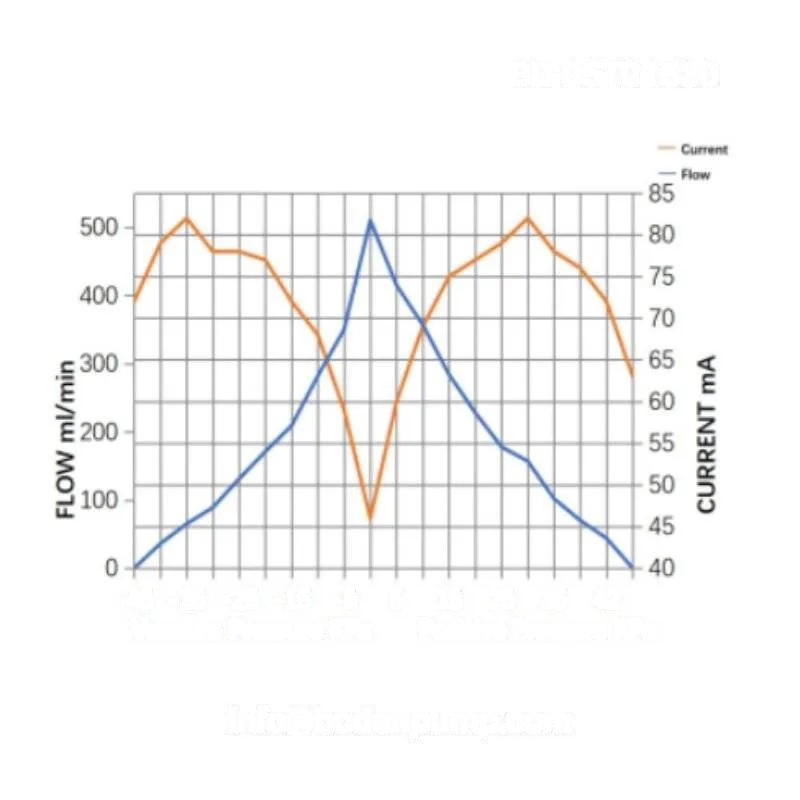

OD-05T01530 dimensions and performance graphics
Images classified as dimensional drawings, specification graphics or performance curves are grouped here.
Application and configuration
OD-05T01530 application fit
Use these notes to translate brochure data into selection questions: application, working point, noise, lifetime, voltage options and nearby model alternatives.
Working-point review
Confirm the loaded flow at the required pressure or vacuum, then review tubing loss, inlet filtration, valve restriction and the safety margin between nominal and maximum conditions.
Noise, lifetime and voltage
Review voltage, motor type, expected life, noise target, duty cycle and mounting isolation before requesting samples or a model-specific drawing.
- Voltage
- 1 V - 4 V DC (Typical 3.3 V)
- Max Flow
- 530 ml/min
- Max Vacuum
- -47 kPa
- Max Pressure
- +44 kPa
Model comparison
OD-05T01530 and nearby alternatives
When flow, pressure or vacuum, voltage, size or lifetime requirements change, compare nearby models before requesting a custom configuration.
| Model | Category | Key specifications | Next action |
|---|---|---|---|
| OD-05T01530 | Diaphragm air / vacuum pump | Voltage 1 V - 4 V DC (Typical 3.3 V); Max Flow 530 ml/min; Max Vacuum -47 kPa | Current model |
| OD-04AB / OD-04VB | Diaphragm air / vacuum pump | Voltage 6/9/12/24V DC; Air flow 7-20lpm; Liquid flow 1.5 L/min | View model |
| OD-05T0610AC | Diaphragm air / vacuum pump | Voltage 200-220AC; Max Flow 7.5L/min; Max Vacuum -85 kPa | View model |
| OD-05T1043AC | Diaphragm air / vacuum pump | Voltage 220V; Max Flow 43L/min; Max Vacuum -89 kPa | View model |
Technical resources
Downloads
View product documents and engineering drawings for the OD-05T01530 series. For 3D files matched to OD-05T01530, include the current model in the RFQ.
OD-05T01530-SPC JSG Download Datasheet (PDF)
Locally synchronized file, 138 KB.
Download PDFProduct documents and 2D drawings
View PDF product documents and engineering drawings for the OD-05T01530 series.
View PDF resourcesCAD and configuration files
Submit the model, working point and mounting requirements for files matched to the project configuration.
