OD-05T02500
Miniature Pump 3.5V 5V Quiet Diaphragm Pump OD-05T02500
JSG Miniature Pump OD-05T02500 - 3.5V/5V quiet diaphragm pump for gas sampling, low power 0.5W, 550 ml/min flow. OEM-ready for medical, analytical use.
Diaphragm air / vacuum pumpOD-05T0250033 technical parameters2 technical drawings
Product functions
Key functions
OD-05T02500 supports the following roles in equipment fluid systems. Use the technical parameters below together with the actual working point for selection.
Function 1Air transfer
Function 2Vacuum generation
Function 3Equipment-level integration
White-background imagery

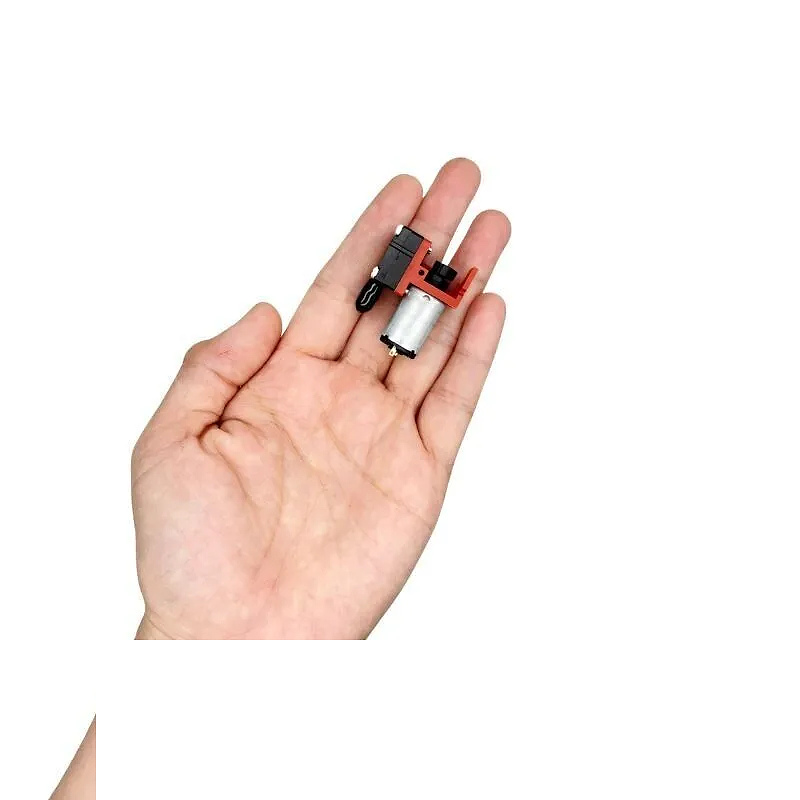

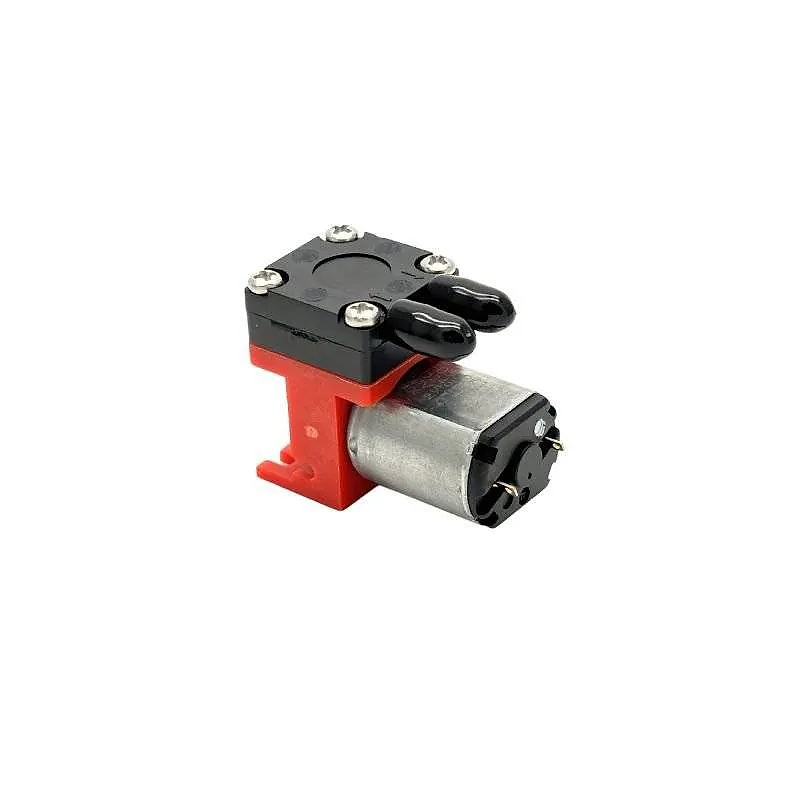

OD-05T02500 product images
These images are served from the synchronized local product library as white-background product views.
Product data
Technical specifications
The following specifications apply to OD-05T02500. Also consider the medium, working point, power supply, duty cycle and installation conditions when selecting the product.
Voltage1-5V/3.5V
Max Flow250/400/500/550ml/min
Max Vacuum-45 kPa
Max Pressure+44 kPa
MotorDC brushed motor
Max Power0.5 W
Weight16.4 g
ParameterValue
ModelOD-05T02500
Voltage Range1-5 V/3.5 V
Max Flow Rate250/400/500/550ml/min
Max Negative Pressure-45 kPa
Max Positive Pressure+44 kPa
Motor TypeBrushed DC Motor
Waterproof RatingIP20
Service Life≥ 2,000 hours
Storage Temperature-40 ℃ ~ 60 ℃
Operating Temperature-20 ℃ ~ 45 ℃
Pump HeadPPS
Diaphragm / ValveEPDM (FKM optional)
Pump BodyNylon
Dimensions31 × 17 × 25 mm
ComponentMaterial / Performance
Pump HeadPPS - engineering-grade thermoplastic
Diaphragm/ValveEPDM (FKM optional) - chemical resistant
Pump BodyNylon - lightweight and durable
Service life≥ 2,000 hours in clean environments
Customization AspectAvailable Options / Notes
Diaphragm materialEPDM (standard), FKM (optional)
Electrical ConnectorCustom wire length, terminals, or plug type available
Labeling / BrandingPrivate labeling for OEM integration projects
Pump Version OptionsOD-05T02500 (Single-head, 250-550 ml/min, 0.5 W)
Engineering SupportApplication-based guidance and documentation provided
Technical drawings

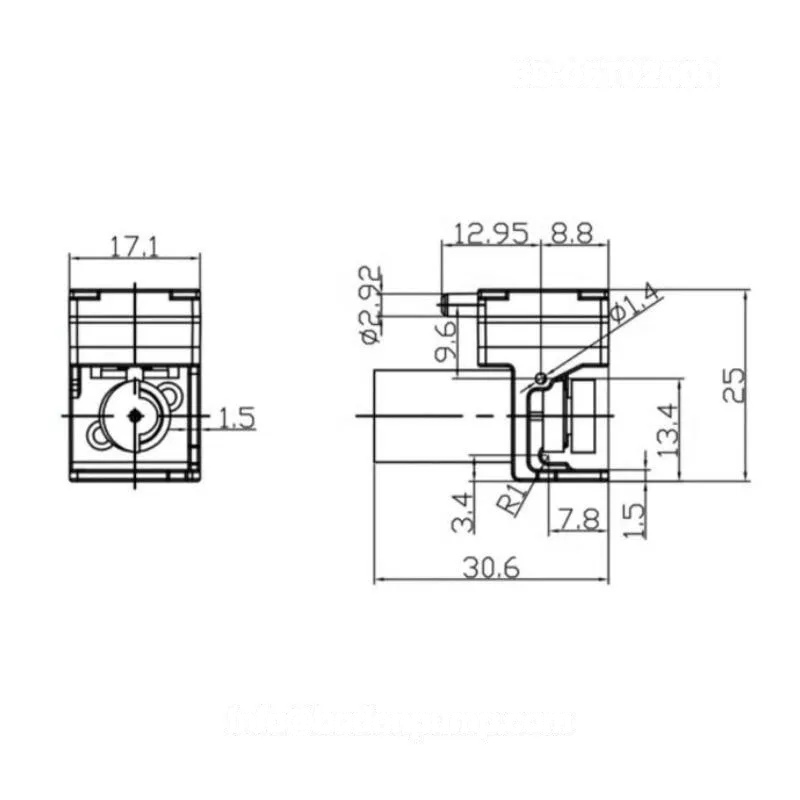

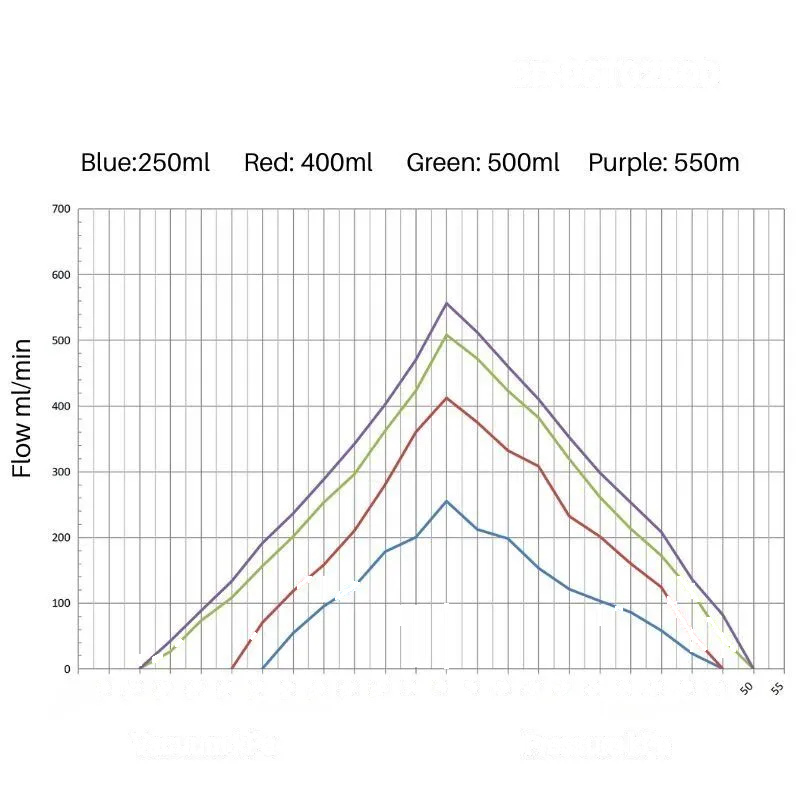

OD-05T02500 dimensions and performance graphics
Images classified as dimensional drawings, specification graphics or performance curves are grouped here.
Application and configuration
OD-05T02500 application fit
Use these notes to translate brochure data into selection questions: application, working point, noise, lifetime, voltage options and nearby model alternatives.
Working-point review
Confirm the loaded flow at the required pressure or vacuum, then review tubing loss, inlet filtration, valve restriction and the safety margin between nominal and maximum conditions.
Noise, lifetime and voltage
Review voltage, motor type, expected life, noise target, duty cycle and mounting isolation before requesting samples or a model-specific drawing.
- Voltage
- 1-5V/3.5V
- Max Flow
- 250/400/500/550ml/min
- Max Vacuum
- -45 kPa
- Max Pressure
- +44 kPa
Model comparison
OD-05T02500 and nearby alternatives
When flow, pressure or vacuum, voltage, size or lifetime requirements change, compare nearby models before requesting a custom configuration.
| Model | Category | Key specifications | Next action |
|---|---|---|---|
| OD-05T02500 | Diaphragm air / vacuum pump | Voltage 1-5V/3.5V; Max Flow 250/400/500/550ml/min; Max Vacuum -45 kPa | Current model |
| OD-04AB / OD-04VB | Diaphragm air / vacuum pump | Voltage 6/9/12/24V DC; Air flow 7-20lpm; Liquid flow 1.5 L/min | View model |
| OD-05T0610AC | Diaphragm air / vacuum pump | Voltage 200-220AC; Max Flow 7.5L/min; Max Vacuum -85 kPa | View model |
| OD-05T1043AC | Diaphragm air / vacuum pump | Voltage 220V; Max Flow 43L/min; Max Vacuum -89 kPa | View model |
Technical resources
Downloads
View product documents and engineering drawings for the OD-05T02500 series. For 3D files matched to OD-05T02500, include the current model in the RFQ.
OD-05T02500 Miniature Pump Datasheet
Locally synchronized file, 223 KB.
Download PDFProduct documents and 2D drawings
View PDF product documents and engineering drawings for the OD-05T02500 series.
View PDF resourcesCAD and configuration files
Submit the model, working point and mounting requirements for files matched to the project configuration.
Request CAD filesContinue browsing
Related pump models
Diaphragm air / vacuum pump
220V 50HZ Sampling Pump AC Gas Diaphragm Pump For CEMS OD-05T0610AC
View product
Diaphragm air / vacuum pump
Oil-Free Diaphragm Vacuum Pump AC 220V 43L Small High Vacuum Pumps -89KPA OD-05T1043AC JSG
View productRequest a quote for OD-05T02500
Provide the medium, flow, pressure or vacuum, voltage, duty cycle and mounting requirements so we can match the product configuration and supporting documents.
