Application scenarios
Typical uses include gas sampling, compact analyzers, medical equipment, beauty equipment and small pneumatic modules that need clean air transfer or vacuum generation.
OD-05T054.6L

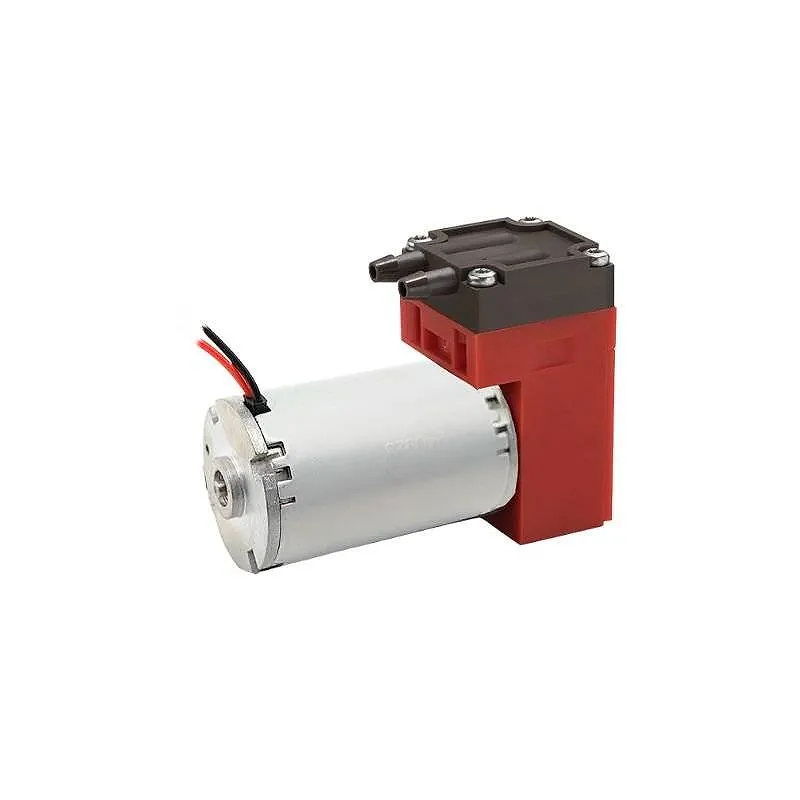

Miniature Diaphragm Pumps 12V 24V 4.6L Chemic Resistant Lab Vacuum Pump -72KPA OD-05T054.6L
Compact 12V/24V diaphragm pump OD-05T054.6L delivers 4.6L/min flow, -72kPa vacuum & 1.5bar pressure. Oil-free, durable, and ideal for lab & OEM applications.
Diaphragm air / vacuum pumpOD-05T054.6L32 technical parameters2 technical drawings
Product functions
Key functions
OD-05T054.6L supports the following roles in equipment fluid systems. Use the technical parameters below together with the actual working point for selection.
Function 1Air transfer
Function 2Vacuum generation
Function 3Equipment-level integration
Product data
Technical specifications
The following specifications apply to OD-05T054.6L. Also consider the medium, working point, power supply, duty cycle and installation conditions when selecting the product.
Voltage12/24V
Max Flow4.6L/min
Max Vacuum-72 kPa
Max Pressure1~1.5Bar
MotorDC brushed motor
Max Power5 W
Weight195g
ParameterValue
ModelOD-05T054.6L
Voltage Range12V / 24V
Maximum Flow4.6 L/min
Max Vacuum-72 kPa (540 mmHg)
Max Pressure1.0-1.5 bar
Motor TypeBrushed DC Motor
IP RatingIP40
Service Life>2,500 hours
Operating Temperature-20 ℃ ~ 45 ℃
Storage Temperature-40 ℃ ~ 60 ℃
Medium Temperature-10 ℃ ~ 45 ℃
Dimensions76 × 31 × 55 mm
Weight195 g
ComponentMaterial / Performance
Pump HeadPPS - heat and chemical resistant
Diaphragm/ValveEPDM standard / FKM optional
Pump BodyNylon - durable and lightweight
BearingsImported high-precision ball bearings
Seal DesignProprietary low-leakage design
Customization AspectOptions / Notes
Diaphragm materialEPDM or FKM based on chemical compatibility
Wire & ConnectorCustom wire length and connector types
Label / BrandingCustom branding for OEM projects
Integration SupportEngineering advice for seamless design fit
Technical drawings

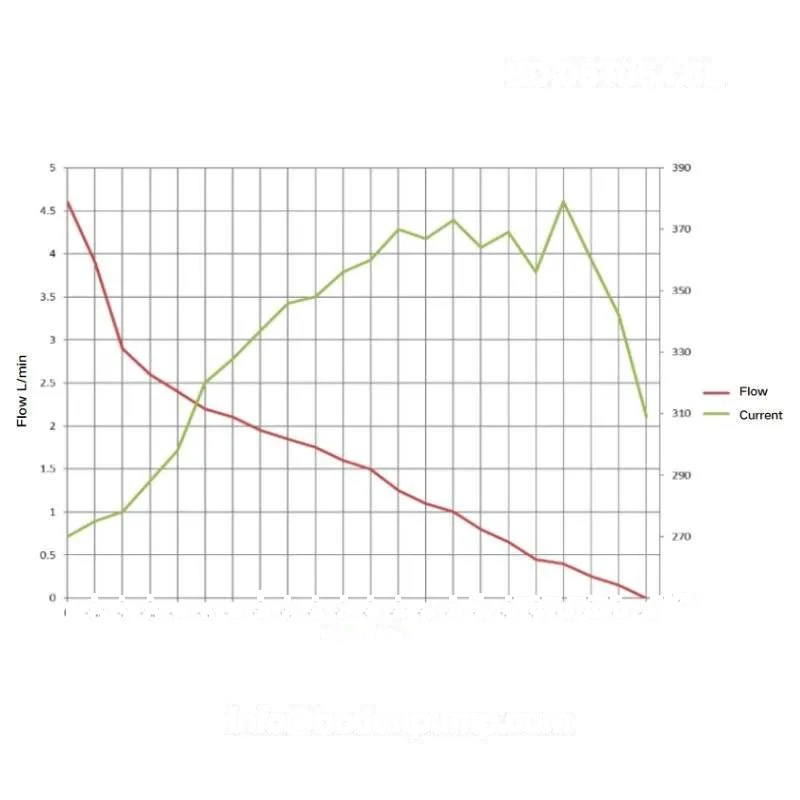

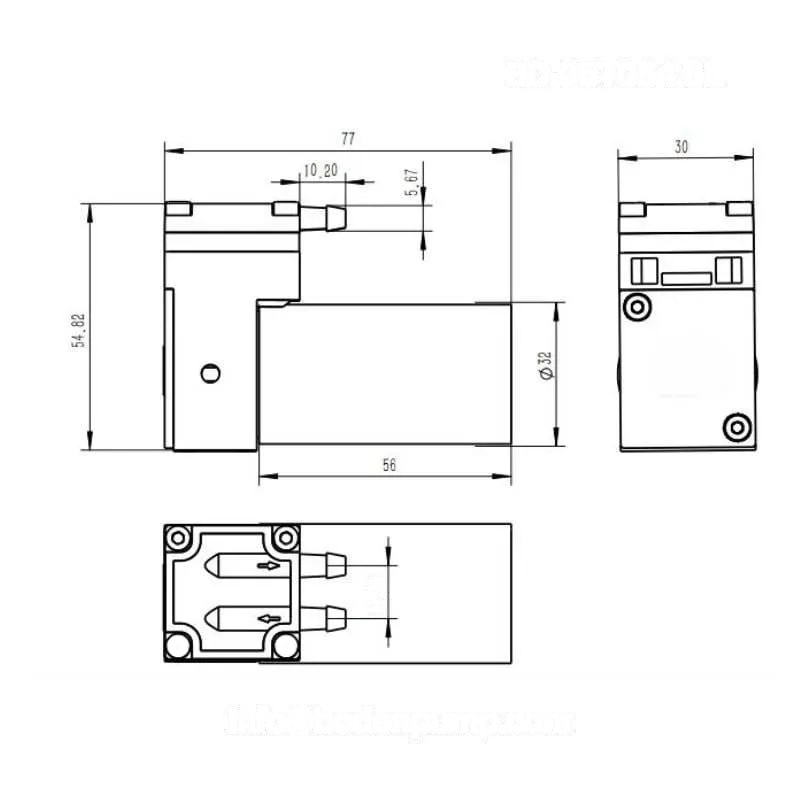

OD-05T054.6L dimensions and performance graphics
Images classified as dimensional drawings, specification graphics or performance curves are grouped here.
Application and configuration
OD-05T054.6L application fit
Use these notes to translate brochure data into selection questions: application, working point, noise, lifetime, voltage options and nearby model alternatives.
Working-point review
Confirm the loaded flow at the required pressure or vacuum, then review tubing loss, inlet filtration, valve restriction and the safety margin between nominal and maximum conditions.
Noise, lifetime and voltage
Review voltage, motor type, expected life, noise target, duty cycle and mounting isolation before requesting samples or a model-specific drawing.
- Voltage
- 12/24V
- Max Flow
- 4.6L/min
- Max Vacuum
- -72 kPa
- Max Pressure
- 1~1.5Bar
Model comparison
OD-05T054.6L and nearby alternatives
When flow, pressure or vacuum, voltage, size or lifetime requirements change, compare nearby models before requesting a custom configuration.
| Model | Category | Key specifications | Next action |
|---|---|---|---|
| OD-05T054.6L | Diaphragm air / vacuum pump | Voltage 12/24V; Max Flow 4.6L/min; Max Vacuum -72 kPa | Current model |
| OD-04AB / OD-04VB | Diaphragm air / vacuum pump | Voltage 6/9/12/24V DC; Air flow 7-20lpm; Liquid flow 1.5 L/min | View model |
| OD-05T0610AC | Diaphragm air / vacuum pump | Voltage 200-220AC; Max Flow 7.5L/min; Max Vacuum -85 kPa | View model |
| OD-05T1043AC | Diaphragm air / vacuum pump | Voltage 220V; Max Flow 43L/min; Max Vacuum -89 kPa | View model |
Technical resources
Downloads
View product documents and engineering drawings for the OD-05T054.6L series. For 3D files matched to OD-05T054.6L, include the current model in the RFQ.
OD-05T054.6L Specification
Locally synchronized file, 168 KB.
Download PDFProduct documents and 2D drawings
View PDF product documents and engineering drawings for the OD-05T054.6L series.
View PDF resourcesCAD and configuration files
Submit the model, working point and mounting requirements for files matched to the project configuration.
