OD-08AB-S

OD-08AB-S/OD-08VB-S Small Air Compressor & High Flow Air Vacuum Pump

Name: OD-08AB-S/OD-08VB-S Small Air Compressor & High Flow Air Vacuum Pump
Brand: JSG
SKU: OD-08AB-S / OD-08VB-S

Compact 24V small air compressor with up to 45 L/min airflow, 7 bar pressure, and -85 kPa vacuum. Ideal for OEM cleaning, sampling, medical, and automation systems.

Miniature compressorOD-08AB-S28 technical parameters2 technical drawings

View specifications Request this model

OD-08AB-S OD-08VB-S swing piston micro air compressor with driver board, muffler, tubing, clamps, and vibration-damping rubber cushions

Product functions

Key functions

OD-08AB-S / OD-08VB-S supports the following roles in equipment fluid systems. Use the technical parameters below together with the actual working point for selection.

Function 1Pressure supply

Function 2Vacuum duty

Function 3Configuration integration

White-background imagery

OD-08AB-S / OD-08VB-S product images

These images are served from the synchronized local product library as white-background product views.

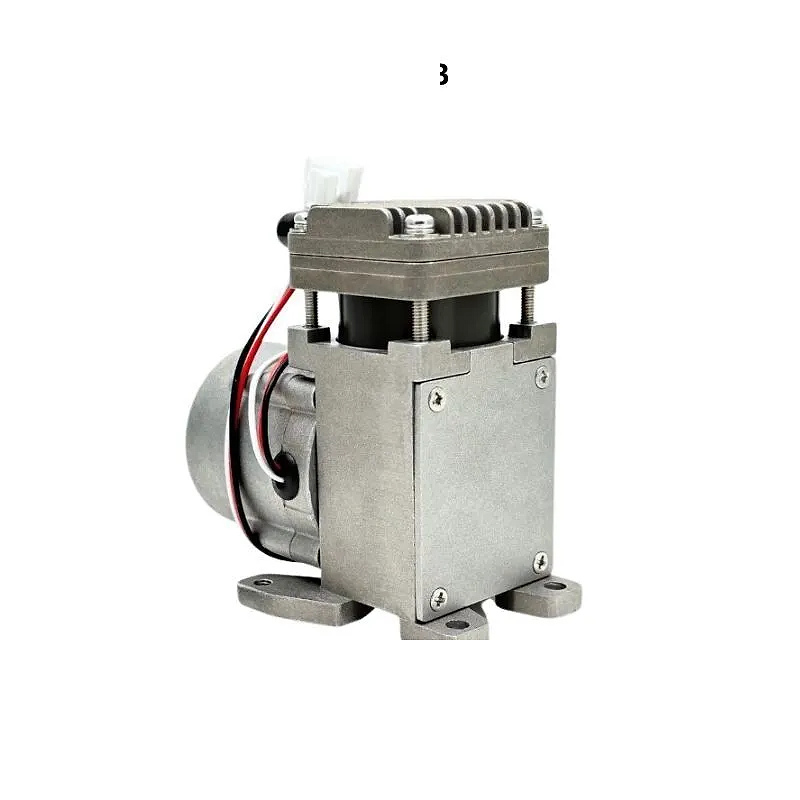

Rear view of OD-08AB-S OD-08VB-S brushless piston air compressor — Product view 2

Product data

Technical specifications

The following specifications apply to OD-08AB-S / OD-08VB-S. Also consider the medium, working point, power supply, duty cycle and installation conditions when selecting the product.

Voltage24V

Air flow20-45L/min

Pressure6-7bar

Vacuum-85kpa

Motorbrushless

CategorySpecification

ModelOD-08AB-S / OD-08VB-S

Pump TypeSwing Piston Air Compressor

Positive Pressure ModelOD-08AB-S

Vacuum ModelOD-08VB-S

Rated Voltage24 V DC

Maximum Flow (Pressure Model)45 L/min (1.59 CFM)

Maximum Pressure6-7 bar (101.5 psi / 700 kPa / 7000 mbar / 0.7 MPa)

Maximum Flow (Vacuum Model)40 L/min (1.41 CFM)

Maximum Vacuum-85 kPa (-25.1 inHg / -850 mbar / -637 mmHg)

Motor TypeBrushless DC Motor

Rated Current＜3.5 A

Noise Level65-75 dB

Duty CycleContinuous or Intermittent

Service Life≥5,000 hours

Tubing SizeID 4 mm / OD 8 mm

Dimensions100 × 67.4 × 97 mm

Weight690 g

ComponentMaterial

Pump HeadAluminum Alloy

Pump BodyAluminum Alloy

ValveHigh-Temperature & High-Pressure Silicone

Piston CupPTFE (Polytetrafluoroethylene)

Technical drawings

OD-08AB-S / OD-08VB-S dimensions and performance graphics

Images classified as dimensional drawings, specification graphics or performance curves are grouped here.

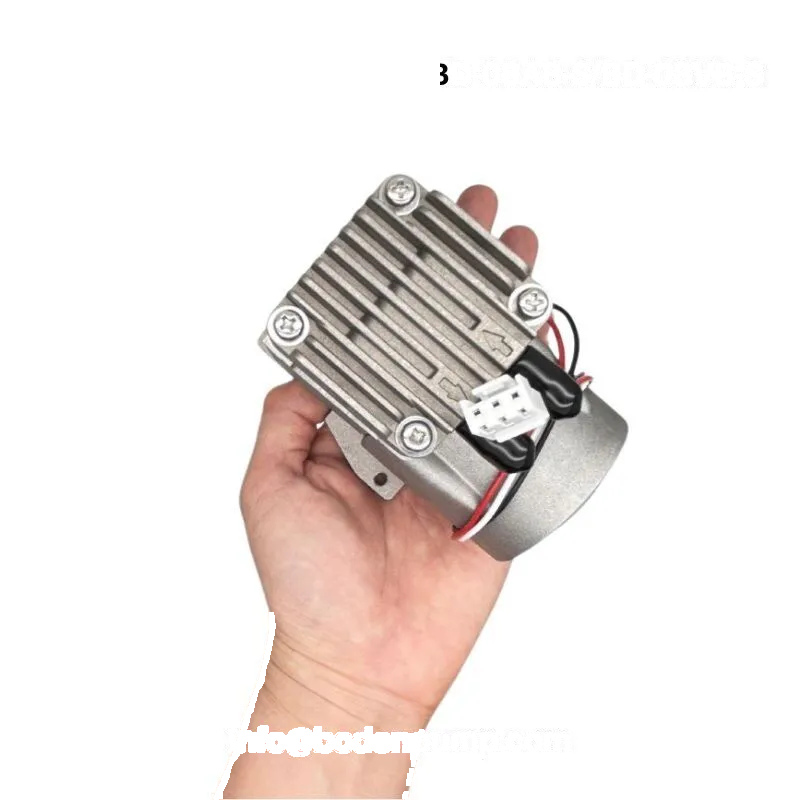

Compact OD-08AB-S OD-08VB-S 24V swing piston air compressor held in one hand — Technical drawing 1

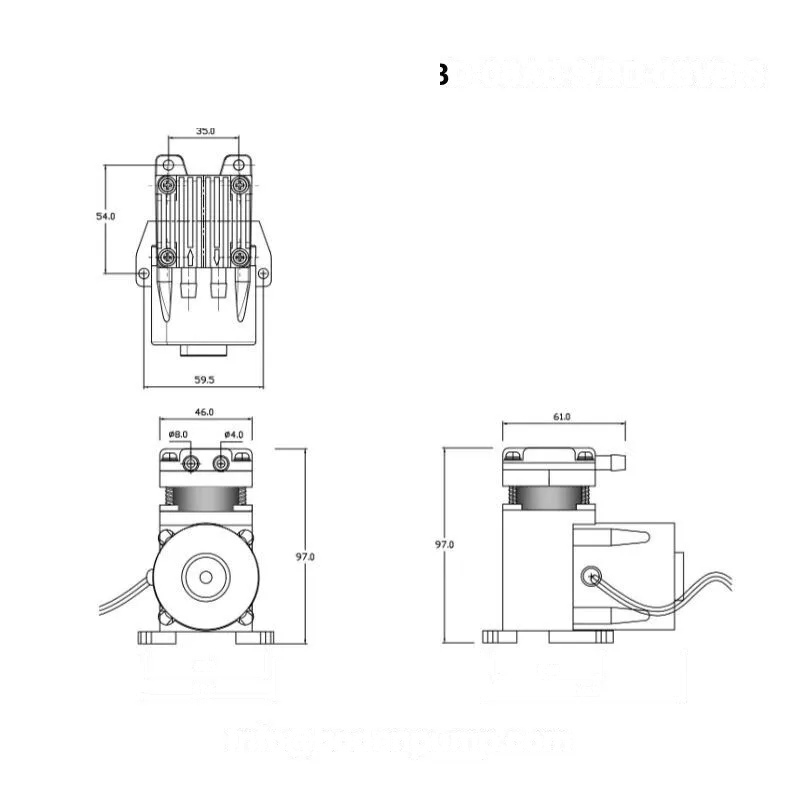

OD-08AB-S OD-08VB-S mini compressor dimensional drawing — Technical drawing 2

Application and configuration

OD-08AB-S / OD-08VB-S application fit

Use these notes to translate brochure data into selection questions: application, working point, noise, lifetime, voltage options and nearby model alternatives.

Application scenarios

Typical uses include pressure supply, compact compression and vacuum or air modules inside instruments, automation systems and OEM equipment.

Working-point review

Confirm the pressure, flow and duty cycle at the equipment inlet, then compare startup load and thermal rise under the intended enclosure condition.

Noise, lifetime and voltage

Review voltage, current, motor type, cooling condition, vibration isolation and target lifetime before requesting samples.

Voltage: 24V
Air flow: 20-45L/min
Pressure: 6-7bar
Vacuum: -85kpa

Model comparison

OD-08AB-S / OD-08VB-S and nearby alternatives

When flow, pressure or vacuum, voltage, size or lifetime requirements change, compare nearby models before requesting a custom configuration.

Model	Category	Key specifications	Next action
OD-08AB-S / OD-08VB-S	Miniature compressor	Voltage 24V; Air flow 20-45L/min; Pressure 6-7bar	Current model
OD-08A-D / OD-08V-D	Miniature compressor	Voltage 24V; Air flow 80L/min(40L/minx2); Pressure 2-7bar	View model
OD-05TVB	Miniature compressor	Voltage DC 12V/24V; Air flow 7.2L/min; Vacuum -72kPa or -90kPa	View model
OD-08AB-D / OD-08VB-D	Miniature compressor	Voltage 24V; Air flow 80L/min(40L/minx2); Pressure 2-7bar	View model

Technical resources

Downloads

View product documents and engineering drawings for the OD-08AB-S series. For 3D files matched to OD-08AB-S / OD-08VB-S, include the current model in the RFQ.

Product documents and 2D drawings

View PDF product documents and engineering drawings for the OD-08AB-S series.

View PDF resources

CAD and configuration files

Submit the model, working point and mounting requirements for files matched to the project configuration.

Request CAD files

Request a quote for OD-08AB-S / OD-08VB-S

Provide the medium, flow, pressure or vacuum, voltage, duty cycle and mounting requirements so we can match the product configuration and supporting documents.

Submit product RFQ
