Application scenarios
Typical uses include compact air delivery, vacuum duty, sampling and equipment-level pneumatic functions where a piston architecture is preferred.
OD-05TR17LB

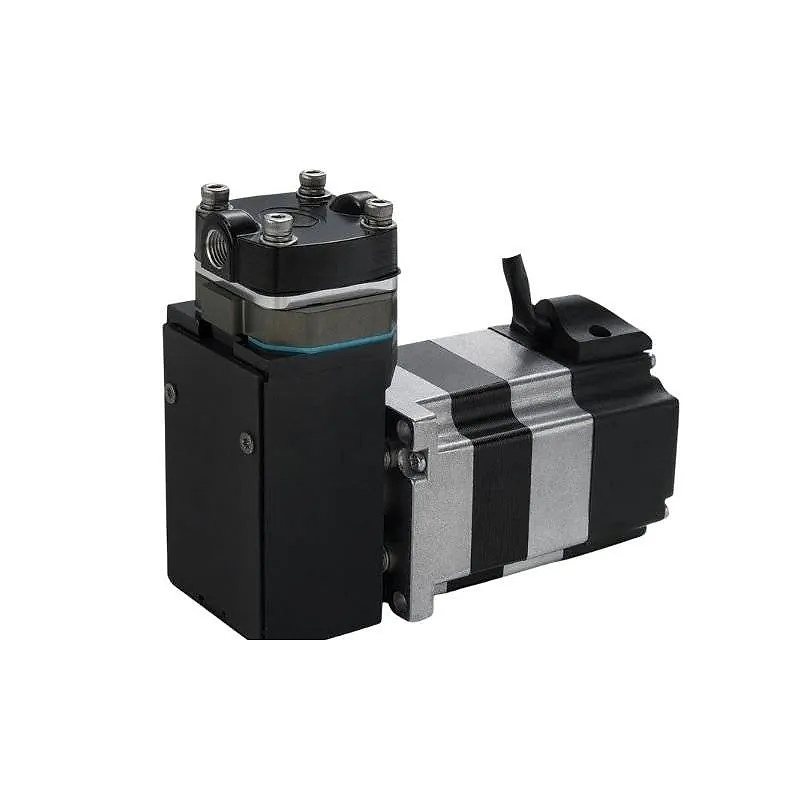

Micro Piston Pump 10bar 12V OillessBrushless Compressor pump 24V Vacuum OD-05TR17LB
Oil-free micro piston pump with up to 10 bar pressure and -85 kPa vacuum. Compact, brushless design for high-pressure OEM pneumatic systems.
Piston air / vacuum pumpOD-05TR17LB33 technical parameters1 technical drawings
Product functions
Key functions
OD-05TR17LB supports the following roles in equipment fluid systems. Use the technical parameters below together with the actual working point for selection.
Function 1Air delivery
Function 2Vacuum duty
Function 3Equipment integration
Product data
Technical specifications
The following specifications apply to OD-05TR17LB. Also consider the medium, working point, power supply, duty cycle and installation conditions when selecting the product.
Voltage12V / 24V
Max Flow17L/min
Max Vacuum-85 kPa
Max Pressure8-10Bar (almost no flow at 10Bar)
MotorHigh-end brushless DC motor
Max Power50W
Weight963g
ParameterValue
ModelOD-05TR17LB
Voltage Range12 / 24 V DC
Maximum Flow17 L/min (float flowmeter)
Max Negative Pressure-85 kPa
Max Positive Pressure8-10 bar (almost no flow at 10bar )
Motor TypeHigh-end DC brushless motor
Max Power50 W
Storage Temperature-40 ℃ ~ 60 ℃
Operating Environment-20 ℃ ~ 45 ℃
Medium Temperature-10 ℃ ~ 45 ℃
Inlet / OutletG1/8 threaded
Dimensions (L×W×H)124 × 57 × 109 mm
Weight963 g
ComponentMaterial / Performance
Pump HeadAluminum alloy
Valve PlateStainless steel
Piston CupPTFE
Pump BodyAluminum alloy
Customization AspectAvailable Options
Piston Cup / Valve MaterialsPTFE, Stainless steel (custom options)
Voltage12 V / 24 V
Connector TypeBased on customer model
Label / BrandingBased on the model provided by the customer
Mounting OptionsCustomized brackets, shock-absorbing mounts
Cable / ConnectorCustom cable length and terminal type
Technical drawings

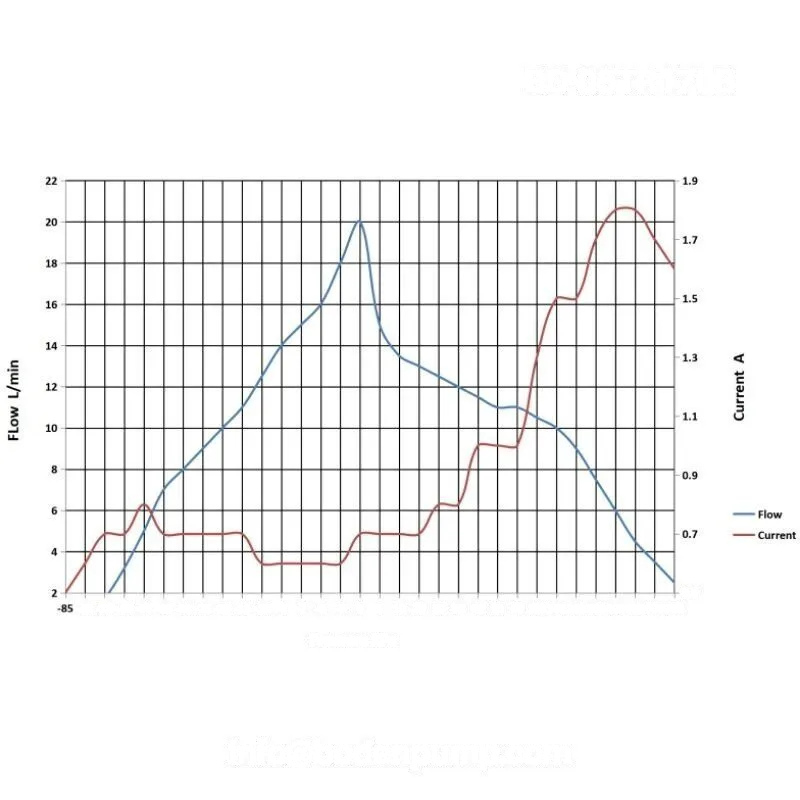

OD-05TR17LB dimensions and performance graphics
Images classified as dimensional drawings, specification graphics or performance curves are grouped here.
Application and configuration
OD-05TR17LB application fit
Use these notes to translate brochure data into selection questions: application, working point, noise, lifetime, voltage options and nearby model alternatives.
Working-point review
Compare the required pressure or vacuum against the stated flow, then allow margin for fittings, filters and changes in duty cycle.
Noise, lifetime and voltage
Review voltage, motor choice, noise target, lifetime target and mounting conditions before locking the sample configuration.
- Voltage
- 12V / 24V
- Max Flow
- 17L/min
- Max Vacuum
- -85 kPa
- Max Pressure
- 8-10Bar (almost no flow at 10Bar)
Model comparison
OD-05TR17LB and nearby alternatives
When flow, pressure or vacuum, voltage, size or lifetime requirements change, compare nearby models before requesting a custom configuration.
| Model | Category | Key specifications | Next action |
|---|---|---|---|
| OD-05TR17LB | Piston air / vacuum pump | Voltage 12V / 24V; Max Flow 17L/min; Max Vacuum -85 kPa | Current model |
| OD-079A-M / OD-079V-M | Piston air / vacuum pump | Voltage 24V; Air flow 30-50L/min; Pressure 7bar | View model |
| OD-07A / OD-07V | Piston air / vacuum pump | Voltage DC 12V/24V; Air flow 15L/minup to 40L/min; Pressure 4.5 bar up to 6.5 bar | View model |
| OD-07A-M / OD-07V-M | Piston air / vacuum pump | Voltage DC 12V/24V; Air flow 15L/minup to 40L/min; Pressure 4.5 bar up to 6.5 bar | View model |
Technical resources
Downloads
View product documents and engineering drawings for the OD-05TR17LB series. For 3D files matched to OD-05TR17LB, include the current model in the RFQ.
OD-05TR17LB Wiring Diagram & Speed Control Guide
Locally synchronized file, 124 KB.
Download PDFOD-05TR17LB Micro Piston Pump
Locally synchronized file, 161 KB.
Download PDFProduct documents and 2D drawings
View PDF product documents and engineering drawings for the OD-05TR17LB series.
View PDF resourcesCAD and configuration files
Submit the model, working point and mounting requirements for files matched to the project configuration.
Request CAD filesContinue browsing
Related pump models
Piston air / vacuum pump
OD-079A-M/OD-079V-M Oilless OEM Small Piston Air Vacuum Pumps And Compressors
View product
Piston air / vacuum pump
OD-07A-M/OD-07V-M oilless Small Piston Air Vacuum Pump Pneumatic Air Suction Pumps
View productRequest a quote for OD-05TR17LB
Provide the medium, flow, pressure or vacuum, voltage, duty cycle and mounting requirements so we can match the product configuration and supporting documents.
