Application scenarios
Typical uses include gas sampling, compact analyzers, medical equipment, beauty equipment and small pneumatic modules that need clean air transfer or vacuum generation.
OD-05T01HR5LB
Rotary Vane Vacuum Pump Stainless Steel 6V Gas Sampling Pump OD-05T01HR5LB JSG
Oil-free rotary vane vacuum pump with 5.5 L/min flow, low vibration, and stable airflow. Ideal for VOC sampling, gas analyzers, and portable OEM devices
Diaphragm air / vacuum pumpOD-05T01HR5LB28 technical parameters2 technical drawings
Product functions
Key functions
OD-05T01HR5LB supports the following roles in equipment fluid systems. Use the technical parameters below together with the actual working point for selection.
Function 1Air transfer
Function 2Vacuum generation
Function 3Equipment-level integration

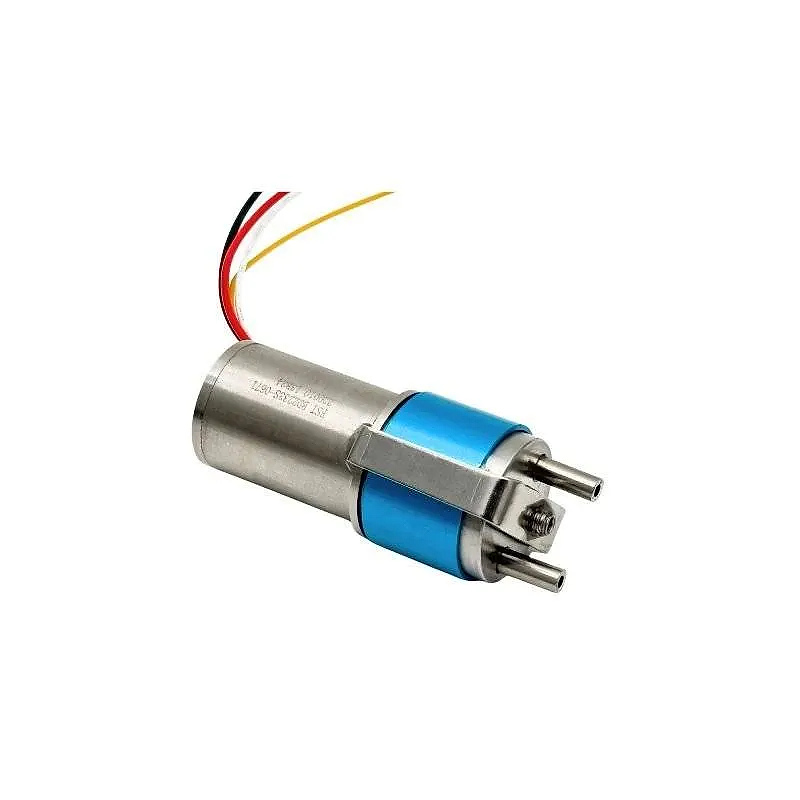

White-background imagery

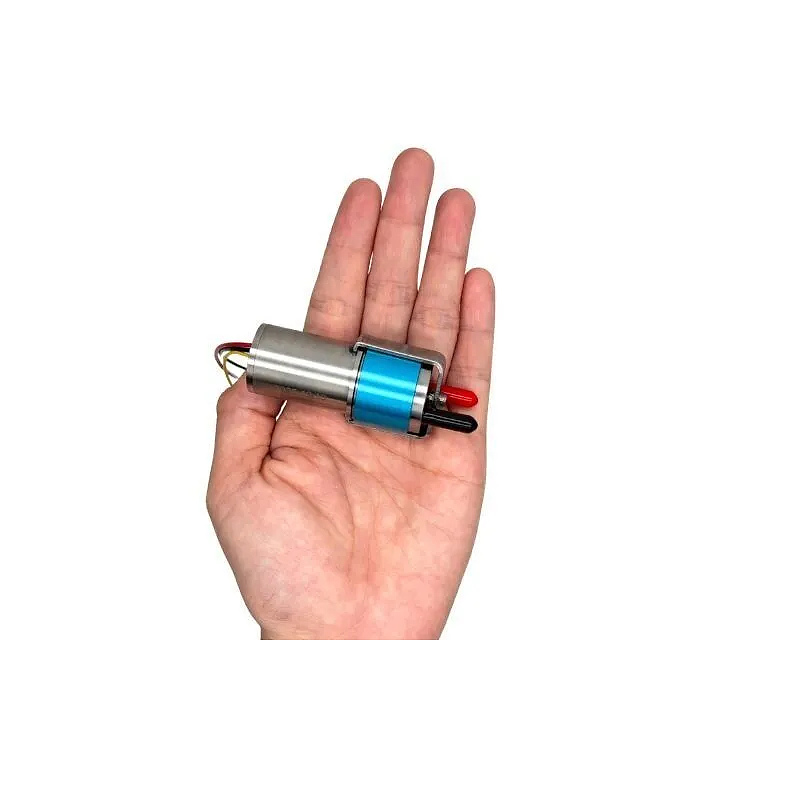

OD-05T01HR5LB product images
These images are served from the synchronized local product library as white-background product views.
Product data
Technical specifications
The following specifications apply to OD-05T01HR5LB. Also consider the medium, working point, power supply, duty cycle and installation conditions when selecting the product.
Voltage6/12/24V
Max Flow5.5 L/min (Float Flowmeter), 4.8 L/min (Electronic Flowmeter)
Max Vacuum-12kPa
Max Pressure+12kPa
MotorBrushless DC
Max Power3W
Weight118g
ParameterValue
ModelOD-05T01HR5LB
Voltage Range6V / 12V / 24V DC
Max Flow Rate5.5 L/min (Float Flowmeter), 4.8 L/min (Electronic Flowmeter)
Max Vacuum (Negative)-12 kPa
Max Pressure (Positive)+12 kPa
Motor TypeBrushless DC Motor
Max Power3 W
Protection ClassIP20
Dimensions64 × 26 × 30 mm
Weight118 g
Operating Temperature-20 ℃ ~ 50 ℃
Storage Temperature-40 ℃ ~ 60 ℃
Pump Head304 Stainless Steel - corrosion-resistant structure designed for stable clean gas handling
Pump Case304 Stainless Steel - robust housing for industrial and continuous-duty environments
VanesGraphite - self-lubricating material обеспечing smooth rotation, reduced wear, and stable output
Voltage6 V / 12 V / 24 V DC options
Cable & WiringCustomized wire length and harness configuration
Connector TypeOptional connector matching for system integration
Labeling & BrandingOEM logo printing or private label support
Mounting AccessoriesOptional plastic mounting bracket for installation support

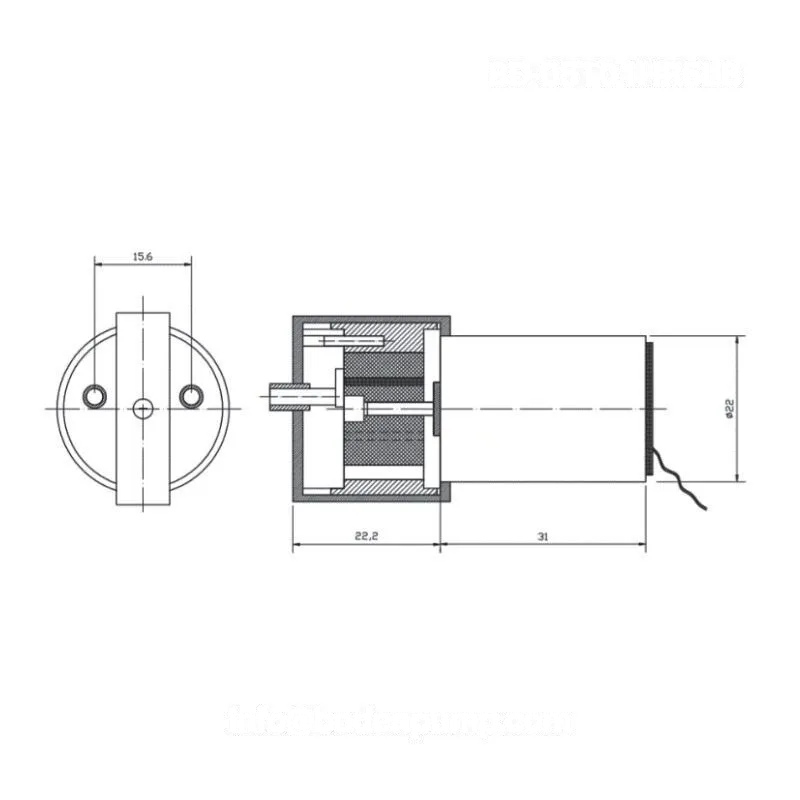

Technical drawings

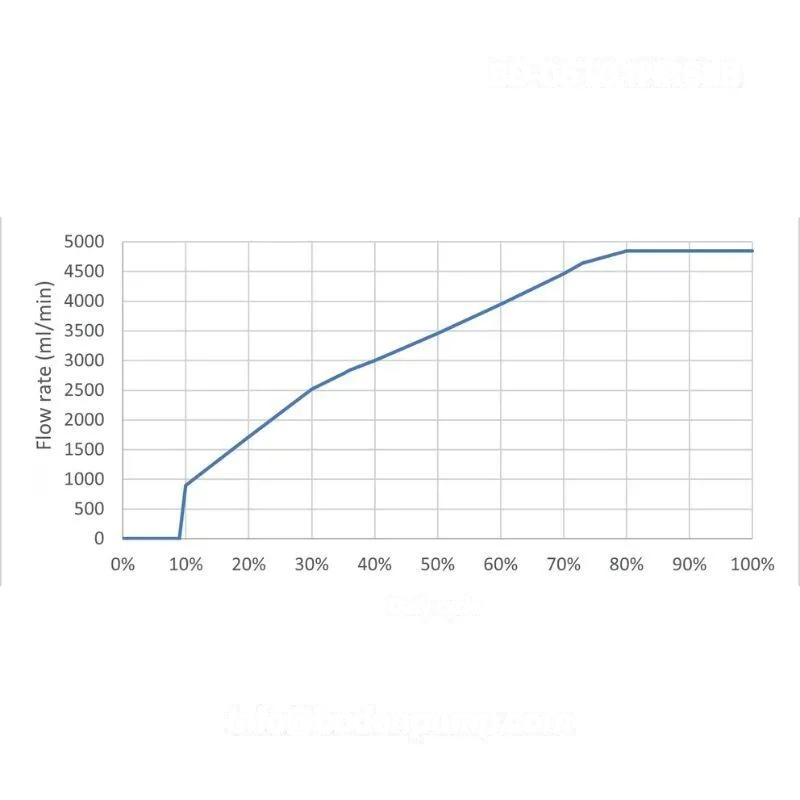

OD-05T01HR5LB dimensions and performance graphics
Images classified as dimensional drawings, specification graphics or performance curves are grouped here.
Application and configuration
OD-05T01HR5LB application fit
Use these notes to translate brochure data into selection questions: application, working point, noise, lifetime, voltage options and nearby model alternatives.
Working-point review
Confirm the loaded flow at the required pressure or vacuum, then review tubing loss, inlet filtration, valve restriction and the safety margin between nominal and maximum conditions.
Noise, lifetime and voltage
Review voltage, motor type, expected life, noise target, duty cycle and mounting isolation before requesting samples or a model-specific drawing.
- Voltage
- 6/12/24V
- Max Flow
- 5.5 L/min (Float Flowmeter), 4.8 L/min (Electronic Flowmeter)
- Max Vacuum
- -12kPa
- Max Pressure
- +12kPa
Model comparison
OD-05T01HR5LB and nearby alternatives
When flow, pressure or vacuum, voltage, size or lifetime requirements change, compare nearby models before requesting a custom configuration.
| Model | Category | Key specifications | Next action |
|---|---|---|---|
| OD-05T01HR5LB | Diaphragm air / vacuum pump | Voltage 6/12/24V; Max Flow 5.5 L/min (Float Flowmeter), 4.8 L/min (Electronic Flowmeter); Max Vacuum -12kPa | Current model |
| OD-04AB / OD-04VB | Diaphragm air / vacuum pump | Voltage 6/9/12/24V DC; Air flow 7-20lpm; Liquid flow 1.5 L/min | View model |
| OD-05T0610AC | Diaphragm air / vacuum pump | Voltage 200-220AC; Max Flow 7.5L/min; Max Vacuum -85 kPa | View model |
| OD-05T1043AC | Diaphragm air / vacuum pump | Voltage 220V; Max Flow 43L/min; Max Vacuum -89 kPa | View model |
Technical resources
Downloads
View product documents and engineering drawings for the OD-05T01HR5LB series. For 3D files matched to OD-05T01HR5LB, include the current model in the RFQ.
OD-05T01HR5LB Micro Vacuum Pump Datasheet (PDF)
Locally synchronized file, 209 KB.
Download PDFProduct documents and 2D drawings
View PDF product documents and engineering drawings for the OD-05T01HR5LB series.
View PDF resourcesCAD and configuration files
Submit the model, working point and mounting requirements for files matched to the project configuration.
