Application scenarios
Typical uses include gas sampling, compact analyzers, medical equipment, beauty equipment and small pneumatic modules that need clean air transfer or vacuum generation.
OD-05T01PZ20
Piezo Micro Pump 0.8 L/min Low noise Miniature Piezoelectric Air Pump OD-05T01PZ20 JSG
0.8 L/min piezo micro air pump with ultra-low noise and compact design. Ideal for wearable devices, cooling systems, and OEM applications.
Diaphragm air / vacuum pumpOD-05T01PZ2020 technical parameters2 technical drawings
Product functions
Key functions
OD-05T01PZ20 supports the following roles in equipment fluid systems. Use the technical parameters below together with the actual working point for selection.
Function 1Air transfer
Function 2Vacuum generation
Function 3Equipment-level integration
White-background imagery

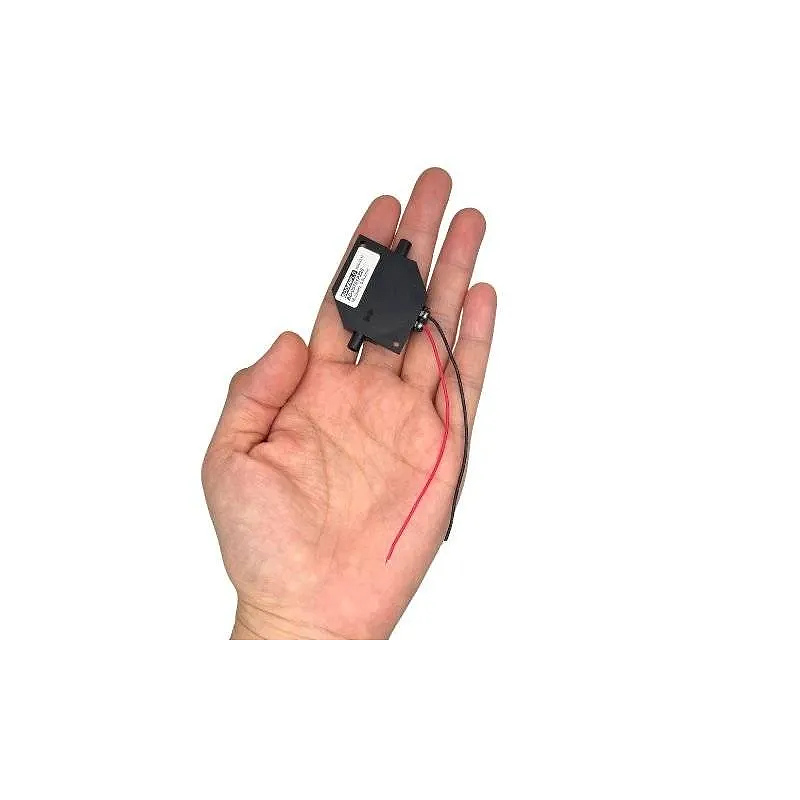

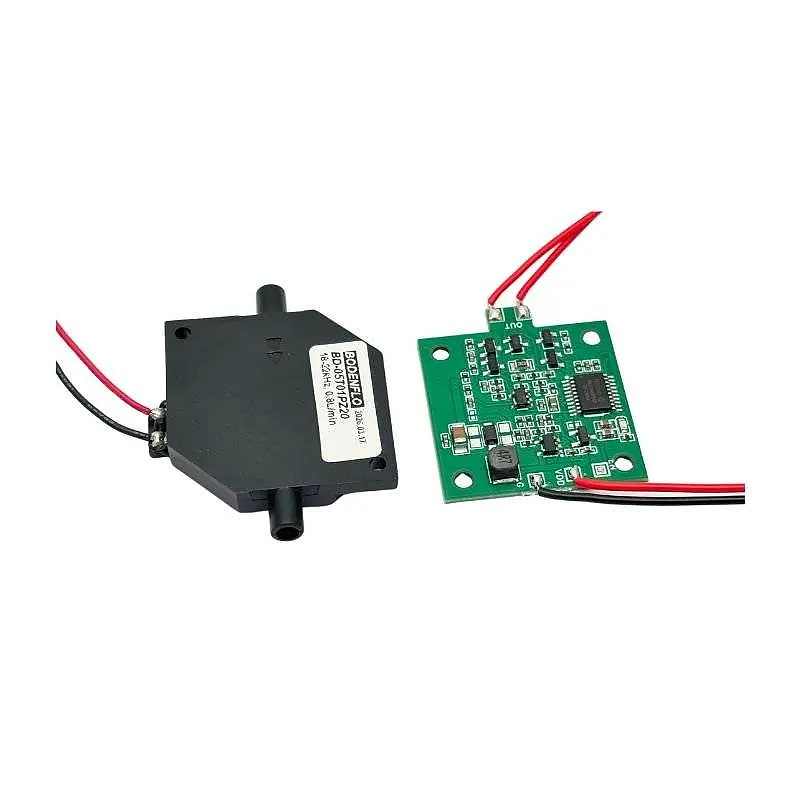

OD-05T01PZ20 product images
These images are served from the synchronized local product library as white-background product views.
Product data
Technical specifications
The following specifications apply to OD-05T01PZ20. Also consider the medium, working point, power supply, duty cycle and installation conditions when selecting the product.
Input Voltage60-70VPP
Drive Frequency18-22 kHz
Flow Rate≥0.8 L/min（ @ 28 VDC）
Positive Static Pressure≥ 20 kPa
Negative Static Pressure≤-15kpa
ParameterValue
ModelOD-05T01PZ20
Input Voltage60-70 VPP
Ambient Temperature Range5-50 °C
Flow Rate @ 28 VDC≥0.8 L/min
No-Load Flow Rate0.8 L/min
Static Pressure≥20 kPa
Static Pressure≤-15 kPa
ComponentMaterial / Feature
Pump ChamberPC housing for lightweight durability in portable analytical instruments
Inner CavityCeramic cavity for wear resistance in precision micro-flow systems
Expected Lifetime>5000 hours for long-term operation in embedded OEM equipment
Customization AspectAvailable Options
Cable & ConnectorOEM wiring harness
Product LabelOEM branding or model number
Technical drawings

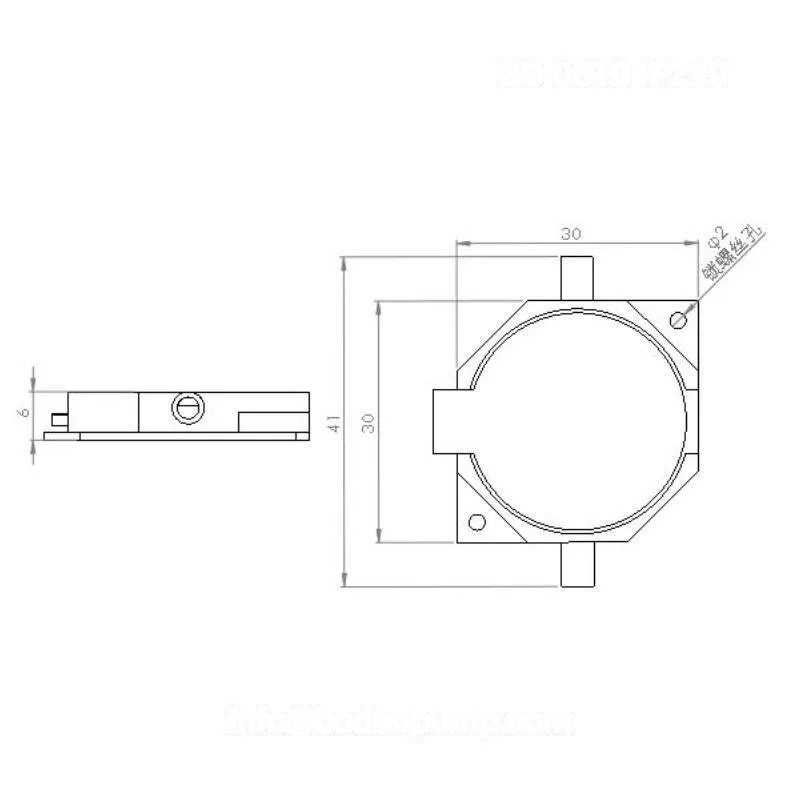

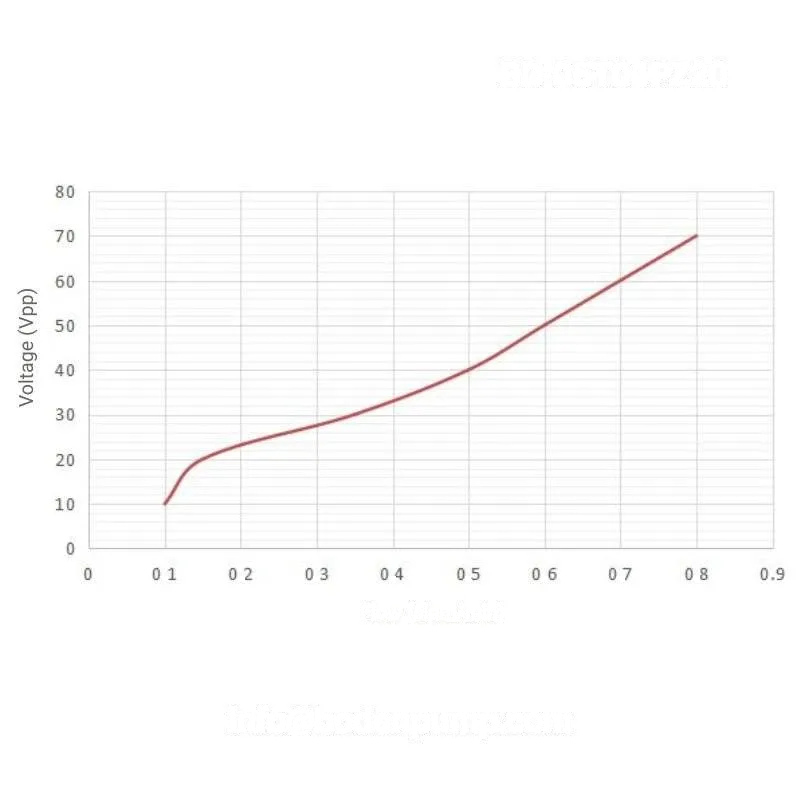

OD-05T01PZ20 dimensions and performance graphics
Images classified as dimensional drawings, specification graphics or performance curves are grouped here.
Application and configuration
OD-05T01PZ20 application fit
Use these notes to translate brochure data into selection questions: application, working point, noise, lifetime, voltage options and nearby model alternatives.
Working-point review
Confirm the loaded flow at the required pressure or vacuum, then review tubing loss, inlet filtration, valve restriction and the safety margin between nominal and maximum conditions.
Noise, lifetime and voltage
Review voltage, motor type, expected life, noise target, duty cycle and mounting isolation before requesting samples or a model-specific drawing.
- Input Voltage
- 60-70VPP
- Drive Frequency
- 18-22 kHz
- Flow Rate
- ≥0.8 L/min（ @ 28 VDC）
- Positive Static Pressure
- ≥ 20 kPa
Model comparison
OD-05T01PZ20 and nearby alternatives
When flow, pressure or vacuum, voltage, size or lifetime requirements change, compare nearby models before requesting a custom configuration.
| Model | Category | Key specifications | Next action |
|---|---|---|---|
| OD-05T01PZ20 | Diaphragm air / vacuum pump | Input Voltage 60-70VPP; Drive Frequency 18-22 kHz; Flow Rate ≥0.8 L/min（ @ 28 VDC） | Current model |
| OD-04AB / OD-04VB | Diaphragm air / vacuum pump | Voltage 6/9/12/24V DC; Air flow 7-20lpm; Liquid flow 1.5 L/min | View model |
| OD-05T0610AC | Diaphragm air / vacuum pump | Voltage 200-220AC; Max Flow 7.5L/min; Max Vacuum -85 kPa | View model |
| OD-05T1043AC | Diaphragm air / vacuum pump | Voltage 220V; Max Flow 43L/min; Max Vacuum -89 kPa | View model |
Technical resources
Downloads
View product documents and engineering drawings for the OD-05T01PZ20 series. For 3D files matched to OD-05T01PZ20, include the current model in the RFQ.
OD-05T01PZ20 Piezo Micro Pump Datasheet (PDF)
Locally synchronized file, 143 KB.
Download PDFProduct documents and 2D drawings
View PDF product documents and engineering drawings for the OD-05T01PZ20 series.
View PDF resourcesCAD and configuration files
Submit the model, working point and mounting requirements for files matched to the project configuration.
Request CAD filesContinue browsing
Related pump models
Diaphragm air / vacuum pump
220V 50HZ Sampling Pump AC Gas Diaphragm Pump For CEMS OD-05T0610AC
View product
Diaphragm air / vacuum pump
Oil-Free Diaphragm Vacuum Pump AC 220V 43L Small High Vacuum Pumps -89KPA OD-05T1043AC JSG
View productRequest a quote for OD-05T01PZ20
Provide the medium, flow, pressure or vacuum, voltage, duty cycle and mounting requirements so we can match the product configuration and supporting documents.
