Application scenarios
Typical uses include gas sampling, compact analyzers, medical equipment, beauty equipment and small pneumatic modules that need clean air transfer or vacuum generation.
OD-05T01PZ08
Piezoelectric Disc Pump 0.8LPM -15kPa Tiny Vacuum Pump OD-05T01PZ08 JSG
OD-05T01PZ08 piezoelectric disc pump delivers 0.8 L/min airflow and -15 kPa vacuum for compact OEM pneumatic, sampling, and dry-air control systems.
Diaphragm air / vacuum pumpOD-05T01PZ0823 technical parameters1 technical drawings
Product functions
Key functions
OD-05T01PZ08 supports the following roles in equipment fluid systems. Use the technical parameters below together with the actual working point for selection.
Function 1Air transfer
Function 2Vacuum generation
Function 3Equipment-level integration
White-background imagery

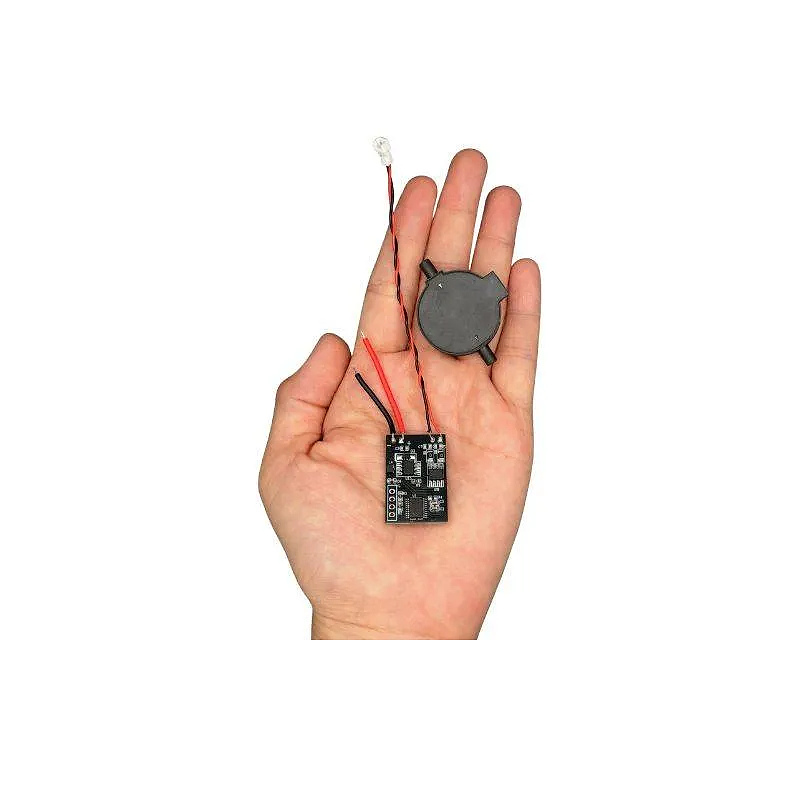

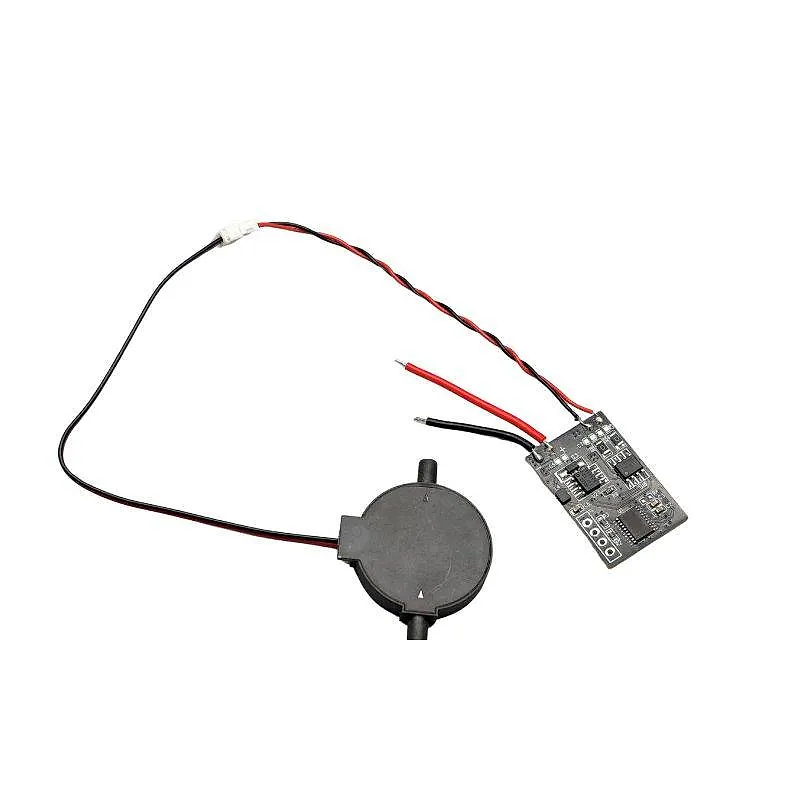

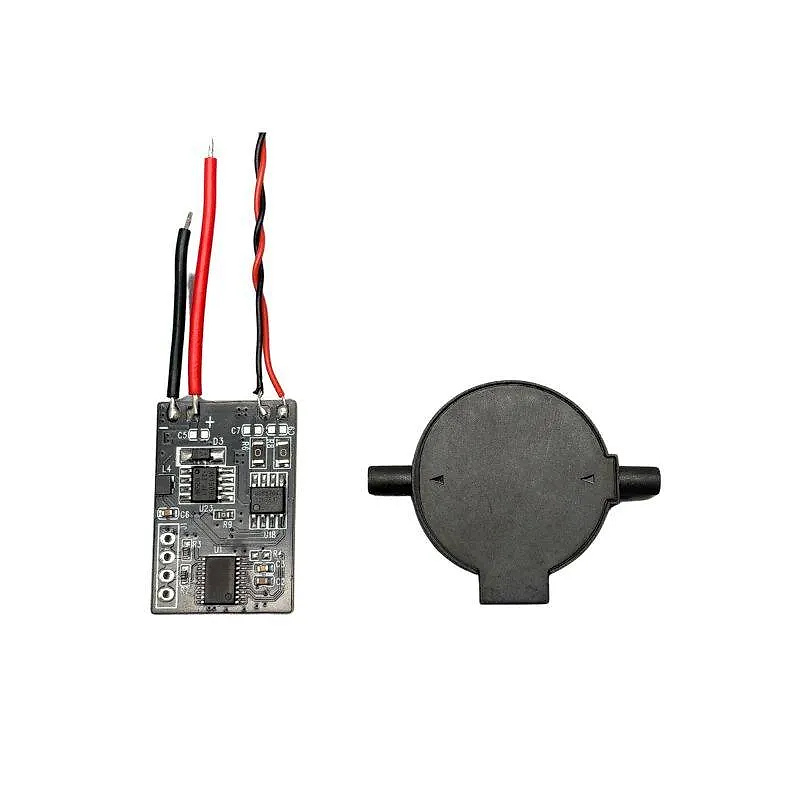

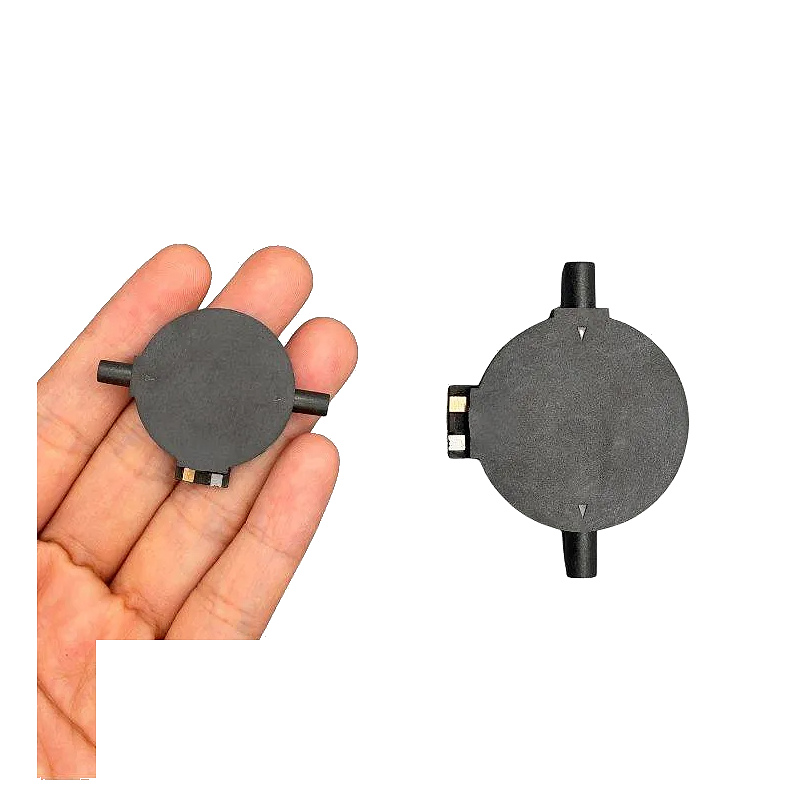

OD-05T01PZ08 product images
These images are served from the synchronized local product library as white-background product views.
Product data
Technical specifications
The following specifications apply to OD-05T01PZ08. Also consider the medium, working point, power supply, duty cycle and installation conditions when selecting the product.
Drive Voltage18-30V DC
Drive Frequency18-22 kHz
Drive Resonant Frequency19.5 kHz
Flow Rate @ 28V DC≥0.8 L/min
Vacuum Pressure @ 28V DC≤-15 kPa
Ambient Temperature1-45°C
ParameterValue
Resonant Frequency19.5 kHz
No-Load Flow Rate0.8 L/min @ 28V DC
Static Pressure-15 kPa @ 28V DC
Recommended Surface Temperature≤60°C
Weight5.5 g
ComponentMaterial / Feature
HousingPC (Polycarbonate)
Piezoelectric ElementPiezoelectric Ceramic
Pump TechnologyUltrasonic Piezoelectric Airflow Generation
MotorMotor-Free Design
Driver ConfigurationIntegrated Driver Board or External Driver
Operating EnvironmentClean, Dry Air
Waterproof RatingNot Waterproof
Customization ItemAvailable Options
Wiring LengthCustom wire length available
Connector TypeOEM-specific connectors available
Technical drawings

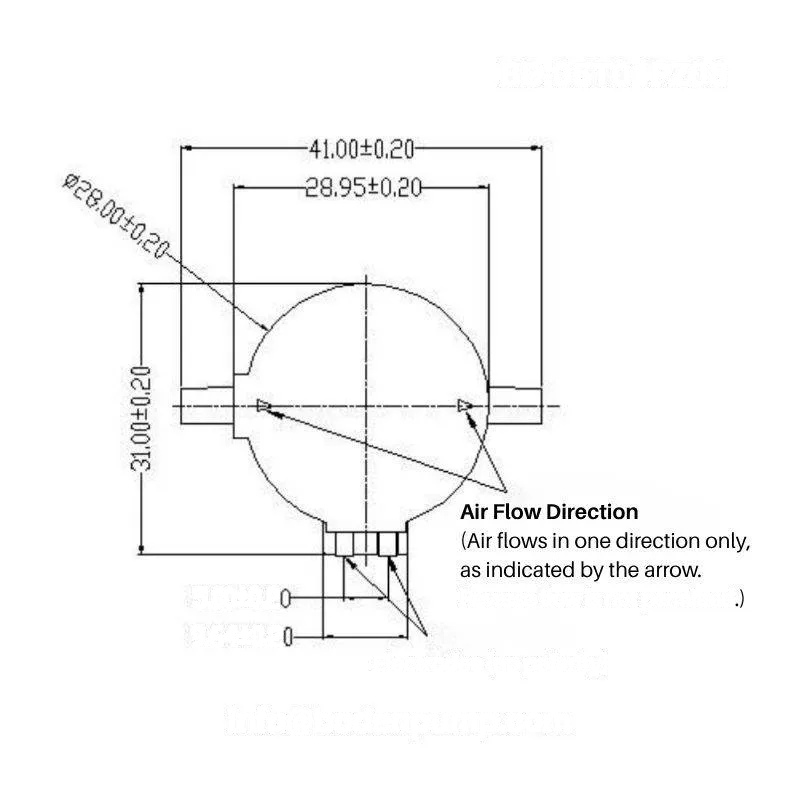

OD-05T01PZ08 dimensions and performance graphics
Images classified as dimensional drawings, specification graphics or performance curves are grouped here.
Application and configuration
OD-05T01PZ08 application fit
Use these notes to translate brochure data into selection questions: application, working point, noise, lifetime, voltage options and nearby model alternatives.
Working-point review
Confirm the loaded flow at the required pressure or vacuum, then review tubing loss, inlet filtration, valve restriction and the safety margin between nominal and maximum conditions.
Noise, lifetime and voltage
Review voltage, motor type, expected life, noise target, duty cycle and mounting isolation before requesting samples or a model-specific drawing.
- Drive Voltage
- 18-30V DC
- Drive Frequency
- 18-22 kHz
- Drive Resonant Frequency
- 19.5 kHz
- Flow Rate @ 28V DC
- ≥0.8 L/min
Model comparison
OD-05T01PZ08 and nearby alternatives
When flow, pressure or vacuum, voltage, size or lifetime requirements change, compare nearby models before requesting a custom configuration.
| Model | Category | Key specifications | Next action |
|---|---|---|---|
| OD-05T01PZ08 | Diaphragm air / vacuum pump | Drive Voltage 18-30V DC; Drive Frequency 18-22 kHz; Drive Resonant Frequency 19.5 kHz | Current model |
| OD-04AB / OD-04VB | Diaphragm air / vacuum pump | Voltage 6/9/12/24V DC; Air flow 7-20lpm; Liquid flow 1.5 L/min | View model |
| OD-05T0610AC | Diaphragm air / vacuum pump | Voltage 200-220AC; Max Flow 7.5L/min; Max Vacuum -85 kPa | View model |
| OD-05T1043AC | Diaphragm air / vacuum pump | Voltage 220V; Max Flow 43L/min; Max Vacuum -89 kPa | View model |
Technical resources
Downloads
View product documents and engineering drawings for the OD-05T01PZ08 series. For 3D files matched to OD-05T01PZ08, include the current model in the RFQ.
OD-05T01PZ08 Piezoelectric Micro Air Pump User Guide Specification Download (PDF)
Locally synchronized file, 141 KB.
Download PDFOD-05T01PZ08 Piezoelectric Disc Pump Datasheet (PDF)
Locally synchronized file, 123 KB.
Download PDFProduct documents and 2D drawings
View PDF product documents and engineering drawings for the OD-05T01PZ08 series.
View PDF resourcesCAD and configuration files
Submit the model, working point and mounting requirements for files matched to the project configuration.
Request CAD filesContinue browsing
Related pump models
Diaphragm air / vacuum pump
220V 50HZ Sampling Pump AC Gas Diaphragm Pump For CEMS OD-05T0610AC
View product
Diaphragm air / vacuum pump
Oil-Free Diaphragm Vacuum Pump AC 220V 43L Small High Vacuum Pumps -89KPA OD-05T1043AC JSG
View productRequest a quote for OD-05T01PZ08
Provide the medium, flow, pressure or vacuum, voltage, duty cycle and mounting requirements so we can match the product configuration and supporting documents.
