OD-05T01PZ09

Piezoelectric Micropump 2LPM 5.3g Pneumatic Micropump OD-05T01PZ09 JSG

Name: Piezoelectric Micropump 2LPM 5.3g Pneumatic Micropump OD-05T01PZ09 JSG
Brand: JSG
SKU: OD-05T01PZ09

OD-05T01PZ09 piezoelectric micropump delivers 2 L/min airflow with parallel or series connection for compact OEM pneumatic and airflow control systems.

Diaphragm air / vacuum pumpOD-05T01PZ0926 technical parameters3 technical drawings

View specifications Request this model

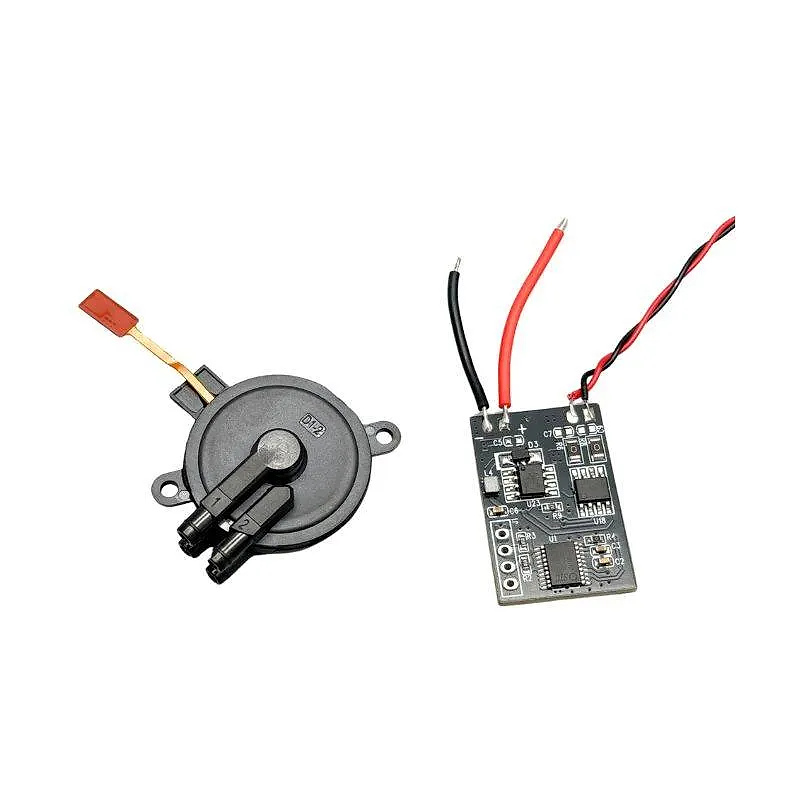

OD-05T01PZ09 piezoelectric micropump with external driver board for OEM pneumatic airflow systems

Product functions

Key functions

OD-05T01PZ09 supports the following roles in equipment fluid systems. Use the technical parameters below together with the actual working point for selection.

Function 1Air transfer

Function 2Vacuum generation

Function 3Equipment-level integration

White-background imagery

OD-05T01PZ09 product images

These images are served from the synchronized local product library as white-background product views.

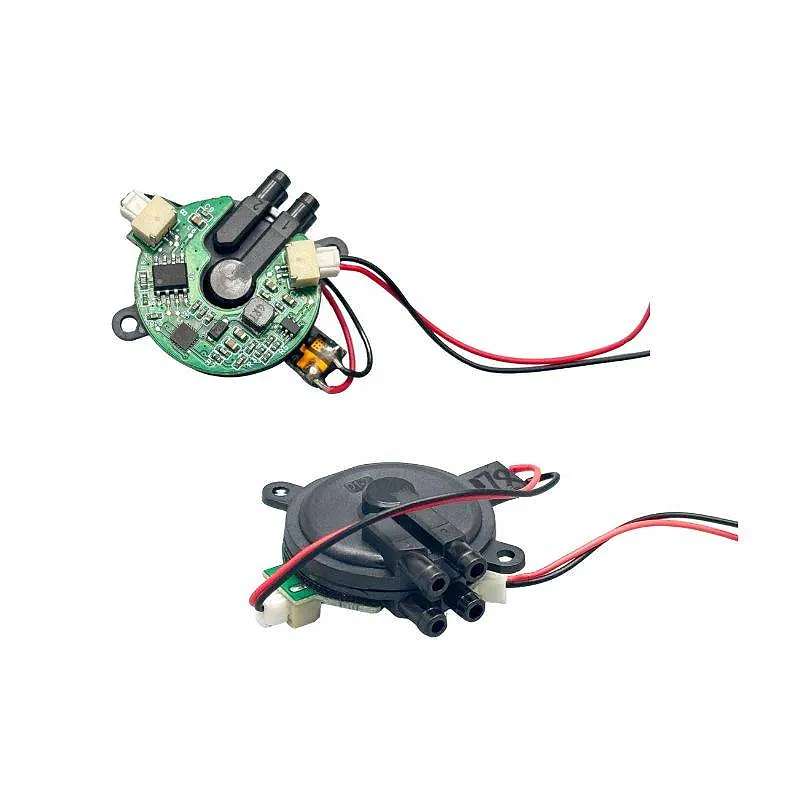

OD-05T01PZ09 pneumatic micropump with integrated round driver board for compact OEM installation — Product view 2

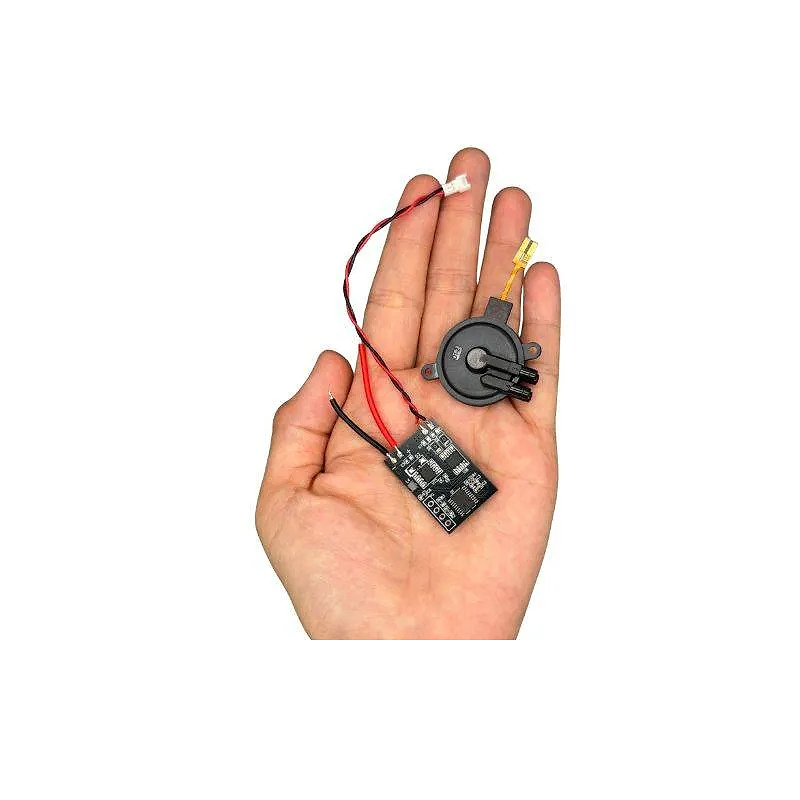

OD-05T01PZ09 compact piezo pump held in hand showing miniature size for portable devices — Product view 3

Product data

Technical specifications

The following specifications apply to OD-05T01PZ09. Also consider the medium, working point, power supply, duty cycle and installation conditions when selecting the product.

Pump Driving Voltage18-25V DC

Drive Frequency19-23 kHz

Resonant Frequency22.20 kHz

Flow Rate @ 20V DC≥2 L/min in parallel; ≥0.8 L/min in series

Output Pressure @ 20V DC≥15 kPa in parallel; ≥30 kPa in series

Ambient Temperature1-45°C

ParameterValue

Resonant Frequency22.2 kHz

No-Load Flow Rate2.0 L/min @ 20 VDC

Parallel Flow Rate≥2 L/min

Series Flow Rate≥0.8 L/min

Parallel Pressure≥15 kPa

Series Pressure≥30 kPa

Recommended Surface Temperature≤60°C

Weight5.3 g

ComponentMaterial / Feature

HousingPC (Polycarbonate)

Piezoelectric ElementPiezoelectric Ceramic

Pump TechnologyUltrasonic Piezoelectric Airflow Generation

MotorMotor-Free Design

Driver ConfigurationIntegrated Driver Board or External Driver

Operating EnvironmentClean, Dry Air

Waterproof RatingNot Waterproof

Customization ItemAvailable Options

Wiring LengthCustom wire length available

Connector TypeOEM-specific connectors available

Technical drawings

OD-05T01PZ09 dimensions and performance graphics

Images classified as dimensional drawings, specification graphics or performance curves are grouped here.

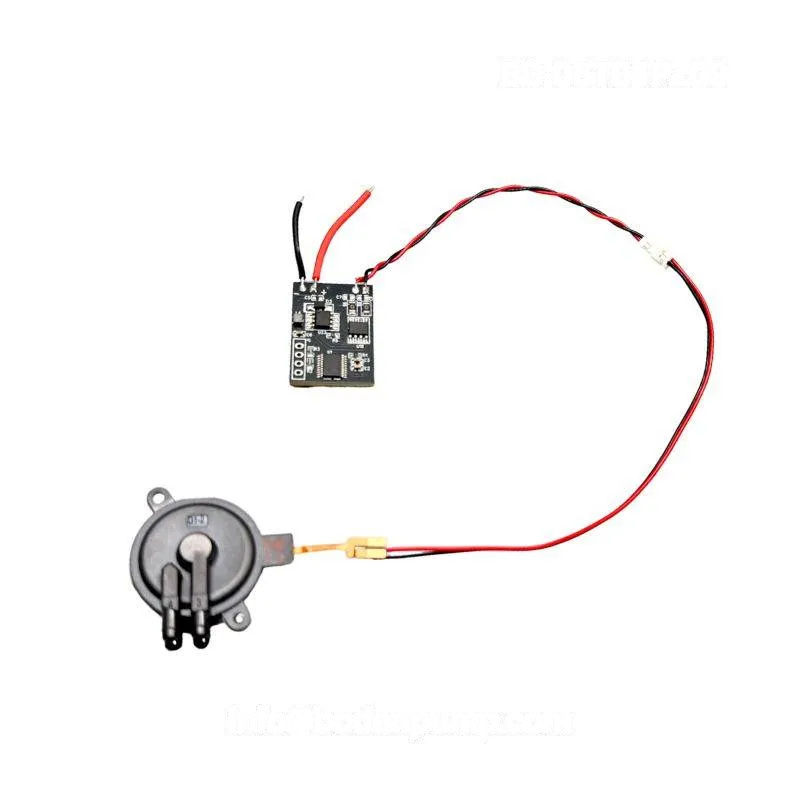

OD-05T01PZ09 piezoelectric disc pump connected to separated driver module for frequency adjustment — Technical drawing 1

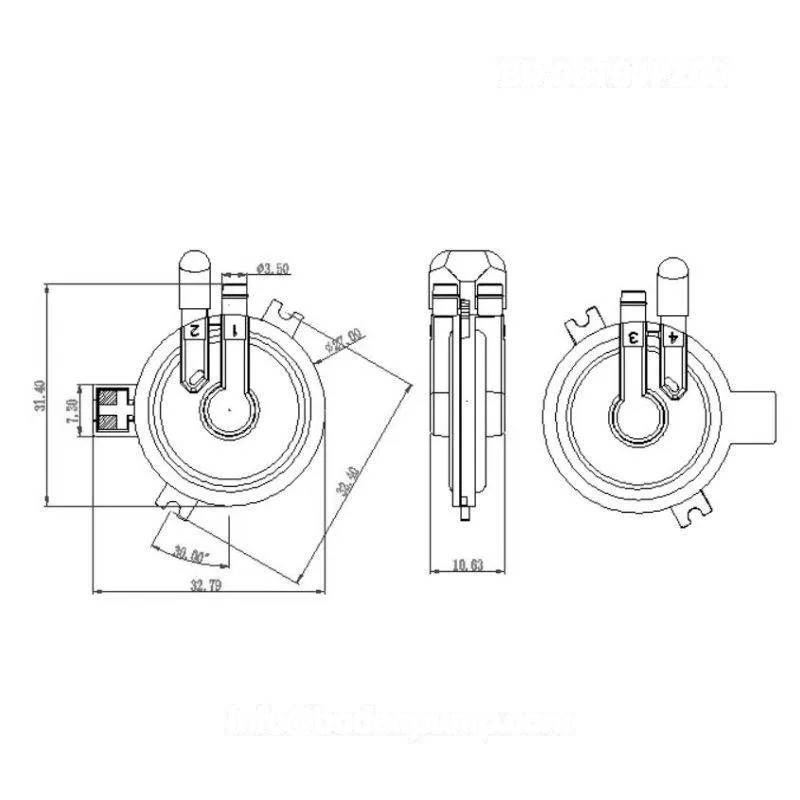

OD-05T01PZ09 piezoelectric micropump dimension drawing for OEM mechanical integration — Technical drawing 2

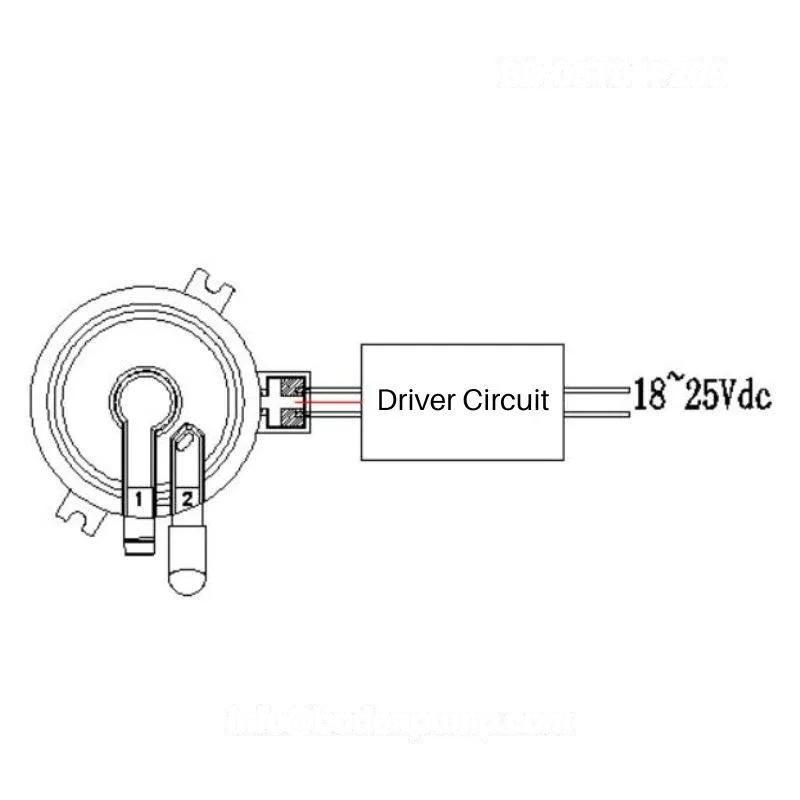

OD-05T01PZ09 piezoelectric disc pump driver circuit connection diagram with 18 to 25V DC input — Technical drawing 3

Application and configuration

OD-05T01PZ09 application fit

Use these notes to translate brochure data into selection questions: application, working point, noise, lifetime, voltage options and nearby model alternatives.

Application scenarios

Typical uses include gas sampling, compact analyzers, medical equipment, beauty equipment and small pneumatic modules that need clean air transfer or vacuum generation.

Working-point review

Confirm the loaded flow at the required pressure or vacuum, then review tubing loss, inlet filtration, valve restriction and the safety margin between nominal and maximum conditions.

Noise, lifetime and voltage

Review voltage, motor type, expected life, noise target, duty cycle and mounting isolation before requesting samples or a model-specific drawing.

Pump Driving Voltage: 18-25V DC
Drive Frequency: 19-23 kHz
Resonant Frequency: 22.20 kHz
Flow Rate @ 20V DC: ≥2 L/min in parallel; ≥0.8 L/min in series

Model comparison

OD-05T01PZ09 and nearby alternatives

When flow, pressure or vacuum, voltage, size or lifetime requirements change, compare nearby models before requesting a custom configuration.

Model	Category	Key specifications	Next action
OD-05T01PZ09	Diaphragm air / vacuum pump	Pump Driving Voltage 18-25V DC; Drive Frequency 19-23 kHz; Resonant Frequency 22.20 kHz	Current model
OD-04AB / OD-04VB	Diaphragm air / vacuum pump	Voltage 6/9/12/24V DC; Air flow 7-20lpm; Liquid flow 1.5 L/min	View model
OD-05T0610AC	Diaphragm air / vacuum pump	Voltage 200-220AC; Max Flow 7.5L/min; Max Vacuum -85 kPa	View model
OD-05T1043AC	Diaphragm air / vacuum pump	Voltage 220V; Max Flow 43L/min; Max Vacuum -89 kPa	View model

Technical resources

Downloads

View product documents and engineering drawings for the OD-05T01PZ09 series. For 3D files matched to OD-05T01PZ09, include the current model in the RFQ.

OD-05T01PZ09 Piezoelectric Micro Air Pump User Guide Specification Download (PDF)

Locally synchronized file, 149 KB.

Download PDF

OD-05T01PZ09 Piezoelectric Micropump Datasheet (PDF)

Locally synchronized file, 145 KB.

Download PDF

Product documents and 2D drawings

View PDF product documents and engineering drawings for the OD-05T01PZ09 series.

View PDF resources

CAD and configuration files

Submit the model, working point and mounting requirements for files matched to the project configuration.

Request CAD files

Request a quote for OD-05T01PZ09

Provide the medium, flow, pressure or vacuum, voltage, duty cycle and mounting requirements so we can match the product configuration and supporting documents.

Submit product RFQ
