Application scenarios
Typical uses include compact air delivery, vacuum duty, sampling and equipment-level pneumatic functions where a piston architecture is preferred.
OD-05TR17L
Piston Gas Pump 10 bar 12V 24V Small Aluminum alloy Compressor 17L Vaccum Pumps OD-05TR17L
Compact oil-free swing piston gas pump delivering up to 10 bar pressure with stable airflow for OEM pneumatic systems and industrial integration - OD-05TR17L.
Piston air / vacuum pumpOD-05TR17L31 technical parameters1 technical drawings
Product functions
Key functions
OD-05TR17L supports the following roles in equipment fluid systems. Use the technical parameters below together with the actual working point for selection.
Function 1Air delivery
Function 2Vacuum duty
Function 3Equipment integration
White-background imagery

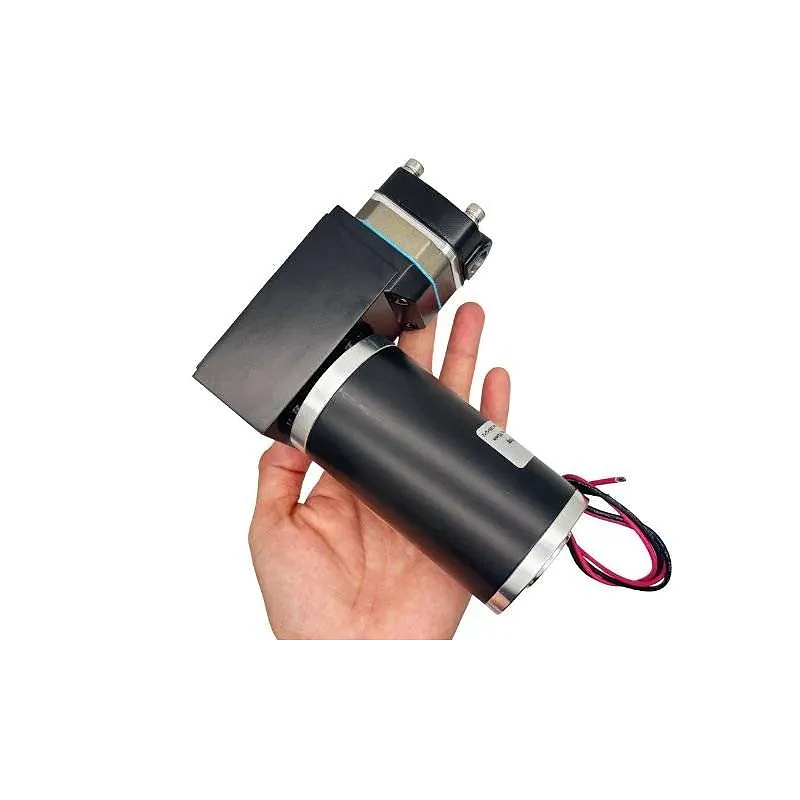

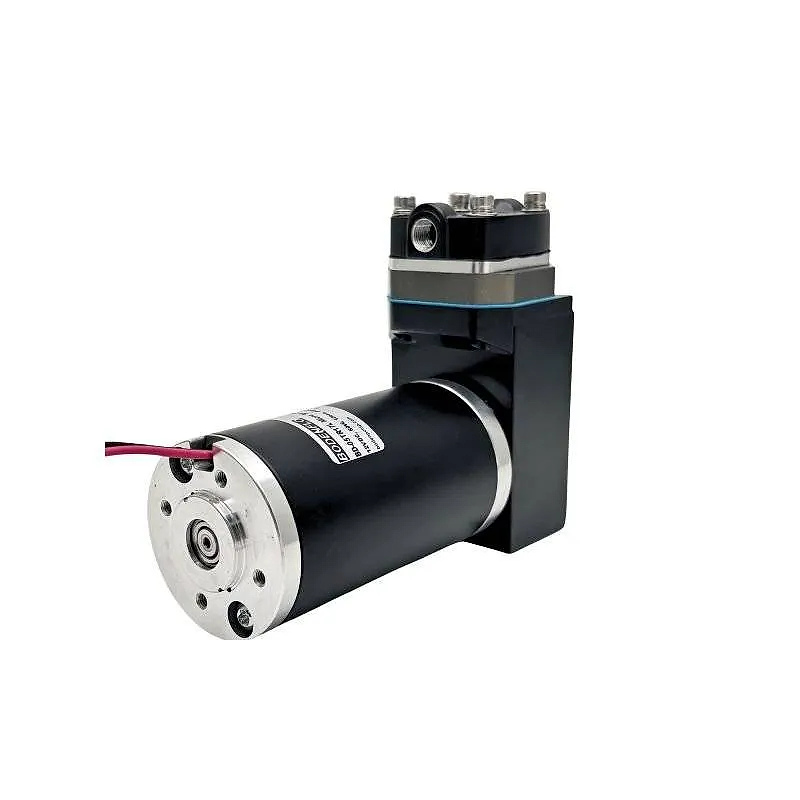

OD-05TR17L product images
These images are served from the synchronized local product library as white-background product views.
Product data
Technical specifications
The following specifications apply to OD-05TR17L. Also consider the medium, working point, power supply, duty cycle and installation conditions when selecting the product.
Voltage12V / 24V
Max Flow17L/min
Max Vacuum-85 kPa
Max Pressure8-10Bar (almost no flow at 10Bar)
MotorHigh-end DC brushed motor
Max Power50W
Weight1040g
ParameterValue
ModelOD-05TR17L
Voltage Range12 / 24 V DC
Maximum Flow17 L/min (float flowmeter)
Max Negative Pressure-85 kPa
Max Positive Pressure8-10 bar (almost no flow at 10bar)
Motor TypeHigh-end DC brushed motor
Max Power50 W
Storage Temperature-40 ℃ ~ 60 ℃
Operating Environment-20 ℃ ~ 45 ℃
Medium Temperature-10 ℃ ~ 45 ℃
Dimensions (L×W×H)136 × 52 × 109 mm
Weight1040 g
ComponentMaterial / Performance
Pump HeadAluminum alloy
Pump BodyAluminum alloy
Piston Cup / ValvePTFE / Stainless steel
Inlet / OutletG1/8 threaded
AspectAvailable Options
Voltage12 V / 24 V
ConnectorsG1/8 or customized ports
Label / BrandingBased on the model provided by the customer
Mounting OptionsCustom brackets, vibration dampers
Cable / ConnectorCustom length, custom plug types

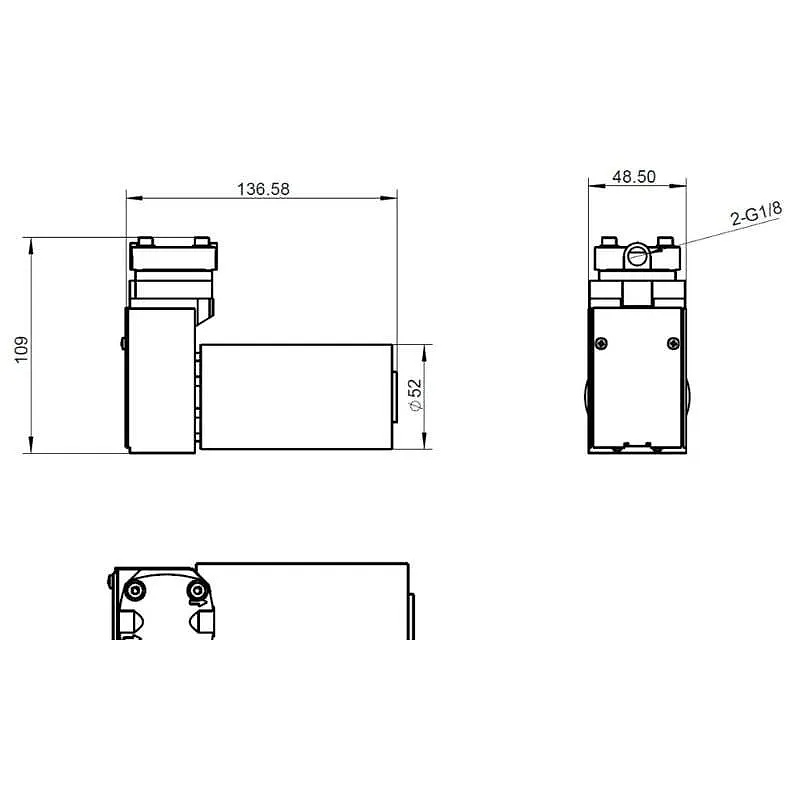

Technical drawings

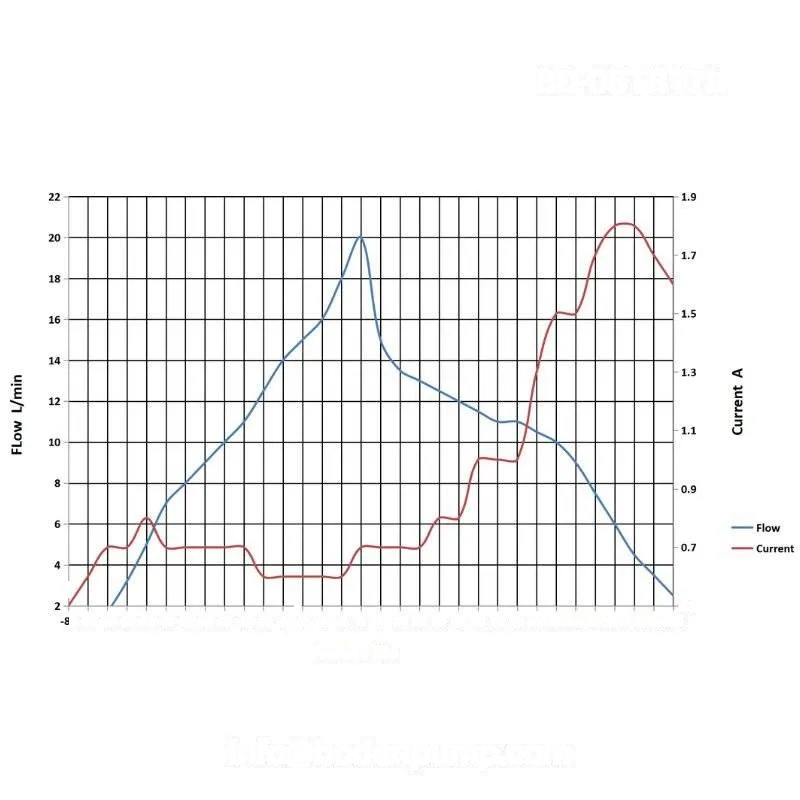

OD-05TR17L dimensions and performance graphics
Images classified as dimensional drawings, specification graphics or performance curves are grouped here.
Application and configuration
OD-05TR17L application fit
Use these notes to translate brochure data into selection questions: application, working point, noise, lifetime, voltage options and nearby model alternatives.
Working-point review
Compare the required pressure or vacuum against the stated flow, then allow margin for fittings, filters and changes in duty cycle.
Noise, lifetime and voltage
Review voltage, motor choice, noise target, lifetime target and mounting conditions before locking the sample configuration.
- Voltage
- 12V / 24V
- Max Flow
- 17L/min
- Max Vacuum
- -85 kPa
- Max Pressure
- 8-10Bar (almost no flow at 10Bar)
Model comparison
OD-05TR17L and nearby alternatives
When flow, pressure or vacuum, voltage, size or lifetime requirements change, compare nearby models before requesting a custom configuration.
| Model | Category | Key specifications | Next action |
|---|---|---|---|
| OD-05TR17L | Piston air / vacuum pump | Voltage 12V / 24V; Max Flow 17L/min; Max Vacuum -85 kPa | Current model |
| OD-079A-M / OD-079V-M | Piston air / vacuum pump | Voltage 24V; Air flow 30-50L/min; Pressure 7bar | View model |
| OD-07A / OD-07V | Piston air / vacuum pump | Voltage DC 12V/24V; Air flow 15L/minup to 40L/min; Pressure 4.5 bar up to 6.5 bar | View model |
| OD-07A-M / OD-07V-M | Piston air / vacuum pump | Voltage DC 12V/24V; Air flow 15L/minup to 40L/min; Pressure 4.5 bar up to 6.5 bar | View model |
Technical resources
Downloads
View product documents and engineering drawings for the OD-05TR17L series. For 3D files matched to OD-05TR17L, include the current model in the RFQ.
OD-05TR17L Piston Gas Pump
Locally synchronized file, 187 KB.
Download PDFProduct documents and 2D drawings
View PDF product documents and engineering drawings for the OD-05TR17L series.
View PDF resourcesCAD and configuration files
Submit the model, working point and mounting requirements for files matched to the project configuration.
Request CAD filesContinue browsing
