OD-05T068LFB

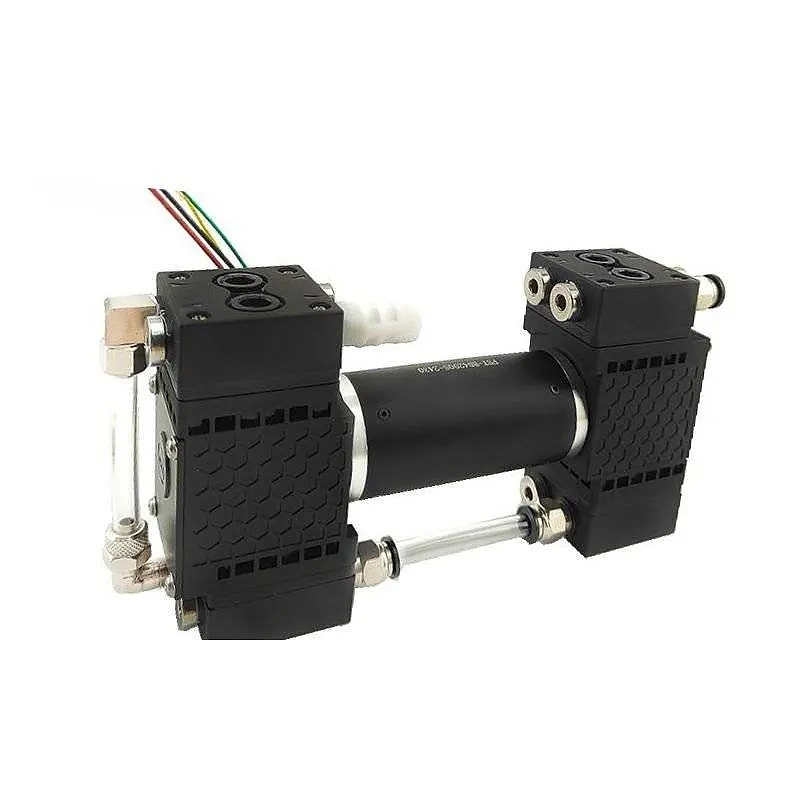

Quad-Head Diaphragm Pumps 12/24V 8L Miniature High Vacuum Pump OD-05T068LFB
JSG OD-05T068LF quad-head diaphragm pump delivers 8 L/min flow, -100 kPa vacuum, and long 8,000h life. Ideal for gas sampling and medical devices.
Diaphragm air / vacuum pumpOD-05T068LFB30 technical parameters2 technical drawings
Product functions
Key functions
OD-05T068LFB supports the following roles in equipment fluid systems. Use the technical parameters below together with the actual working point for selection.
Function 1Air transfer
Function 2Vacuum generation
Function 3Equipment-level integration
Product data
Technical specifications
The following specifications apply to OD-05T068LFB. Also consider the medium, working point, power supply, duty cycle and installation conditions when selecting the product.
Voltage12/24V
Max Flow7L/min
Max Vacuum-100 kPa
Max Pressure1 Bar
MotorBrushed motor
Max Power30W
Weight1.33kg
ParameterValue
ModelOD-05T068LFB
Voltage Range24 V DC
Maximum Flow8 L/min
Maximum Vacuum-100 kPa
Maximum Pressure1 bar
Motor TypeBrushless DC Motor
Max Power30 W
Dimensions (L×W×H)198*46*110mm
Weight1.33 kg
Storage Temperature-40 ℃ ~ 60 ℃
Operating Temperature-20 ℃ ~ 45 ℃
Life Time8,000 hours
ComponentMaterial / Performance
Pump HeadPPS (engineering thermoplastic) - high temperature resistance, stable mechanical strength
Diaphragm / ValveEPDM standard (PTFE/FKM optional for chemical compatibility)
Pump BodyAluminum alloy - lightweight yet durable
Lifetime (continuous duty)>8,000 hours in clean, non-corrosive environments
Customization AspectAvailable Options / Notes
Diaphragm MaterialsEPDM (standard), FKM (for chemical resistance), PTFE (for aggressive or corrosive gases)
Electrical Cable / ConnectorCustom cable lengths and connector types available for seamless OEM integration
Label / BrandingPrivate labeling and branding options to match customer requirements
Integration SupportEngineering guidance, CAD models, and installation advice for compact analyzers and CEMS use
Technical drawings

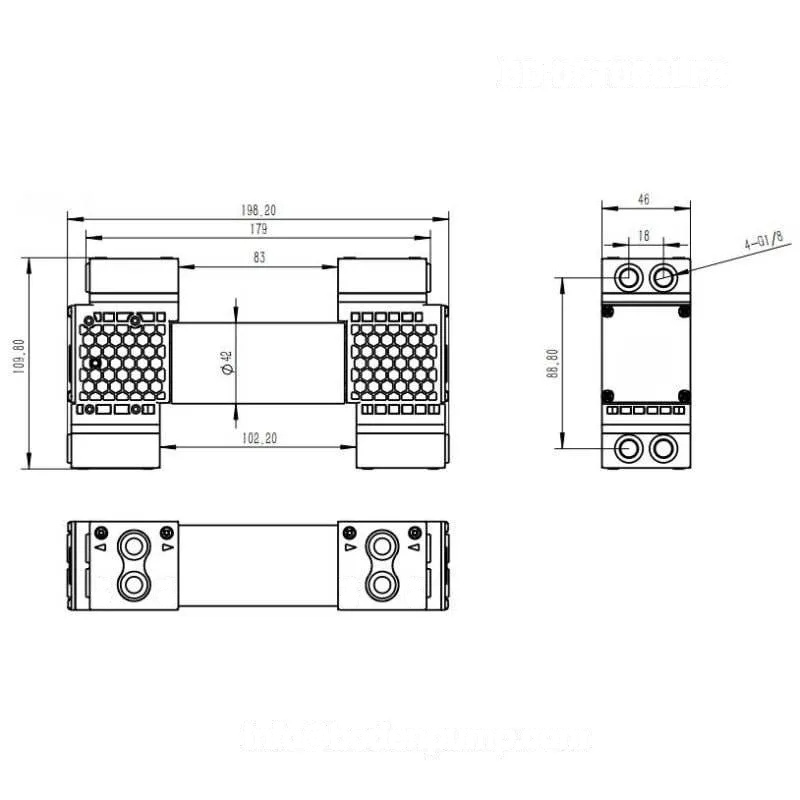

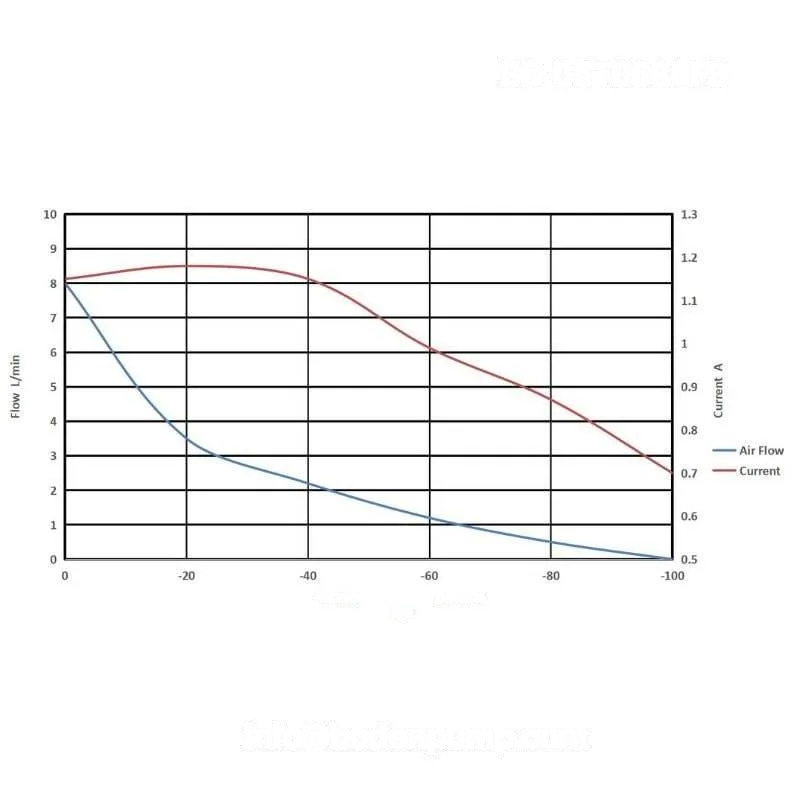

OD-05T068LFB dimensions and performance graphics
Images classified as dimensional drawings, specification graphics or performance curves are grouped here.
Application and configuration
OD-05T068LFB application fit
Use these notes to translate brochure data into selection questions: application, working point, noise, lifetime, voltage options and nearby model alternatives.
Working-point review
Confirm the loaded flow at the required pressure or vacuum, then review tubing loss, inlet filtration, valve restriction and the safety margin between nominal and maximum conditions.
Noise, lifetime and voltage
Review voltage, motor type, expected life, noise target, duty cycle and mounting isolation before requesting samples or a model-specific drawing.
- Voltage
- 12/24V
- Max Flow
- 7L/min
- Max Vacuum
- -100 kPa
- Max Pressure
- 1 Bar
Model comparison
OD-05T068LFB and nearby alternatives
When flow, pressure or vacuum, voltage, size or lifetime requirements change, compare nearby models before requesting a custom configuration.
| Model | Category | Key specifications | Next action |
|---|---|---|---|
| OD-05T068LFB | Diaphragm air / vacuum pump | Voltage 12/24V; Max Flow 7L/min; Max Vacuum -100 kPa | Current model |
| OD-04AB / OD-04VB | Diaphragm air / vacuum pump | Voltage 6/9/12/24V DC; Air flow 7-20lpm; Liquid flow 1.5 L/min | View model |
| OD-05T0610AC | Diaphragm air / vacuum pump | Voltage 200-220AC; Max Flow 7.5L/min; Max Vacuum -85 kPa | View model |
| OD-05T1043AC | Diaphragm air / vacuum pump | Voltage 220V; Max Flow 43L/min; Max Vacuum -89 kPa | View model |
Technical resources
Downloads
View product documents and engineering drawings for the OD-05T068LFB series. For 3D files matched to OD-05T068LFB, include the current model in the RFQ.
Quad-Head Diaphragm Pump OD-05T068LFB
Locally synchronized file, 241 KB.
Download PDFProduct documents and 2D drawings
View PDF product documents and engineering drawings for the OD-05T068LFB series.
View PDF resourcesCAD and configuration files
Submit the model, working point and mounting requirements for files matched to the project configuration.
Request CAD filesContinue browsing
Related pump models
Diaphragm air / vacuum pump
220V 50HZ Sampling Pump AC Gas Diaphragm Pump For CEMS OD-05T0610AC
View product
Diaphragm air / vacuum pump
Oil-Free Diaphragm Vacuum Pump AC 220V 43L Small High Vacuum Pumps -89KPA OD-05T1043AC JSG
View productRequest a quote for OD-05T068LFB
Provide the medium, flow, pressure or vacuum, voltage, duty cycle and mounting requirements so we can match the product configuration and supporting documents.
