Application scenarios
Typical uses include gas sampling, compact analyzers, medical equipment, beauty equipment and small pneumatic modules that need clean air transfer or vacuum generation.
OD-05T01HR5L
Rotary Vane Vacuum Pump - Stainless Steel 12V Gas Sampling Pump OD-05T01HR5L
High-precision 12V oil-free rotary vane vacuum pump with stainless steel housing for air particle counters, VOC analyzers, and medical instruments.
Diaphragm air / vacuum pumpOD-05T01HR5L28 technical parameters2 technical drawings
Product functions
Key functions
OD-05T01HR5L supports the following roles in equipment fluid systems. Use the technical parameters below together with the actual working point for selection.
Function 1Air transfer
Function 2Vacuum generation
Function 3Equipment-level integration

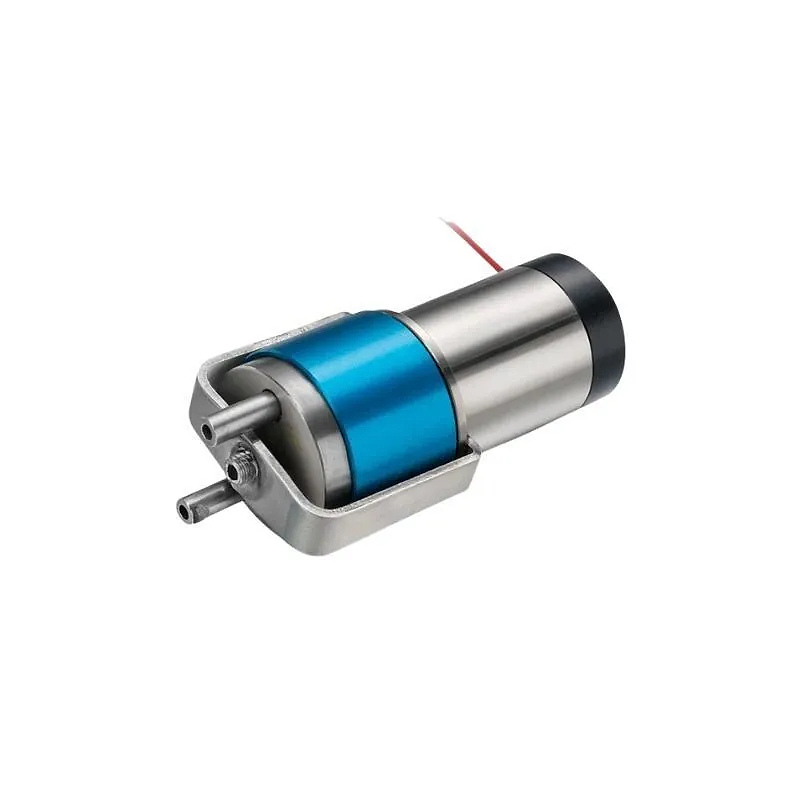

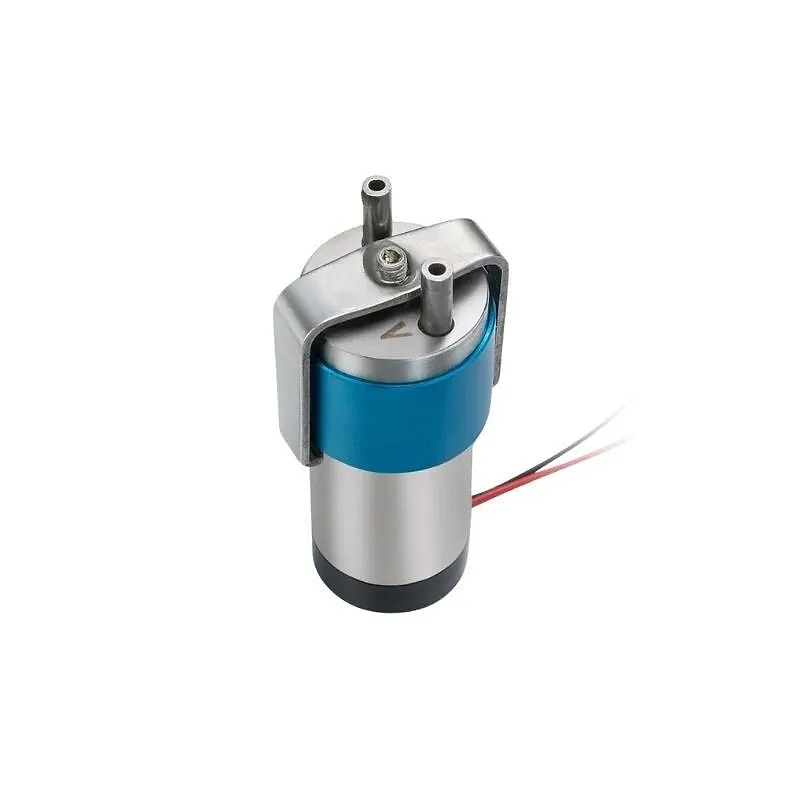

White-background imagery
OD-05T01HR5L product images
These images are served from the synchronized local product library as white-background product views.
Product data
Technical specifications
The following specifications apply to OD-05T01HR5L. Also consider the medium, working point, power supply, duty cycle and installation conditions when selecting the product.
Voltage12V
Max Flow1-5L/min
Max Vacuum-12 kPa
Max Pressure+12 kPa
MotorIronless dc motor
Max Power3 W
Weight118 g
ParameterValue
ModelOD-05T01HR5L
Voltage Range12 V DC
Max Flow Rate1-5 L/min
Max Vacuum (Negative)-12 kPa
Max Pressure (Positive)+12 kPa
Motor TypeIronless DC Motor
Protection ClassIP20
Dimensions64 × 26 × 30 mm
Operating Temperature-20 ℃ ~ 50 ℃
Storage Temperature-40 ℃ ~ 60 ℃
ComponentMaterial
Pump Head304 Stainless Steel
Pump Case304 Stainless Steel
VanesGraphite
Customization ItemAvailable Options
Flow Rate ControlCustom voltage or PWM feedback options
Cable & ConnectorTailored wiring harness for OEM integration
Material CustomizationAlternative vane or housing options
Labeling & BrandingOEM logo or white-label support
Mounting AccessoriesShock-absorbing rubber bases (optional)

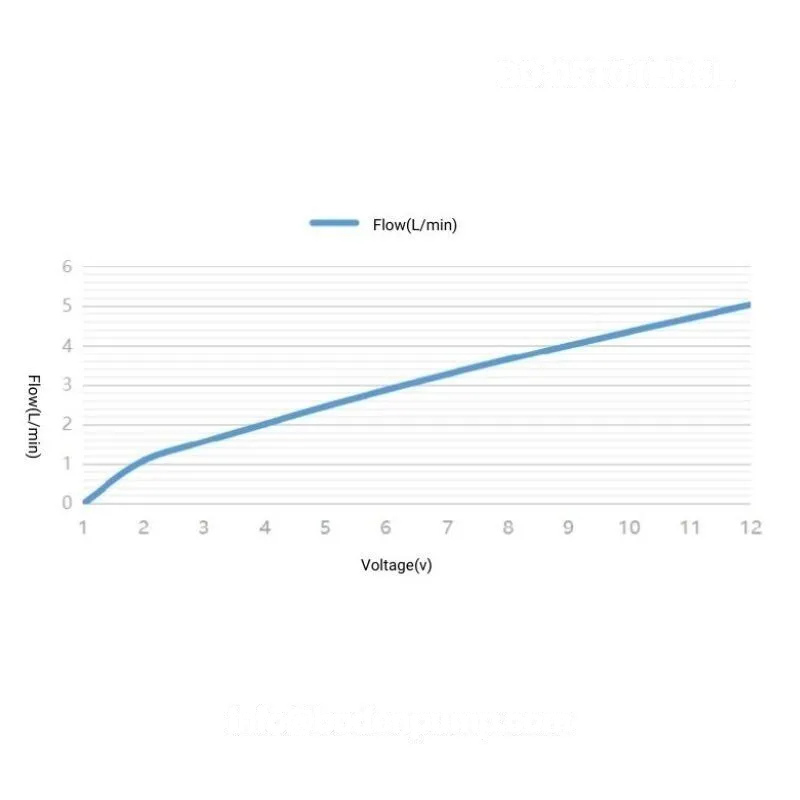

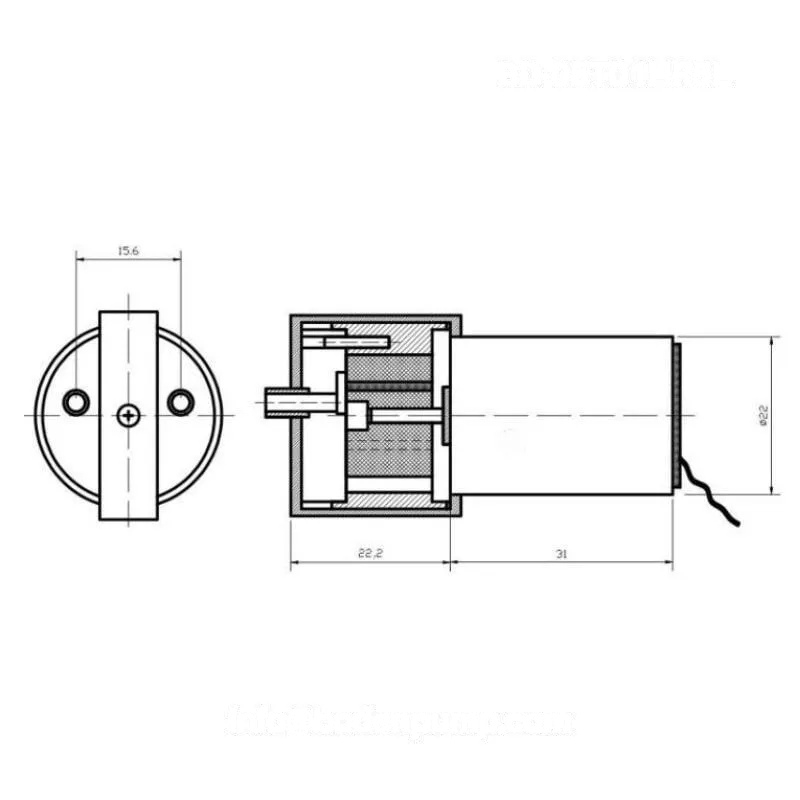

Technical drawings
OD-05T01HR5L dimensions and performance graphics
Images classified as dimensional drawings, specification graphics or performance curves are grouped here.
Application and configuration
OD-05T01HR5L application fit
Use these notes to translate brochure data into selection questions: application, working point, noise, lifetime, voltage options and nearby model alternatives.
Working-point review
Confirm the loaded flow at the required pressure or vacuum, then review tubing loss, inlet filtration, valve restriction and the safety margin between nominal and maximum conditions.
Noise, lifetime and voltage
Review voltage, motor type, expected life, noise target, duty cycle and mounting isolation before requesting samples or a model-specific drawing.
- Voltage
- 12V
- Max Flow
- 1-5L/min
- Max Vacuum
- -12 kPa
- Max Pressure
- +12 kPa
Model comparison
OD-05T01HR5L and nearby alternatives
When flow, pressure or vacuum, voltage, size or lifetime requirements change, compare nearby models before requesting a custom configuration.
| Model | Category | Key specifications | Next action |
|---|---|---|---|
| OD-05T01HR5L | Diaphragm air / vacuum pump | Voltage 12V; Max Flow 1-5L/min; Max Vacuum -12 kPa | Current model |
| OD-04AB / OD-04VB | Diaphragm air / vacuum pump | Voltage 6/9/12/24V DC; Air flow 7-20lpm; Liquid flow 1.5 L/min | View model |
| OD-05T0610AC | Diaphragm air / vacuum pump | Voltage 200-220AC; Max Flow 7.5L/min; Max Vacuum -85 kPa | View model |
| OD-05T1043AC | Diaphragm air / vacuum pump | Voltage 220V; Max Flow 43L/min; Max Vacuum -89 kPa | View model |
Technical resources
Downloads
View product documents and engineering drawings for the OD-05T01HR5L series. For 3D files matched to OD-05T01HR5L, include the current model in the RFQ.
OD-05T01HR5L Miniature Rotary Vane Vacuum Pump Specification
Locally synchronized file, 144 KB.
Download PDFProduct documents and 2D drawings
View PDF product documents and engineering drawings for the OD-05T01HR5L series.
View PDF resourcesCAD and configuration files
Submit the model, working point and mounting requirements for files matched to the project configuration.
